RS485 BWL316S

KWD 85.500

مقاسRS485 BWL316S

High Accuracy: Provides precise angle measurements for critical applications
Real-Time Tilt Monitoring: Instantly detects and reports changes in tilt angle
Easy to Install: Compact design with simple mounting options
Inclinometers measure angle, level, and tilt for guidance and safety in tunneling, vehicles, platforms, medical gear

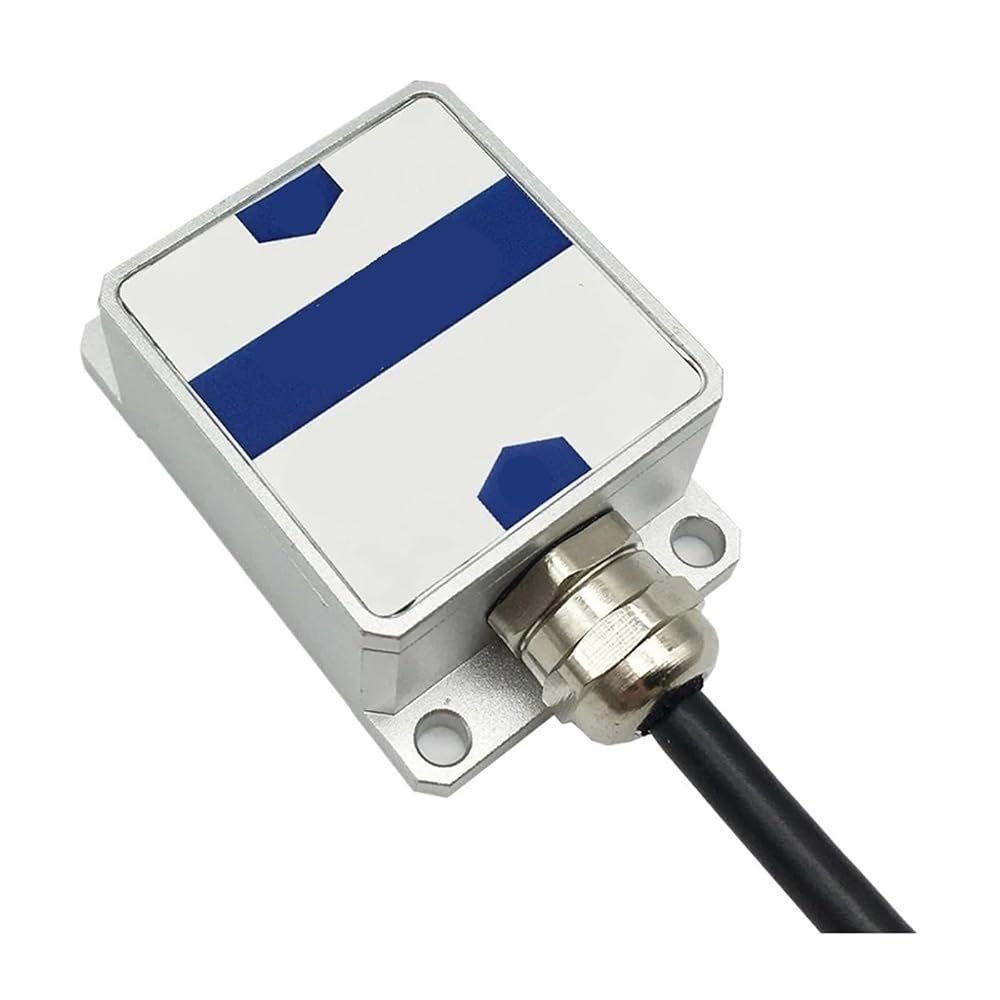

BWL316S/BWL317S Single shaft inclinometer angle sensor

Resolution: 0.01°

Accuracy: 0.1°

Optional RS232/485/TTL output interface

Measuring range ±90°/±180° optional

Wide temperature -40~+85

Wide Voltage Input: 9~35V

Fix: M4 X4 screws

Measuring range: 0 ~+/-180 degrees

Voltage: 9~35V

Current consumption: 20-40 mA

Operating Temperature: -40 ~85℃

Storage temperature: -55~100℃

Installation (default): Horizontal installation

Installation (optional): vertical installation (pendulum or wall-mounted): leave us a message

Output Mode: RS232 / RS485 / TTL (optional, choose one)

Product size: 55*37*24 (mm) With 1.5m cable
