USB Digital Isolator, USB Ground Loop Isolator with 480Mbps High Speed Isolation Voltage, Support for ADUM3165 Chip, to Coupling Protection Board (Black) in Kuwait

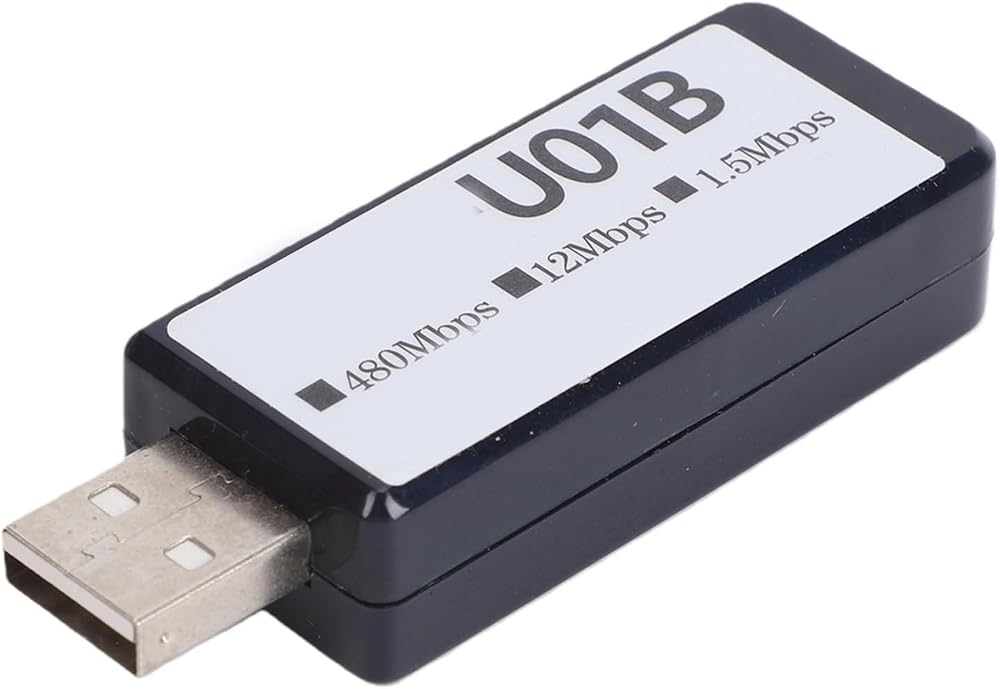

USB Digital Isolator, USB Ground Loop Isolator with 480Mbps High Speed Isolation Voltage, Support for ADUM3165 Chip, to Coupling Protection Board (Black)

KWD 16.500
ColorBlack
– 1 +

Special Features

  • 480M High Speed Isolator: Realizes passive isolation of high speed 480M, full speed 12M and low speed 1.5M, effectively prevents ground noise, electrical interference, electrostatic breakdown and signal fluctuation. Suitable for USB isolated communication in strong electric power, strong interference working environment or noise sensitive areas.
  • Support for ADUM3165 Chip: Supports auto negotiates USB interface speed, adapting and switching according to the speed provided by the host computer. Isolation levels up to 3.75kV RMS. Redriving and high speed data retiming for input jitter removal and an open eye.
  • Applications: Various industrial control USB devices where USB equipment frequently fails, such as keyboards, USB to serial converters, and other communication devices. The USB isolator effectively reduces the probability of failure and damage to these devices in industrial environments. Sometimes when you need to extend USB cables, the USB isolator can serve as an excellent USB repeater and also isolate ground voltage differences between upstream and downstream devices.
  • USB Debugging Tool: For example, various USB interface JTAG or SWD emulators, ISP, ASP, ICP programmers. When connection issues or simulation anomalies frequently occur during debugging, use the USB isolator to improve the situation.
  • Noise Sensitive Areas: Computers are a major source of noise. In noise sensitive areas, use this device to isolate USB interface communication, for example, in high accuracy USB data acquisition systems, HiFi sound systems, and DAC decoders.

Description

6. High Voltage, High Interference Scenarios: Certain circuits involve high voltage and strong interference (e.g., high voltage circuits, inverters, motor drives). When connecting to a computer, isolation is required to ensure computer and personal safety.
7. Easy to Use: No driver or software required. Support for 7, 8, 10, 11, support for OS X, support for Linux, and other systems. An ideal choice for protecting and isolating USB devices such as microcontrollers (e.g., support for RasPi), industrial control equipment, and noise sensitive areas.
8. Other Common USB Peripherals: For example, keyboards, USB sound cards, USB flash drives, printers, digital cameras, USB hubs, USB webcams, DAC decoders, virtual oscilloscopes, and other USB 2.0 peripherals.

Specification:
Item Type: USB Digital Isolator
Material: ABS
Interface: USB to USB
Transfer Speed: Support USB 2.0 High Speed 480Mbps, USB 1.1 Full Speed 12Mbps, USB 1.0 Low Speed 1.5Mbps
Output Current: 400mA
Support: Support for Bcontrol Remote Transfer, Bulk Transfer, Interrupt Transfer, Synchronous or Isochronous Transfer

How to Use:
Take out the product and it's ready to use.

PackageList:
1 x USB Digital Isolator
