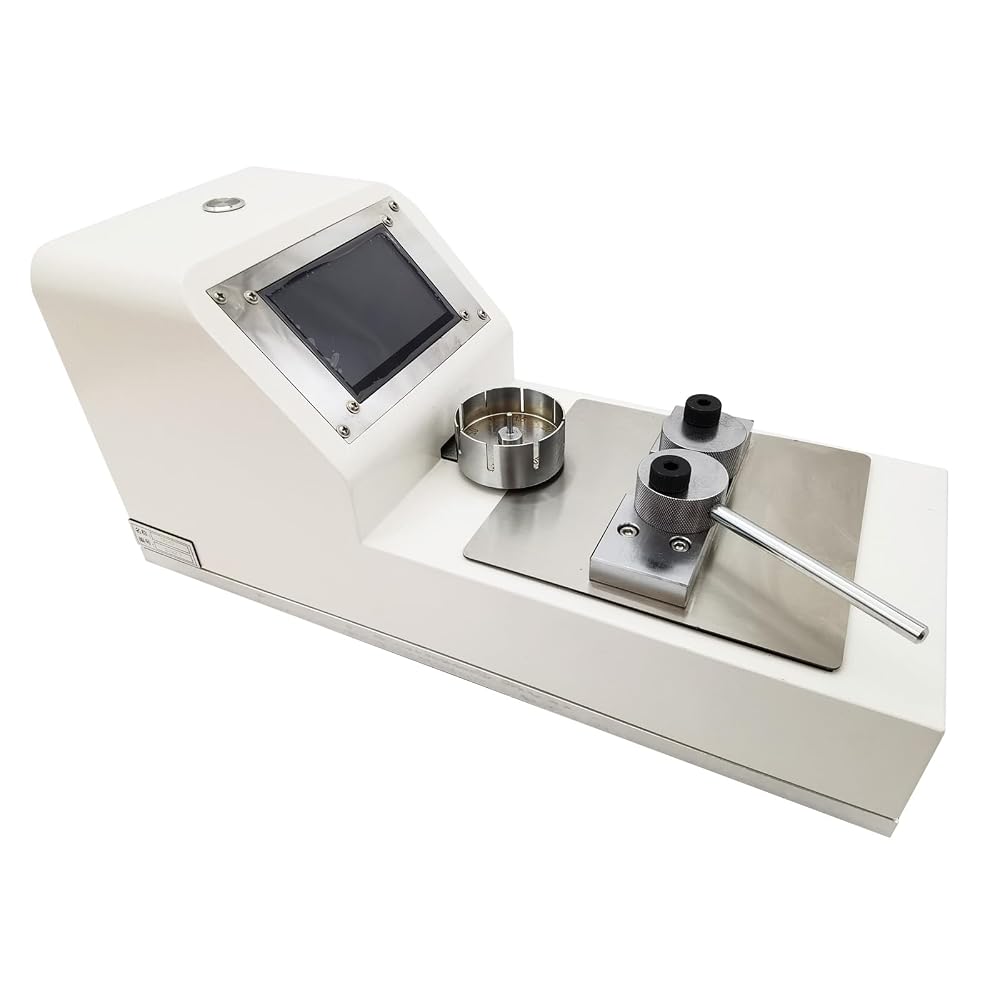

Automatic Wire Crimp Terminal Pull Tester 490N(50kgf) 110V | 100W, Touch Screen, 600mm/min

KWD 334.500
Brand
Banfluxion
Weight
12.3 kg
– 1 +

Special Features

  • Main Parameters: Unit of measurement: kg.f / N / LB, Maximum speed: 600mm/min(real measured data), Testing range: ≤490N(50kgf), Testing accuracy: ± 0.09lbs(0.04kg)

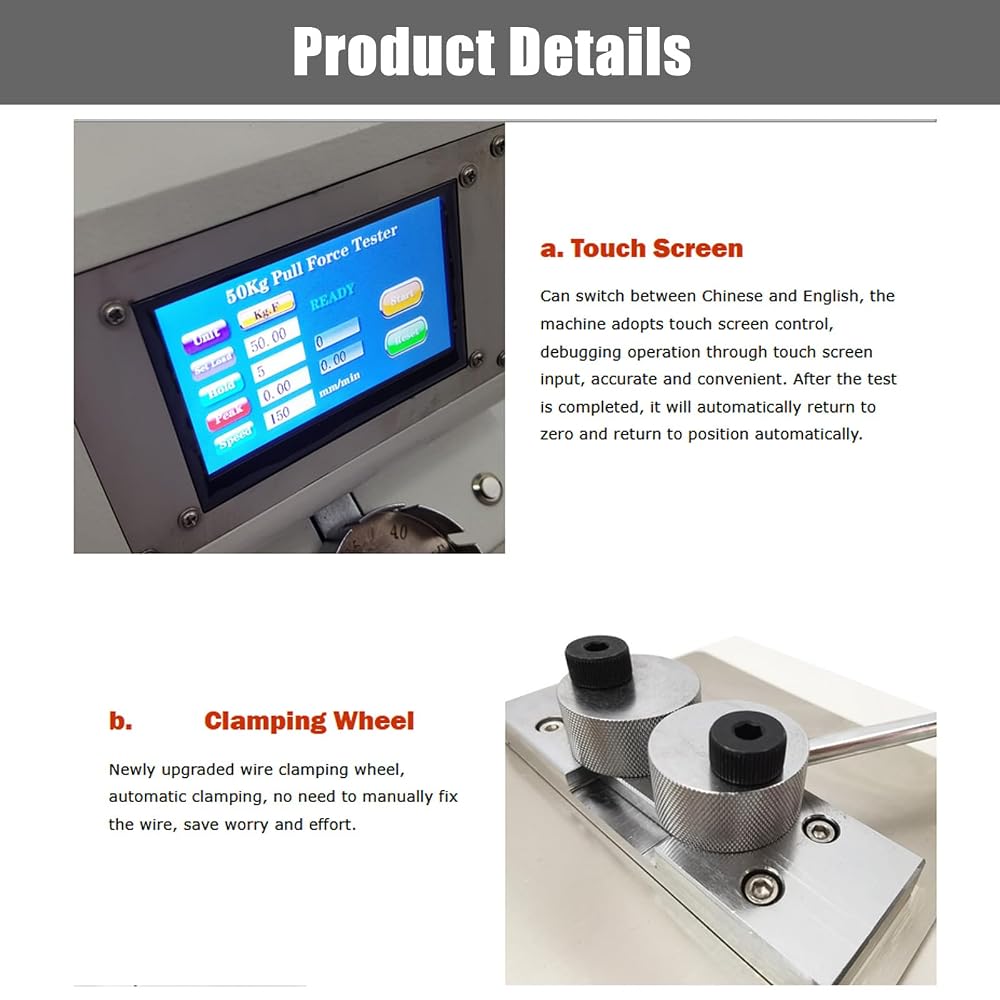

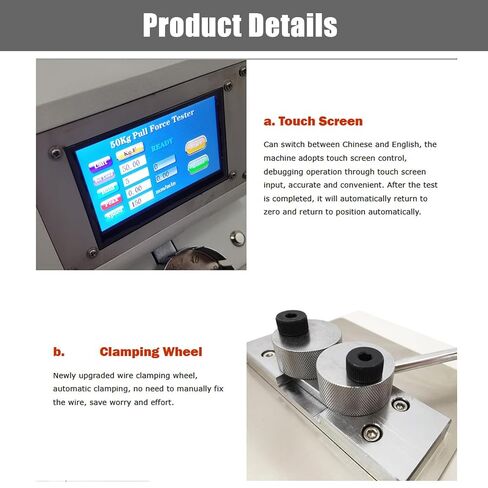

  • The tensile testing machine is equipped with a touch screen control, debugging operation through touch screen input, accurate and convenient. After the test is completed, it will automatically return to zero and return to position automatically
  • The machine adopts newly upgraded wire clamping wheel, which can achieve automatic clamping, no need to manually fix the wire, saving worry and effort

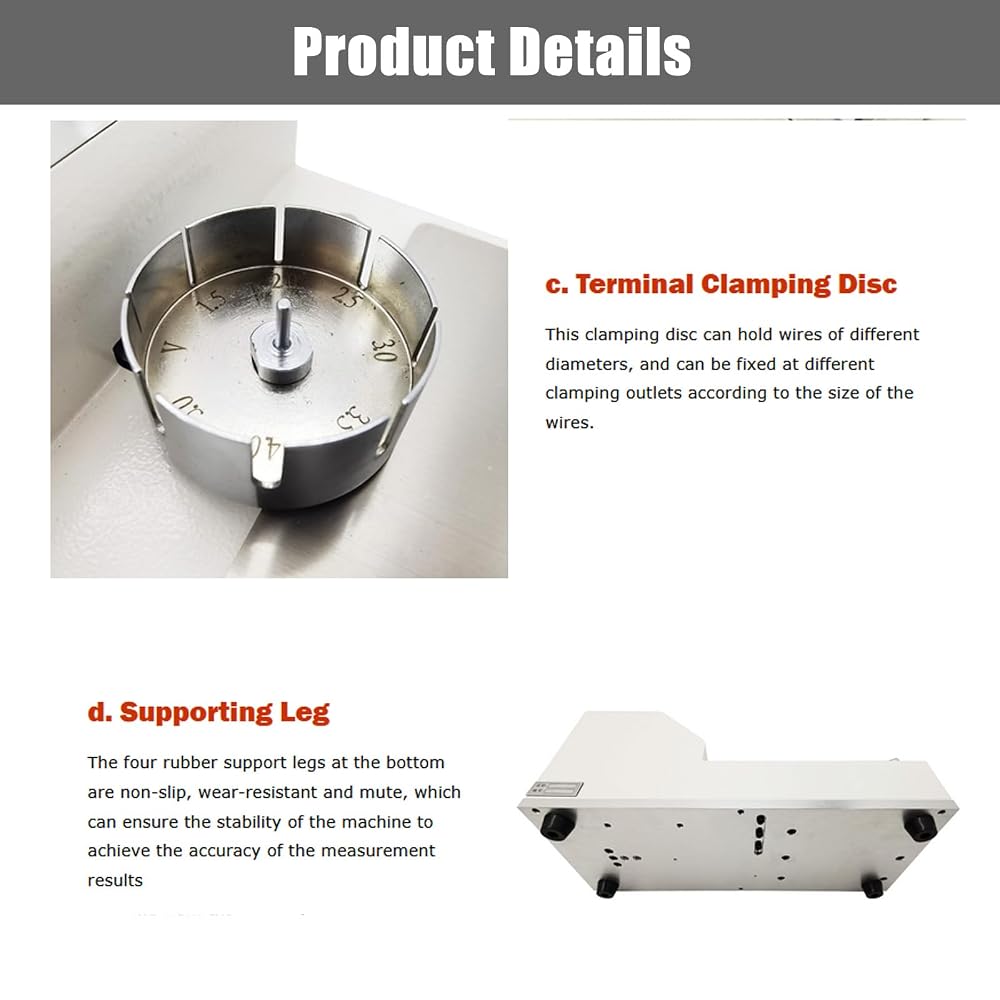

  • The terminal clamping disc of the machine can hold wires of different diameters, and can be fixed at different clamping outlets according to the size of the wires
  • There are four rubber support legs at the bottom, which are non-slip, wear-resistant and mute, ensuring the stability of the machine to achieve the accuracy of the measurement results

Description

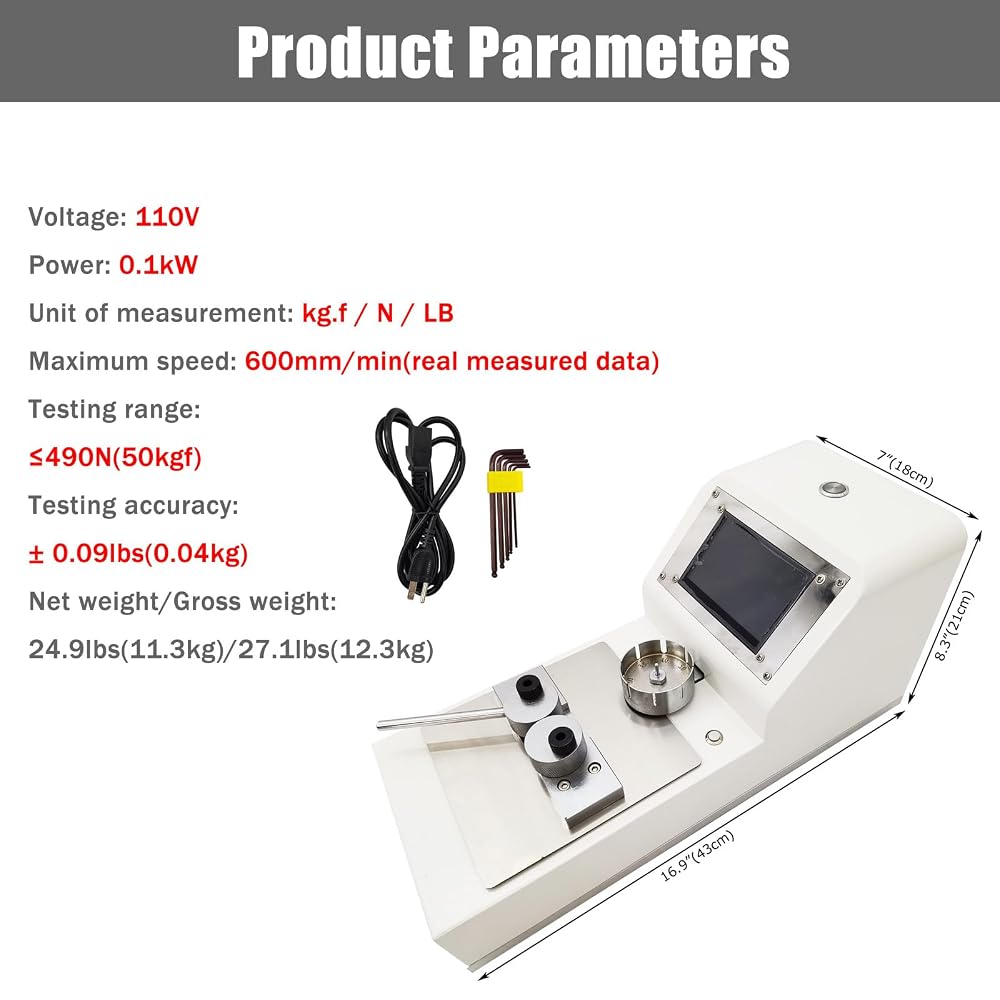

Product Parameters
Voltage: 110V
Power: 0.1kW
Unit of measurement: kg.f / N / LB
Maximum speed: 600mm/min(real measured data)
Testing range: ≤490N(50kgf)
Testing accuracy: ± 0.09lbs(0.04kg)
Package size: 20"*10.2"*11" (51cm*26cm*28cm)
Net weight/Gross weight: 24.9lbs(11.3kg)/27.1lbs(12.3kg)
Item Included:
Tensile Testing Machine*1
Power Cord *1
Wrench *5
