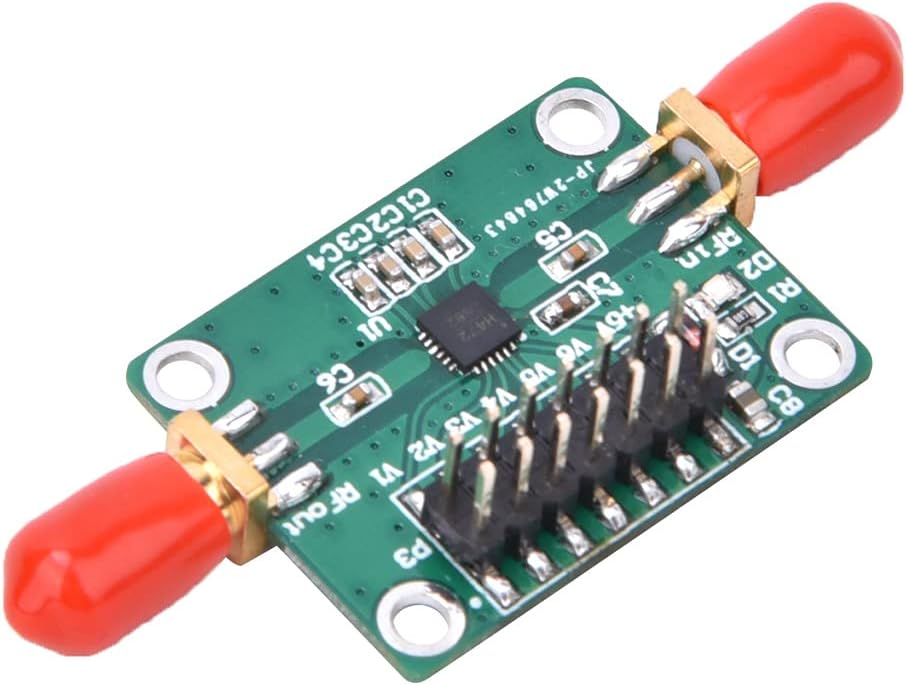

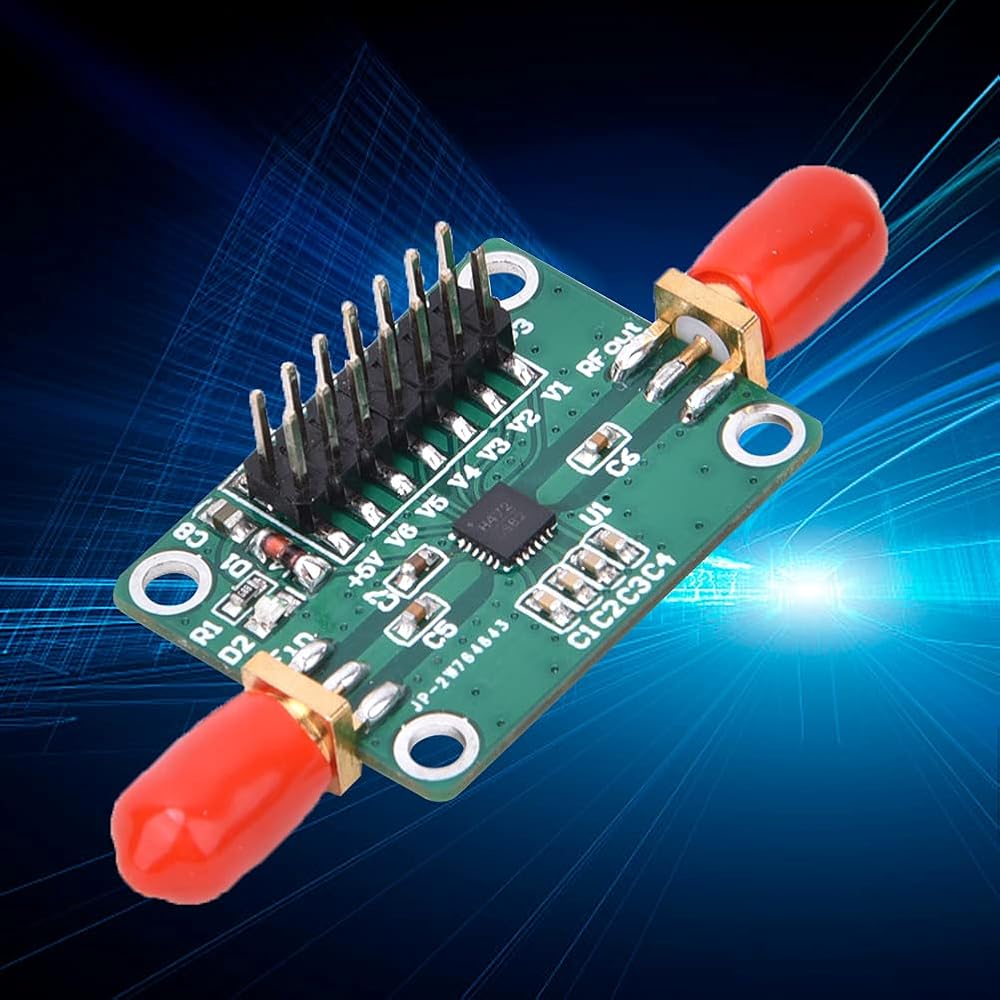

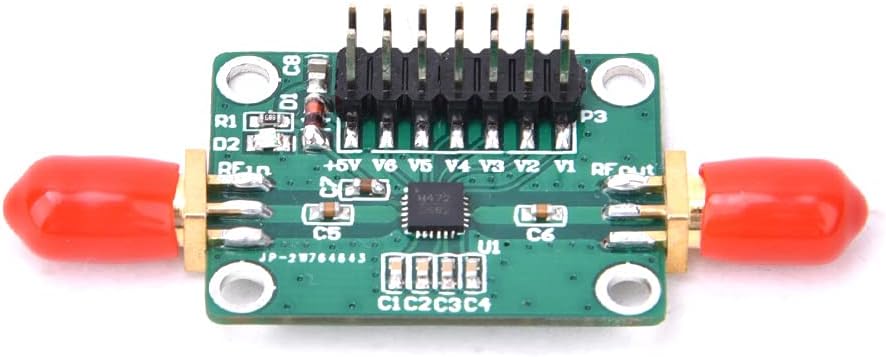

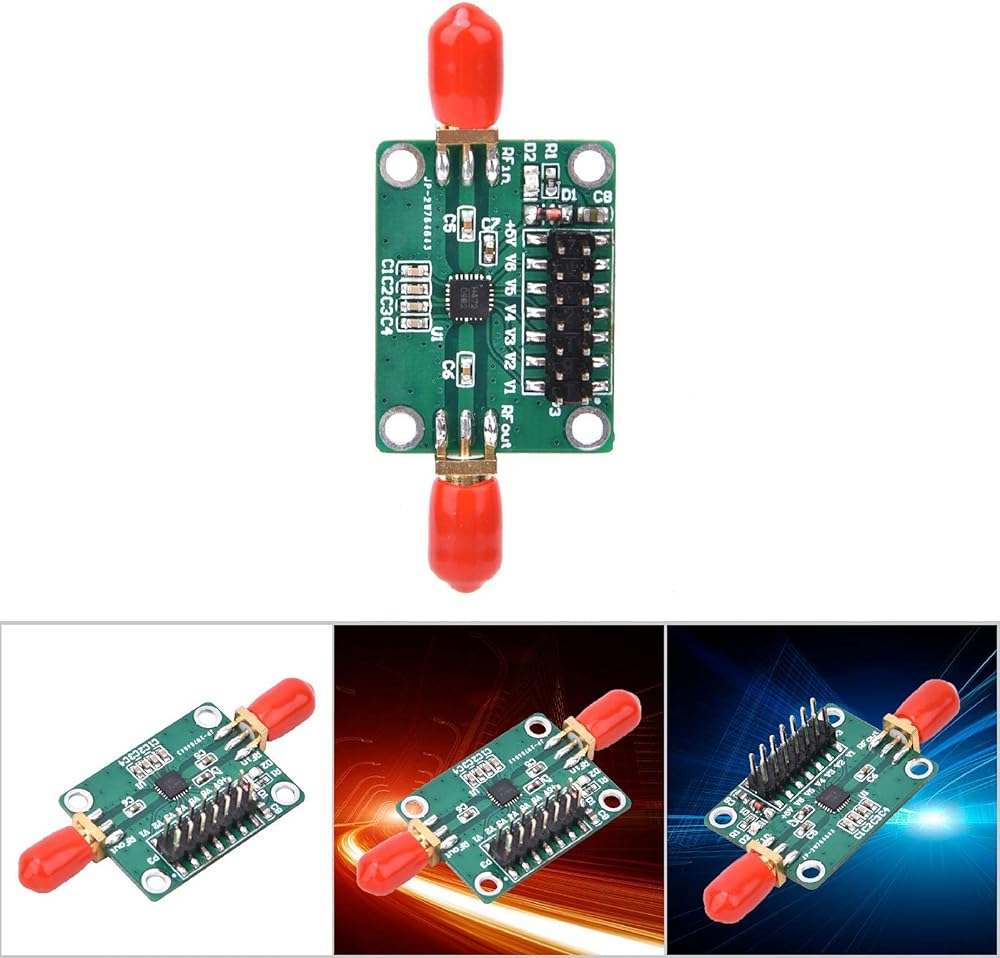

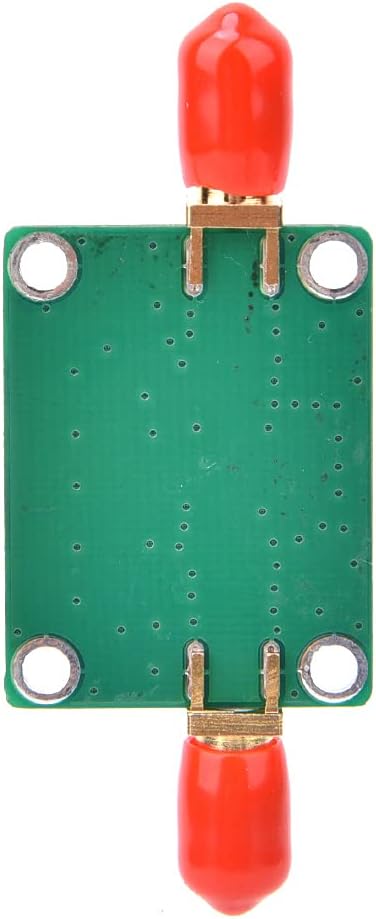

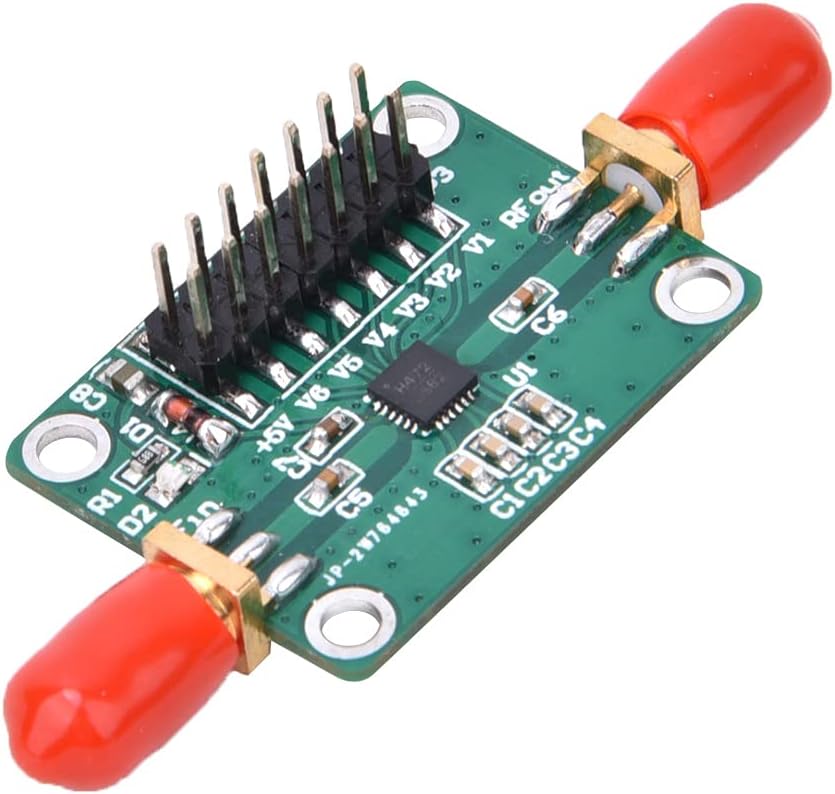

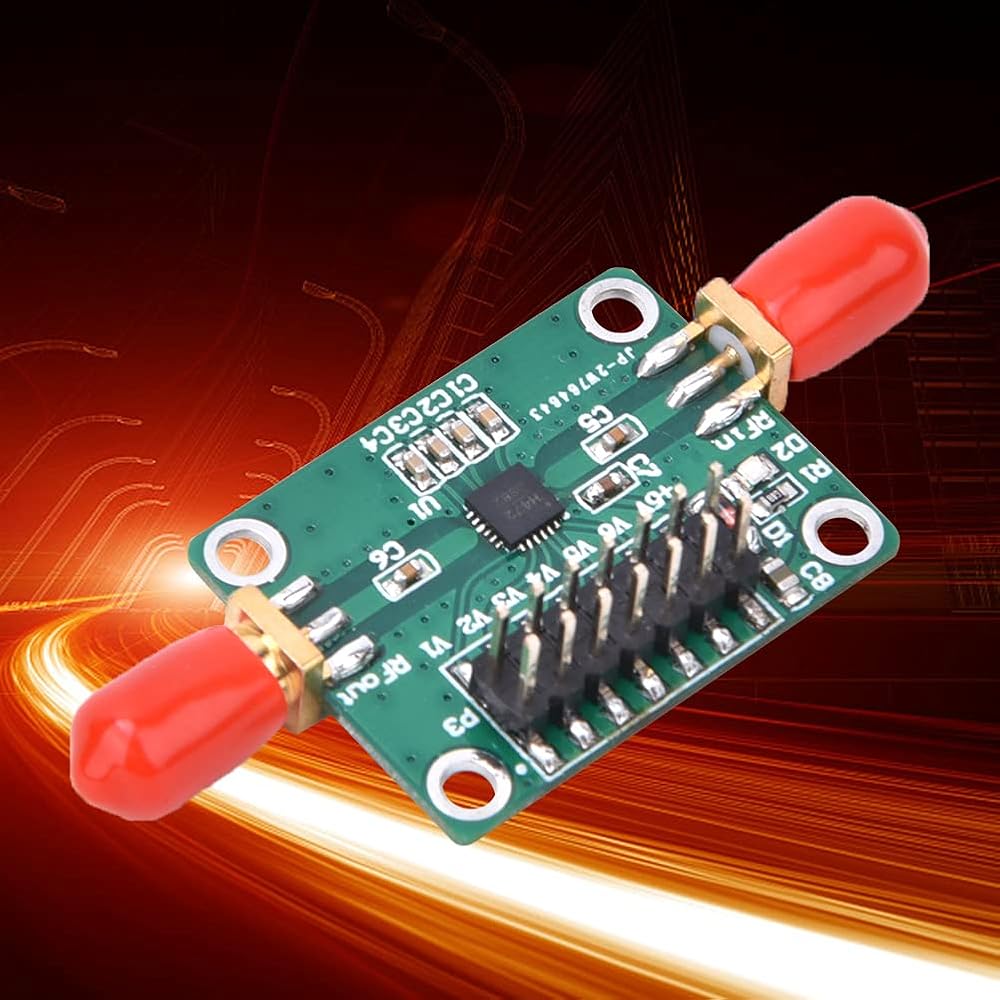

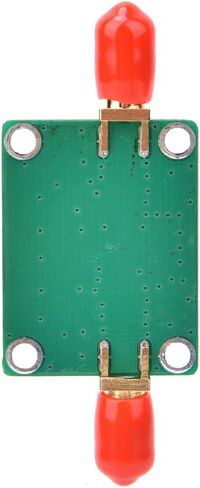

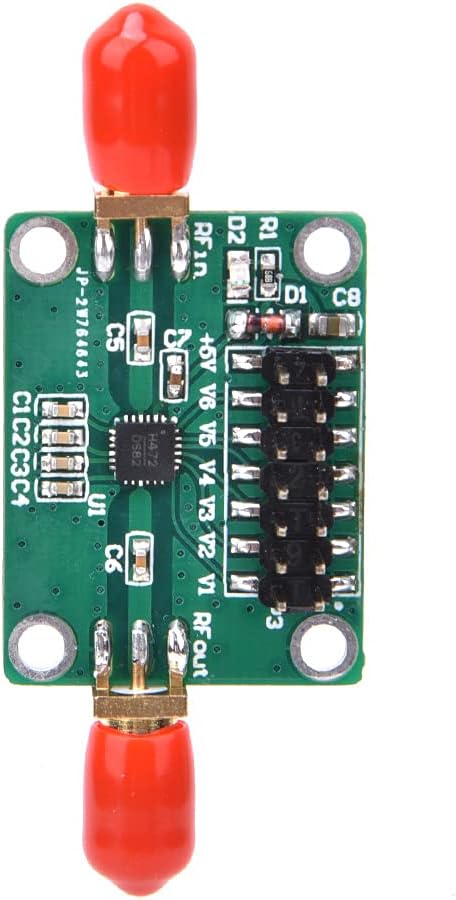

Gavigain HMC472 1M-3.8G RF Attenuator Module 0.5dB Step Low Insertion Loss Digital Program Controlled Module

KWD 5
Brand
Gavigain
Weight
15 g
– 1 +

Special Features

  • The HMC472 is a wideband 6-bit digital attenuator with an attenuation range of 0 to 31.5 dB and a typical step error of ± 0.25 dB.
  • Adopt QFN surface mount package, uses single power supply 5V, working frequency range from DC to 3.8 GHz.
  • Suitable for a variety of RF and IF applications.
  • Insertion loss is less than 2.0 dB (typical) and IIP3 is +54 dBm.
  • Made of electronic components, stable and reliable.

Description

Item Type: RF Attenuator Module
Operating Frequency Range: 1 ~ 3.8GHz
Input Signal Maximum Power: 20dBm
Attenuation Factor and Step Size: Attenuation factor is 0~31.5dB, step size is 0.5dB
Insertion Loss: Less Than 2.0dB
Attenuation Control Interface: Manually adjust the control through the 6-position pin header on the board
Input and Output Impedance: 50Ω
Power Supply: Typical value +5V, maximum can not exceed +7V
Input and Output Interface: SMA interface inner screw hole

Package List：
1 x Module
