Real-time measurement: Instantly captures dynamic torque variations for precise monitoring
High accuracy: Provides accurate torque readings with minimal error, suitable for critical applications
Bidirectional measurement: Capable of measuring both clockwise and anti-clockwise torque
Overload protection: Designed to withstand peak loads without damage
Compact design: Space-saving form factor, facilitating installation in confined spaces
Wide range of applications: Suitable for motor testing, powertrain development and more

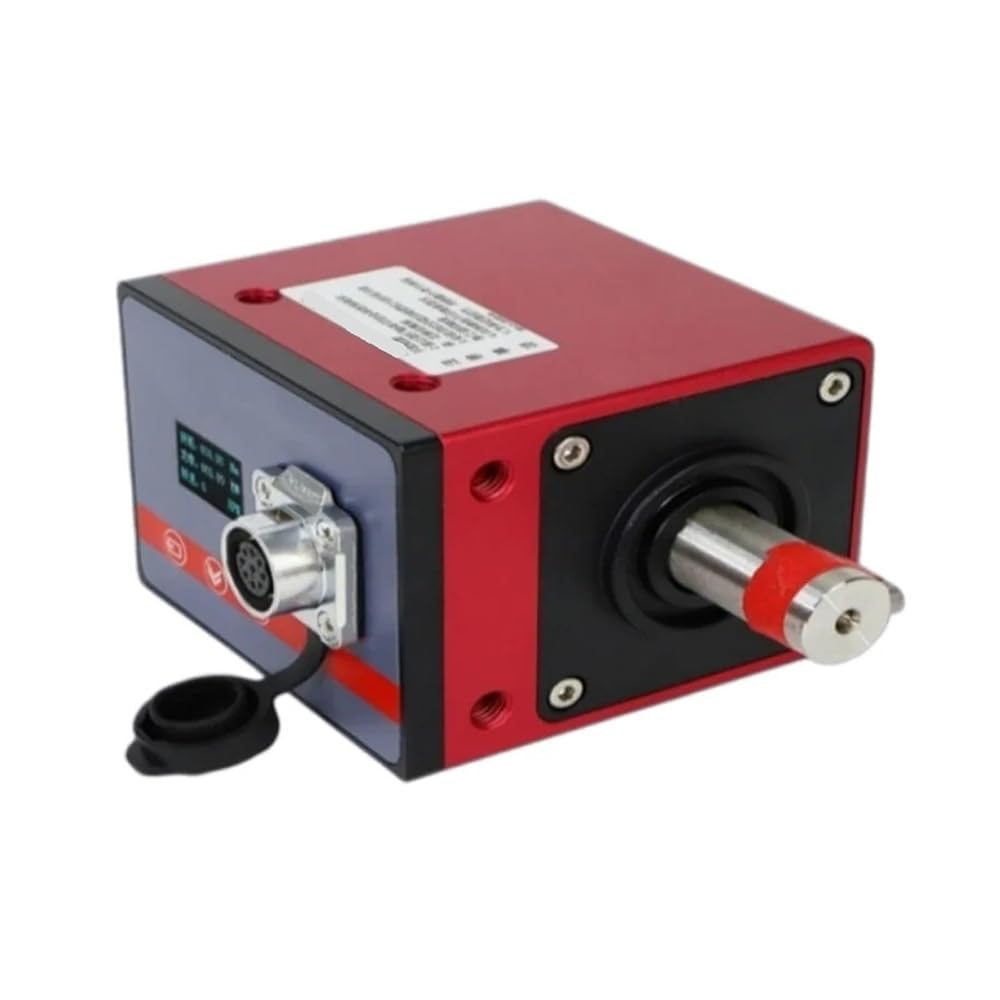

Product Name:
Dynamic Torque Sensor

Voltage:
DC24V

Power:
100W
Product model:
Model: DYN200 (0 - 0.1NM)
Model: DYN200 (0 - 0.2NM)
Model: DYN200 (0 - 0.3NM)
Model: DYN200 (0 - 0.5NM)

Product Introduction:
Measuring Range: 0.1-10N.M

Non-linearity: 0.1%F.S.

Repeatability: 0.03%F.S.

Creep (30min): 0.03%F.S/30min

Zero Output: 0.05%F.S.

Zero Temperature Coefficient: 0.01%F.S./10°C

Response Time: 0.6ms (50% reaction)

Sampling Speed: 1200 times/sec

Display Range: -99999-99999

Maximum Torsion Angle: 2.60×10 rad (0.149°)

Moment of Inertia: 0.38×10¹ - 0.35×10³ kg.cm²

Rotor Vibration Natural Frequency: 19.4kHz

Torsion Constant: 3.85×10 Nm/rad

Torque Output: 4-20mA, 0-20mA, 0-5V, 0-10V ±5V (±10V customizable)

Default Rated Speed: 8000RPM

Material: Stainless Steel

Load Resistance: 2k

Operating Voltage: DC24V 0.2A

Safe Overload: 150%

Operating Temperature Range: -20°C to +50°C

Voltage : DC24V

Power : 100W

Package Size : 32*29*17CM
