Special Features

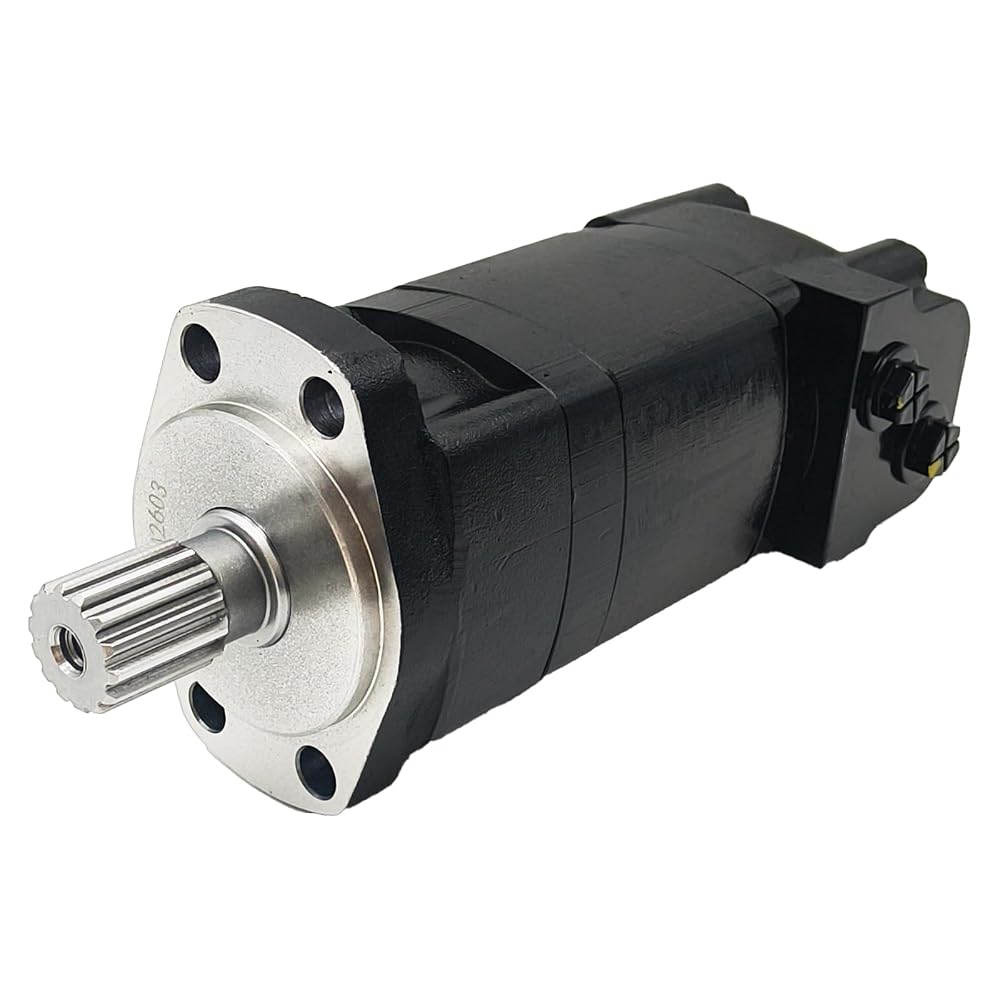

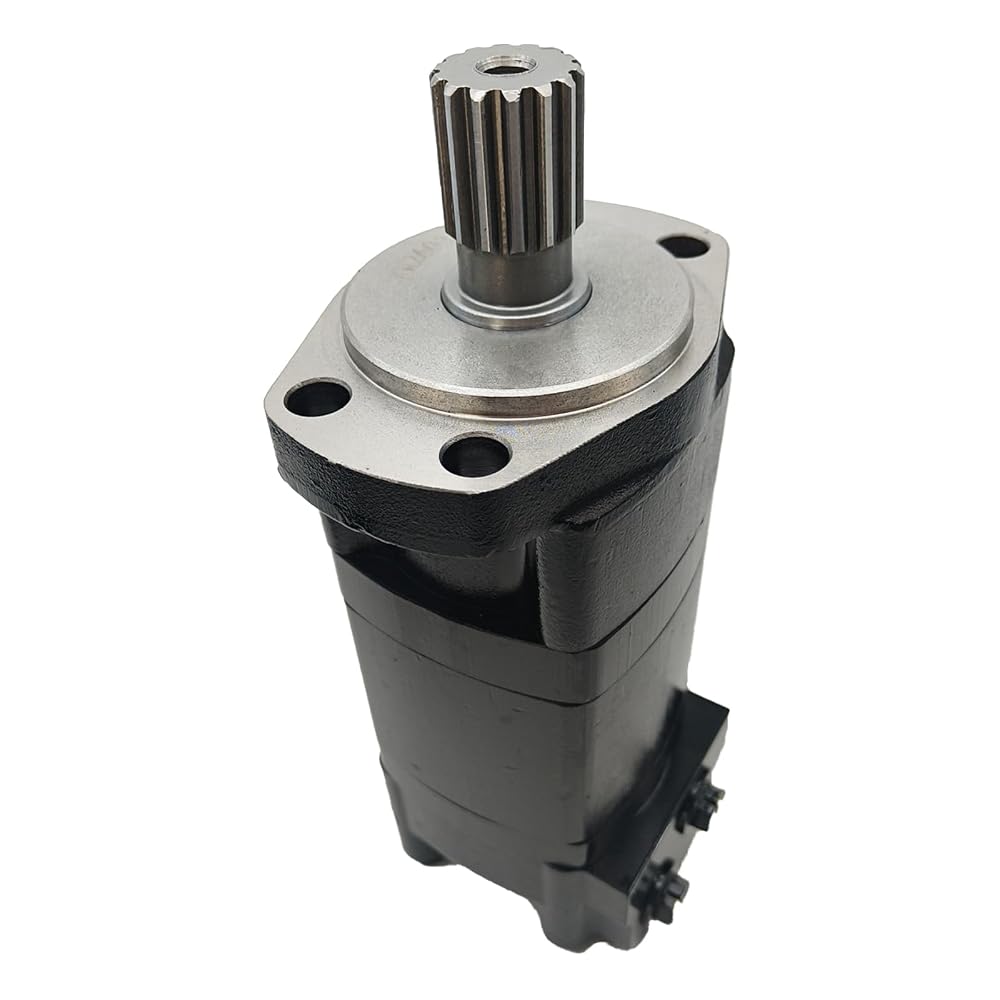

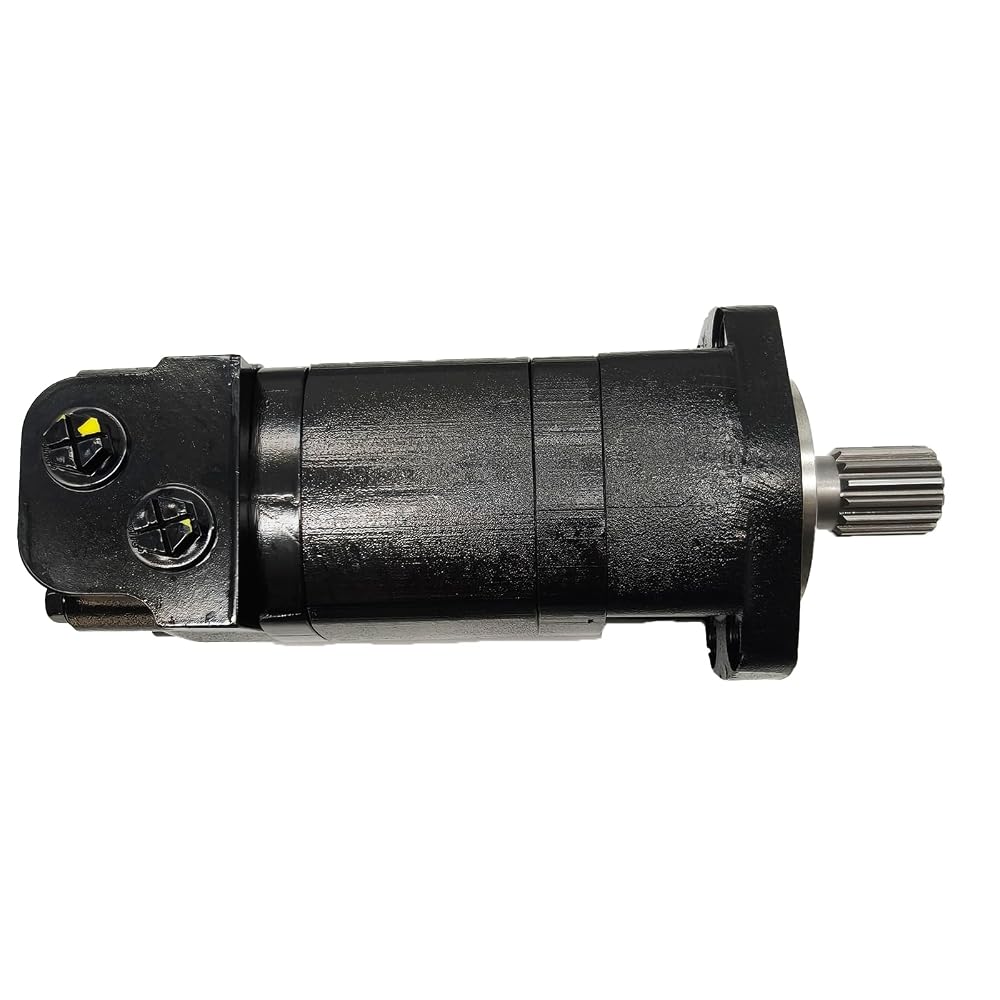

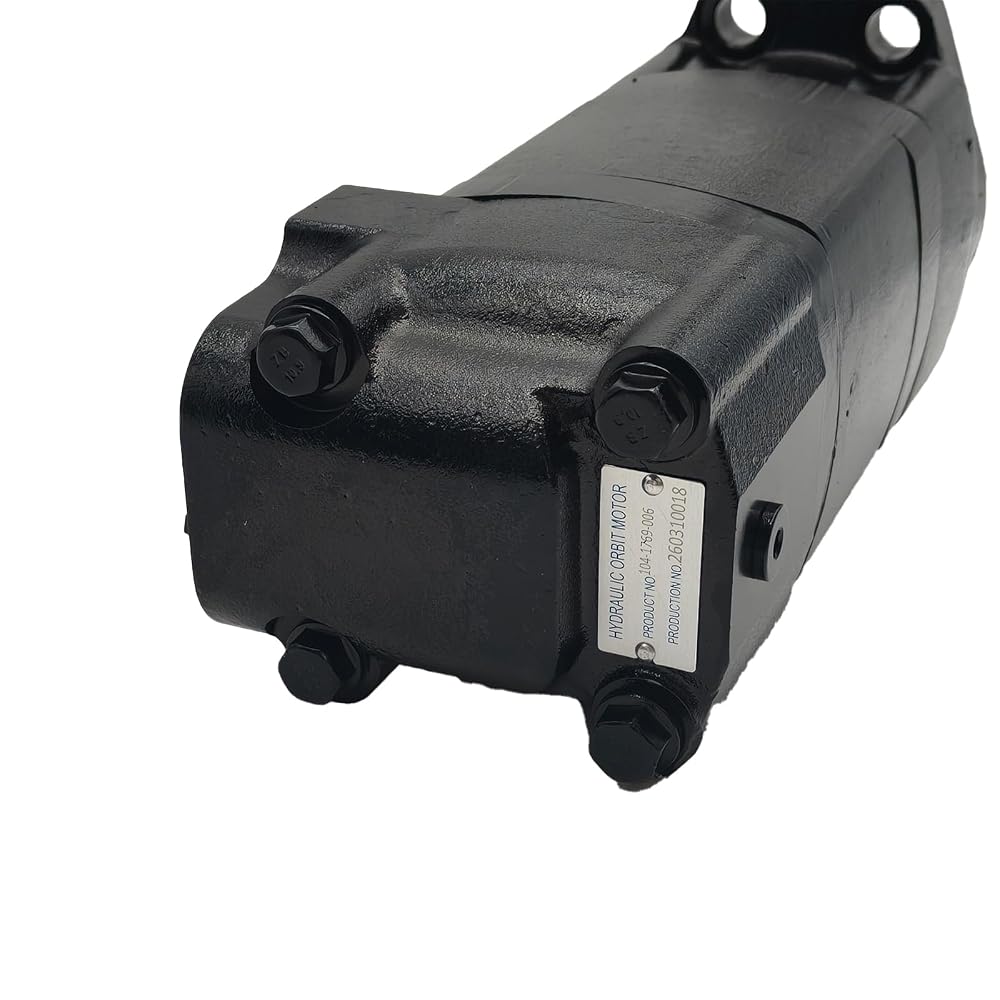

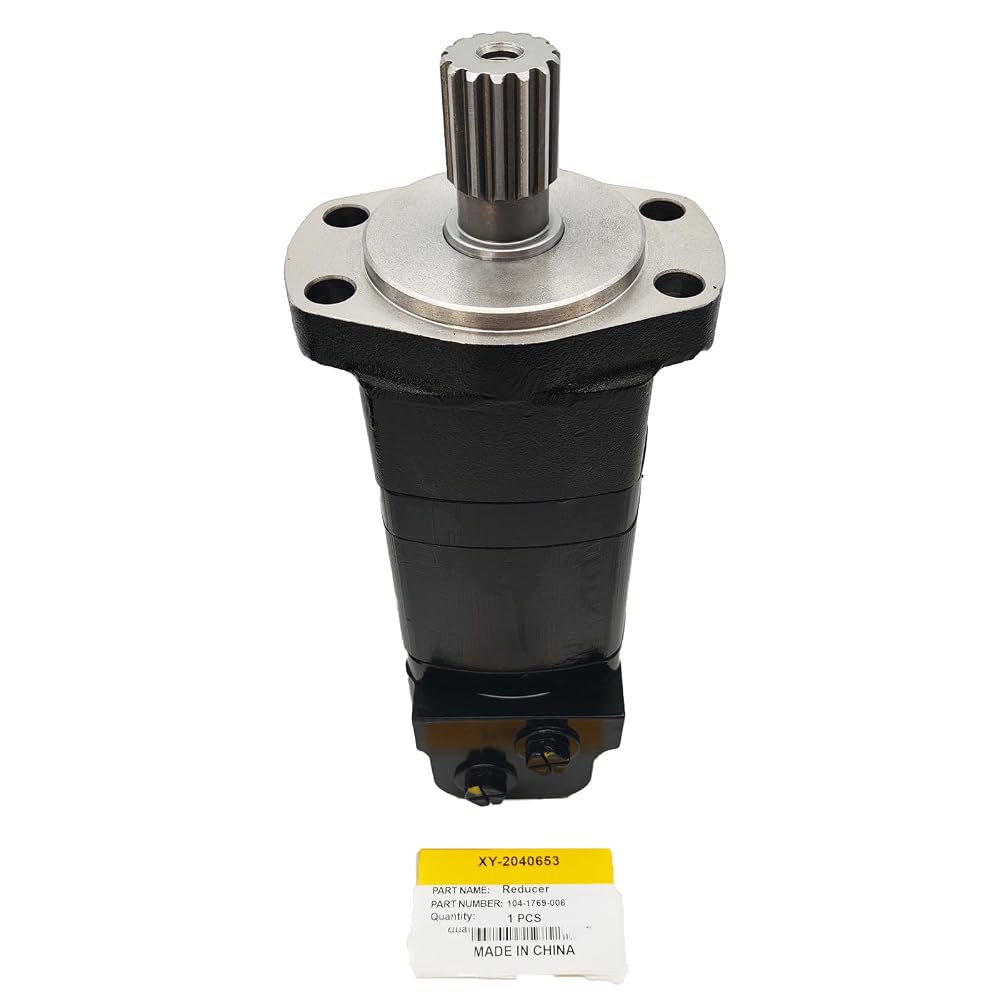

◆Part Name◆:Hydraulic Motor
◆Part Number◆:104-1769-006 104-1769 1041769006 1041769 ◆Application◆:Fits for Char-Lynn 2000 SERIESS
SERIES:2000 SERIES ◆DISPLACEMENT◆:393.8 CM3/R [24.03 IN3/R] ◆MOUNTING TYPE◆:STANDARD (MAGNETO), 4 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. 2.79 [.110] PILOT LENGTH ◆OUTPUT SHAFT◆:31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE WITH .375-16 UNC-2B THREAD IN END, 33.0 [1.30] MINIMUM FULL SPLINE LENGTH ◆PORT TYPE:.875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS
◆Notice◆-Application information provided is for reference only. Please confirm the part number and compare old parts before purchase. If you have any question,pls feel free to ask us.
◆Worth Choice◆-This product has stable performance high reliability easy installation and fast response.

Description

◆Part Name◆:Hydraulic Motor
◆Part Number◆:104-1769-006 104-1769 1041769006 1041769
◆Application◆:Fits for Char-Lynn 2000 SERIES
SERIES:2000 SERIES
◆DISPLACEMENT◆:393.8 CM3/R [24.03 IN3/R]
◆MOUNTING TYPE◆:STANDARD (MAGNETO), 4 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. 2.79 [.110] PILOT LENGTH
◆OUTPUT SHAFT◆:31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE WITH .375-16 UNC-2B THREAD IN END, 33.0 [1.30] MINIMUM FULL SPLINE LENGTH
◆PORT TYPE:.875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS

Hello,

Search

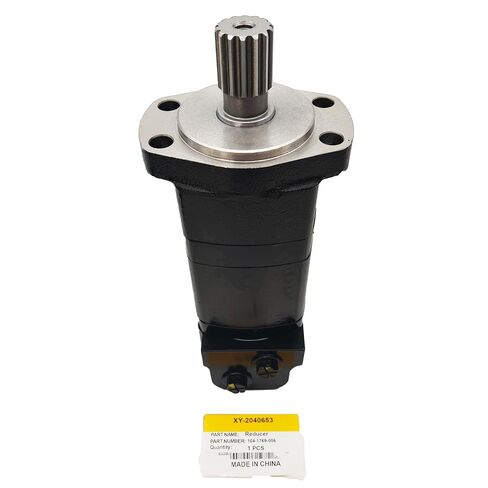

104-1769-006 104-1769 Hydraulic Motor Fits for Char-Lynn Char-Lynn 2000 Series
