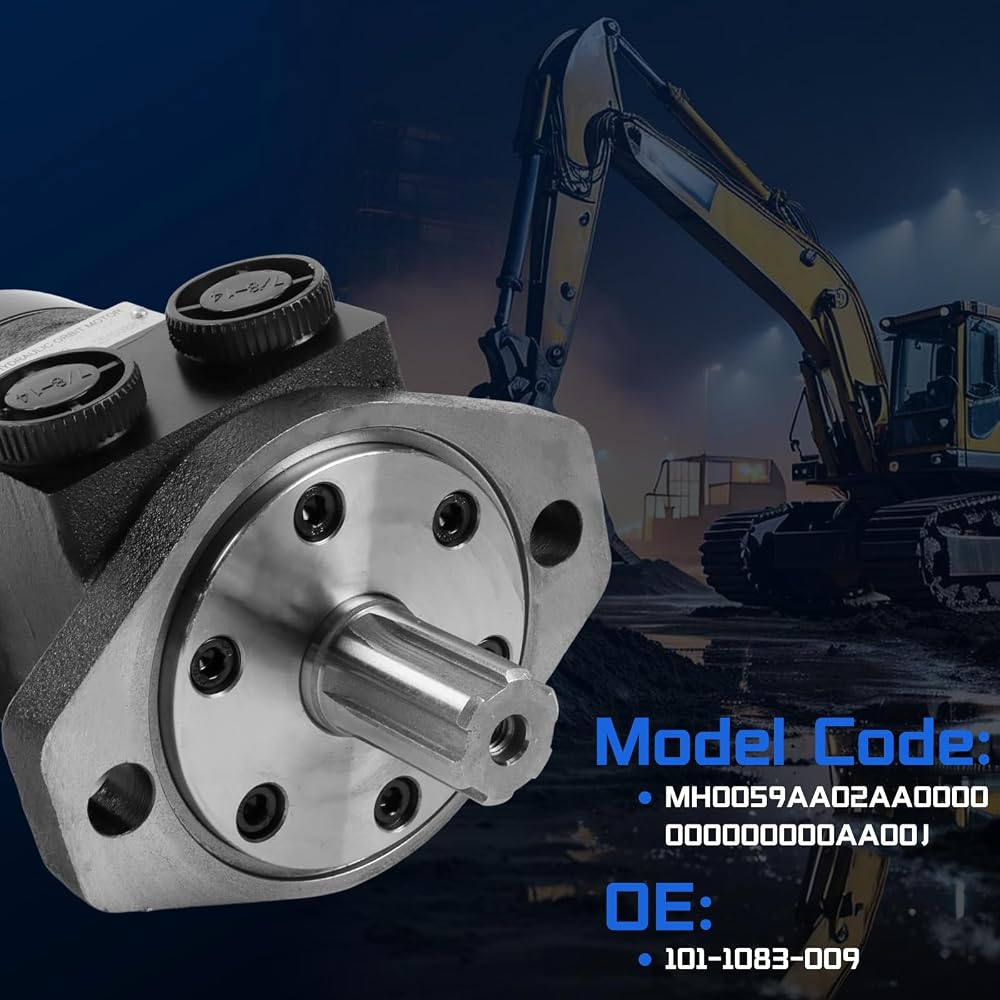

101-1083-009 Hydraulic Motor Replacement for Char-Lynn H Series, 2-Bolt SAE-A Mount SAE 6B Splined Shaft SAE O-Ring Ports, Low Speed High Torque for Construction Agricultural Machinery

KWD 72.500
Brand
SINOCMP
– 1 +

Special Features

  • [📦] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 101-1083-009 with primer low gloss black finish. 𝐈𝐦𝐩𝐨𝐫𝐭𝐚𝐧𝐭: 𝐕𝐞𝐫𝐢𝐟𝐲 𝟑.𝟐𝟒𝟖 𝐢𝐧𝐜𝐡 𝐩𝐢𝐥𝐨𝐭 𝐝𝐢𝐚𝐦𝐞𝐭𝐞𝐫, 𝟐-𝐛𝐨𝐥𝐭 𝐩𝐚𝐭𝐭𝐞𝐫𝐧 (𝟒.𝟏𝟖𝟕 𝐢𝐧𝐜𝐡 𝐛𝐨𝐥𝐭 𝐜𝐢𝐫𝐜𝐥𝐞), 𝐚𝐧𝐝 𝐒𝐀𝐄 𝟔𝐁 𝐬𝐩𝐥𝐢𝐧𝐞𝐝 𝐬𝐡𝐚𝐟𝐭 𝐛𝐞𝐟𝐨𝐫𝐞 𝐨𝐫𝐝𝐞𝐫𝐢𝐧𝐠. 𝐕𝐞𝐫𝐢𝐟𝐲 𝐭𝐡𝐚𝐭 𝐭𝐡𝐞 𝐦𝐨𝐭𝐨𝐫 𝐦𝐚𝐭𝐜𝐡𝐞𝐬 𝐲𝐨𝐮𝐫 𝐞𝐪𝐮𝐢𝐩𝐦𝐞𝐧𝐭'𝐬 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐩𝐚𝐭𝐭𝐞𝐫𝐧, 𝐬𝐡𝐚𝐟𝐭 𝐬𝐢𝐳𝐞, 𝐚𝐧𝐝 𝐩𝐨𝐫𝐭 𝐜𝐨𝐧𝐟𝐢𝐠𝐮𝐫𝐚𝐭𝐢𝐨𝐧. Flush hydraulic lines prior to installation. Max operating temp 180°F. Replacement seal kit available.

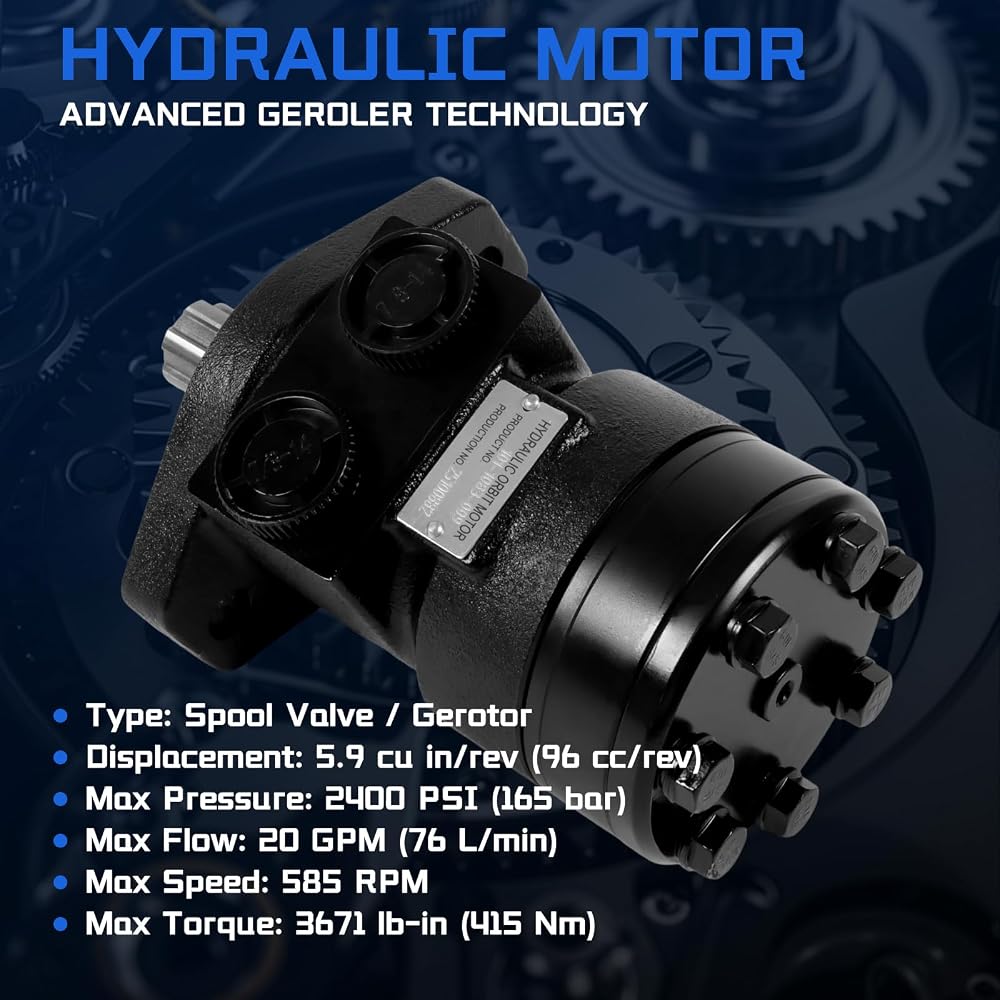

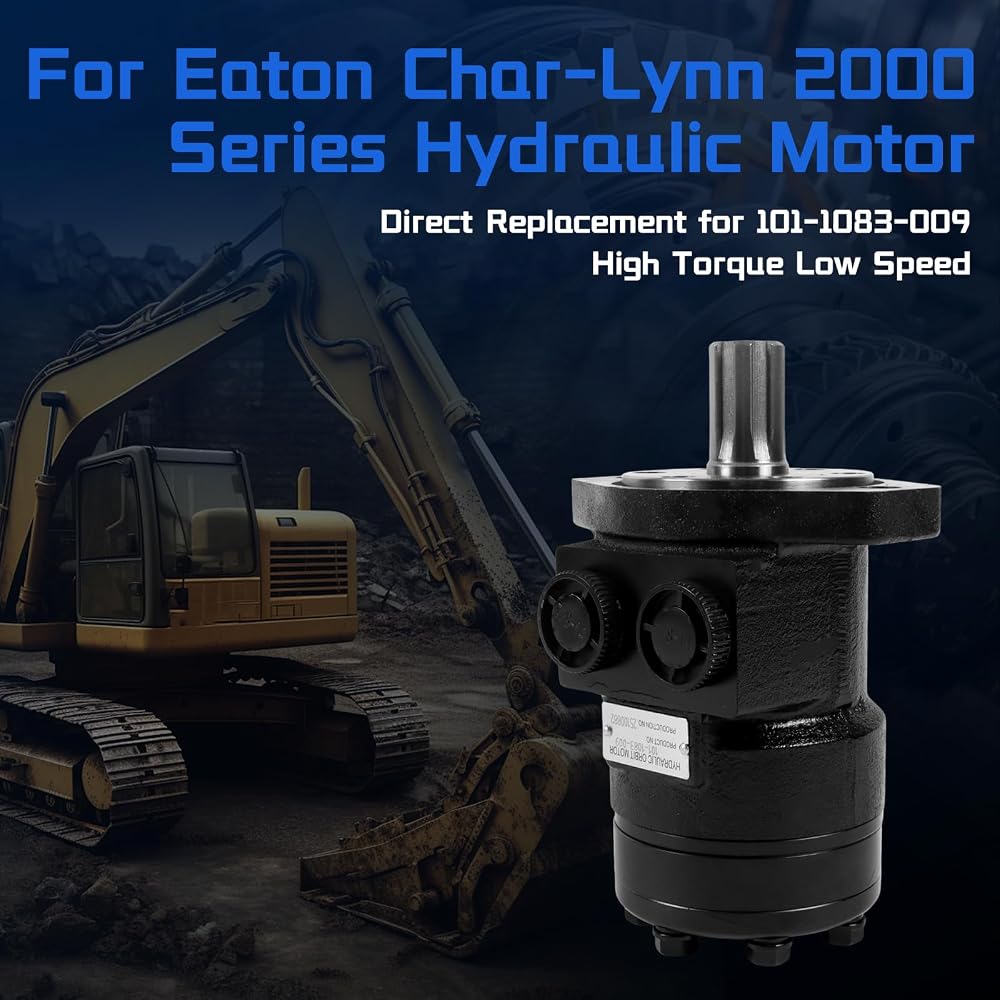

  • [🔧] Direct Swap – 5.9 cu/in Displacement: This hydraulic motor 101-1083-009 replaces for Char-Lynn H Series models with 5.9 cu in/rev (96 cc/rev) displacement. The 2-bolt SAE-A flange mount with 3.248 inch pilot diameter and 4.187 inch bolt circle lets this 101-1083-009 hydraulic motor bolt directly onto agricultural equipment, conveyors, and turf care machinery without modifications.

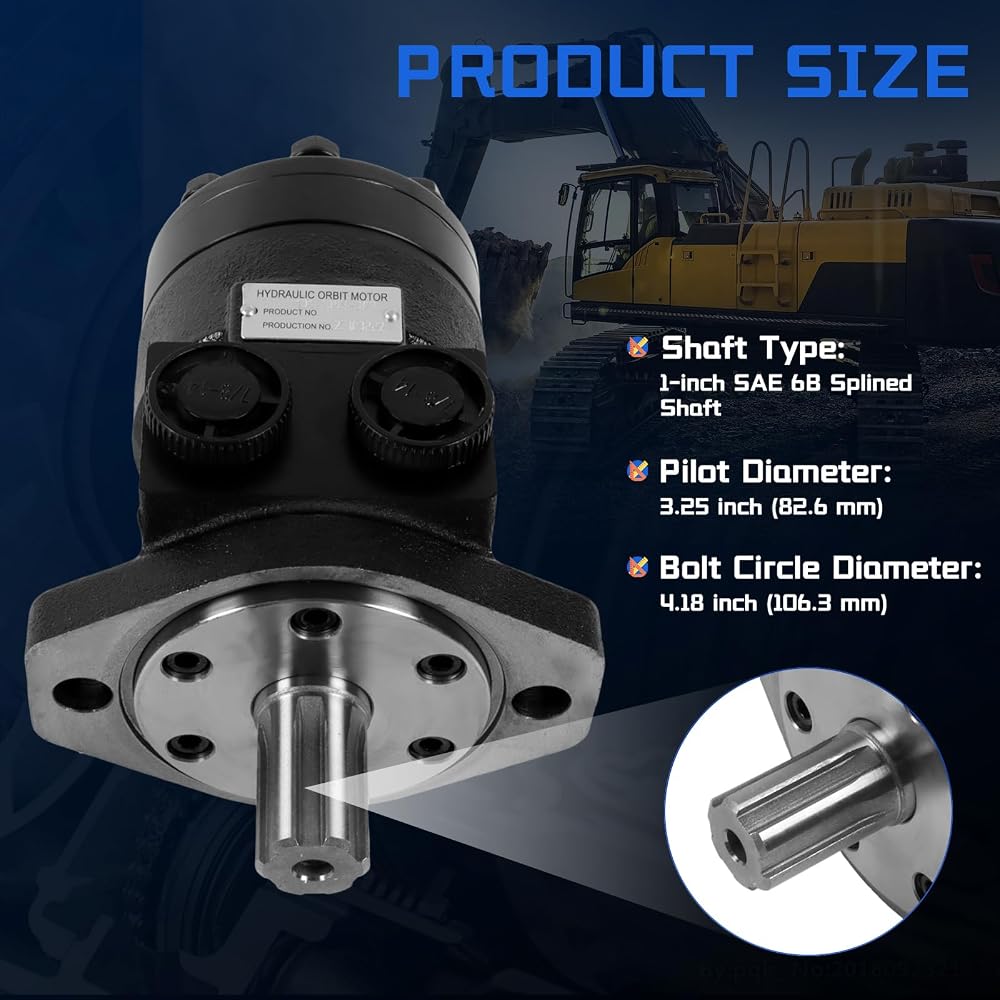

  • [⚙️] Splined Shaft – SAE 6B with 1 Inch Diameter: This H series hydraulic motor features a 1 inch SAE 6B splined shaft with 1/4-20 UNC-2B threaded end hole. The splined shaft design on this 101-1083-009 replacement hydraulic motor provides secure torque transmission without key wear issues, making it ideal for demanding low-speed high-torque applications.

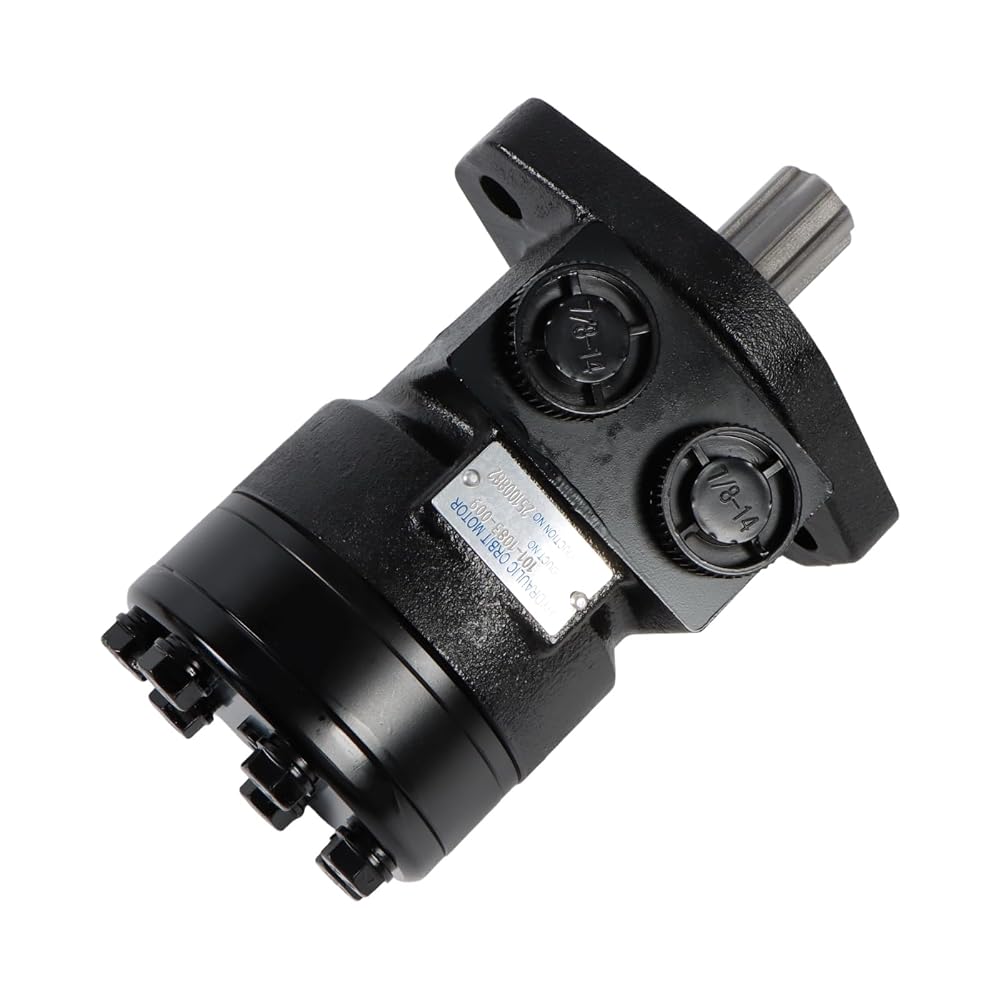

  • [🛢️] SAE O-Ring Ports – 7/8-14 UNF-2B: For Char-Lynn style hydraulic motor features 7/8-14 UNF-2B SAE O-ring side ports for reliable leak-free sealing. The O-ring design on this 101-1083-009 hydraulic motor creates connections without thread sealant, saving installation time on agricultural and industrial equipment. No case drain required.

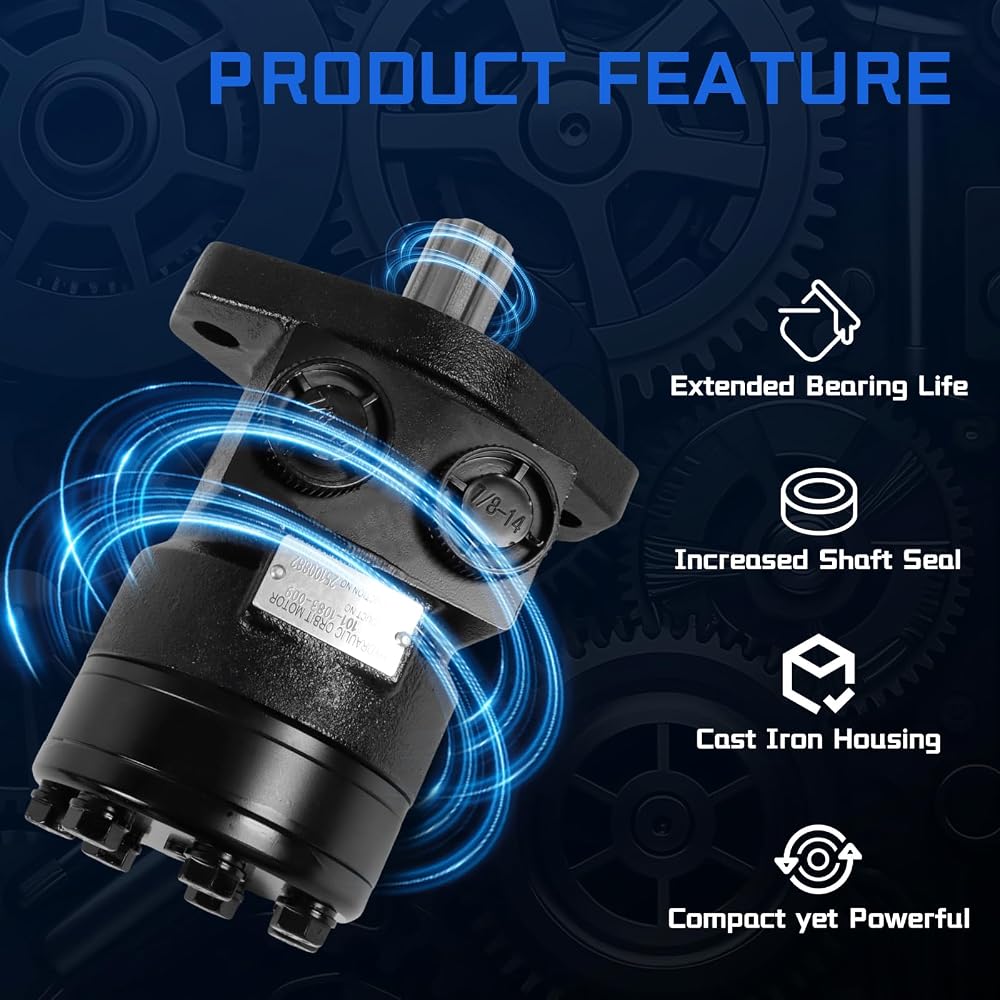

  • [🏗️] Spool Valve Design – High Efficiency: This 101-1083-009 replacement hydraulic motor uses proven spool valve technology with hydrodynamic journal bearings for infinite bearing life at rated loads. The design combines valving and bearings into a common shaft, offering instant shaft reversal by simply changing flow direction and smooth operation across the entire speed range.
