مميزات خاصة

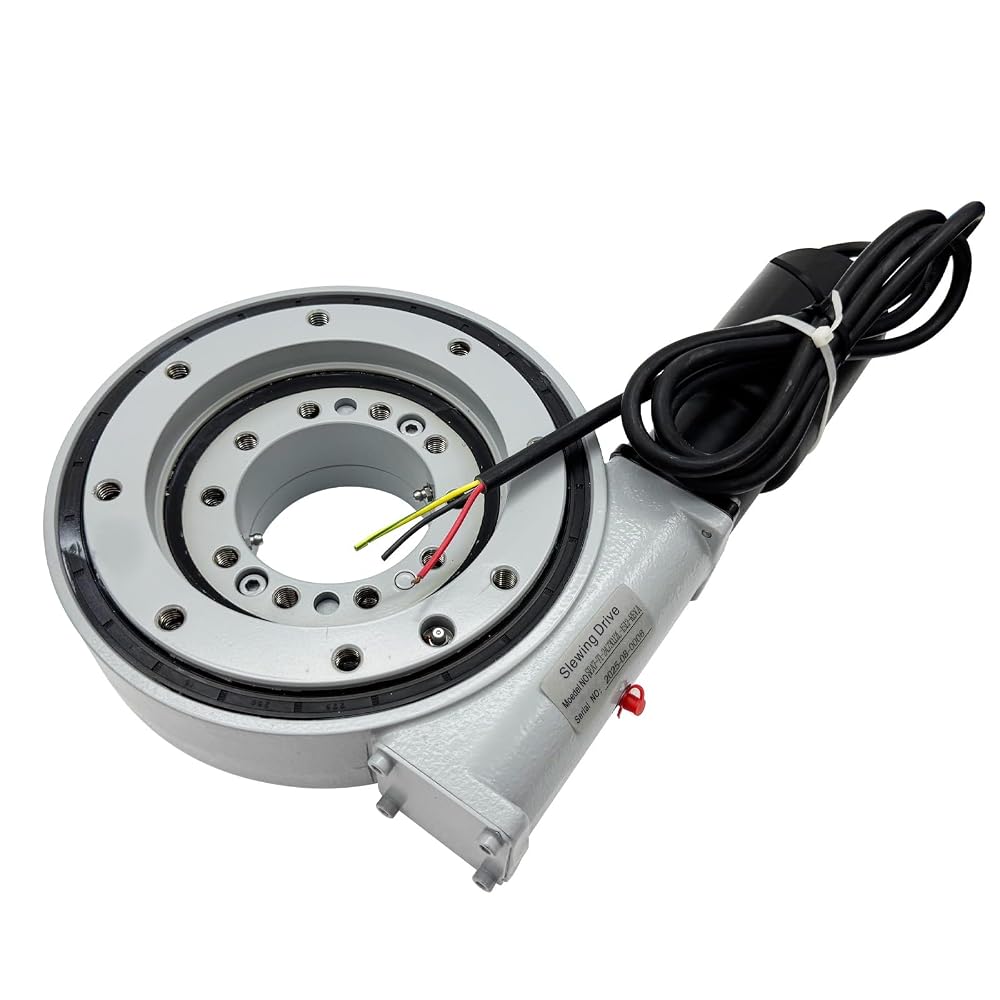

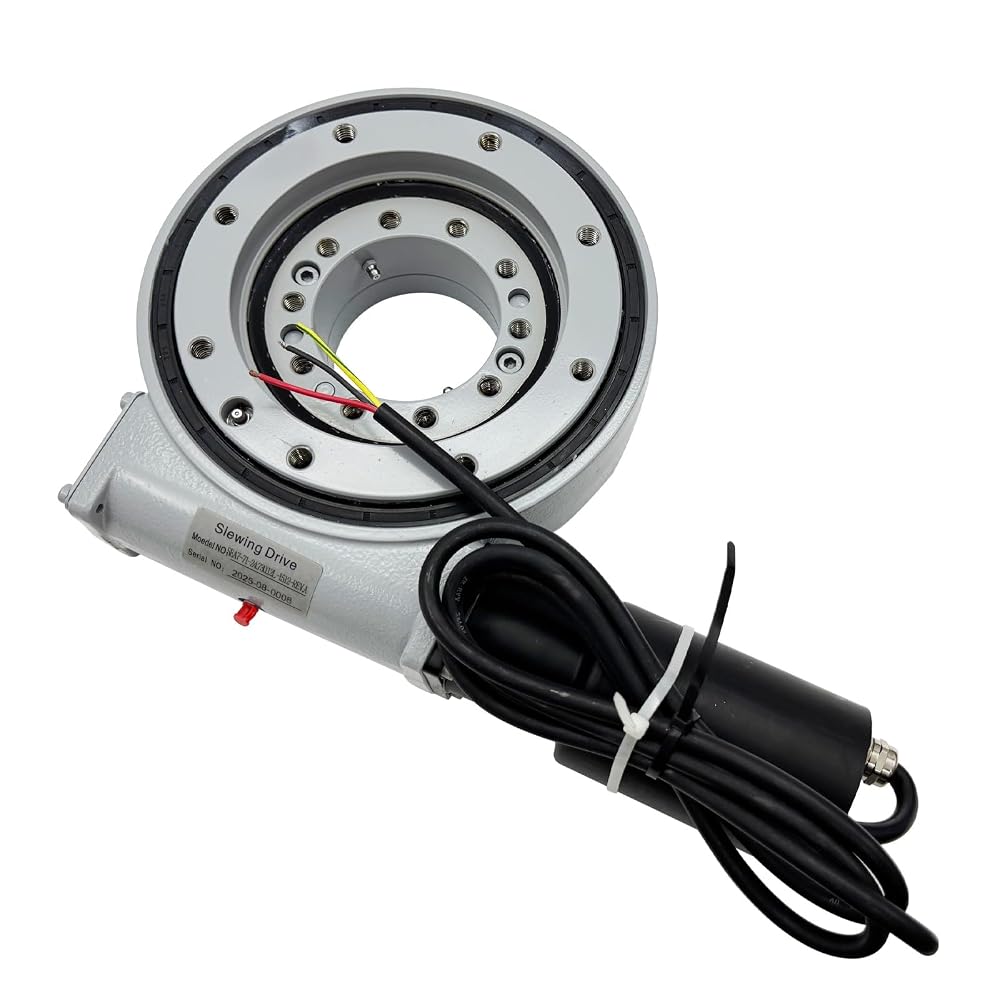

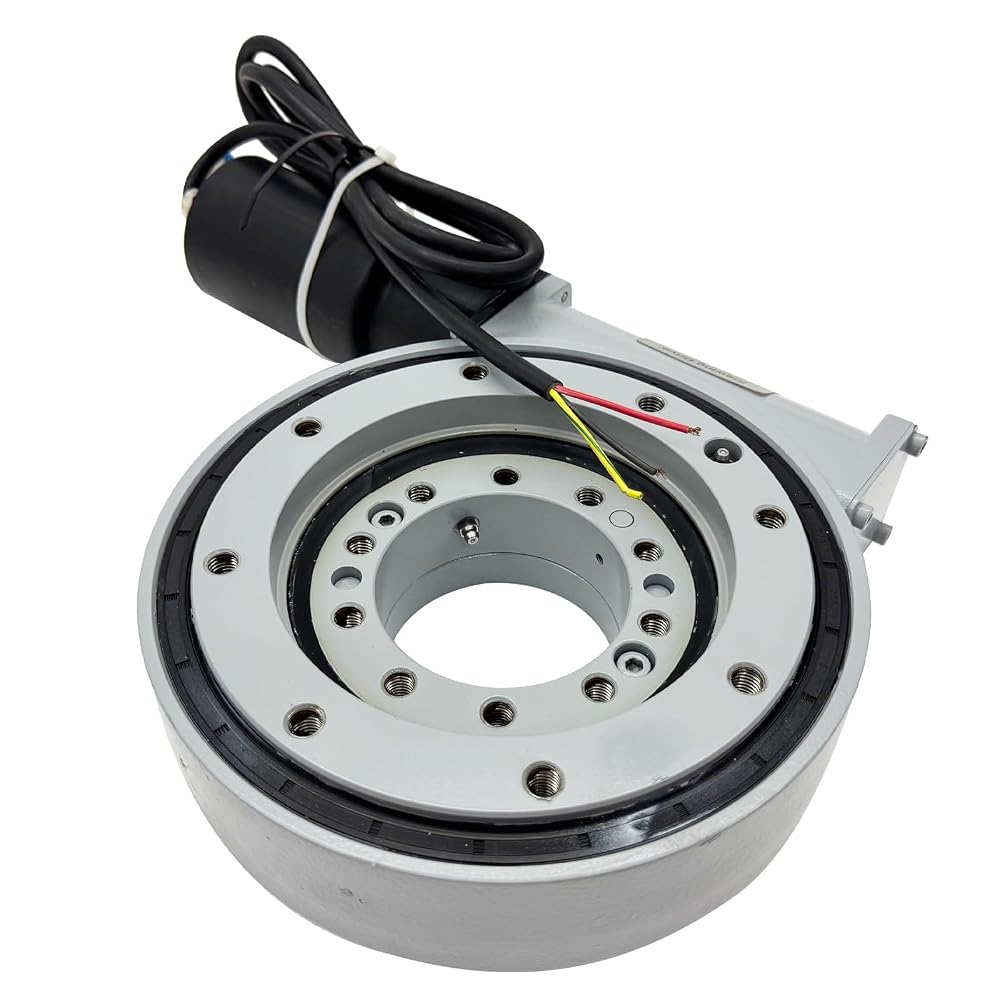

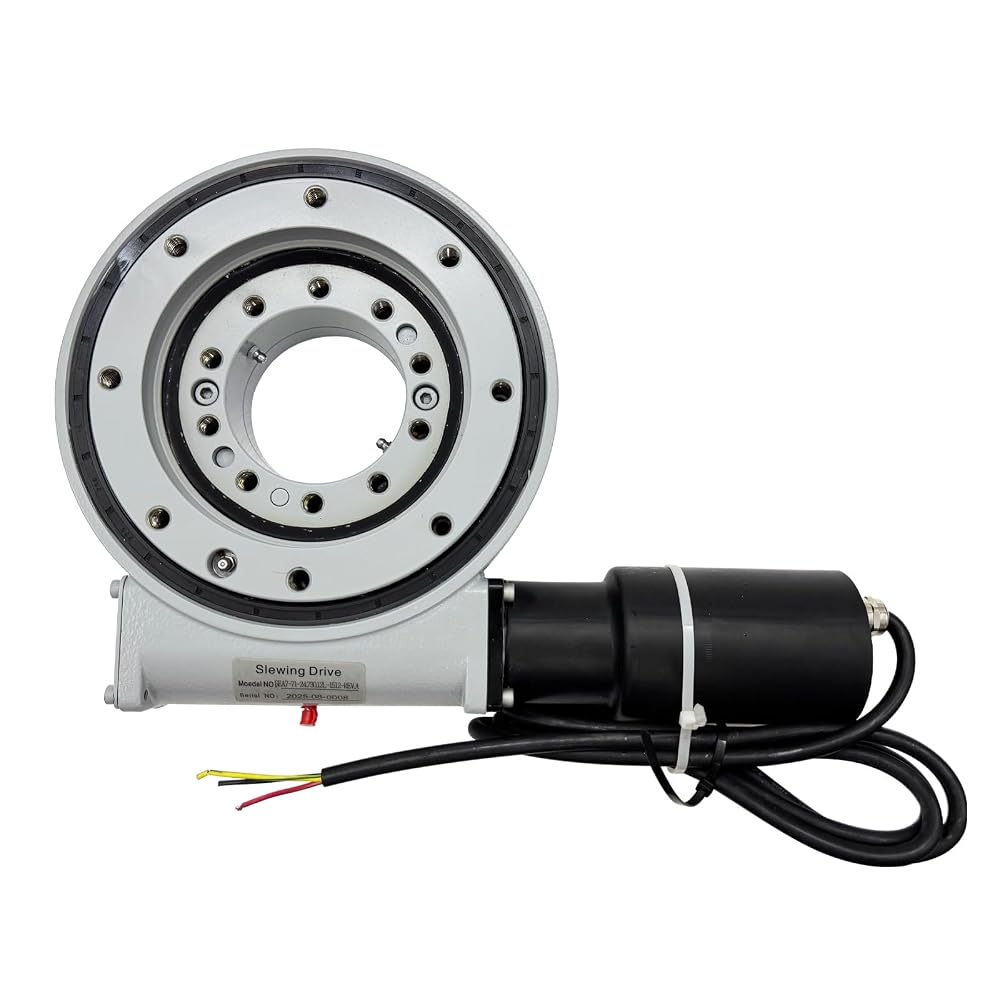

Self-Locking and Compact Design: This electric worm gear slewing drive features self-locking capability, a compact structure and smooth operation, which is used to convert the motor's rotary motion into low-speed, high-torque output drive(rated torque: 320KN.m), enabling precise angular slewing. Transmission Accuracy: 0.2°, Reduction Ratio: 71:1

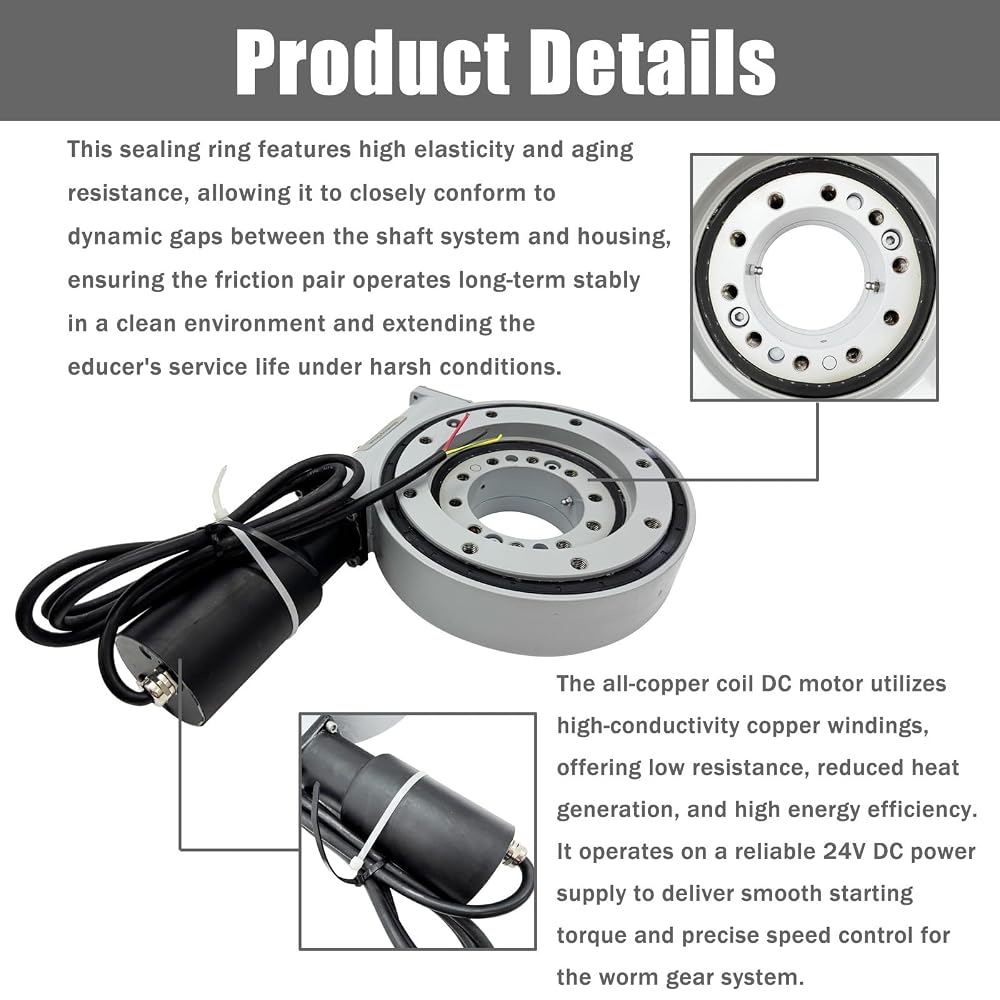

Enduirng All-Copper Coil Motor: The slewing drive slewing reducer is equipped with an all-copper coil DC motor(rated voltage: 24V DC, rated torque: 12N.m), which offers low resistance, reduced heat generation and high energy efficiency
Reliable 24V DC Power: The machine operates on a reliable 24V DC power supply to deliver smooth starting torque and precise speed control(rated speed: 73rpm) for the worm gear system, ensuring stable performance under frequent start-stop cycles and heavy-load conditions, thus enhancing equipment reliability from the power source

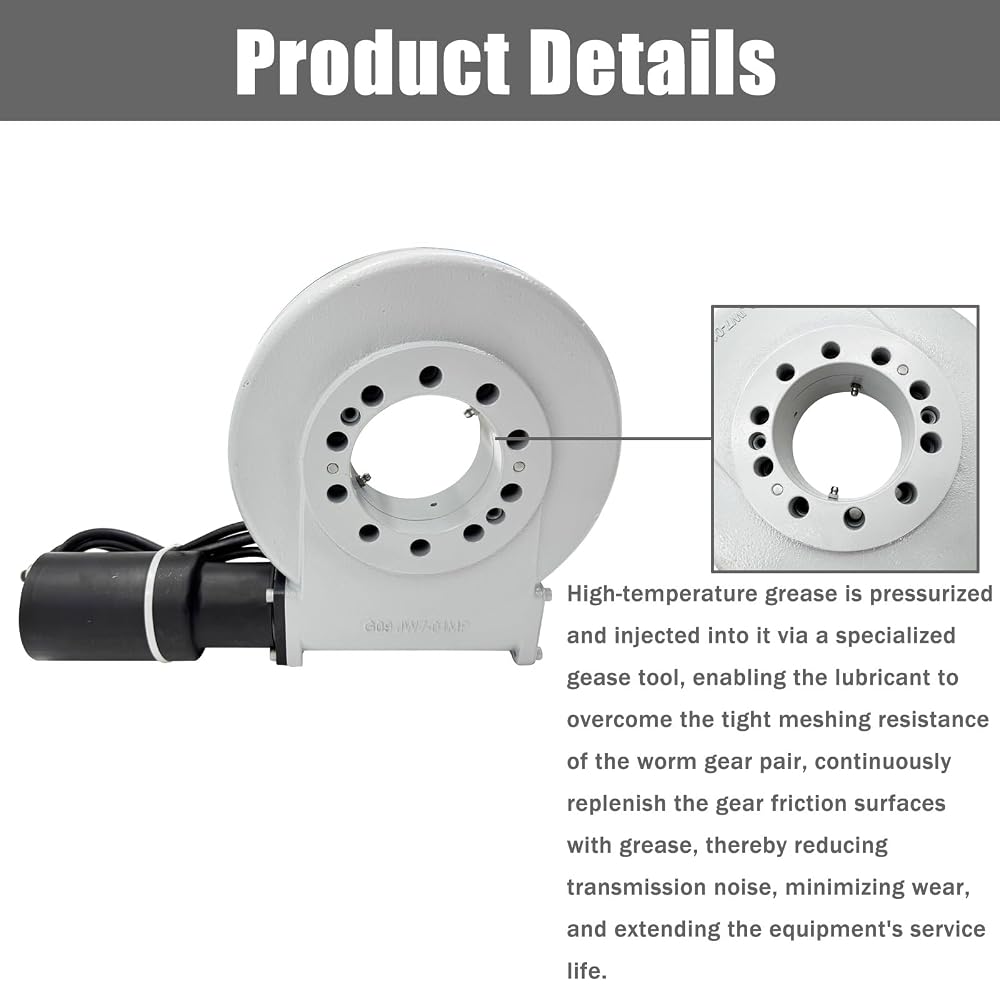

Enhanced Service Life with Lubrication: The worm gear esigned with a grease nipple for pressurized high-temperature grease injection, enabling continuous replenishment of the gear friction surfaces with grease, thereby reducing transmission noise, minimizing wear and extending the equipment's service life
Wide Application Range: The machine is suitable for solar tracking systems, automated rotary platforms and industrial valve control and other applications requiring low-speed heavy-duty operation and precise positioning

وصف

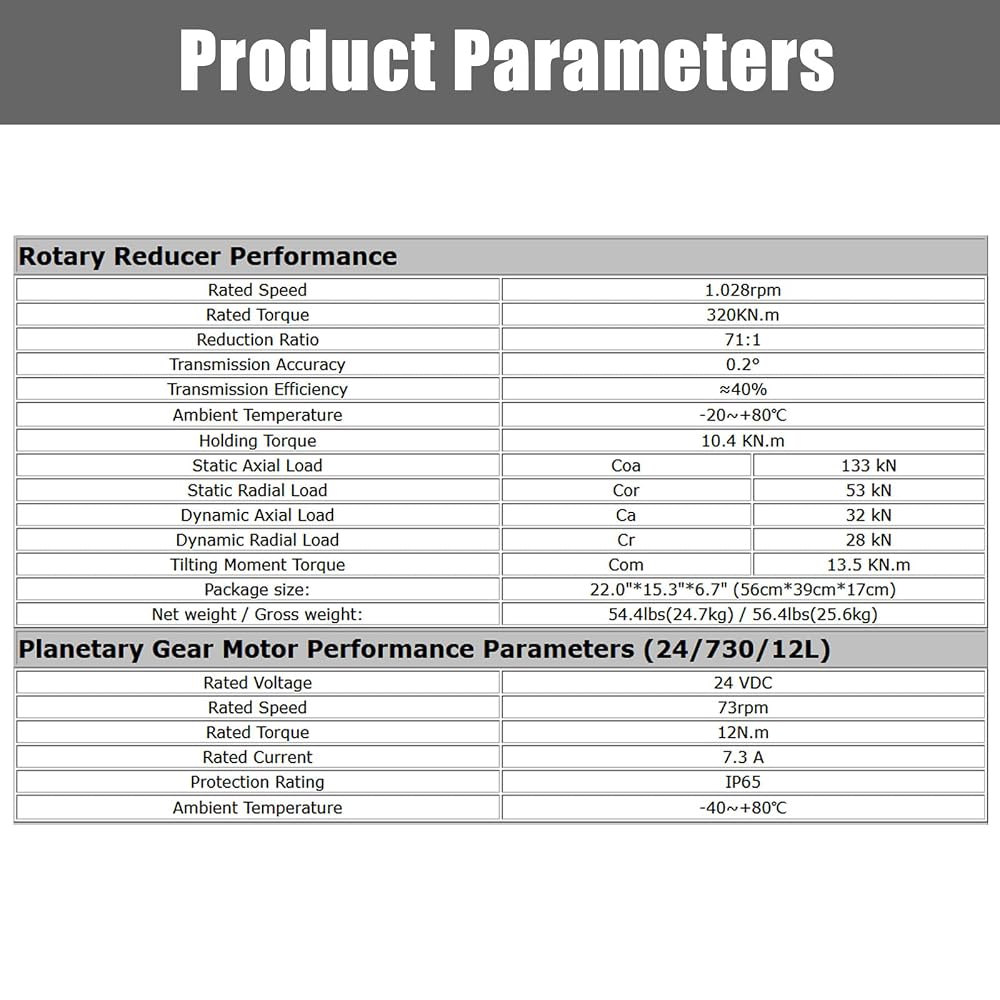

Rotary Reducer Performance
Rated Speed: 1.028rpm
Rated Torque: 320KN.m
Reduction Ratio: 71:1
Transmission Accuracy: 0.2°
Transmission Efficiency: about 40%
Ambient Temperature: -20~+80℃
Holding Torque: 10.4 KN.m
Static Axial Load Coa: 133 kN
Static Radial Load Cor: 53 kN
Dynamic Axial Load Ca: 32 kN
Dynamic Radial Load Cr: 28 kN
Tilting Moment Torque Com: 13.5 KN.m

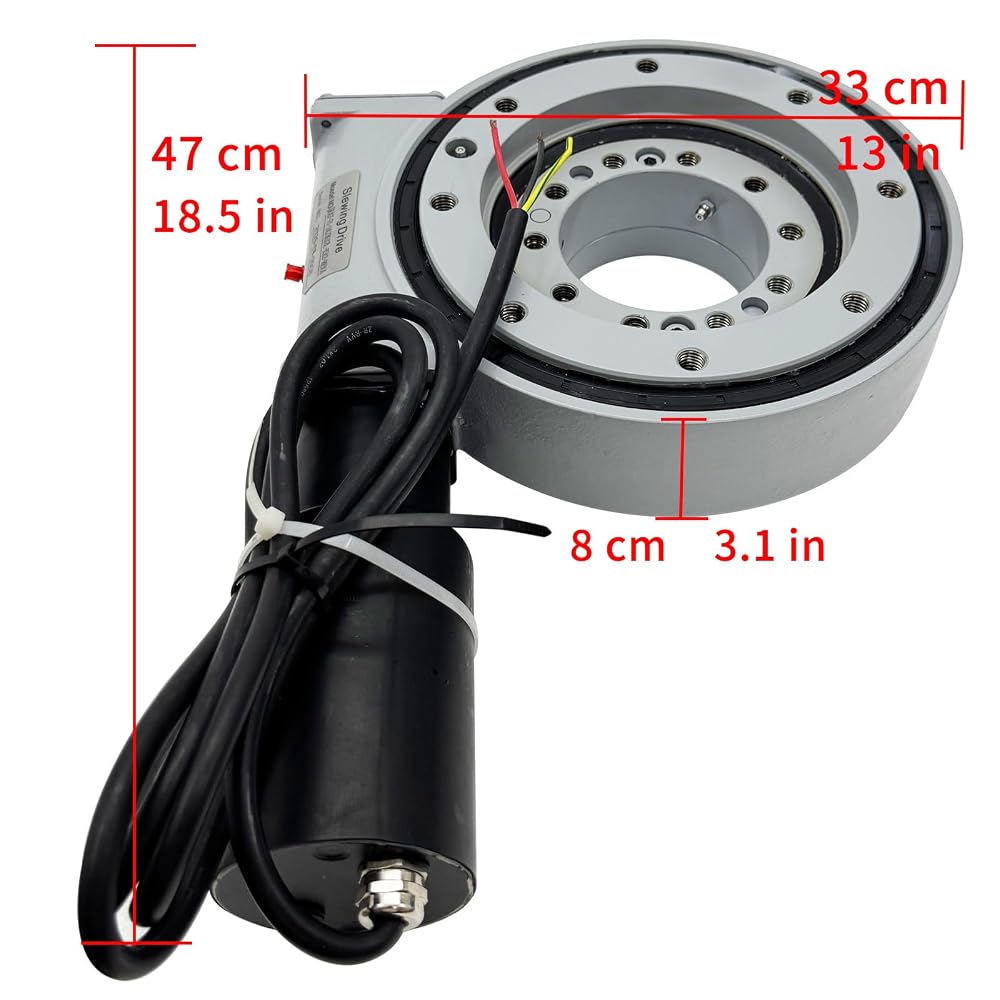

Package size: 22.0"*15.3"*6.7" (56cm*39cm*17cm)
Net weight / Gross weight: 54.4lbs(24.7kg) / 56.4lbs(25.6kg)
Planetary Gear Motor Performance Parameters (24/730/12L)
Rated Voltage: 24V DC
Rated Speed: 73rpm
Rated Torque: 12N.m
Rated Current: 7.3 A
Protection Rating: IP65
Ambient Temperature: -40~+80℃
Item Included:
Electric Worm Gear Slewing Drive DC24V*1
AC Motor Speed Controller*1
