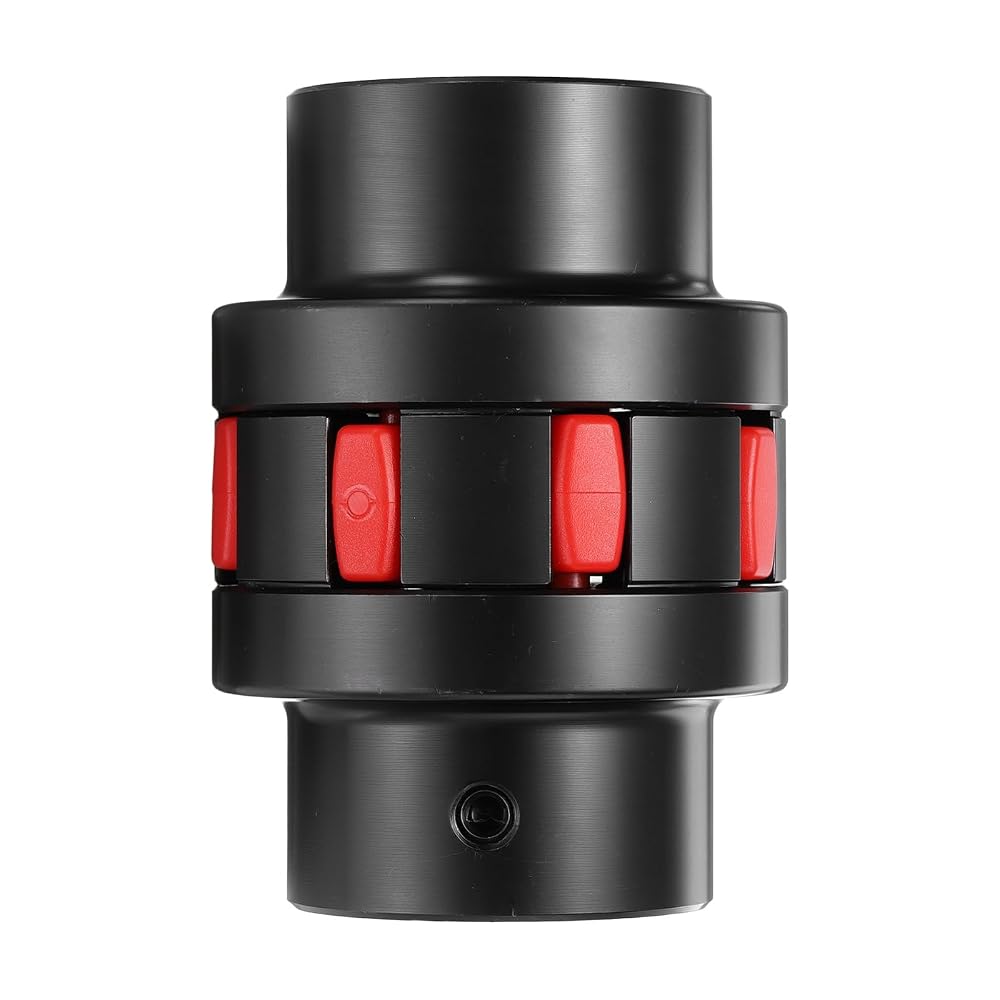

This 45 steel flexible jaw coupling is designed to connect and transfer torque between two rotating shafts, such as those in motors, pumps, and industrial machinery. It is commonly used in precision equipment such as 3D printers, CNC machines, servo motors, stepper motors, and other precision machinery where alignment compensation and vibration damping are important.
You will get 1 piece of flexible coupler; Material: 45 Steel; Outer Diameter: 54 mm/2.13 inch; Length: 78 mm/3.07 inch; Suitable for Inner Diameter: 20mm to 25mm/0.79 inch to 0.98 inch
Machined from 45 steel, this flexible shaft coupling has high strength and toughness and offers reliable performance under load. The polyurethane pad insert can absorb vibration and minor impacts, protect the connecting components from stress, and compensate for minor angular and axial misalignments, which can contribute to reduced energy loss and extended service life for connected components.
Installing the flexible elastic shaft coupling is very simple. Simply align the coupling with the motor shaft or driven component, slide it onto the shaft, and tighten the fasteners firmly. This coupling is designed for easy adjustment, and you can also disassemble it for separate use.
