Note Different product models have different appearance size and weight parameters

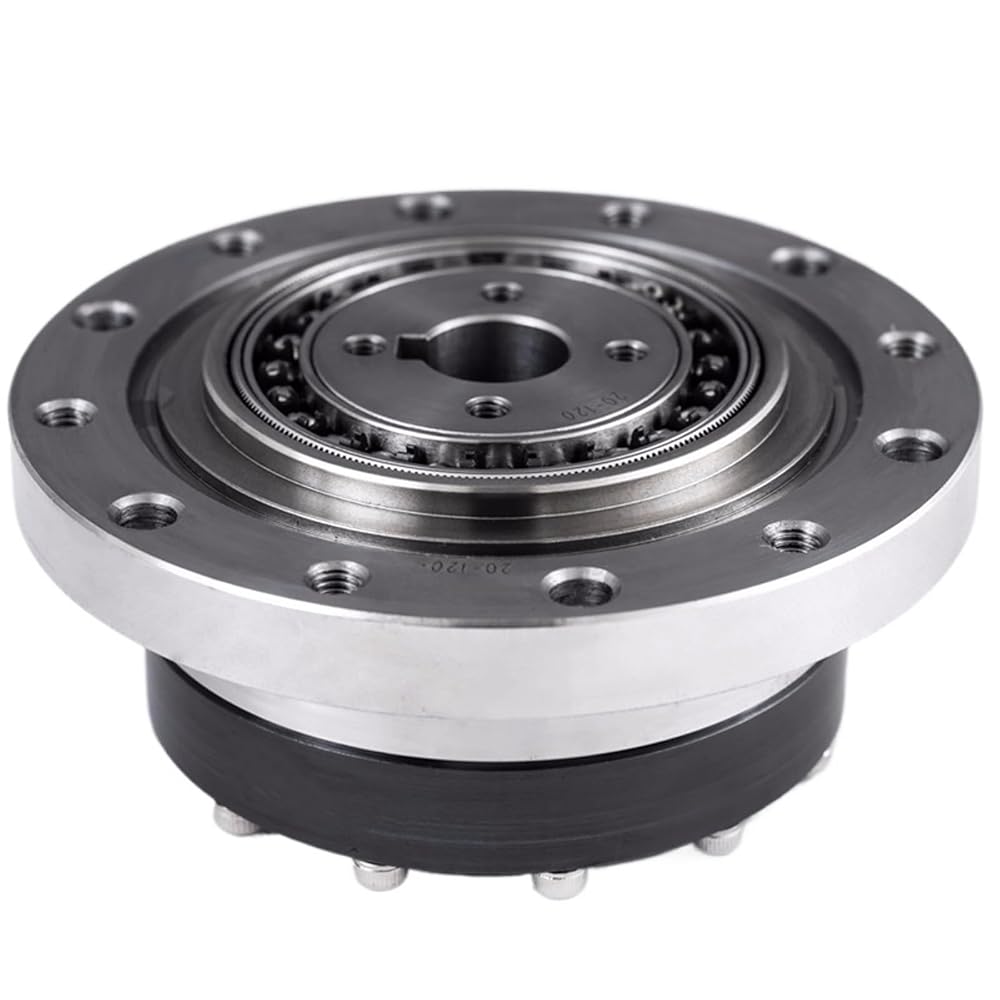

CSF-25-II
Harmonic reducer
Diameter: 107mm
Thickness: 49mm
Weight: 1.448-1.441kg
Reduction ratio: 30 50 80 100 120
Rated Tq when inputting 2000r/min: 27N.m 39N.m 63N.m 67N.m 67N.m
Allowable peak Tq when starting and stopping: 50N.m 98N.m 137N.m 157N.m 157N.m
Allowable maximum value of average load Tq: 38N.m 55N.m 87N.m 108N.m 108N.m
Instantaneous maximum allowable Tq: 95N.m 186N.m 255N.m 304N.m 289N.m
Allowable maximum input speed: 5500r/min
Allowable average input speed: 3500r/min
