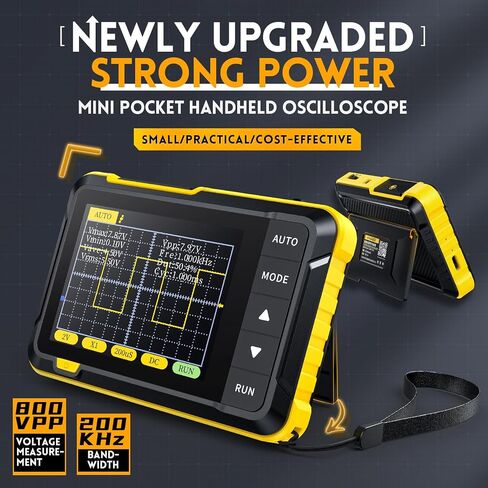

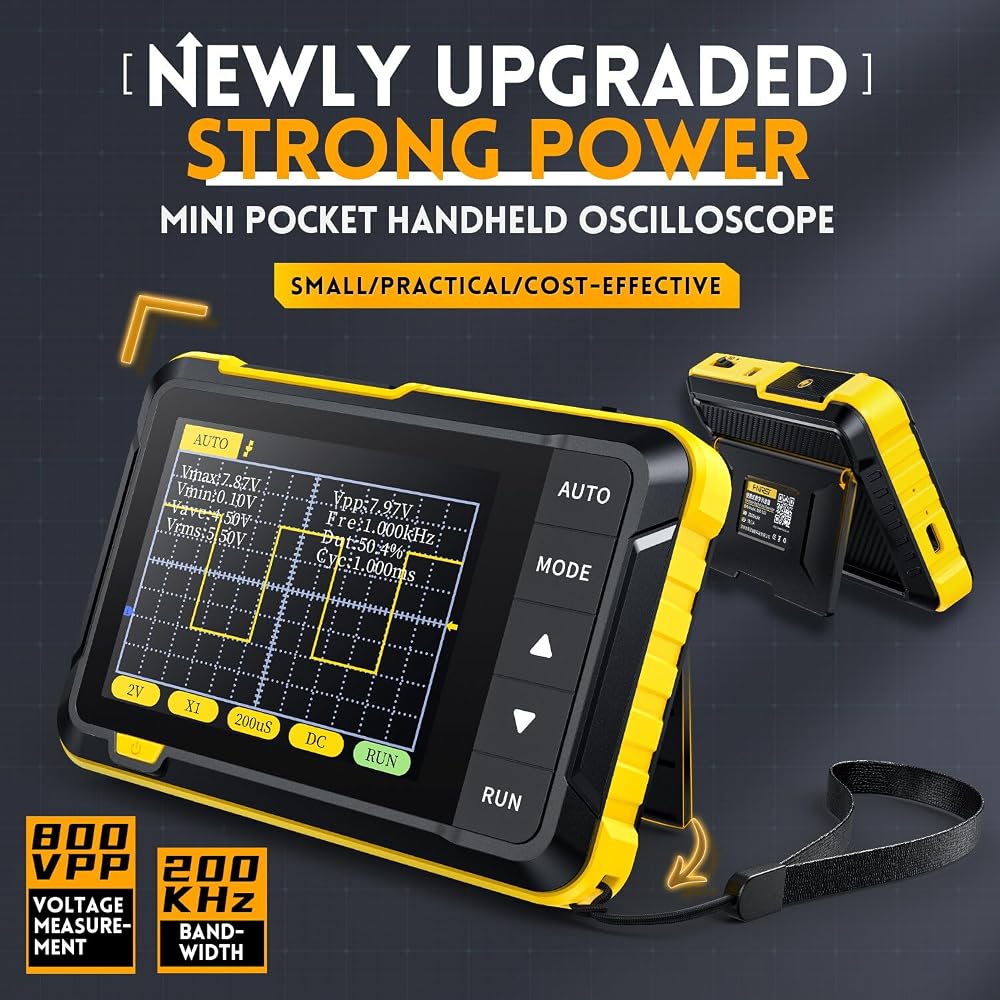

Features:

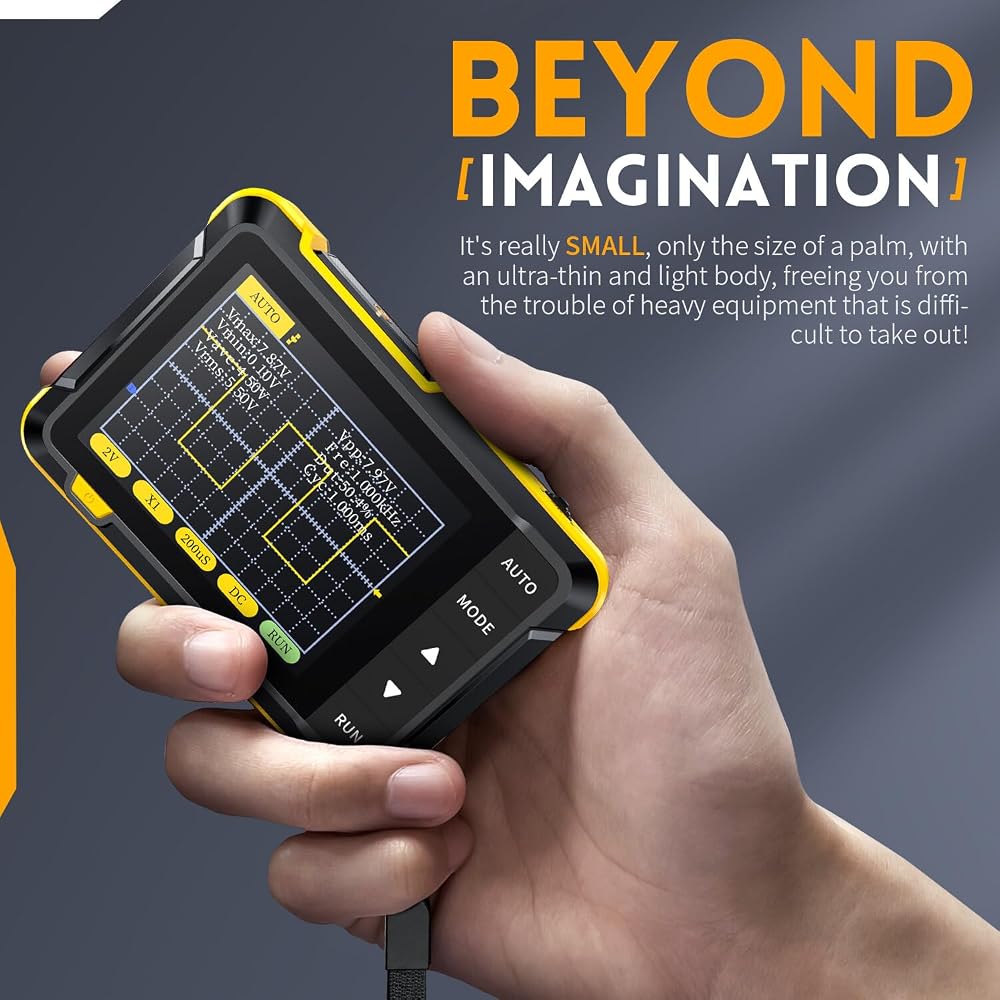

【Compact Size】: Lightweight and portable, space-saving design makes it can be carried out to work. It is a utility maintenance and DIY tools for on-site debugging.

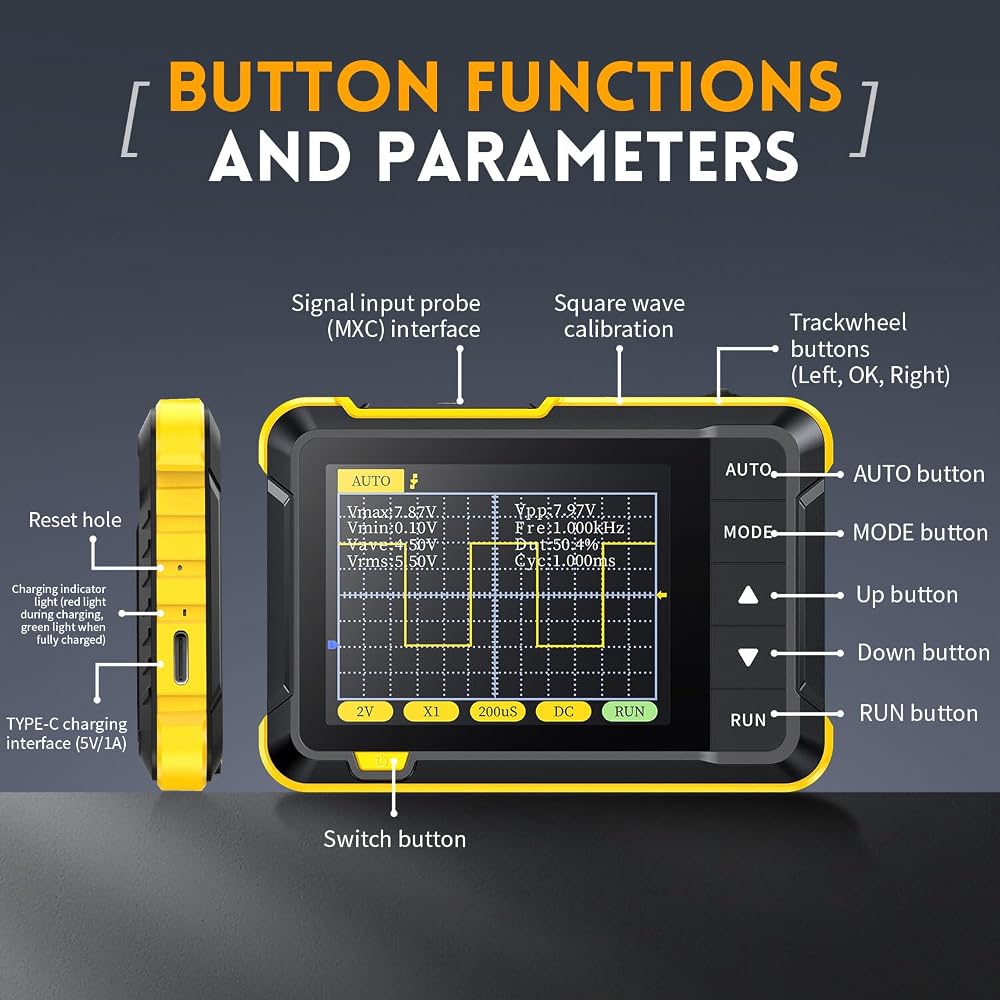

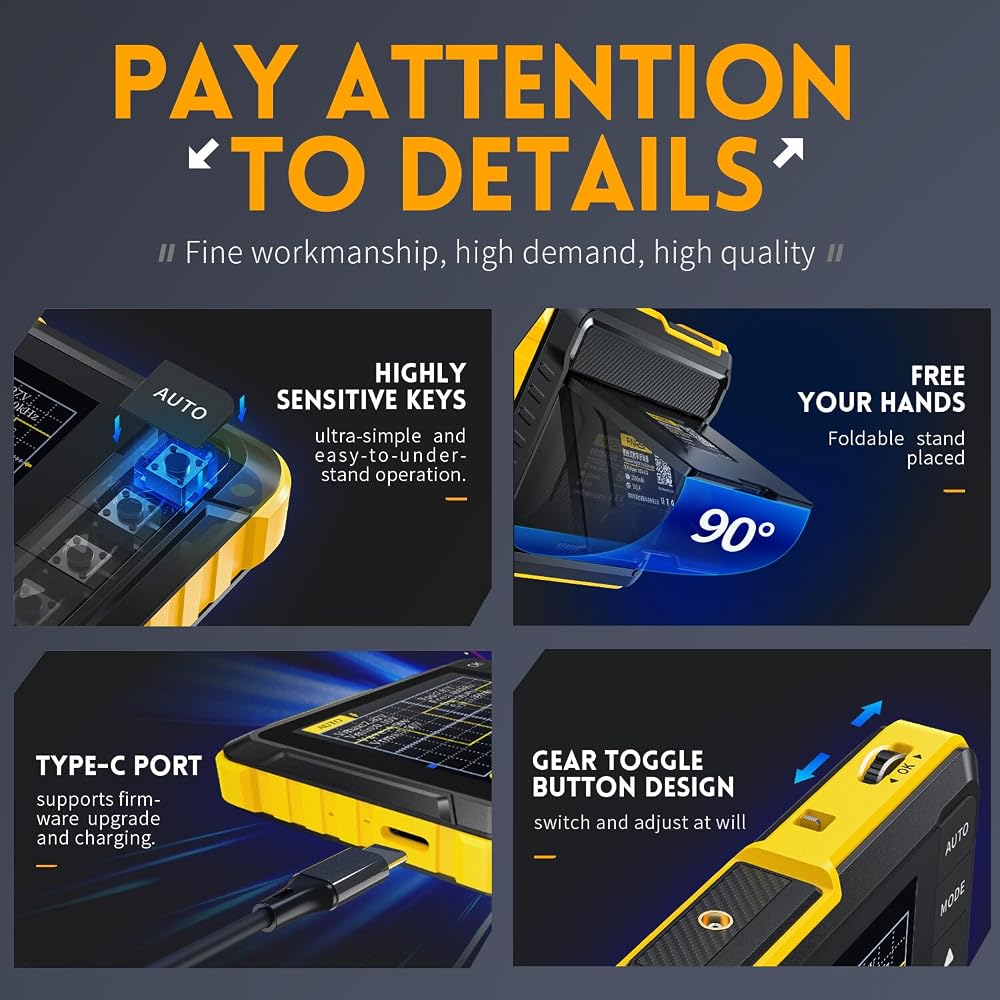

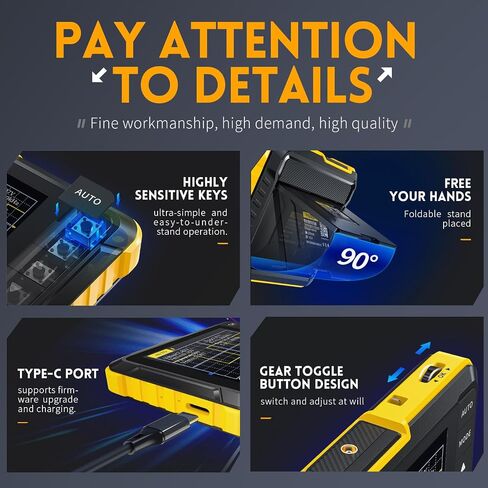

【Fine Workmanship】: High-sensitivity buttons are easy to use, Type-C port supports firmware upgrade and charging, folding bracket for convenient placement, gear toggle buttons to switch settings as needed.

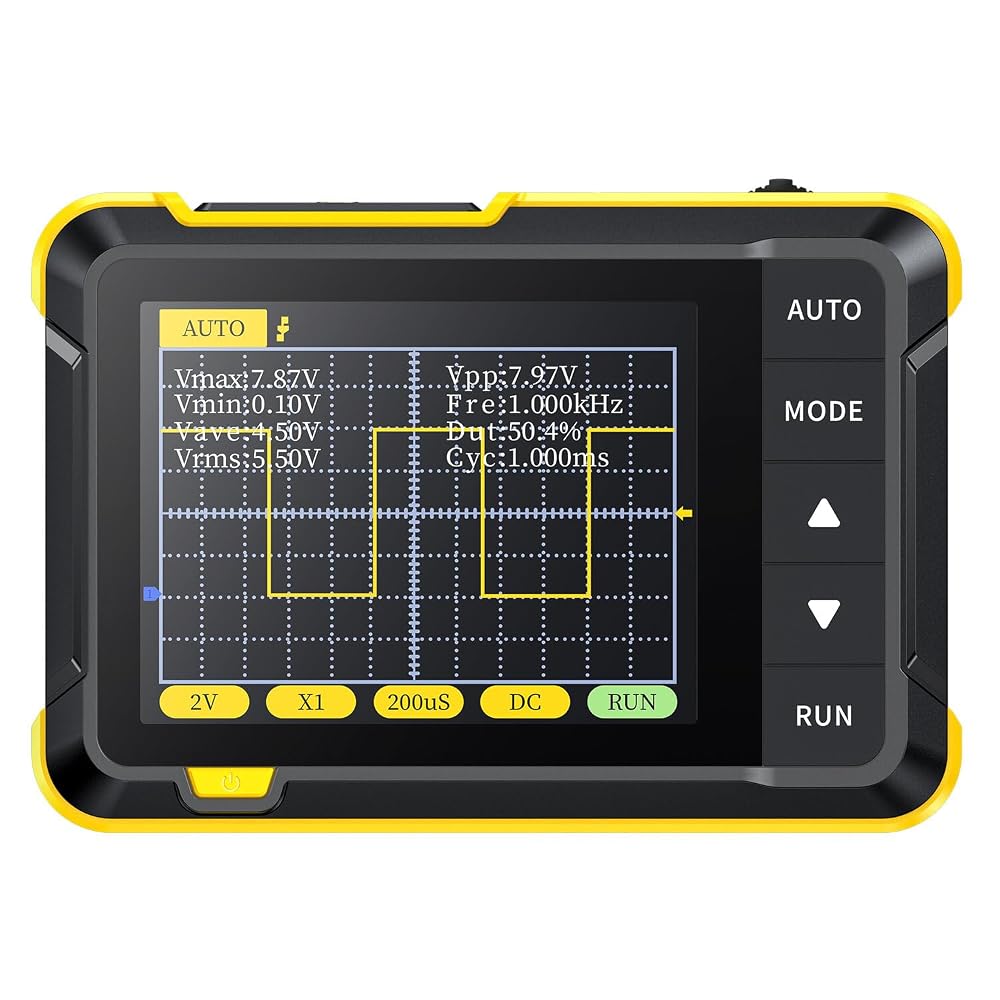

【2.8inch Digital Display】: Equipped with 320*240 resolution color display, with bright colors and high contrast, you can see the data clearly.

【Efficient and Accurate】: Multiple parameters measurement, the oscilloscope has a real-time sampling rate of 2.5MS/s, 200kHz bandwidth, with complete trigger functions (single, normal, automatic), both for periodic analog signals or non-periodic digital signals can be freely used, support switch between rising-edge trigger mode and falling-edge trigger mode, support up to ± 400V voltage signal measurement.

【1KHz Calibration SQW】: Supplied with a 1KHz calibration SQW, easy and convenient probe calibration.

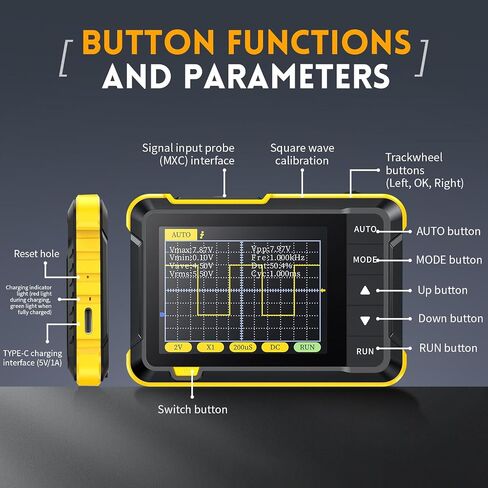

【One-button Automatic Adjustment】: Equipped with efficient one-button AUTO that displays the measured waveform without tedious adjustment. With waveform measurement display, a variety of waveform measurements to meet your daily needs.

【Wide Applications】: Intelligent anti-burning, applicable to a variety of occasions, suitable for utility measurements, DIY learning, automobile repairing, home appliance repairing, research and teaching, outdoor maintenance, etc.

Specifications:

Name: Digital Oscilloscope

Material: Plastics

Type: Upgraded version

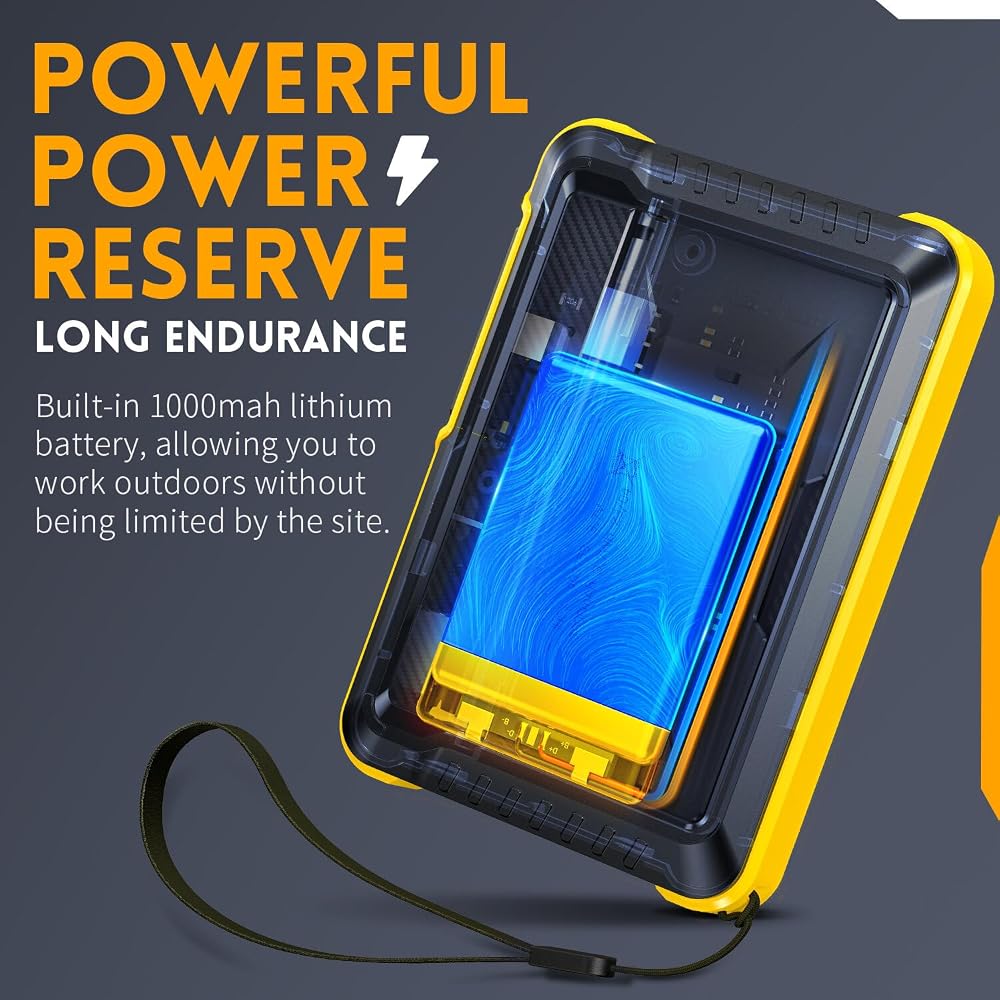

Battery: 1 x rechargeable 1000mAh lithium battery (Built-in)

USB charging: 5V/1A

Display: 2.8inch/PPI:320*240

Bandwidth: 200KHz

Realtime sampling rate: 2.5MS/s

Vertical sensitivity: 10mV/Div-20V/Div (in 1-2-5 increments)

Time base ranges: 10μs/Div-50s/Div (in 1-2-5 increments)

Calibration SQW frequency: 1K

Duty cycle: 50%

Voltage ranges: X1:±40V (Vpp:80V); X10: ±400V (Vpp:800V)

Trigger mode: automatic/regular/single

Item size: 99 * 68 * 20mm / 3.90 * 2.68 * 0.79in

Item weight: 100g / 3.53ounce

Package size:

Upgraded version: 210 * 150 * 50mm / 8.27 * 5.91 * 1.97in

Package weight: Upgraded version : 243g

Package Included ：

1 x Digital Oscilloscope

1 x Type-C Cable

1 x General Probe

1 x P6100 High Pressure Probe

1 x Adapter

1 x Guideline
