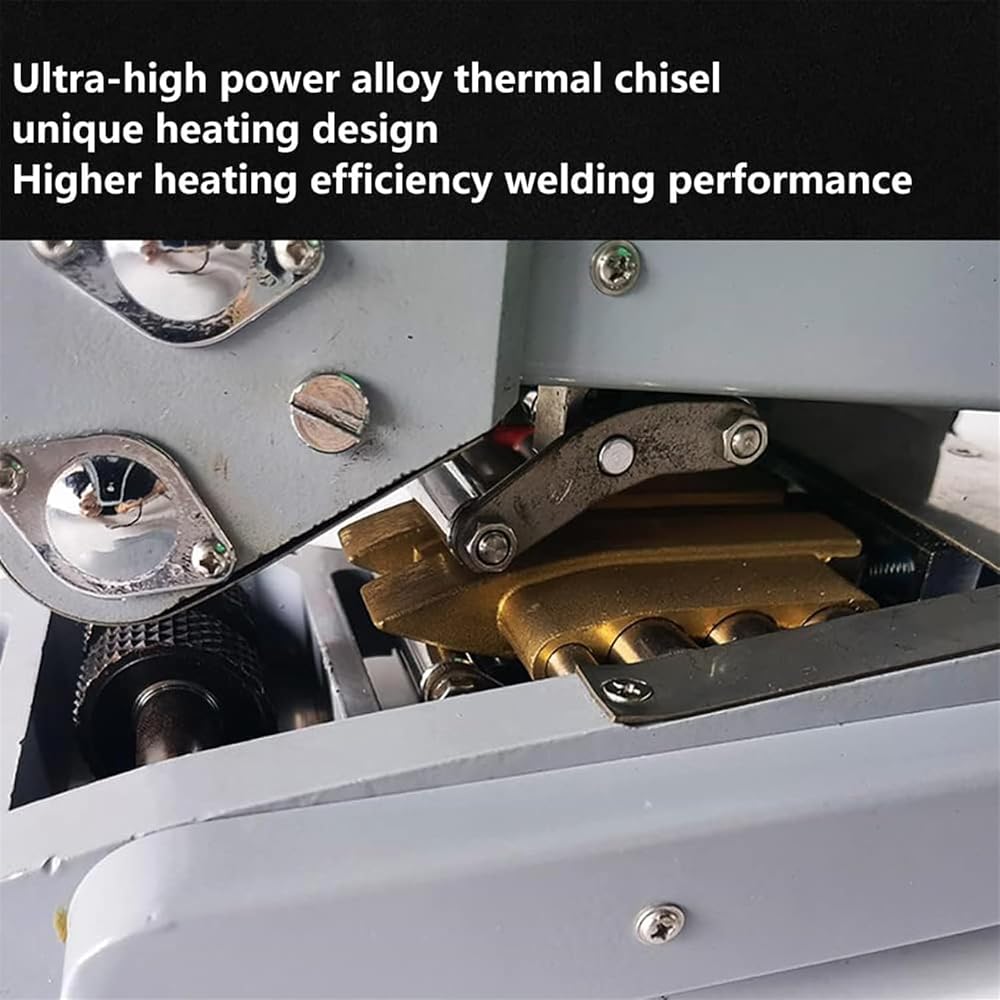

●【Heating System】Powerful brass heat wedge with 14mm x 2 weld seam and 16mm inner cavity for testing weld quality. Welding efficiency increases by 30%.
●【Imported high-quality pressure wheel】Special stainless steel pressure wheel, strong pressing force, can weld 1mm to 3mm thick film

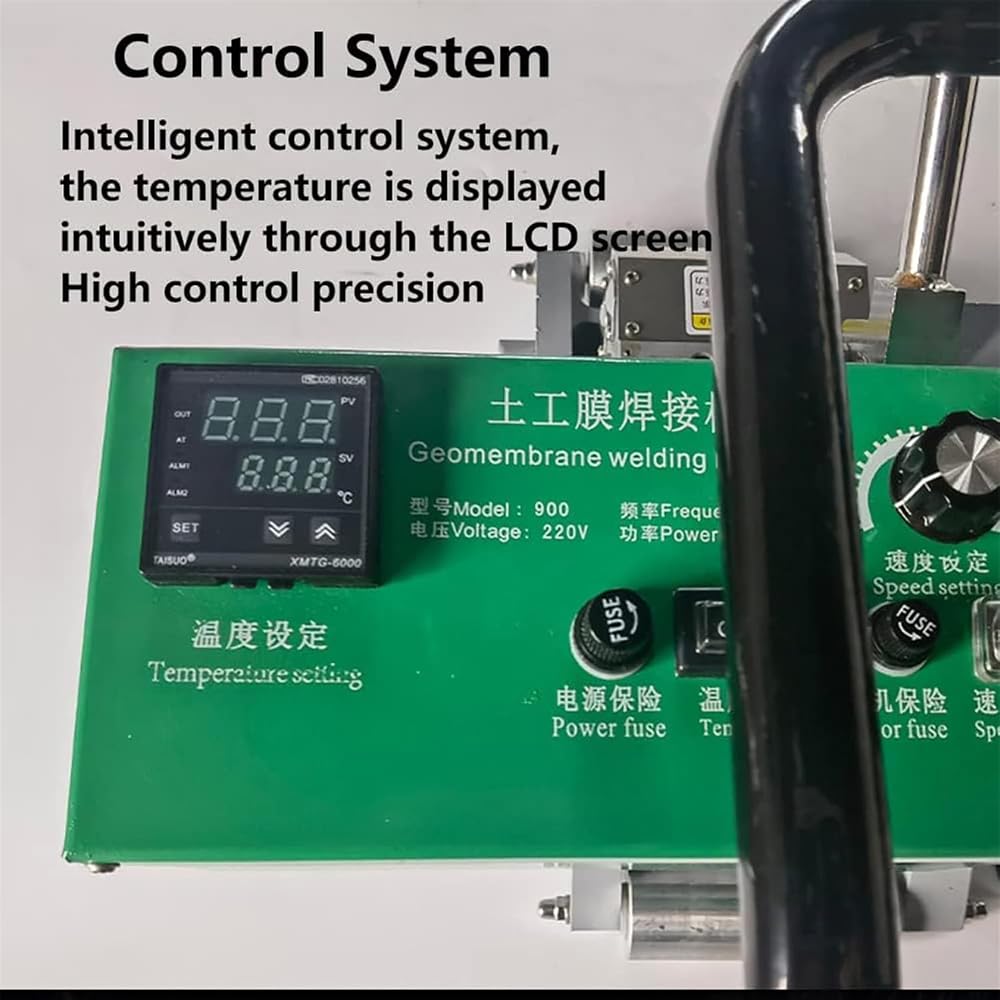

●【Digital control system】Simple and intuitive operation, closed-loop control of heating temperature, on-site display of working voltage, and real-time monitoring of working parameters.

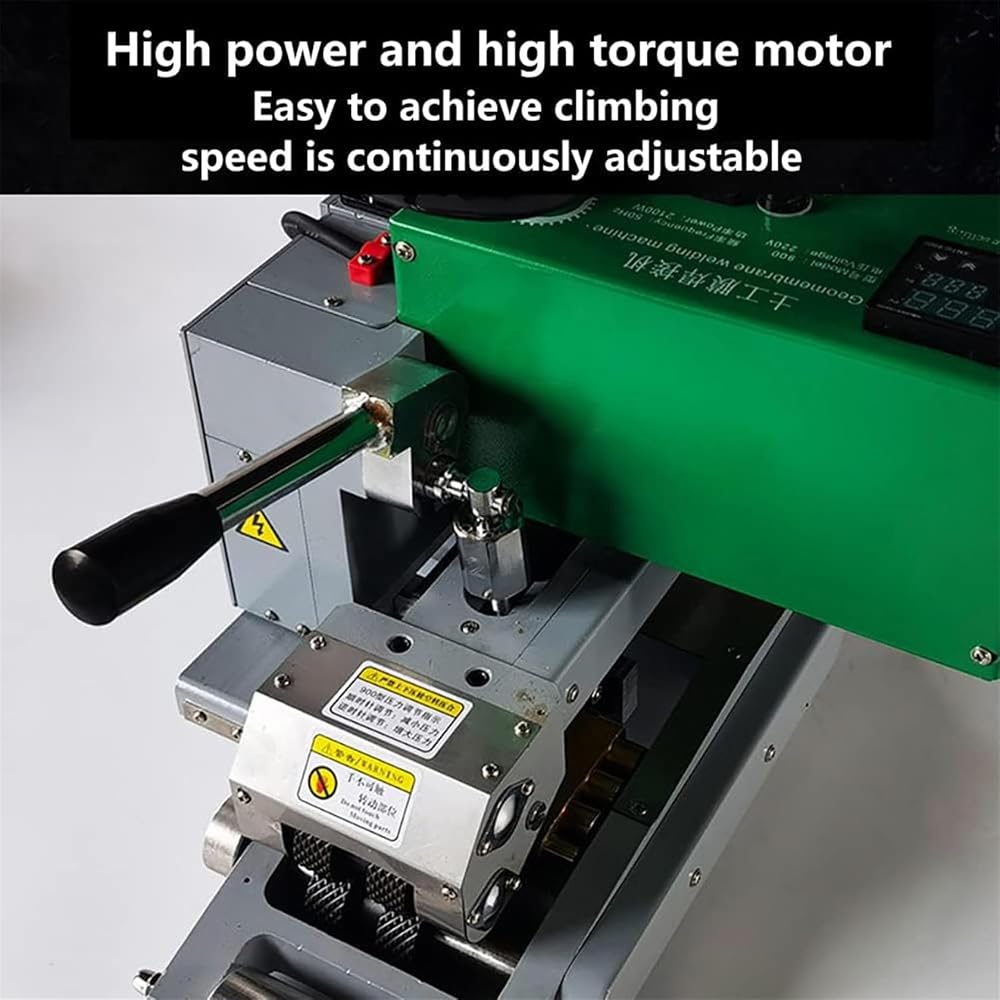

●【High-torque transmission system】The high-torque motor is equipped with two sets of precise transmission mechanisms, which can easily cope with large slopes and relatively harsh construction environments.
●【Pressure adjustment system】Conveniently select the appropriate pressure according to the thickness of the material; T-shaped arm head design ensures balanced pressure and uniform welds

our geomembrane welding machine can weld 1.0mm to 3.0mm thick hot melt materials, such as hdpe, ldpe, pvc, eva, ecb, pp, etc.

application:

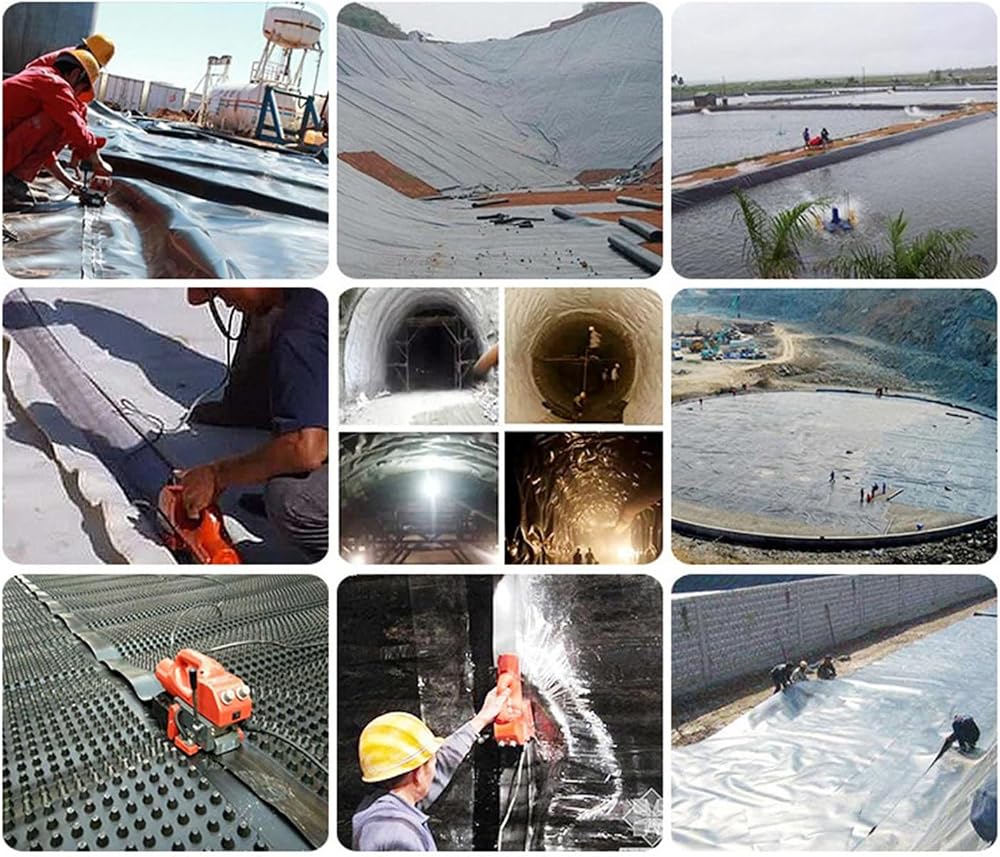

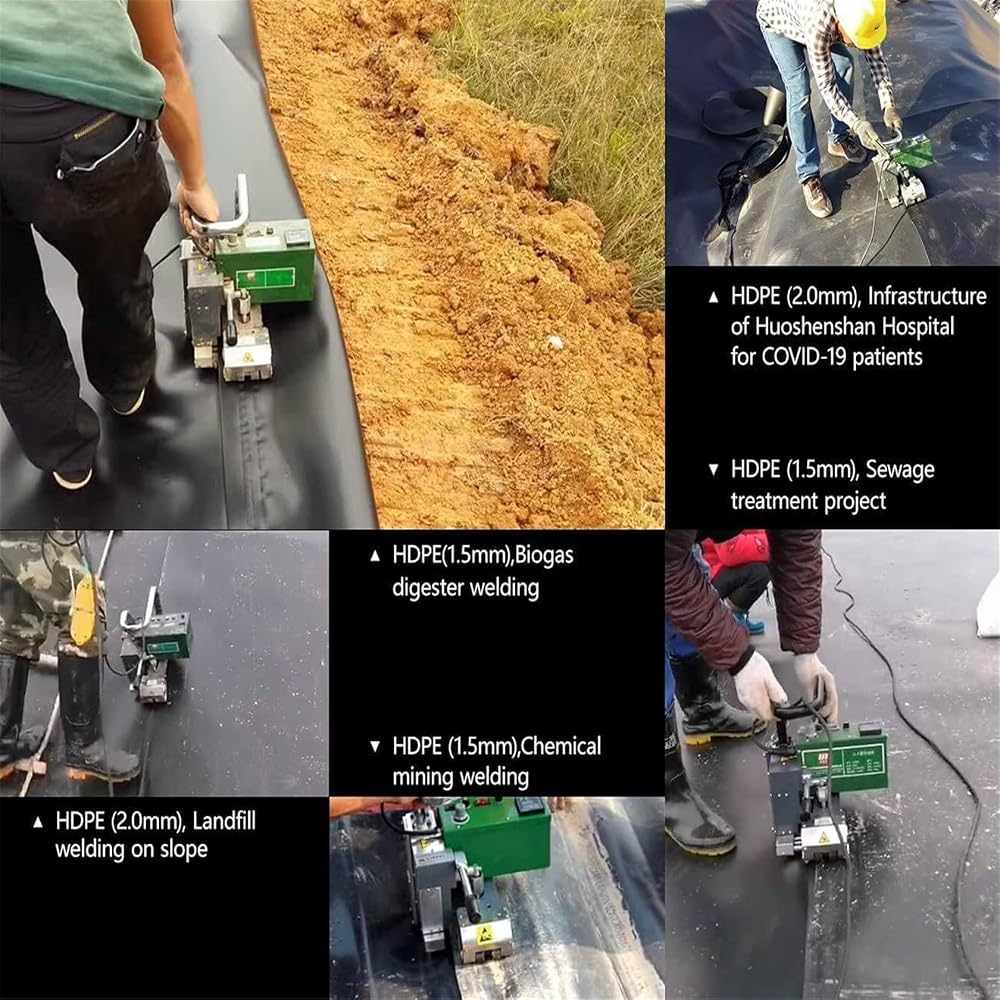

water conservancy, aquaculture, landfill, chemical mining, sewage treatment, roof construction and other waterproof projects.

feature:

1. advanced intelligent digital temperature control system

2. high-performance high-torque motor combined with double-precision drive motion

3. advanced "t" arm design and pressure regulating structure

4. special stainless steel pinch wheel, strong pinch force

5. metal hot wedge

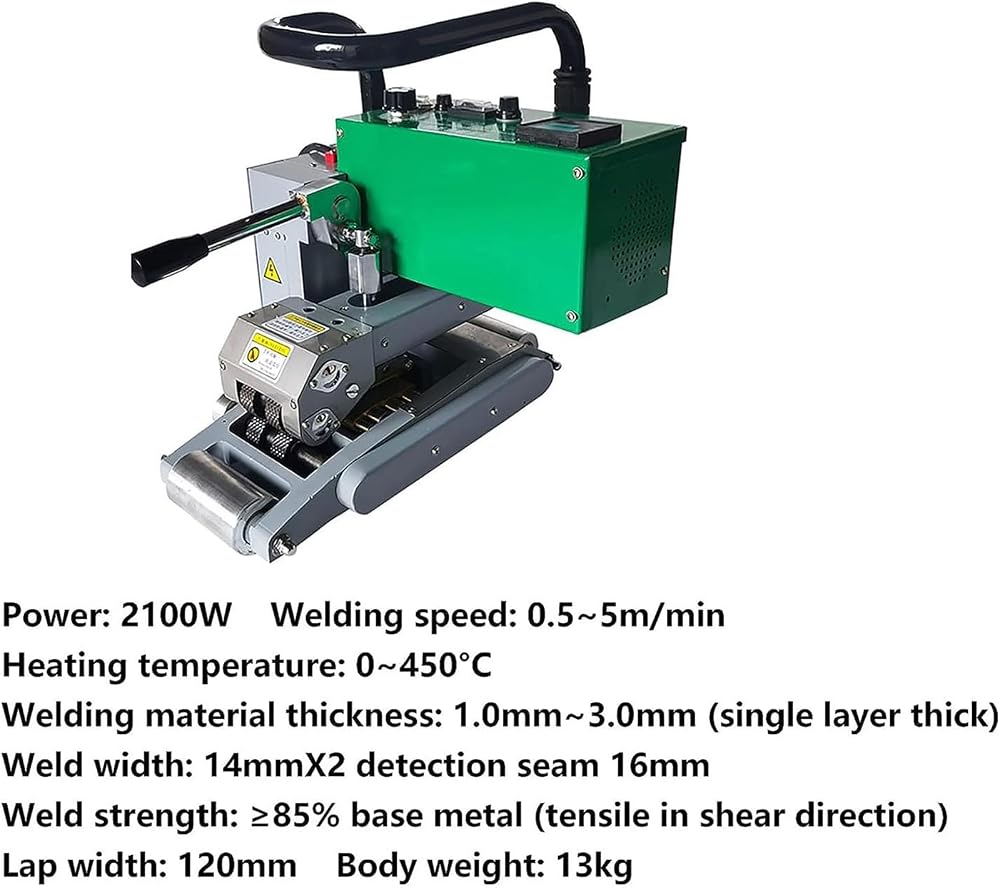

technical parameters:

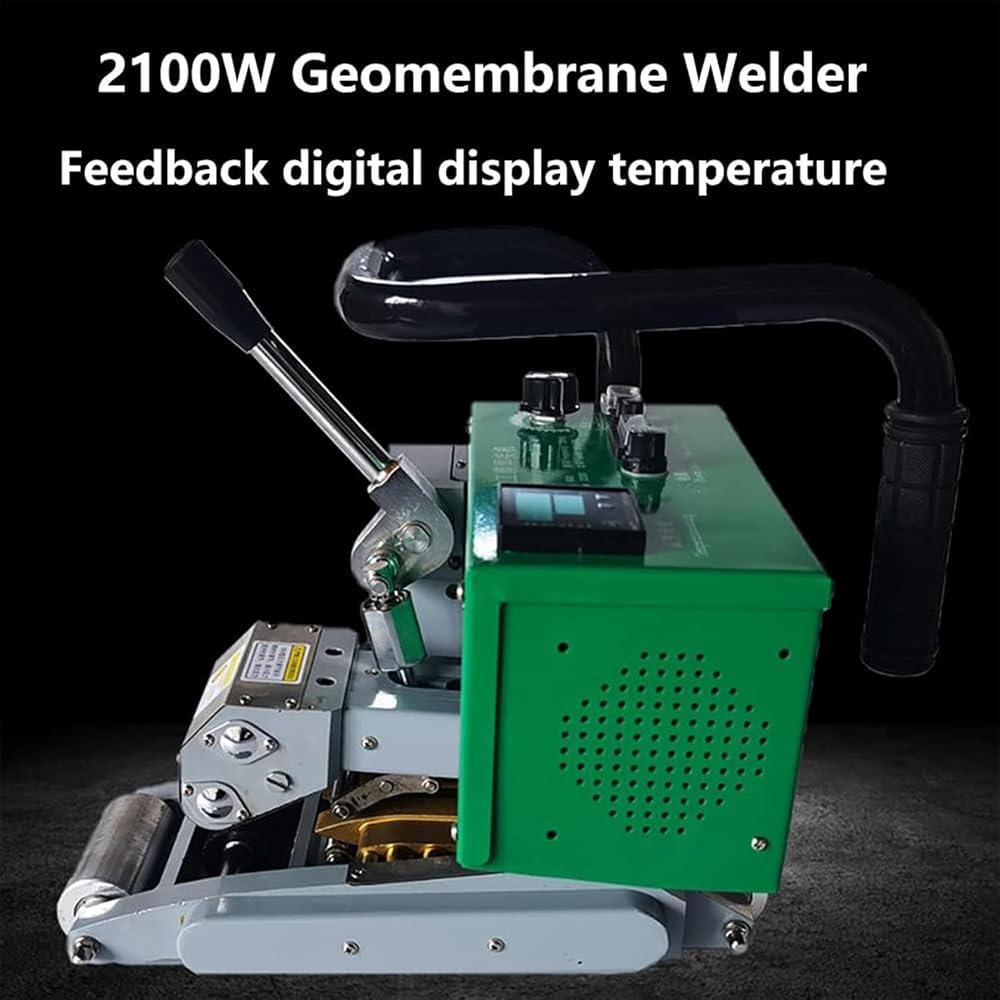

power: 2100w

welding speed: 0.5-5m/min

heating temperature: 0-450°c

welding material thickness: 1.0mm-3.0mm (single layer)

weld width: 14mm×2, internal gap: 16mm, joint strength ≥ 85% of base metal, lap width: 12cm, net weight: 12kg br/>insulation class: ii

packing list:

1 x geomembrane welding device

1 handbag
