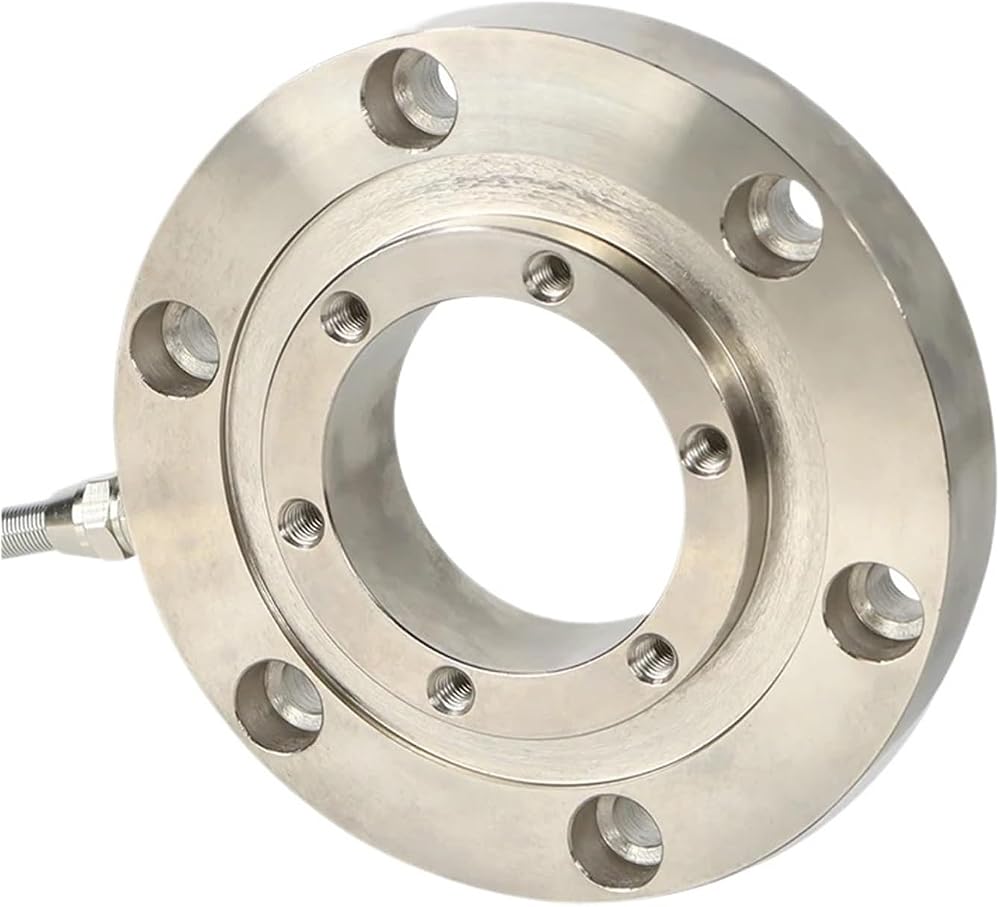

خلية تحميل من النوع الدائري المنخفض 100 كجم -5 طن من الفولاذ المقاوم للصدأ مستشعر قوة الضغط للآلات (500 كجم) in Kuwait

5000 كجم

KWD 375
مقاس5000 كجم
– 1 +

مميزات خاصة

  • sensor
  • Torque sensor is a strain gauge sensor for static torque measurement or torque wrench calibration
  • Compact structure
  • It can measure both forward and reverse torque
  • Measurement of torsional moments and conversion of physical changes into information
  • The principle of operation is based on the resistive strain principle

وصف

sensor
Specification
Capacity
5000kg
Response frequency
10kHz
Rated Output
2.0±10%mV/V
Material
Alloy Steel
Non-Linearity
0.5%F.S.
Impedance
700
Hysteresis
0.3%F.S.
Working voltage
5-10V
Repeatability
0.3%F.S.
Safe Overload
120%
Creep(30min)
0.1%F.S/30min
Maximum Overload
150%
Zero Balance
±2%F.S.
Cable Specifications
5*3
TempEffect on Zero
0.05%F.S./10
Operating Temp Range
-20-80
==========
Model Number : DSHX-003
