Power Supplies

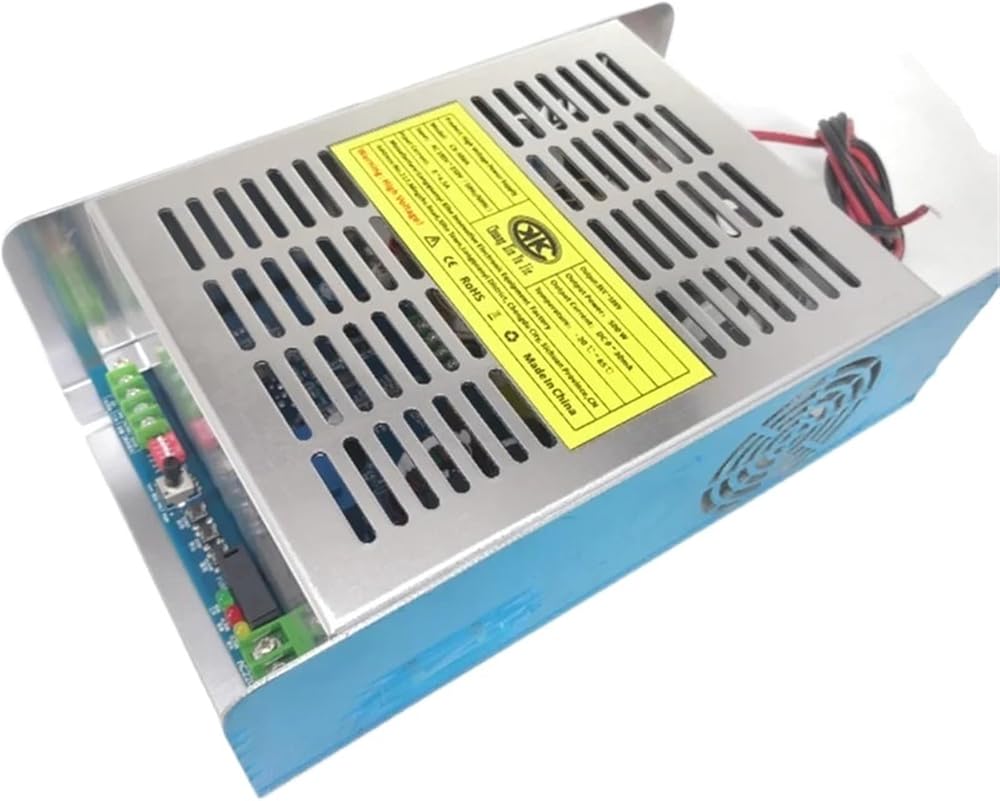

CX-500A Single output
mainlyparameter:
Input Voltage:180V~260V(50hz/60hz) or 110V±10V(50hz/60hz)
Output Voltage::3KV~18KV
(Either the positive output cable or the negative cable can be connected to the Ground:
if you used the positive output as 0V ,the negative output will generate -3kv~-18kv
if you used the negative output as 0V(GND)the positive output will generate +3kv~+18kv)
Output Current:0-30mA
Size:300mm*180mm*90mm
Output Power : 150-500(include500)
Use : Other
Type : Power Supply
EU LVD Voltage : High voltage: Above 50Vac or 75Vdc
Rated Capacity : 40-1000VA(include40VA)
High-concerned chemical : None
is_customized : Yes
Output Current : 0-30mA
Model Number : CX-500A
Output Frequency : 0Hz or 100Hz
Output Type : SINGLE
Input Voltage : 180V~250V(50Hz/60Hz)
Input Current : 0-3A
Ouput Voltage : 3KV-18KV
Rated Power : 500W
