Power Supplies
Input Voltage:180V~260V(50hz/60hz) or 110V±10V(50hz/60hz)
Output Voltage:DC1:1.5KV~10KV DC2:3KV~20KV
Output Current:0-5mA
Size:240mm*120mm*75mm
Package Weight:1.7kg
(Either the positive output cable or the negative output cable can be connected to the Ground or used as 0V:
if you used the left redoutput cable as 0V ,the whiteoutput cable will generate -3kv~-20kv,the middle redoutput cable will generate -1.5kv~-10kv
if you used the middle redoutput cable as 0V ,the whiteoutput cable will generate -1.5kv~-10kvthe left red output cable will generate +1.5kv~+10kv
if you used the whiteoutput cable as 0V ,the middle redoutput cable will generate +1.5kv~+10kv the left redoutput cable will generate +3kv~+20kv
Pretecting Functions:
1: spark prevented
2: short circuit protect
4: over voltage pretect
shortcut protection:
when the positiveoutput line and the negative output line are shorted ,the output voltage will be cut off
Preventingspark-overprotection:
when the electrostatic field isgenetating a spark-over,the HV power supply will cut the output, after half one second,the output will be restarted again,
the preventing spark-over protection functioncan also be shut down by the protentiometer on the box,if thepreventing spark-over protectionfunctionwas closed,the HV power supply can generate the high voltage spark between the positive and negative cable.
you can change the output voltage with the protentiometer on the box.
Application occasions: High voltage electric field, Electrotatic aircleaner , electrostatic field ,clean smoke,air purifiers ,air ionizer,etc
The output voltage can be adjusted by 0-5V input , you can use the to control the output voltage too,
How to use the high voltage power supply:
==========
Type : Power Supply
EU LVD Voltage : High voltage: Above 50Vac or 75Vdc
Rated Capacity : 40-1000VA(include40VA)
High-concerned chemical : None
Output Power : 51 - 100W
is_customized : Yes
Output Current : 0-5mA

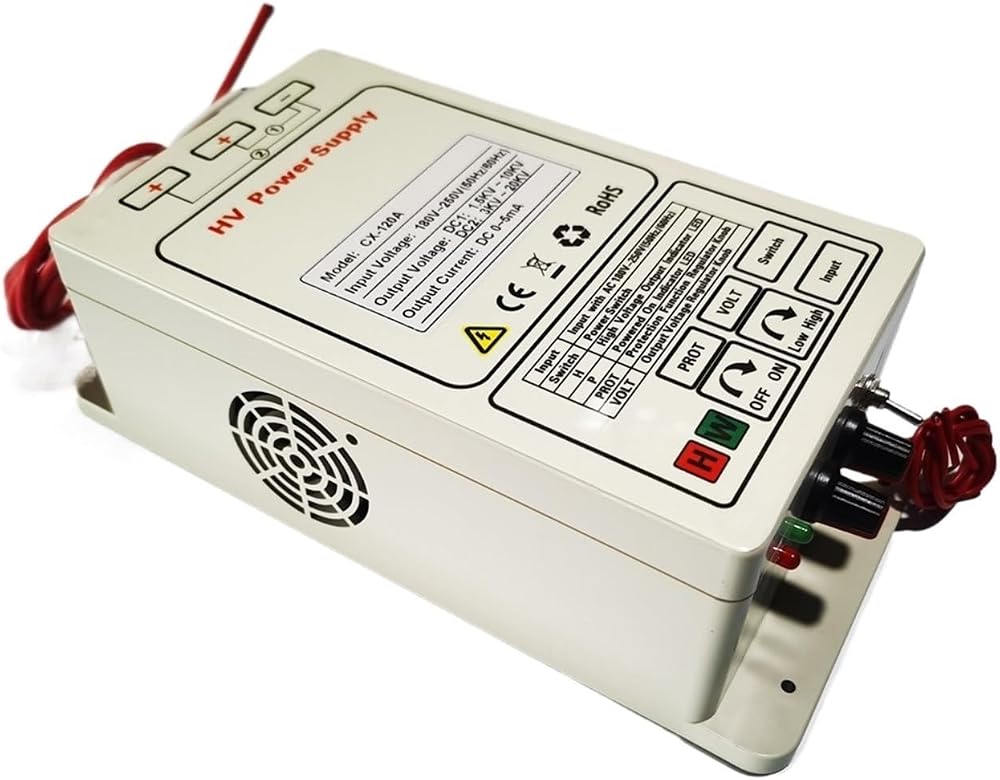

Model Number : CX-120A
Output Frequency : 0Hz
Output Type : DUAL
Input : 180V~250V or 110V
Input Current : 0-1A
Output Voltage : 1.5KV~10KV /3KV~20KV
Output Current : 0-5mA
