Power Supplies

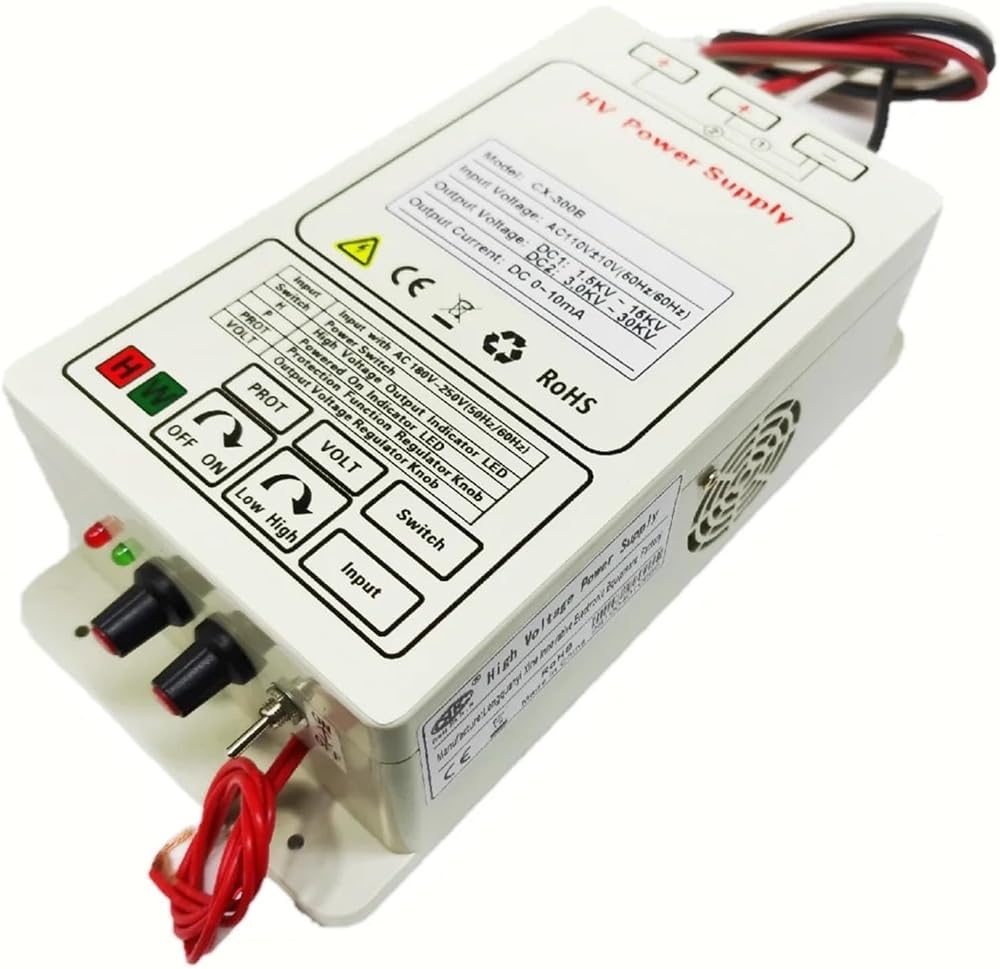

CX-300B Dual output
mainlyparameter:
Input Voltage:180V~260V(50hz/60hz) or 110V±10V(50hz/60hz)
Output Voltage:DC1:1.5KV~15KV DC2:3KV~30KV
Output Current:0-10mA
Size:240mm*120mm*70mm
Package Weight:1.7kg
(Either the positive output cable or the negative output cable can be connected to the Ground or used as 0V:
if you used the redoutput cable as 0V ,the blackoutput cable will generate -3kv~-30kvthe white output cable will generate -1.5kv~-15kv
if you used the white output cable as 0V ,the black output cable will generate -1.5kv~-15kvthe red output cable will generate +1.5kv~+15kv
if you used the black output cable as 0V ,the white output cable will generate +1.5kv~+15kvthe red output cable will generate +3kv~+30kv
How to use the high voltage power supply:
==========
Type : Power Supply
EU LVD Voltage : High voltage: Above 50Vac or 75Vdc
Rated Capacity : 40-1000VA(include40VA)
High-concerned chemical : None
Output Power : 101 - 200W
is_customized : Yes
Output Current : 0-10mA
Model Number : CX-300B
Output Frequency : 0Hz
Output Type : DUAL
Input : 180V~250V or 110V
Input Current : 0-1A
Output Voltage : 1.5KV~15KV /3KV~30KV
Output Current : 0-10mA
