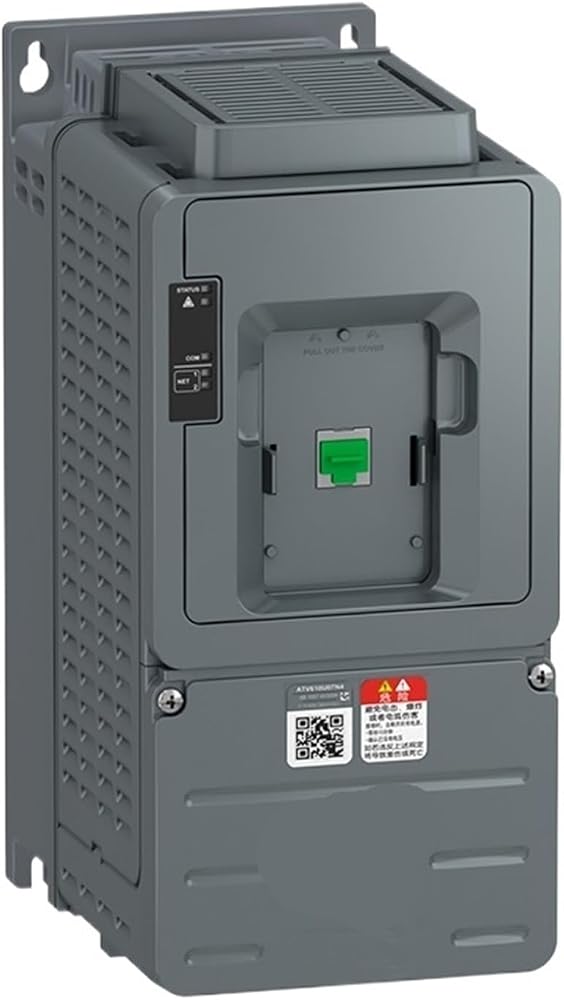

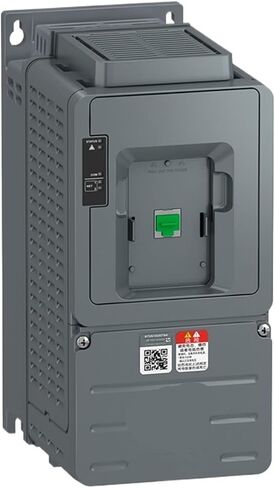

Product Description:
Product Series: Easy Altivar 610
Product type: Frequency converter
Application areas: Fans pumps compressors conveyor belts
Product Short Name: ATV610
Variables: Standard Version
Product application scenario: Asynchronous motor
Installation type: cabinet mounted
EMC filter: integrated with EN/IEC 61800-3 category C4 and longest motor cable up to 50 meters
IP protection level: IP20
Cooling method: forced ventilation
Power supply frequency: 50... 60 Hz+/-5%
Number of network phases: 3 phases
Rated power supply voltage [Us]: 380... 460 V -15... 10%
Motor power (kW):
5.5 kW applicable standard load
4 kW suitable for heavy loads
Motor power:
7.5 hp applicable standard load
5 hp suitable for heavy loads
Line current:
11.6 A on... 380 V (standard load)
10.5 A on... 460 V (standard load)
8.9 A on... 380 V (heavy load)
7.9 A on... 460 V (heavy load)
Expected line Isc: 22 kA
Apparent power:
8.4 kVA on... 460 V (standard load)
6.3 kVA on... 460 V (heavy load)
Continuous output current:
10.5 A on... 4 kHz applicable standard load
7.9 A is suitable for overload at 4 kHz on
Maximum transient current:
14 A at 60 s (standard load)
14 A at 60 s (overload)
Asynchronous motor control configuration file:
Optimize mode
Standard variable
Standard constant
Output frequency: 0.0001... 0.5 kHz
Rated switching frequency: 4 kHz
Switching frequency: 2... 12 kHz adjustable
Number of preset speeds: 16 preset speeds
Communication port protocol: Modbus serial
Tabs:
Card slot A: Communication card Profibus DP V1
Card slot A: Logical or analog I/O expansion card
Card slot A: Relay output card
