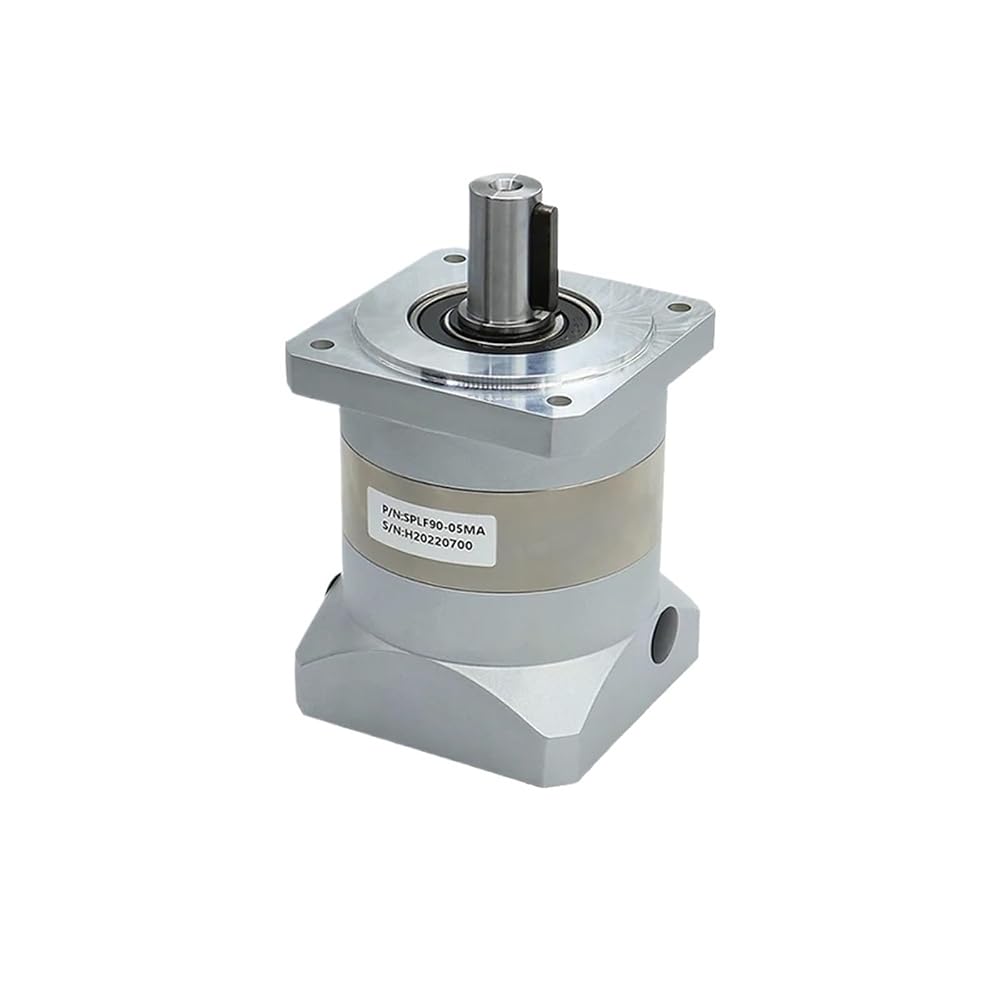

مخفض التروس الكوكبية SPLF90-LMA مدخل علبة التروس 19 مم مخرج 20 مم مناسب لـ Nema36 90ST 750W (40 إلى 1) in Kuwait مخفض التروس الكوكبية SPLF90-LMA مدخل علبة التروس 19 مم مخرج 20 مم مناسب لـ Nema36 90ST 750W (40 إلى 1) in Kuwait

مخفض التروس الكوكبية SPLF90-LMA مدخل علبة التروس 19 مم مخرج 20 مم مناسب لـ Nema36 90ST 750W (4 إلى 1)

KWD 0
ماركة
WRBSUJTMM
فئة
مهاوي
مقاس
– 1 +

مميزات خاصة

  • Rotary Shafts
  • High-efficiency transmission:All through the gear precision meshing to reduce energy loss; suitable for long-term high load operation
  • Compact structure:Space-saving design reduces the size of the reducer; suitable for narrow installation environments
  • Flexible transmission ratios:Wide range of single-stage ratios; higher ratios can be realized with multi-stage combinations; suitable for diverse needs
  • Stable operation and low noise:Iow continuous vibration; reduced impact; low noise

وصف

Rotary Shafts
SPLF90-L1MA (4/5/7/10)
(Suitable for Nema36 90ST 750W servo motors with 19mm shaft)
SPLF90-L2MA (16/20/25/28/35/40/45/50/70)
(Suitable for Nema36 90ST 750W servo motors with 19mm shaft)
Model: SPLF90-LMA
Ratio 4/5/7/10
Accuracy: 10arcmin
Ratio 16/20/25/28/35/40/50/70
Accuracy: 15 arcmin
Input hole: 19mm
Output shaft: 20mm
Full load efficiency: 94%
Protection level: IP54
Operating temperature: -10° to +90°
Suitable for: Nema36 90ST 750W servo motor with 19mm shaft
Noise level: 60dB
