Industrial plug
Plug Fittings

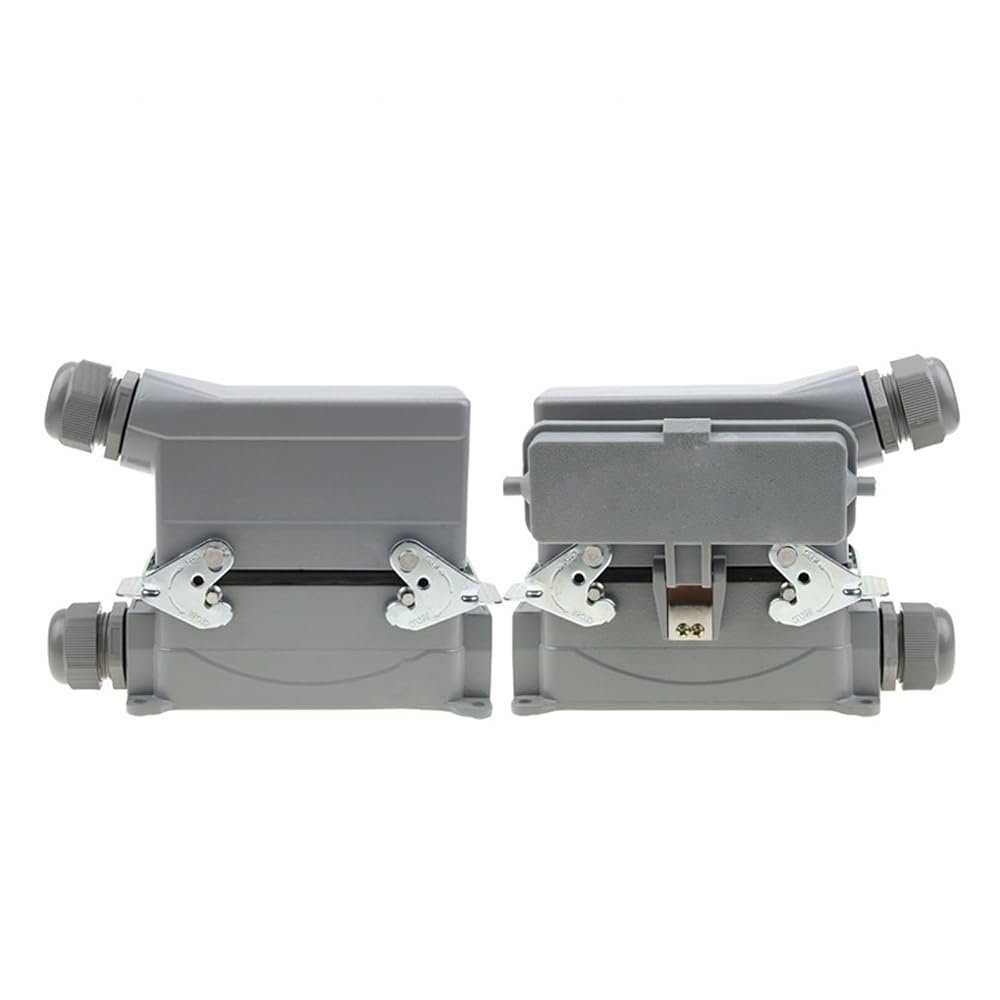

Product name: Heavy duty connector (with cover)
Working current: 16A
Working voltage: 500V
Rated pulse withstand voltage: 6KV
Pollution level: 3
Isolation resistance: 10Ω or more
Material: polycarbonate
Working temperature range: -40℃~+125℃
Flame retardant grade (according to UL94): V0
Wire cross section: 0.5-4m
Metal upper shell/base:
Material: die-cast aluminum alloy
Indications: high temperature powder spraying
Locking device: stainless steel or galvanized iron
Working temperature range: -40℃~+125℃
Protection level: IP65
Connector:
Material: copper
Surface treatment: silver plated
Contact resistance: below 1m
Wiring form: screw connection
Screw tightening torque/test
