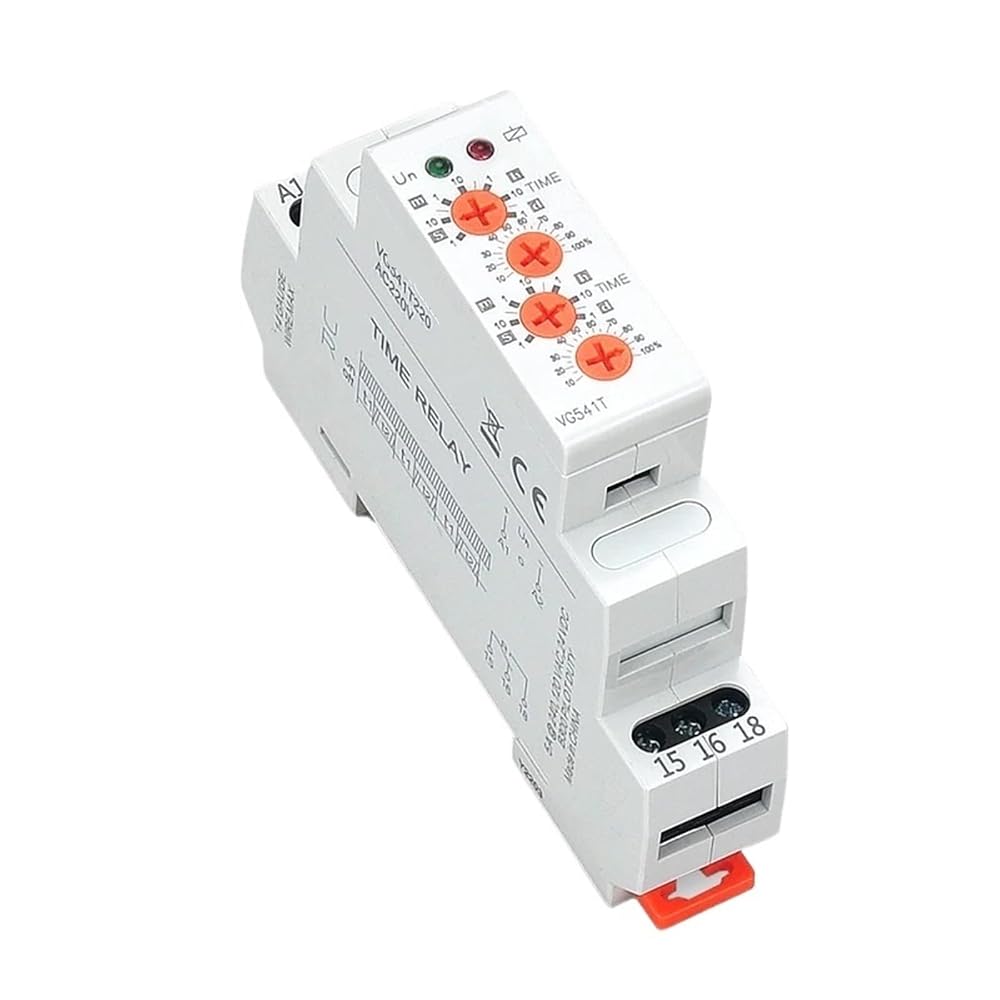

Asymmetric Cycle Timer Relay 12v 24v 220v 230v AC/DC Electronic Repeat Relay
Relay type:
Asymmetric Cycle Time Relay
Function Description:
Repetitive cycle comprises of two, independently adjustable periods t1 and t2. Each period corresponds to a different state of the output R.

:
Rated supply voltage:220 VAC or 12-240 VAC/DC
Supply frequency: 50/60 Hz
Time delay range:0.1 Second - 1 Day
Operating temperature:-20~+55
Storage temperature:-30~+70
Setting accuracy-full range:±5%
Contacts type:1 C/O (SPDT)
Rated current:5A/240 VAC,24 VDC (Resistive Load)
Discrete Output Type:Relay
Size:Width (18mm) × Depth (65mm) × Height (90mm)
Applications:
Automatic door and gate openers, building automation, cranes, pump controlpanels and pumping units, automated awnings, blinds, shutters, elevators,control systems, timers and lighting controls.
Delay time for OFF (pause) interval, adjustable on front by rotary switch: 10...
Delay time for ON (work) interval, adjustable on front by rotary switch: 10...
Green LED indicator for power on
Red LED indicator for relay state; flashing for delay and steady when relay energised
"Blade + cross" both flat blade and crosshead screwdrivers can be use on rotary selectors and terminals
35 mm Din rail mount
