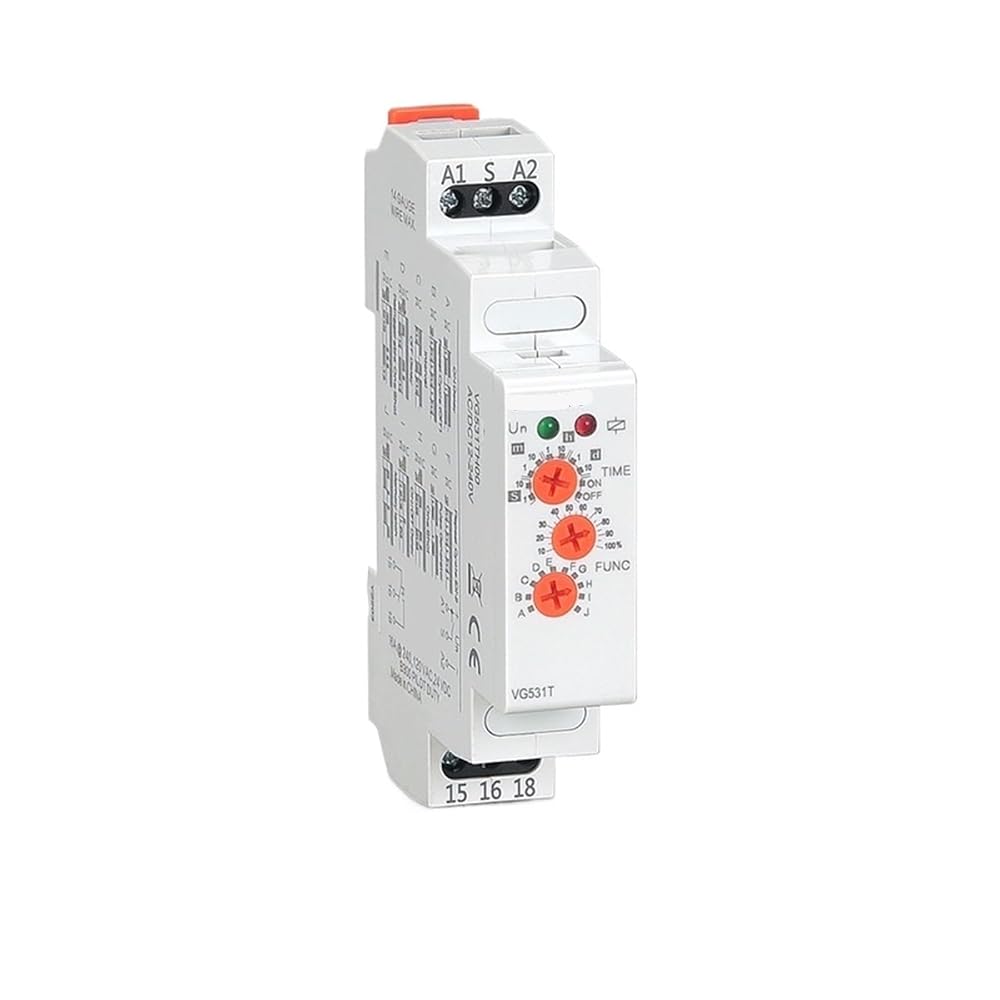

Multifunction Timer Relay 12v 24v 220v 230v AC/DC Electronic 16A Modular Time Relay with 10 Functions and Delay Time Adjustable
Relay type:Multi-function Time Relay
10 Functions:
1.Power On Delay 2.Asymmetric Cycle (Starting Off) 3. Interval (Power On) 4. Off Delay
5. Single Shot (Retriggerable) 6. Asymmetric Cycle (Starting On) 7. Pulse (Generator)
8. Single Shot 9. On / Off Delay 10. Memory Latch
:
Rated supply voltage:230 VAC or 12-240 VAC/DC
Supply frequency: 50/60 Hz
Time delay range:0.1 Second - 10 Days
Operating temperature:-20~+55
Storage temperature:-30~+70
Setting accuracy-full range:±5%
Contacts type:1 C/O (SPDT)
Rated current:16A/240 VAC,24 VDC (Resistive Load)
Discrete Output Type:Relay
Size:Width (18mm) × Depth (65mm) × Height (90mm)
Applications:
Automatic door and gate openers, building automation, cranes, pump controlpanels and pumping units, automated awnings, blinds, shutters, elevators,control systems, timers and lighting controls.
Delay time adjustable on front by rotary switch: 10...
Green LED indicator for power on
Red LED indicator for relay state; flashing for delay and steady when relay energised
"Blade + cross" both flat blade and crosshead screwdrivers can be use on rotary selectors and terminals
35 mm Din rail mount
