Feature:
1. Standard and Universal: The protector is standard modular structure, 35mm guide rail installation, with ultra wide voltage design, universal for worldwide.
2. 2 Reset Methods: The protector can be reset automatically or manually, choose according to different situations.
3. Value Adjustable: The overvoltage, undervoltage, unbalance values can be adjusted, and each action time can also be adjusted.
4. Multi Protection: Real time monitoring, the protector has protections of overvoltage, undervoltage, voltage unbalance, phase error, phase loss, zero line disconnection.
5. Multi Usage: The protector can be widely used in machine tool, crane, control cabinet, compressor, cutting machine, elevator, air conditioner, elevator, freezer, water pump, charging pile, motor, etc.
Specification:

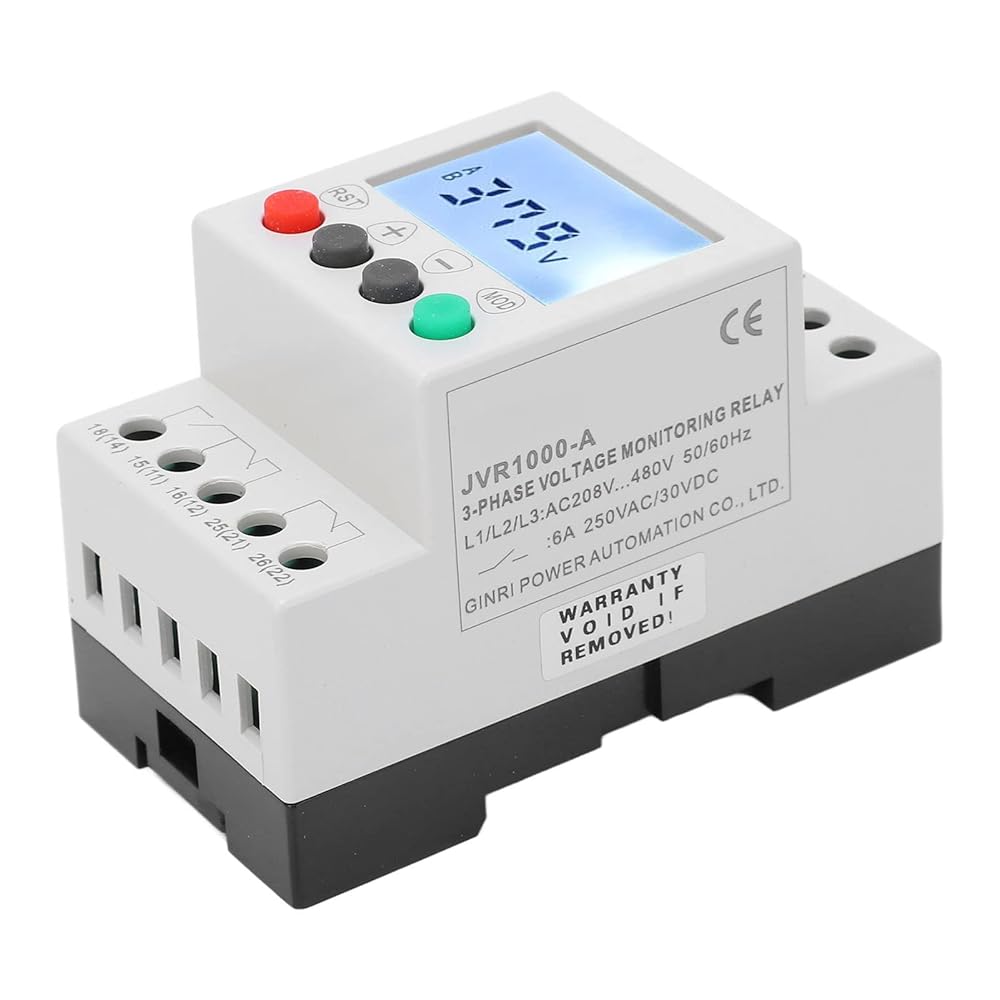

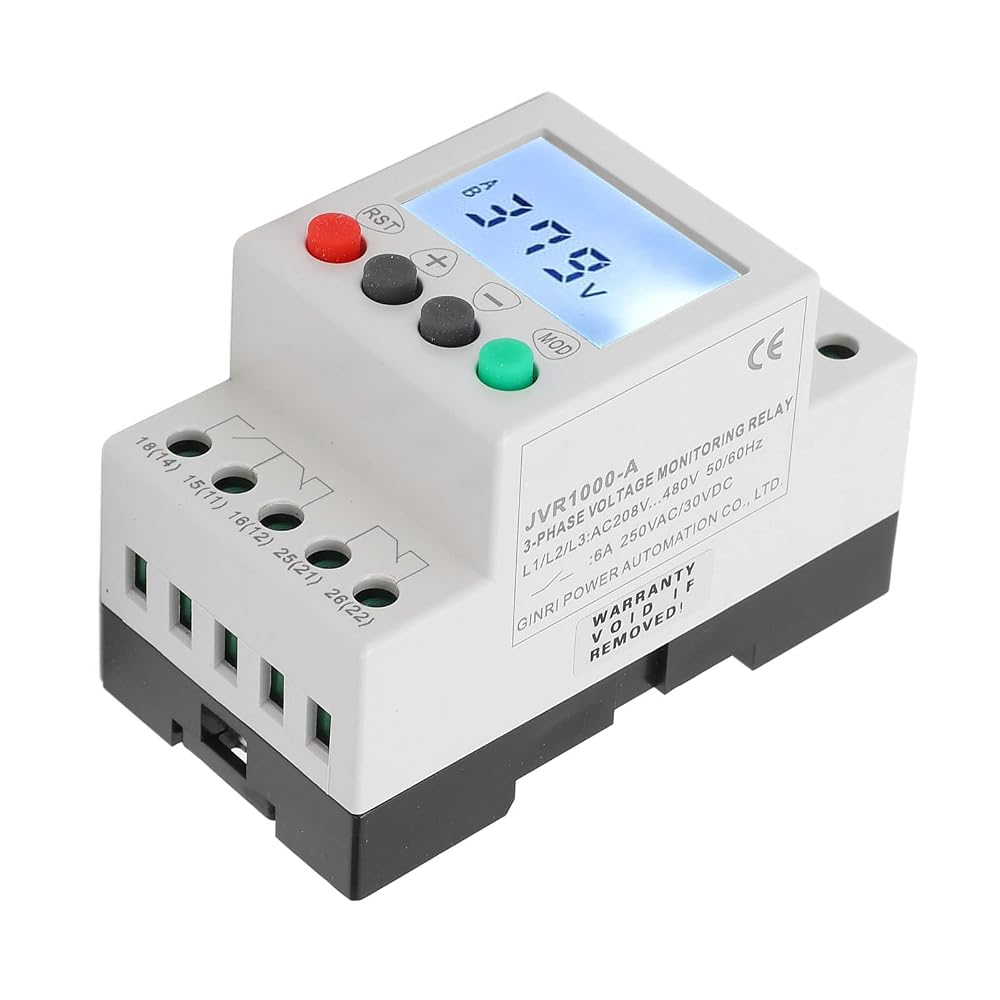

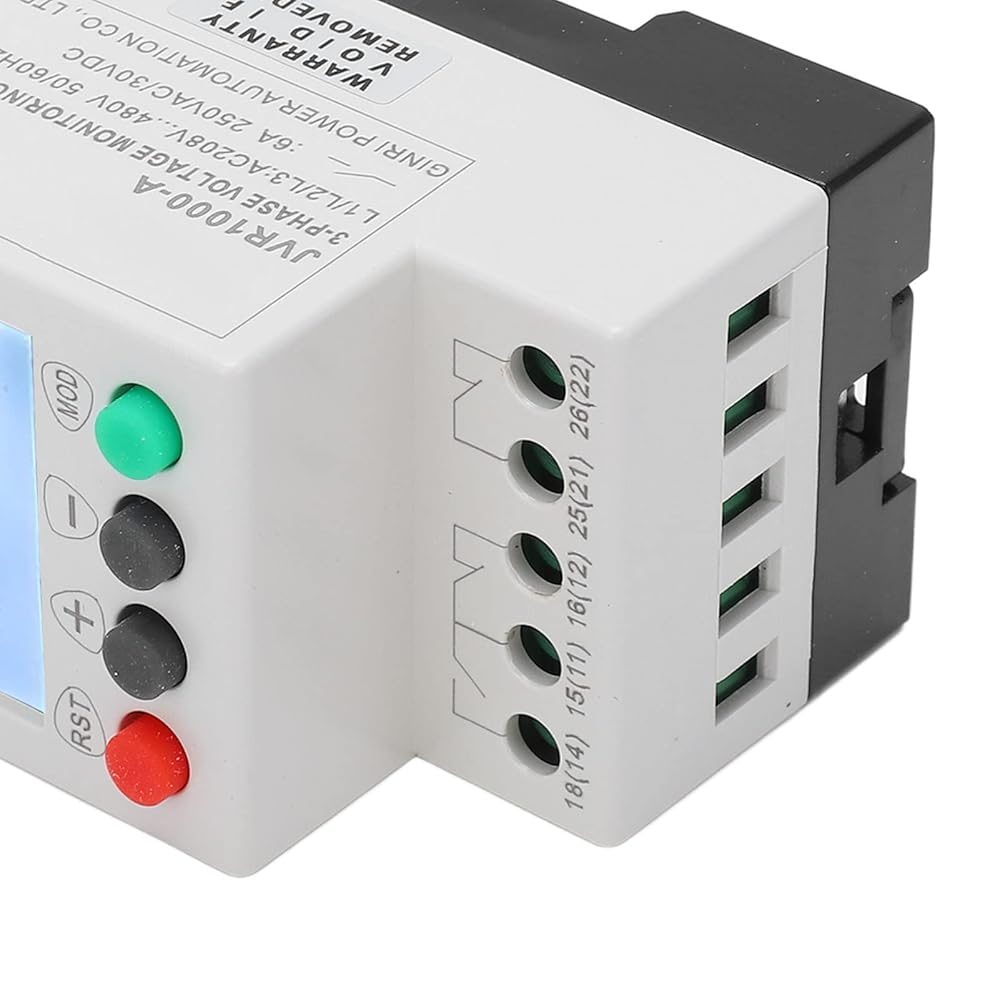

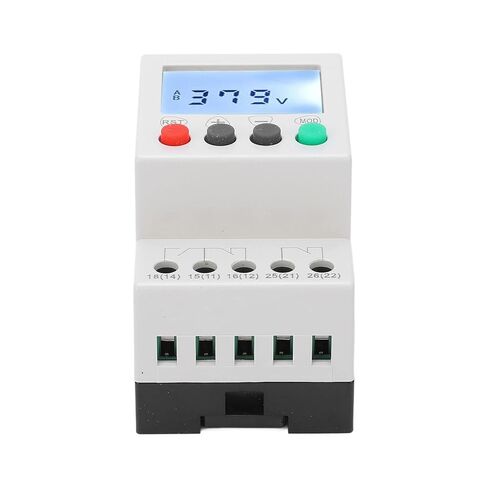

Item Type: Voltage Phase Sequence Protector
Material: ABS

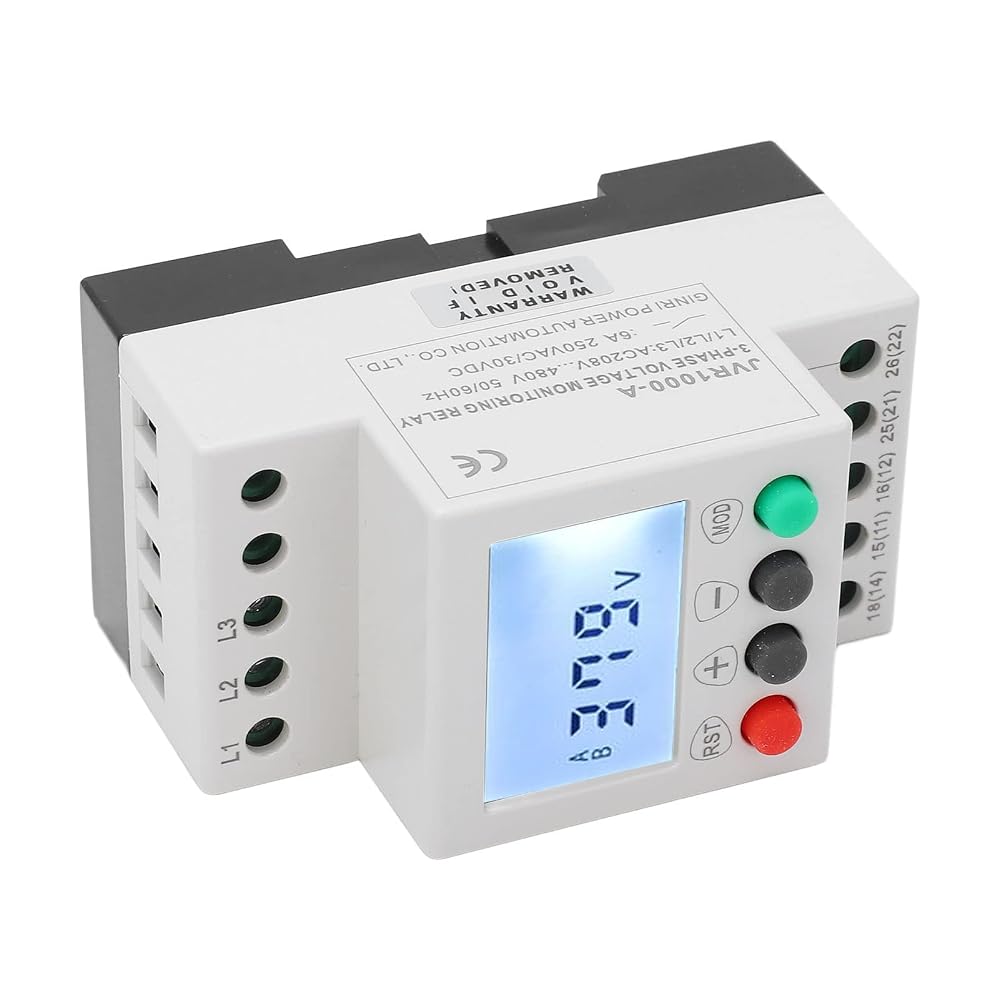

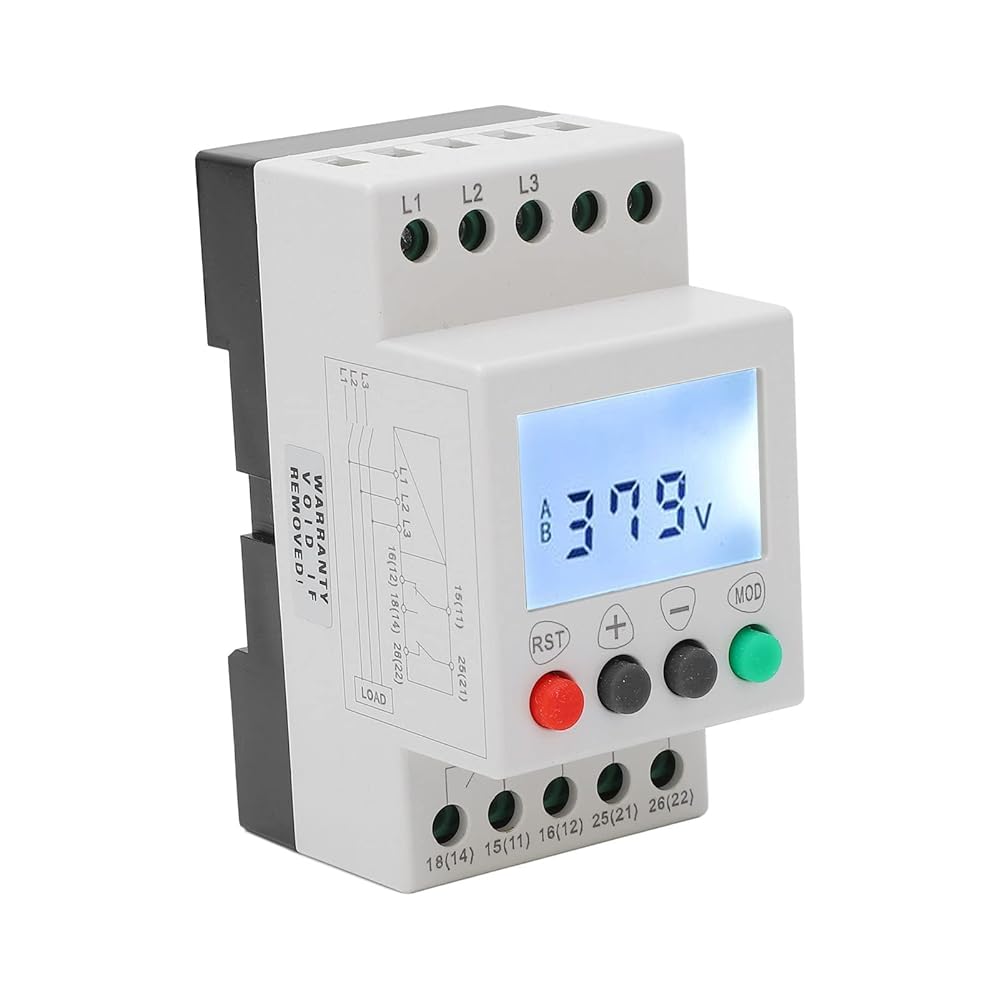

Input Circuit: L1, L2, L3
Rated Supply Voltage: 208-480VAC 50/60Hz
Working Frequency: 45-65Hz
Output Type: 1CO and 1NC
Overvoltage and Undervoltage Action Time: 0.1-999s
Unbalance Rate: 1-50%
Unbalanced Hysteresis: 1-10%
Unbalanced Delay: 0.1-999s
Phase Loss Action Time: 0.1-30s
Phase Error Action Time: 0.1-30s
Power On Delay: 0-999s
Reset Mode: Auto Manual
Reset Delay: 0.1-999s

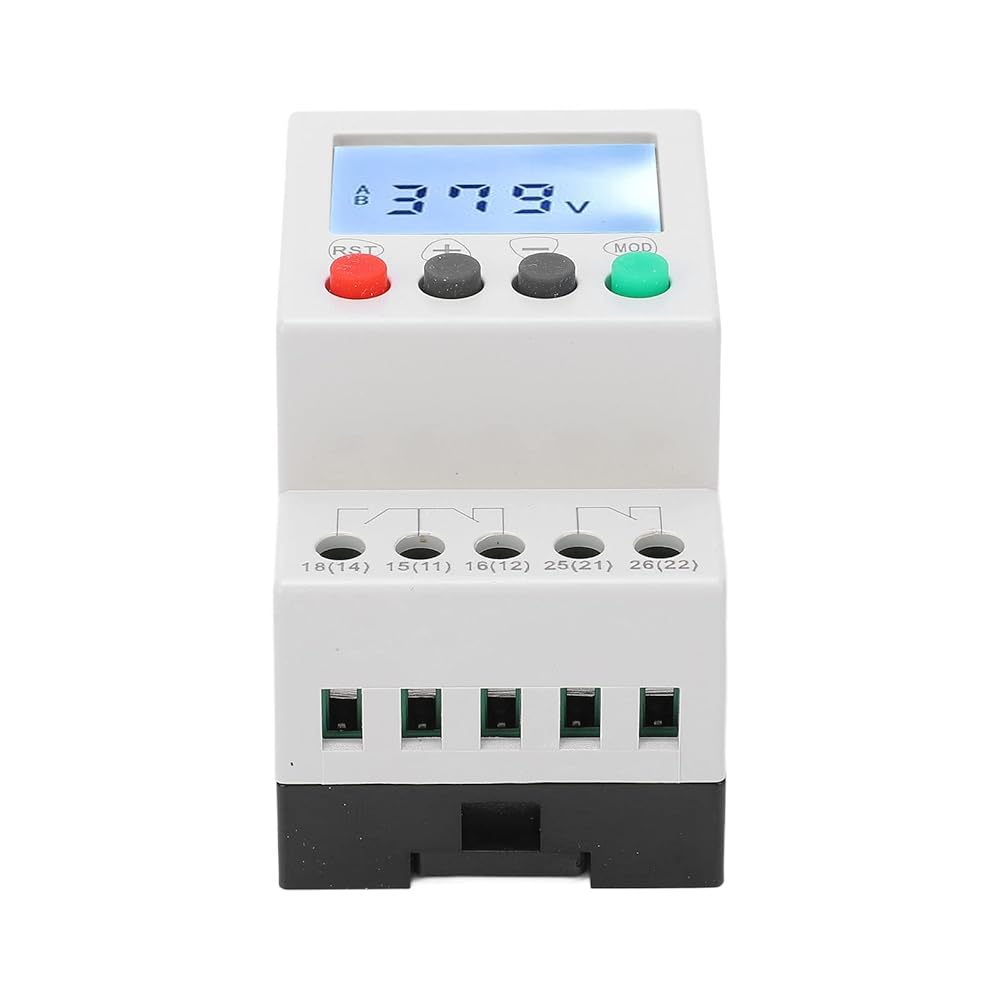

Display Mode: Chinese LCD display each action status
Contact Form: 1 group of normally open and normally closed contact, 1 group of normally closed contact
Contact Capacity: 6A 250VAC 30VDC (resistive)

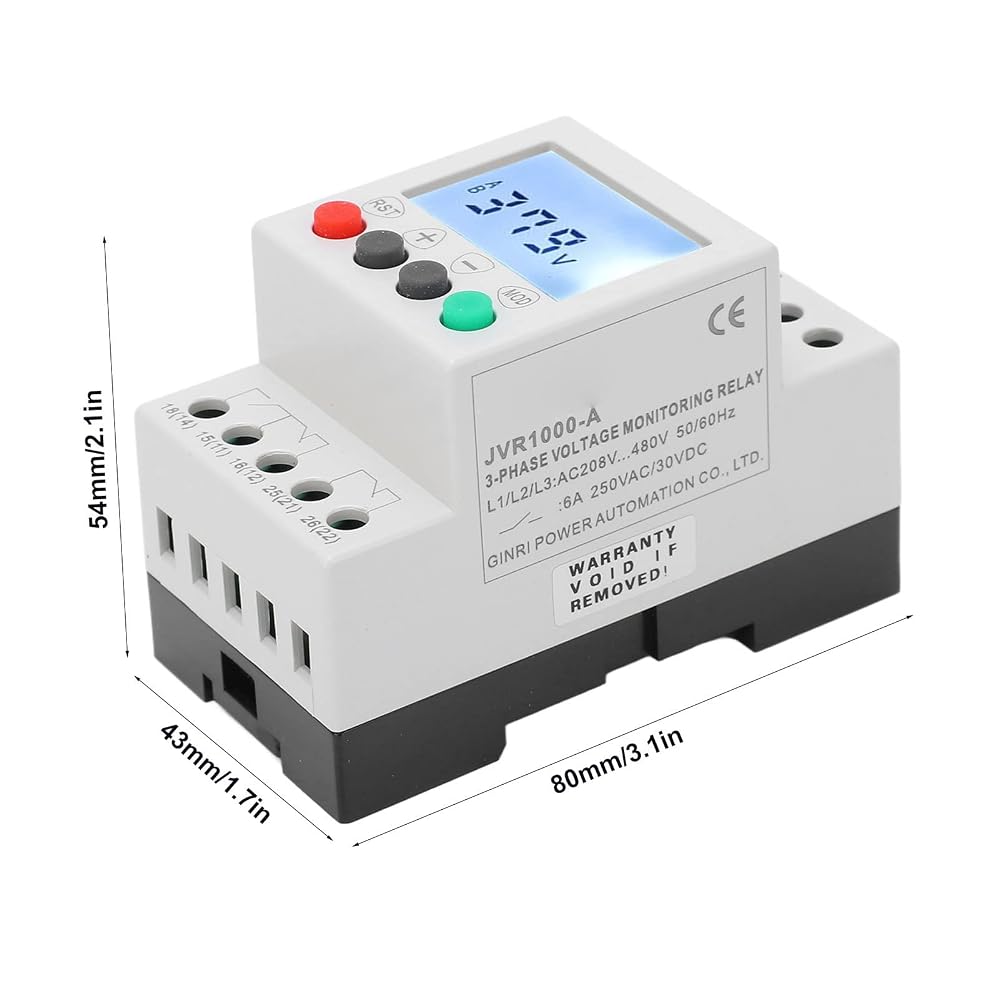

Dimension(LxWxH): Approx.80x43x54mm/3.1x1.7x2.1in

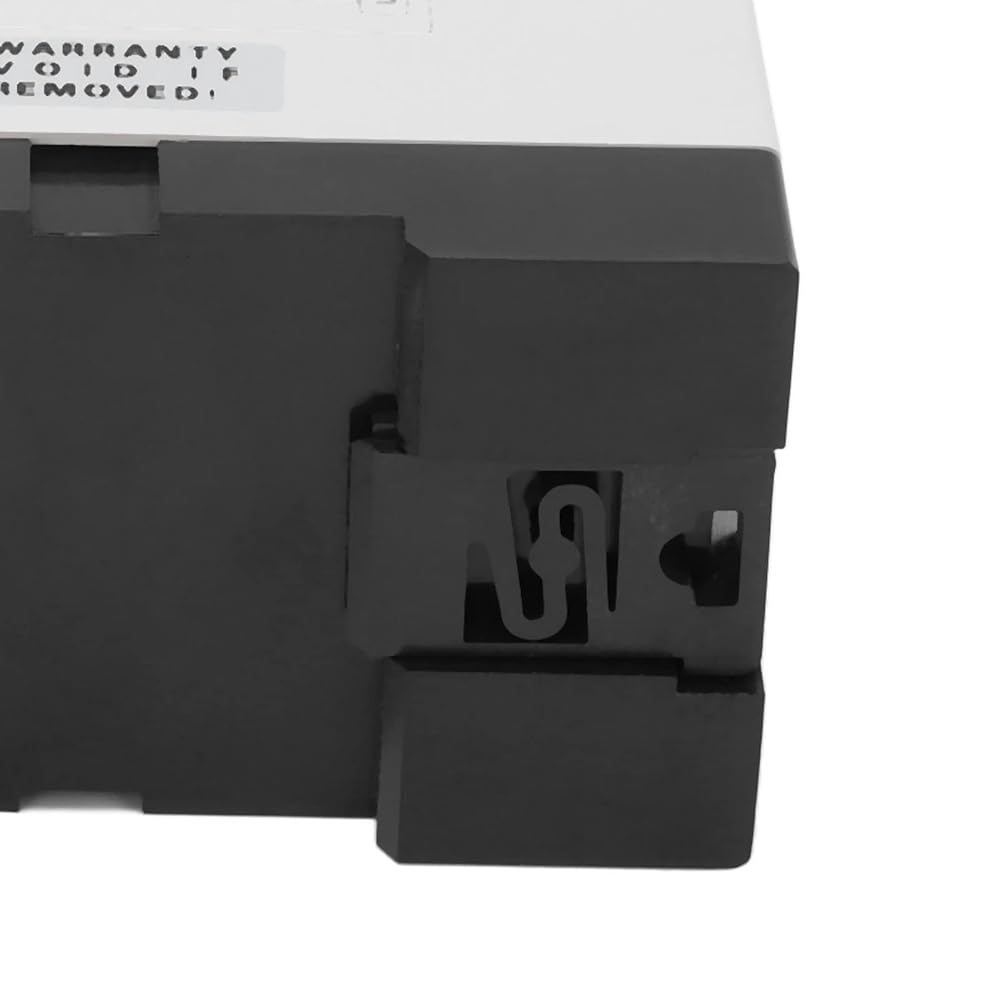

Installation Method: 35mm guide rail
Protection Class: IP20
Working Environment: -25℃ to 65℃, ≤85%RH
Mechanical Durability: 1,000,000 times
Dielectric Strength: >2kVAC 1min.
Package List:
1 x
Voltage Phase Sequence Protector1 x Manual
