[Safe Operation] The 12v dc bilge blower comes with clear wiring instructions (brown positive, black negative) and requires a 7a fuse for safe operation. with a 4 amp current draw and 16awg minimum wire requirement, this blower provides reliable performance while meeting all safety standards.

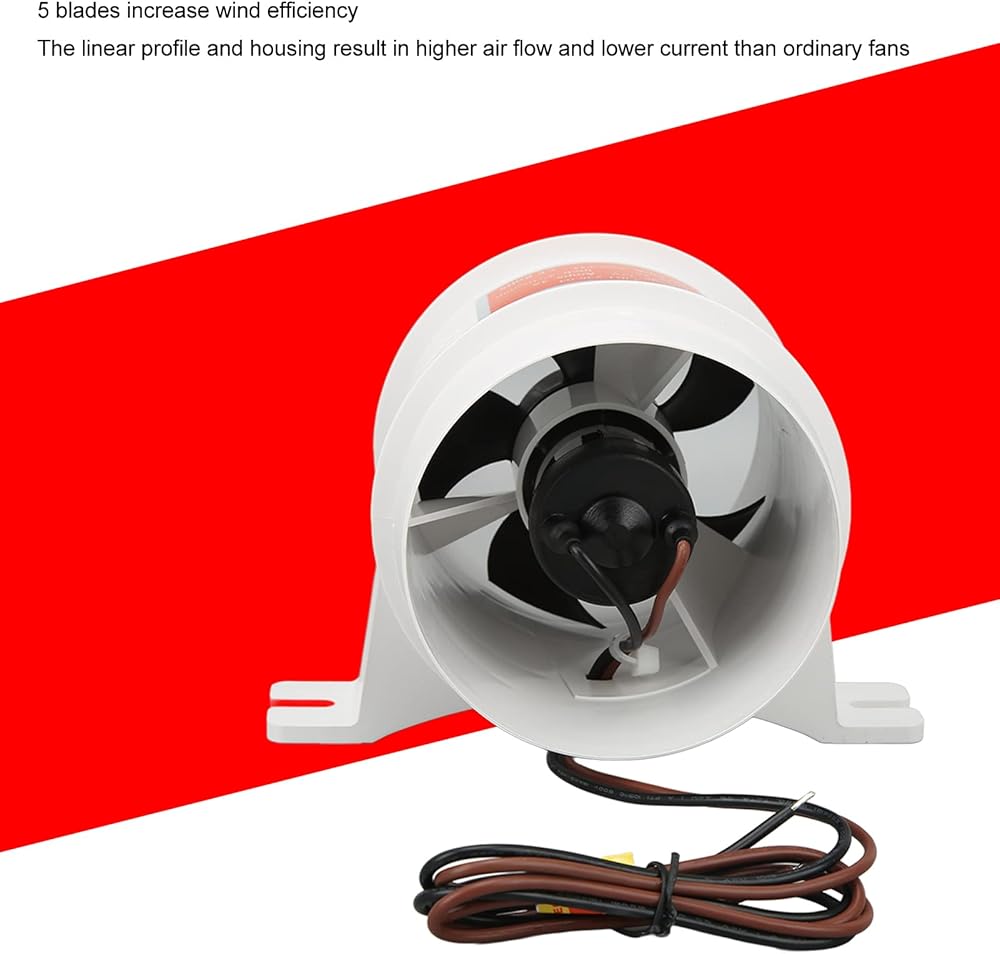

[Optimal Airflow] This rv and marine blower features a precisely engineered five Vane/Wing fan that maximizes airflow efficiency. the directional indicates port orientation for proper installation, ensuring optimal ventilation in your boat, yacht, or rv compartments.

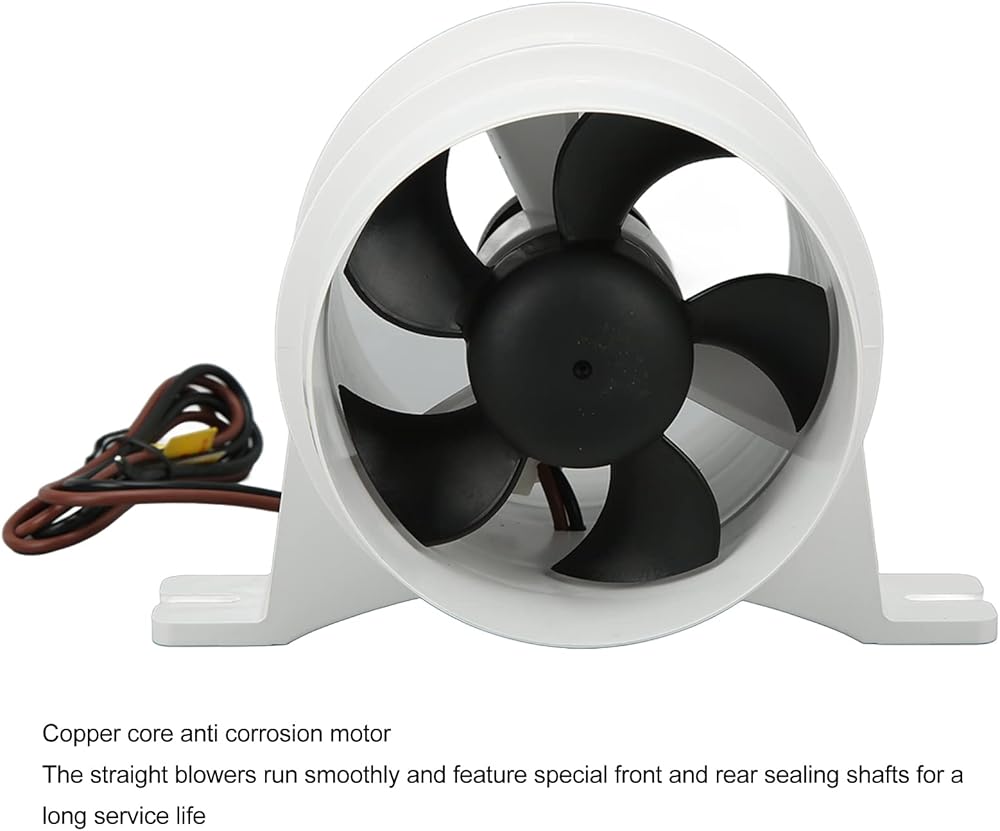

[Marine Grade Construction] Featuring a rugged ABS outer shell and copper motor core, this blower holds up perfectly to harsh marine environments. Its sealed motor shaft offers superior defense against dampness, making it well-suited for bilges, engine rooms and other humid surroundings.
[Easy Installation] Designed for versatile mounting, this 4 inch bilge blower can be installed on any flat surface with included m6 screws. its compact design allows for placement in tight spaces while providing higher airflow, lower amp draw, and quieter operation compared to standard blowers.
[High Performance] This inline bilge blower boasts an impressive 235CFM airflow, equipped with a high-efficiency five-Vane/Wing fan design. Engineered for maximum output, the motor housing adopts sturdy premium construction, paired with front and rear shaft seals to deliver long-lasting service life in harsh marine environments.

وصف

Spec:

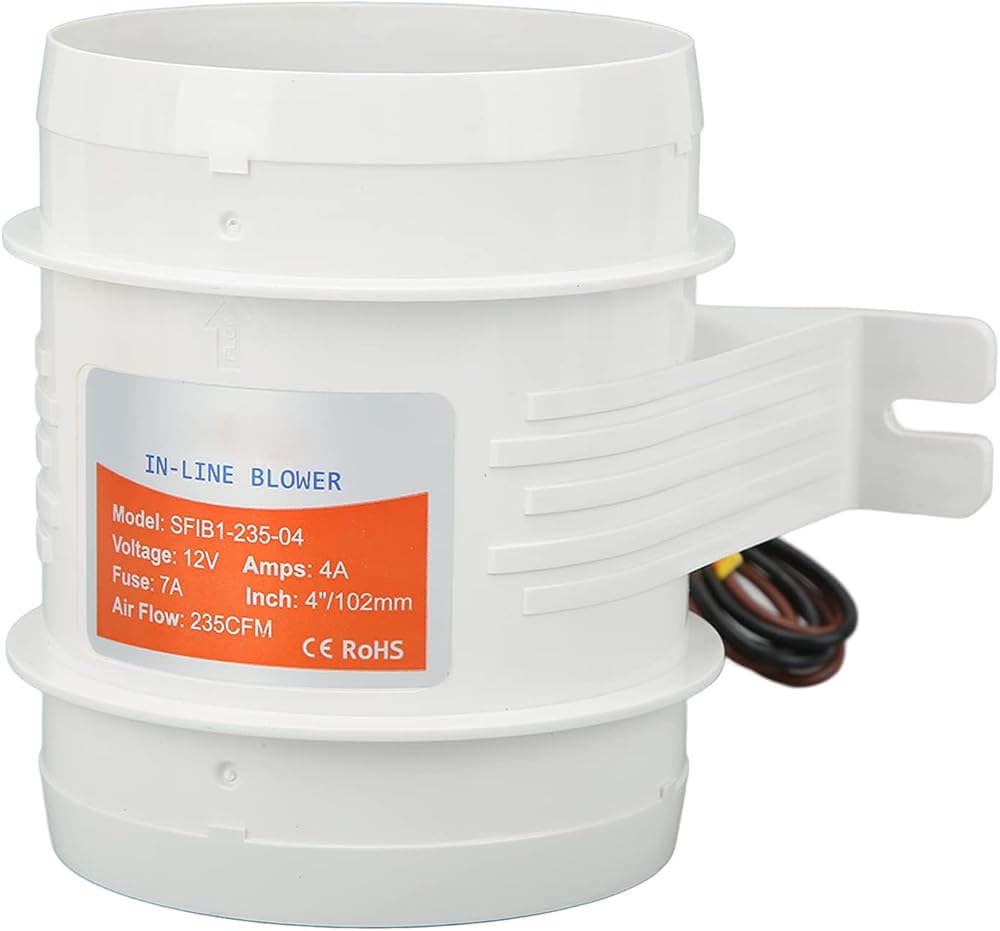

Item Type: Air Blower
Material: ABS shell, copper motor core
Air Flow: 235CFM
Working Voltage: DC12V
Fuse: 7A
Current: 4 Amps

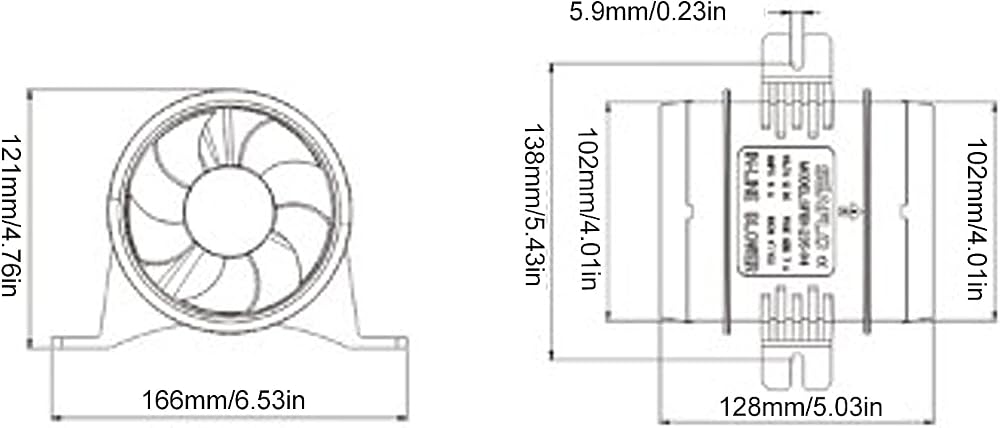

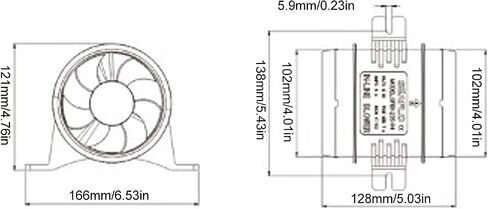

Size: Approx. 4inch/102mm

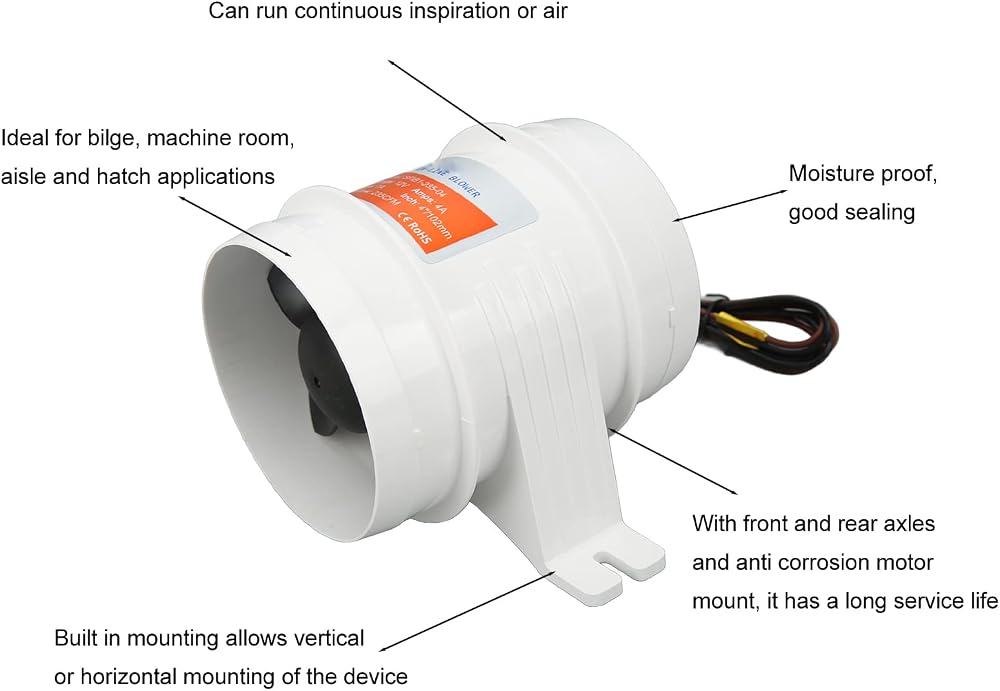

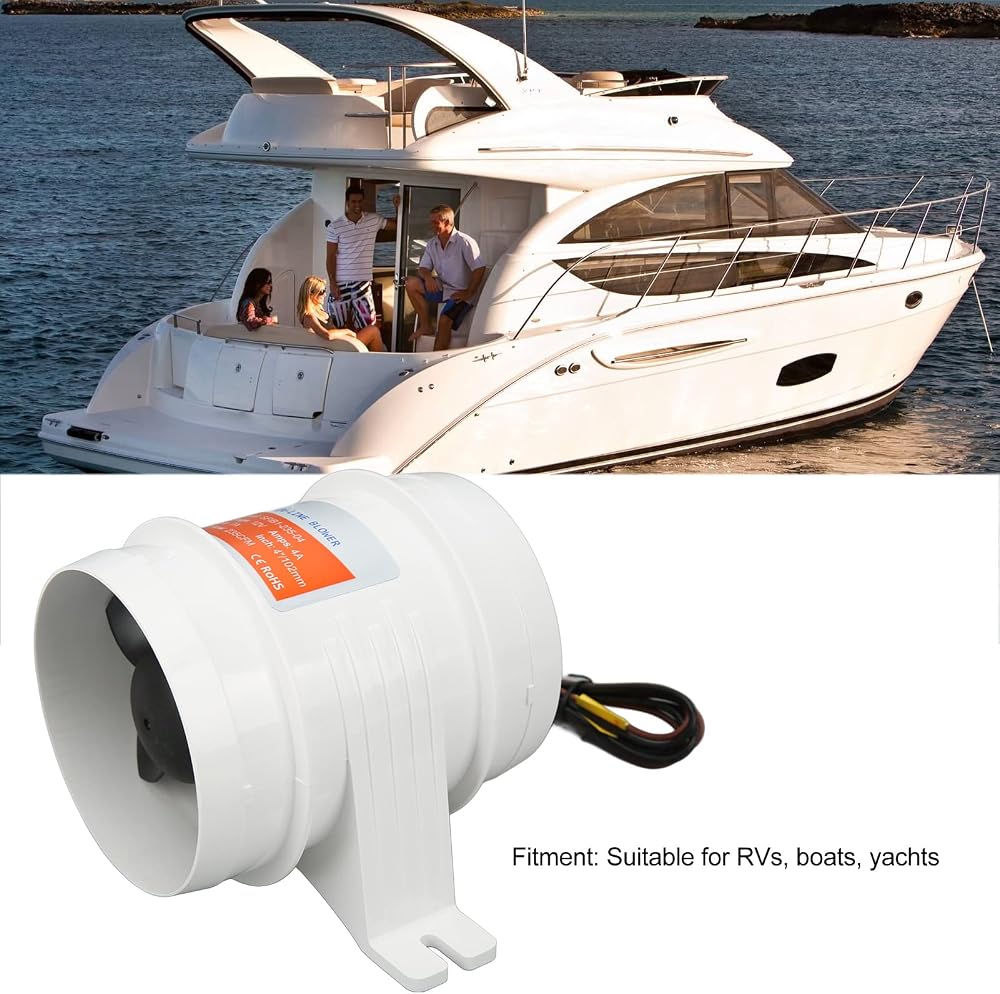

Fitment: Suitable for RVs, boats, yachts, ideal for bilge, engine rooms, aisles and canopies

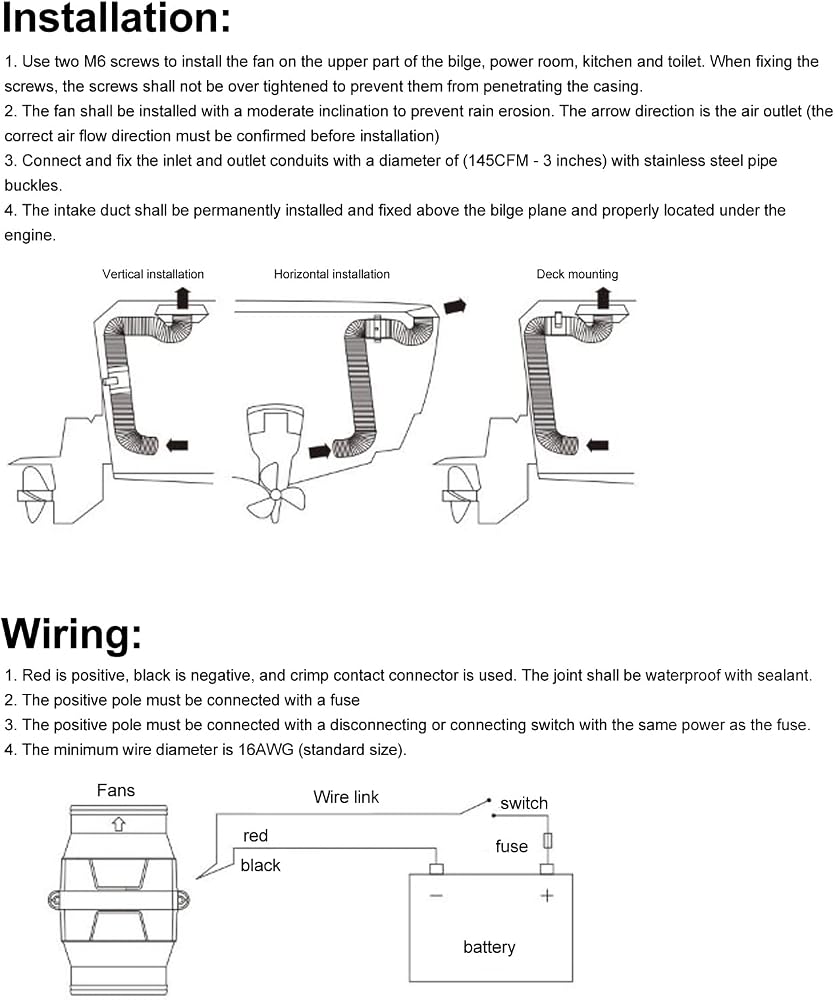

Installation:
1. Install the fan with two M6 screws in the upper part of the bilge, power room, kitchen and toilet. When fixing the screws, the screws should not be over tightened to prevent penetration through the chassis.
2. The fan should be moderately inclined when installed, which is convenient to prevent rain erosion. The direction of the is the port (the correct airflow direction must be confirmed before installation).
3. Fix the diameter (235CFM-4 inch) inlet and outlet conduit with stainless steel pipe buckle.
4. The intake duct should be permanently installed and fixed above the bilge plane and properly located under the engine.

Connection:

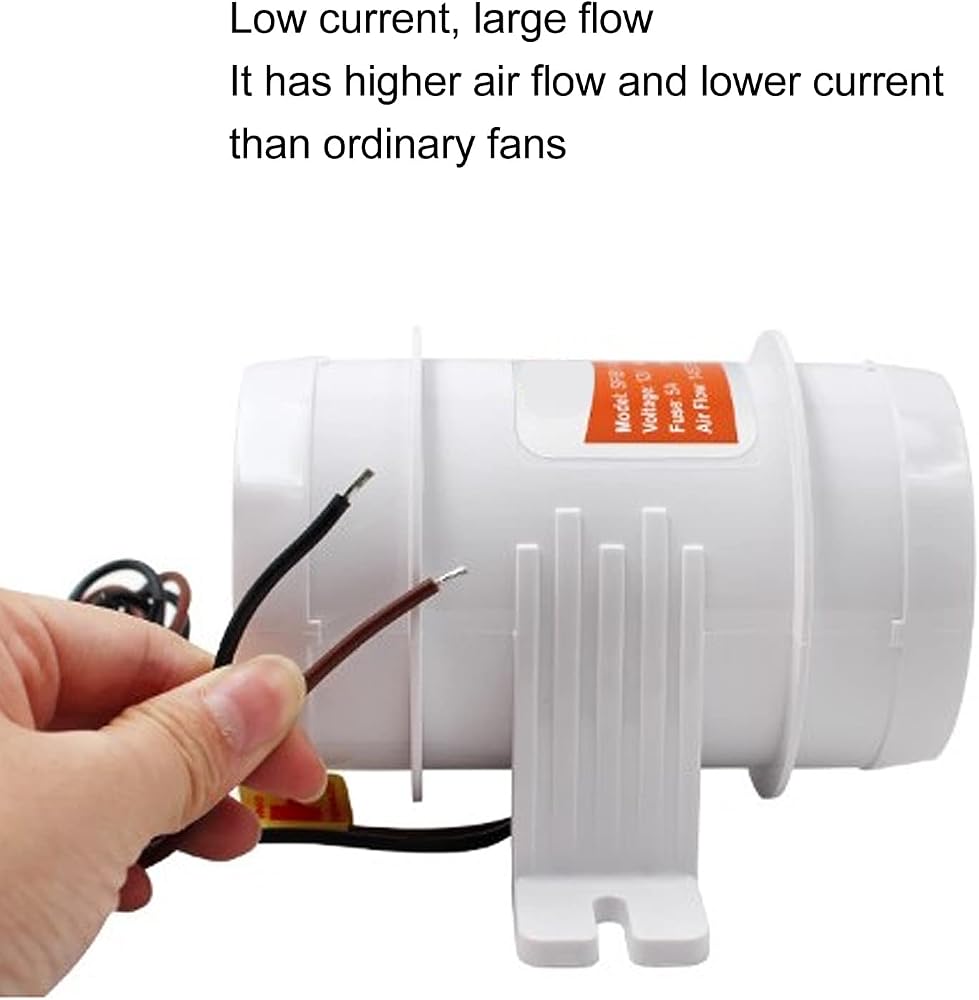

1. Brown is the positive electrode, black is the negative electrode, use crimp contact joint. The joint uses a sealant to resist water.
2. The positive electrode must be connected to the fuse
3. The positive pole must be connected to a disconnect or connection switch with the same power as the fuse.
4. The minimum wire diameter is 16AWG .

Package List:
1 x Inline Blower
1 x Manual
