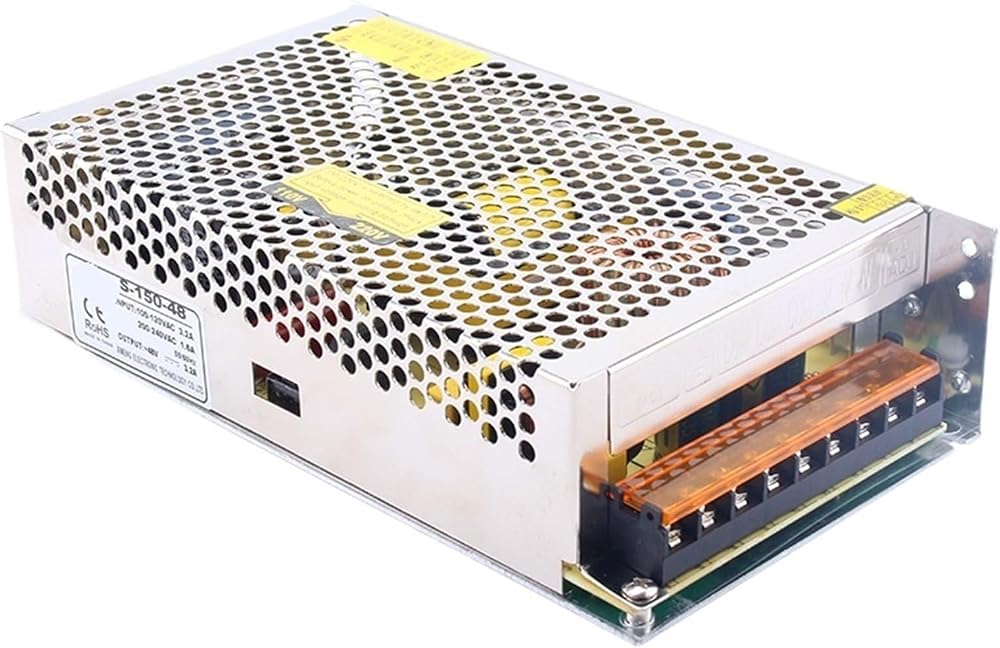

Model
S-150-5
S-150-12
S-150-15
S-150-24
S-150-48
Output
DC output Voltage
5V
12V
15V
24V
48V
Voltage tolerance
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
Rated Current
30A
12.5A
10A
6.5A
3.2A
Related Power
150w
150w
150w
150w
150w
Wave&Noise
180mVpp
180mVpp
180mVpp
240mVpp
240mVpp
Adjustable range for DC Voltage
10%
±10%
±10%
±10%
±10%
Set up rise hold up time
200ms 100ms 20ms
Input
Voltage Range
85~132VAC 170-264VAC selected by switch 47-63HZ 240-370VDC
Input Current
2.4A/115VAC 1.2A/230VAC
Efficiency
82%
82%
84%
85%%
87%
AC inrush current
Cold start current 30A/115V 60A/230VAC
Leakage current
Protection
Overload
Related output power 105-150% start overload protection
Protection type: cutoff output recovery after restart power
Over voltage
5.75V-6.75V
13.8V-16.2V
17.2V-20.2V
27.6V-32.4V
55V-64.8V
Hiccup mode recovers automatically after fault condition
Environment
Working temp humidity
-10~+60°C 20%~90%RH
Stor temp humidity
-20~+85°C 20%~90%RH Non-condensing
Safety
Withstand voltage
I/P-O/P:1.5KVAC 1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
