Specifications:
Type: A
Dial value: 0-100 degrees
Pressure needle trip: 0-2.5 mm
Pressure needle end pressure:
A type: 0.55 N - 8.06 N,
Accuracy: 0.1 mm
Test force: 0.5 N
Size: 78 * 52 * 22 mm / 3.07 * 2.05 * 0.87 inch
Weight: 200 g

Instructions:
The sample on strong plane, take the hardness tester, pressure needle distance sample at least 12 mm side smooth put pressure on foot pressure in the sample, makes the needle vertical pressure into the sample, until the feet and sample completely touch pressure when within 1 s reading. Measuring at least 6 mm apart in different positions of the measurement hardness value 5 times, take the average (micro porous materials are measuring at least 15 mm). In order to stabilize determination conditions, to enhance determination accuracy, hardness tester device should be in the same determination on supporting producer determination.

Package Included:

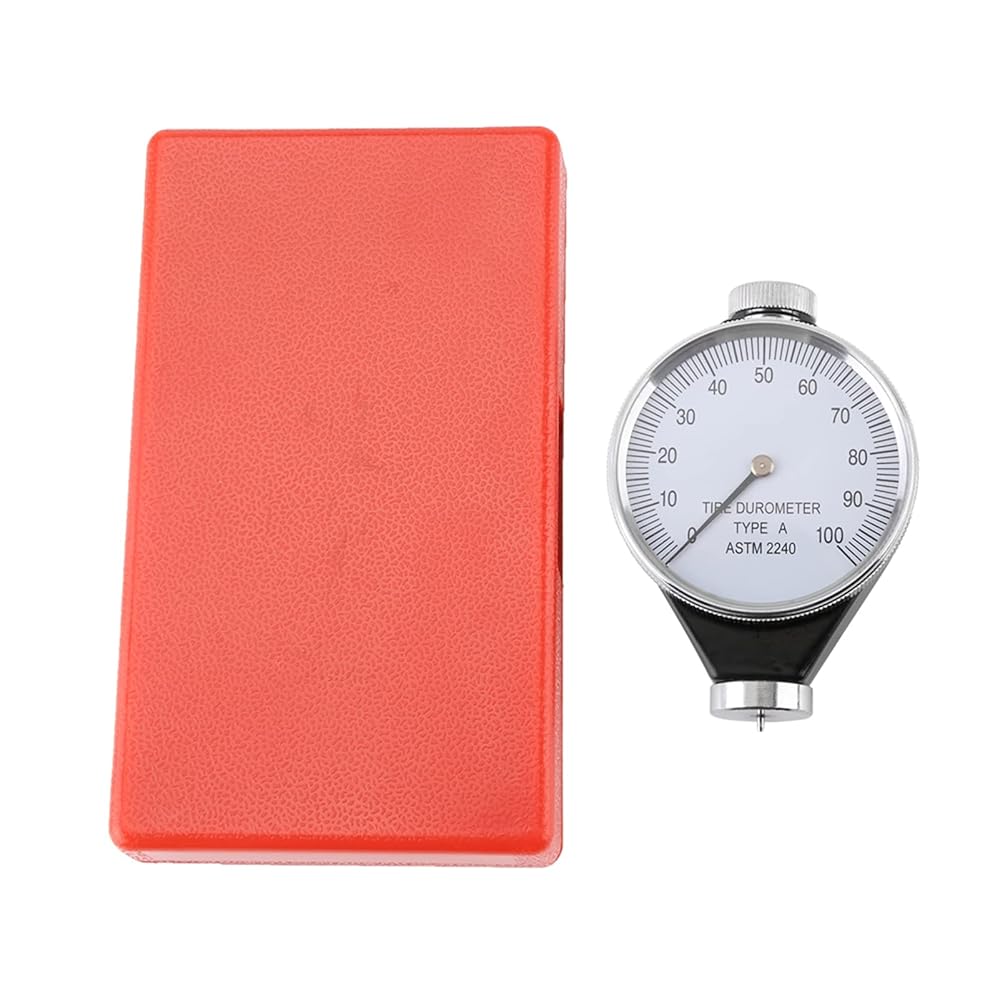

1 x Rubber Tire Durometer

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
