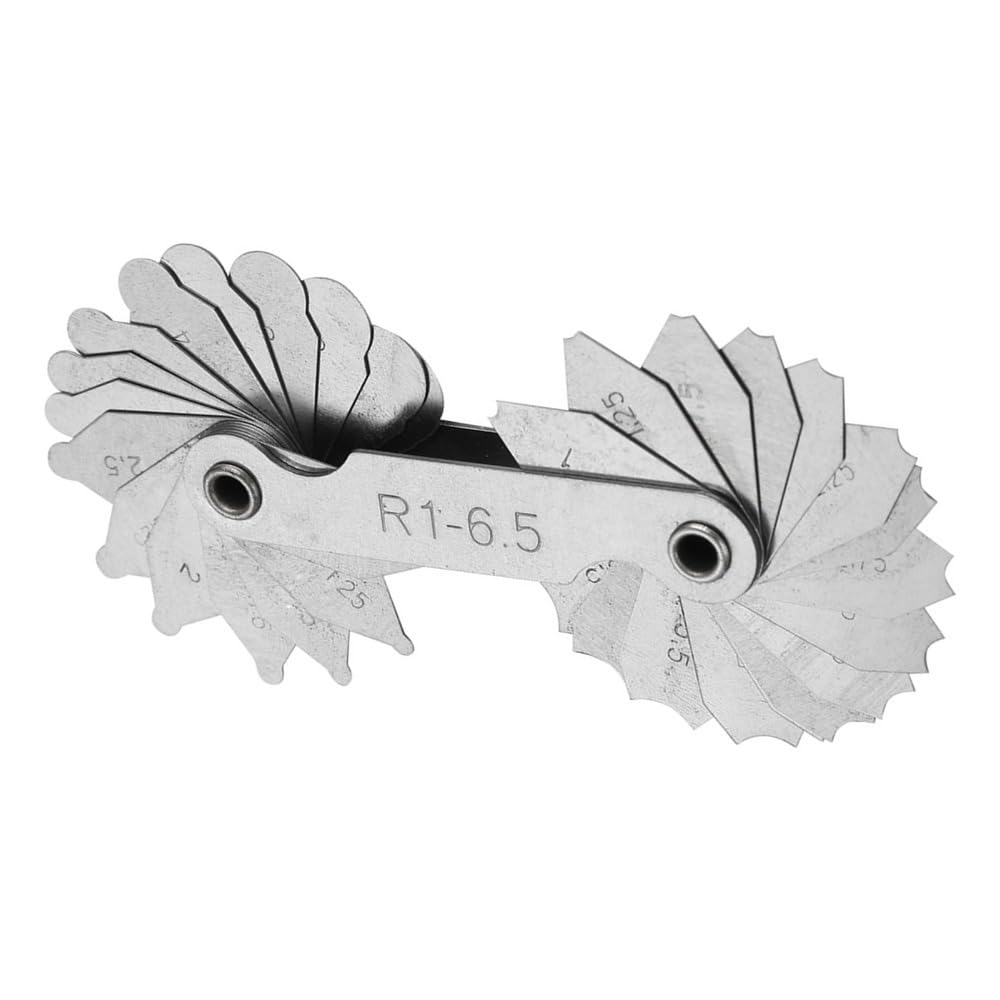

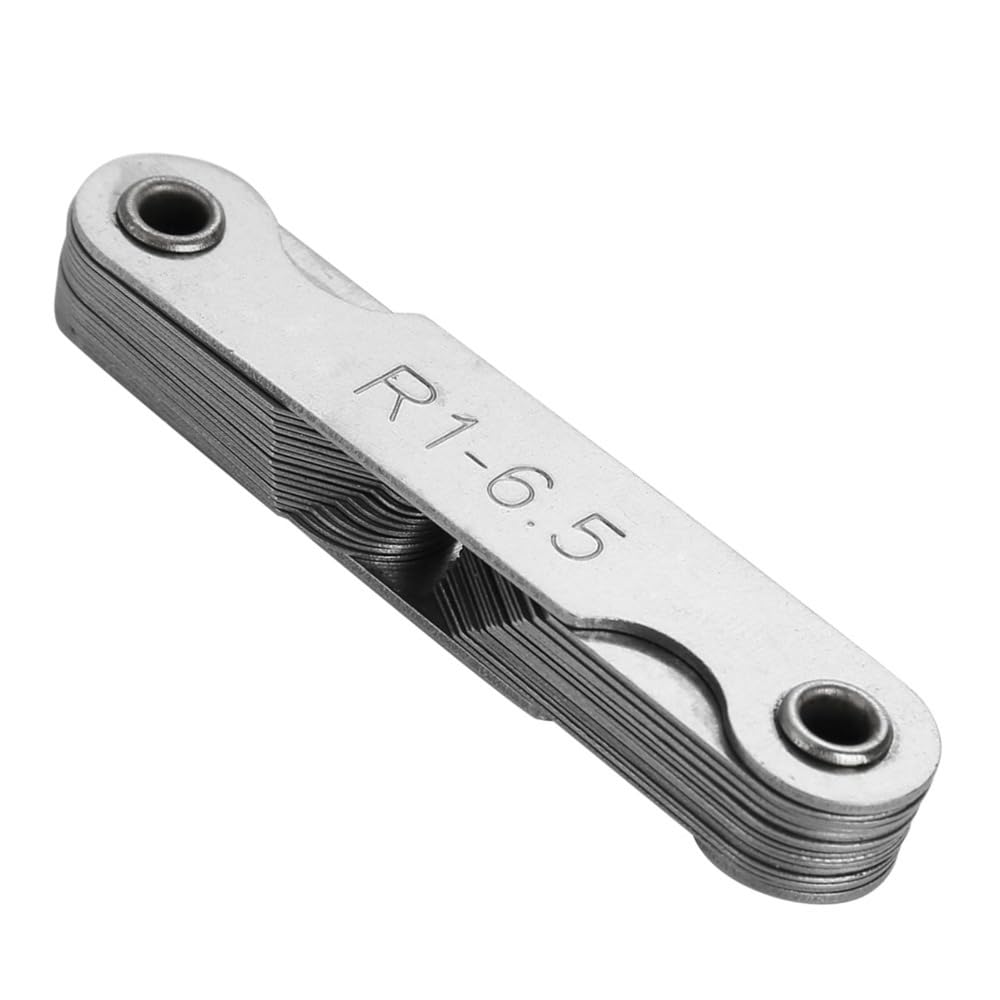

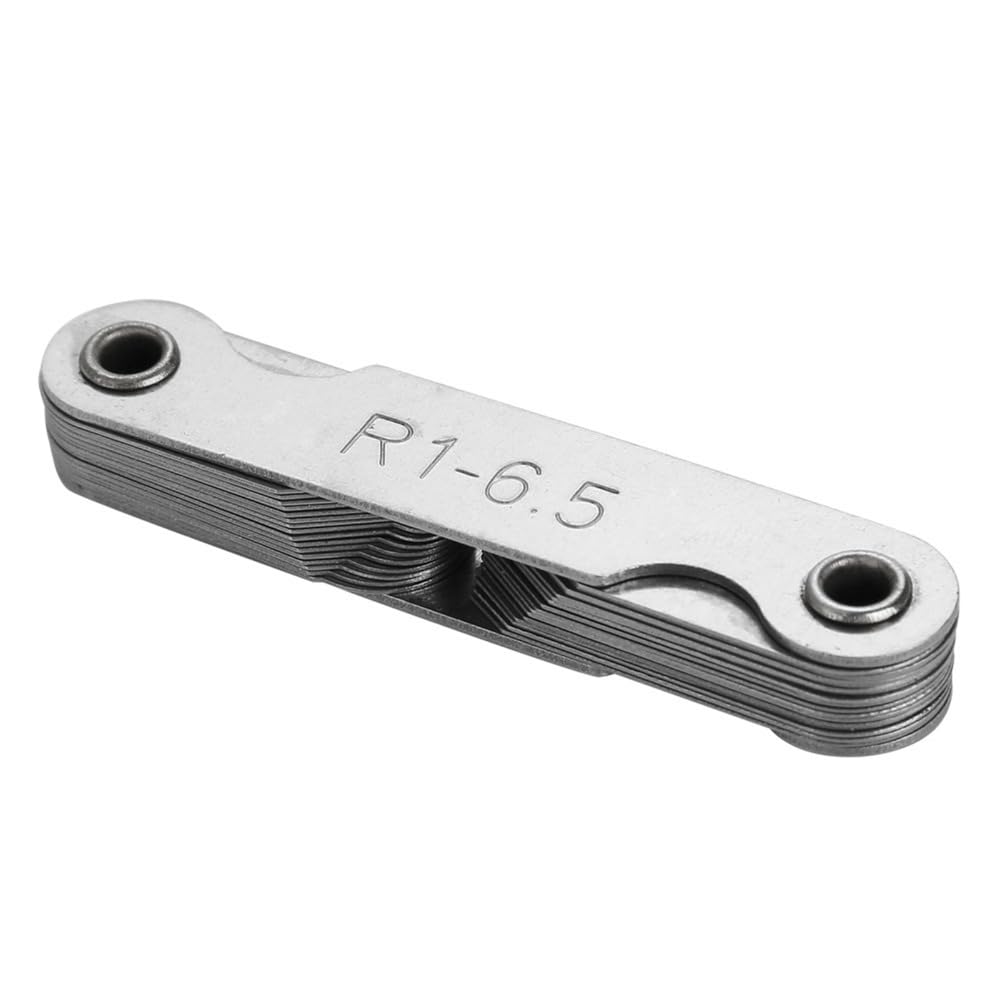

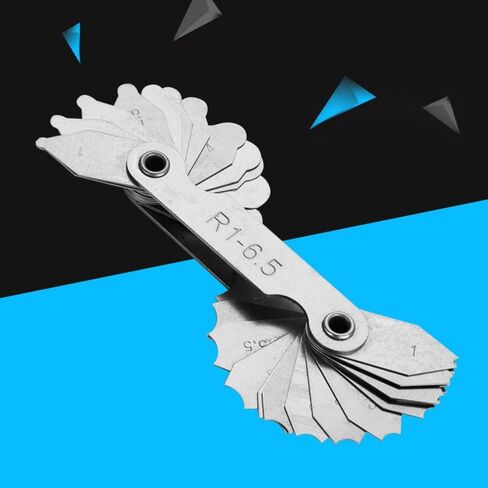

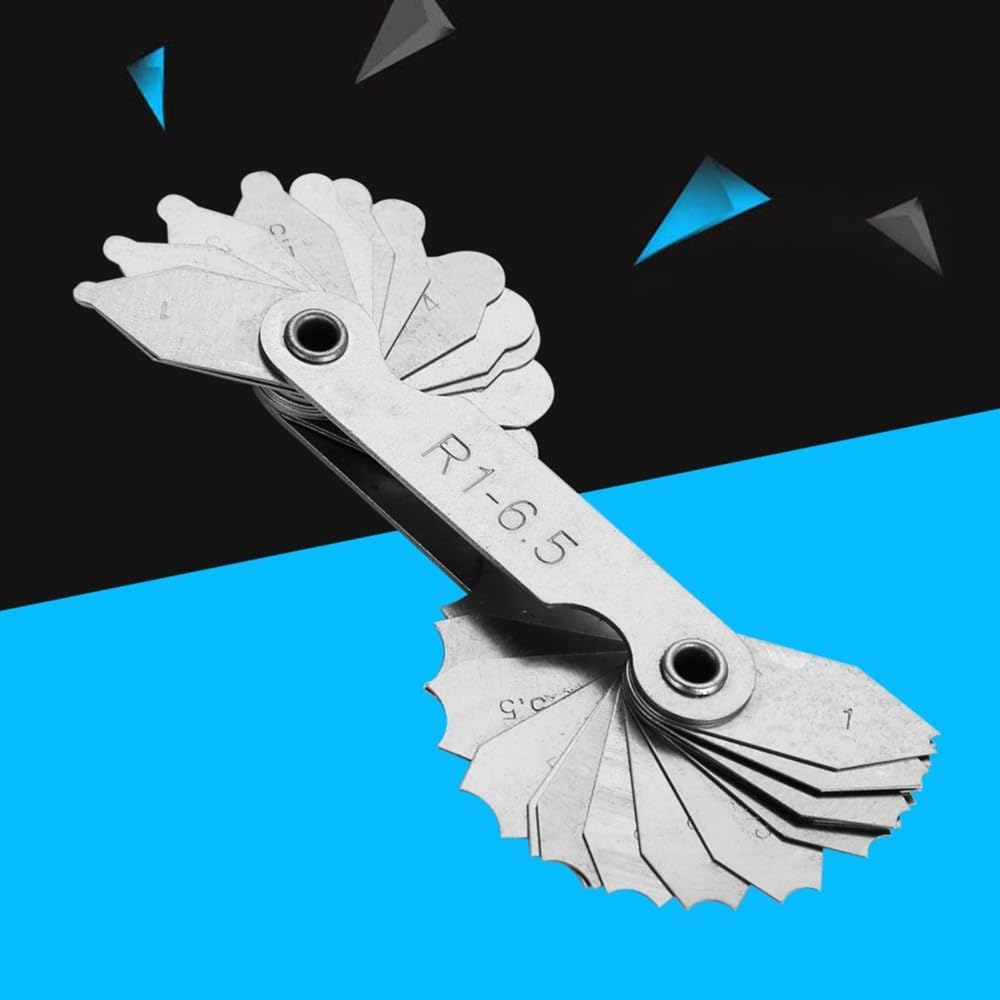

Radius Gauge Set R1-6.5mm - Stainless Steel Fillet Gauge for External & Internal Edges, Concave Convex Radius Measuring Tool

KWD 3
Brand
Anu Limen
Weight
55 g
– 1 +

Special Features

  • Dual-Purpose Design: Features both convex and concave measurement leaves for checking external and internal edges with one versatile tool
  • Precision Measurement Range: Covers radii from 1 millimeter to 6.5 millimeters for a wide variety of common applications
  • Durable Stainless Steel Construction: Crafted from solid stainless steel for long-lasting performance and for a long time to use
  • Clearly Marked Leaves: Each individual leaf is clearly stamped with its size for effortless and quick identification during use
  • Complete Package: Includes one full radius gauge set ready for immediate use in your workshop or project

Description

Stainless Steel Radius Fillet Gauge for precise measurement of external and internal concave convex edges. This durable tool solves the need for accurate radius verification in machining, metalworking, and quality control tasks, eliminating guesswork and ensuring parts meet exact specifications.

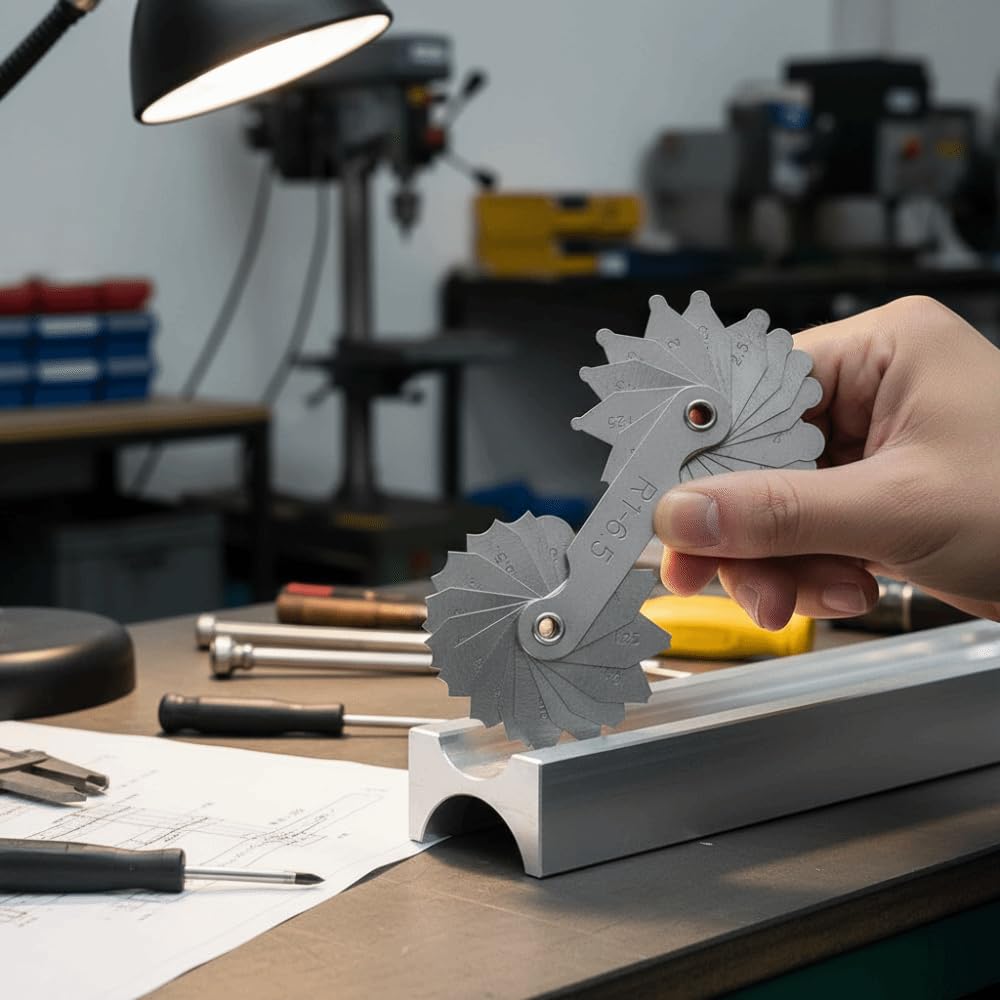

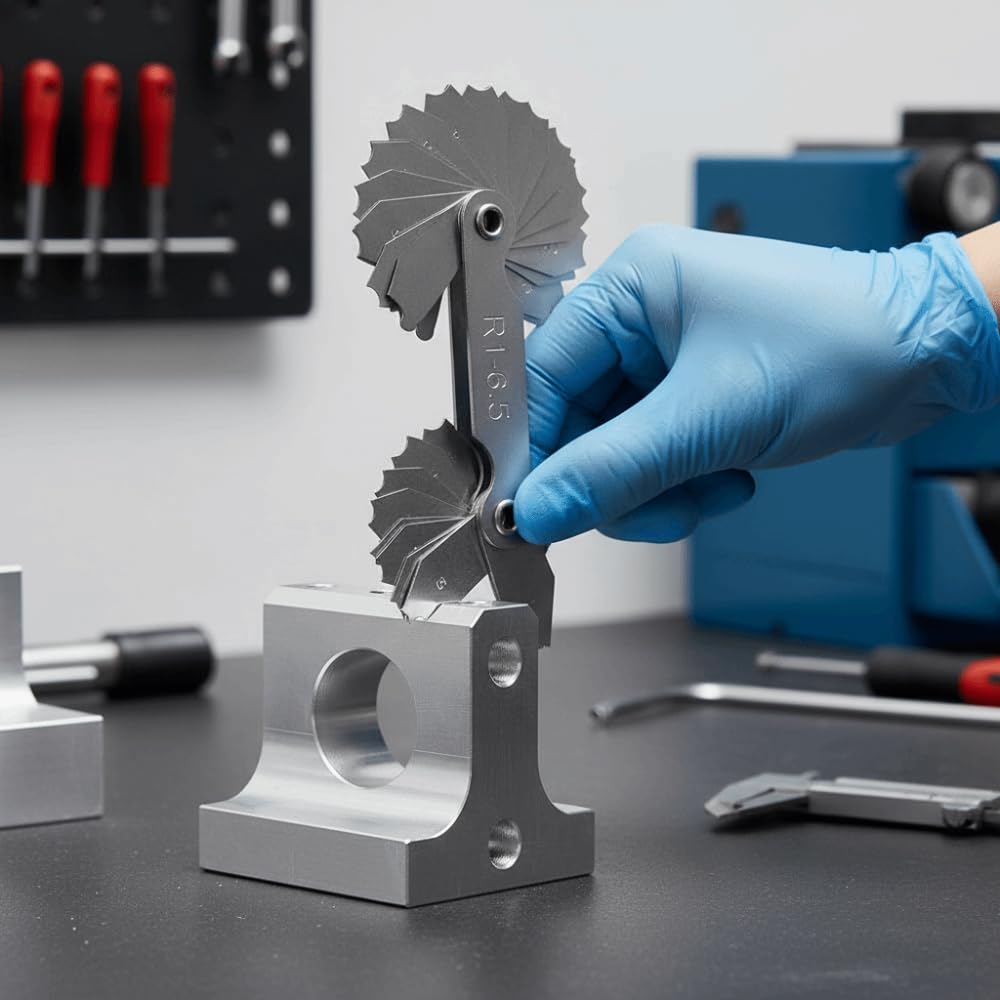

Begin by selecting the appropriate leaf from the set for your measurement task. For an external convex edge, use a leaf that matches the curve you wish to measure. For an internal concave edge, choose the corresponding leaf. Gently place the selected gauge against the workpiece edge. A fit with no visible light gap indicates the radius matches the gauge marking. This process quickly identifies the correct radius, streamlining fabrication, inspection, and repair work for machinists, welders, and DIY enthusiasts.
Key Specifications:
- Measuring Range: R1 - 6.5MM (0.04 - 0.26 inches)
- Material: Stainless Steel
- Overall Size: 70mm length (2.76 inches)
- Weight: 56g
- Color: Silver
Package Includes:
1 x Radius Fillet Gauge Set.
Important Notes:
Slight variations in color may occur due to monitor settings and lighting conditions.
For the most accurate measurement, ensure the workpiece edge and gauge are clean.
