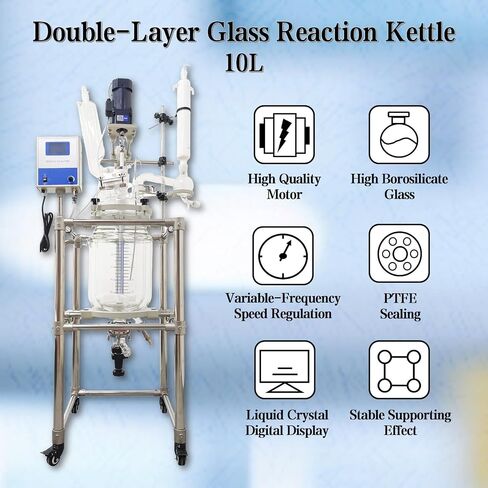

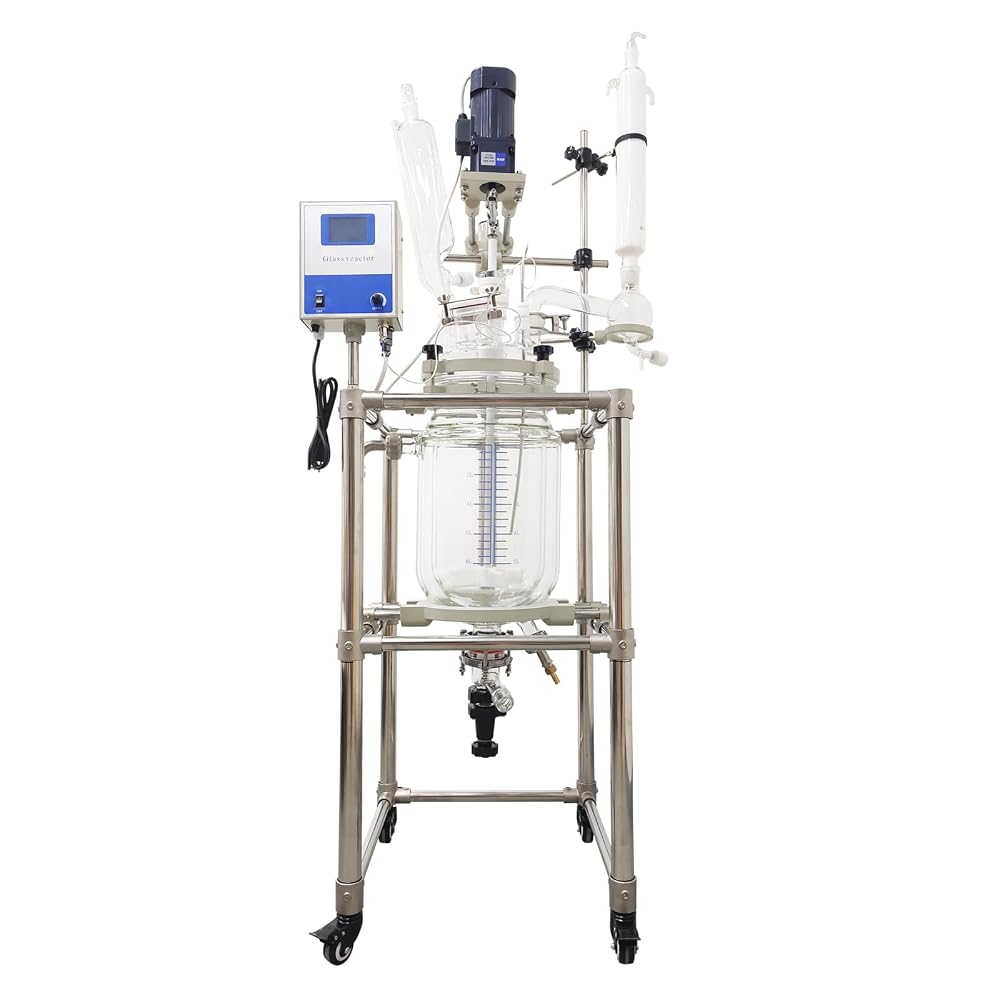

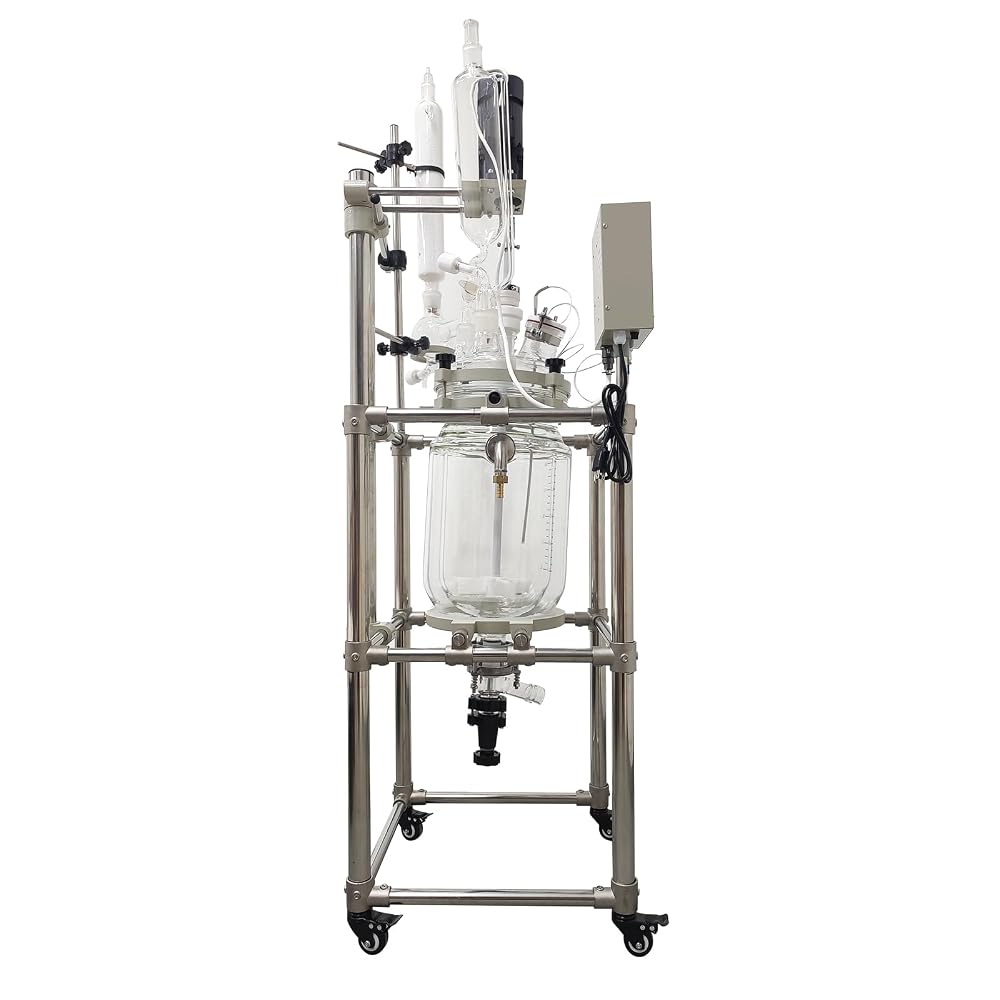

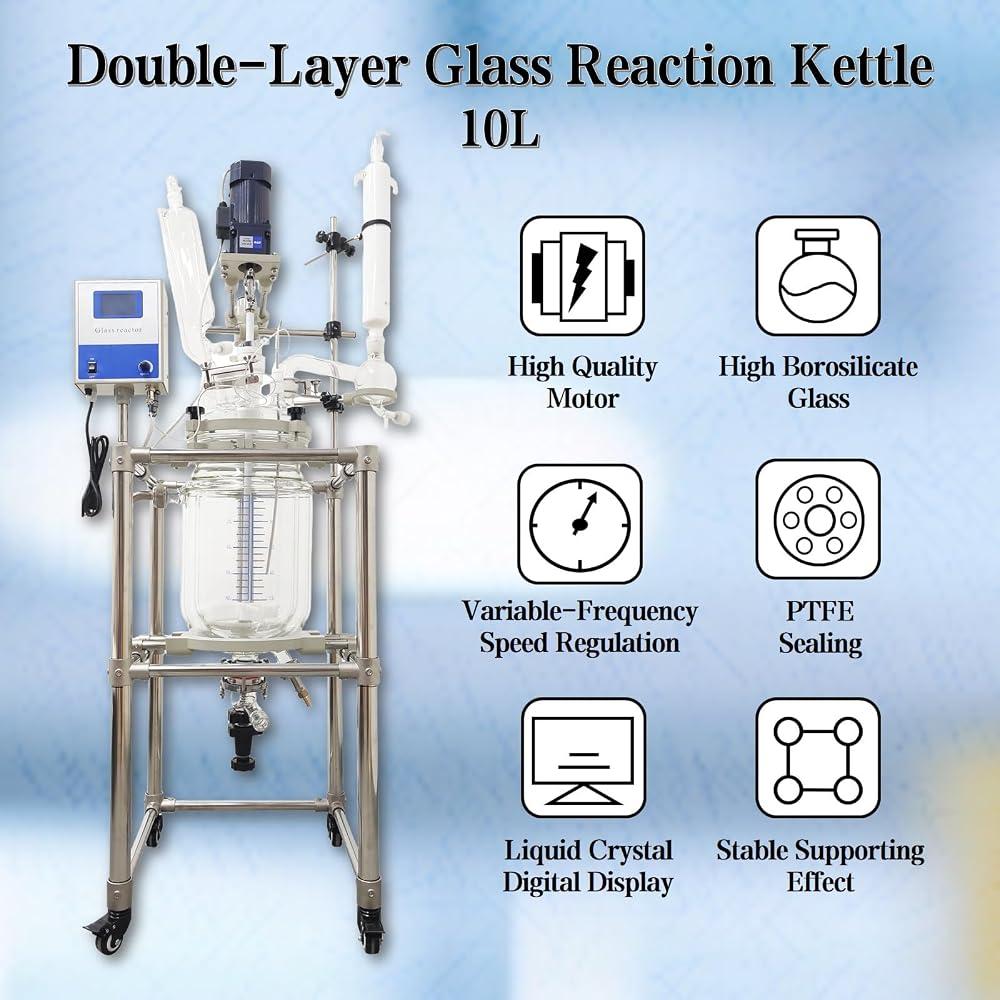

10L Double-Layer Glass Reaction Kettle with Digital Display | GG-17 glass, -80~200°C. PTFE seal, 0-500RPM stirrer, S-coil condenser. Mobile frame, for chemical & laboratory R&D. 110V

KWD 802
– 1 +

Special Features

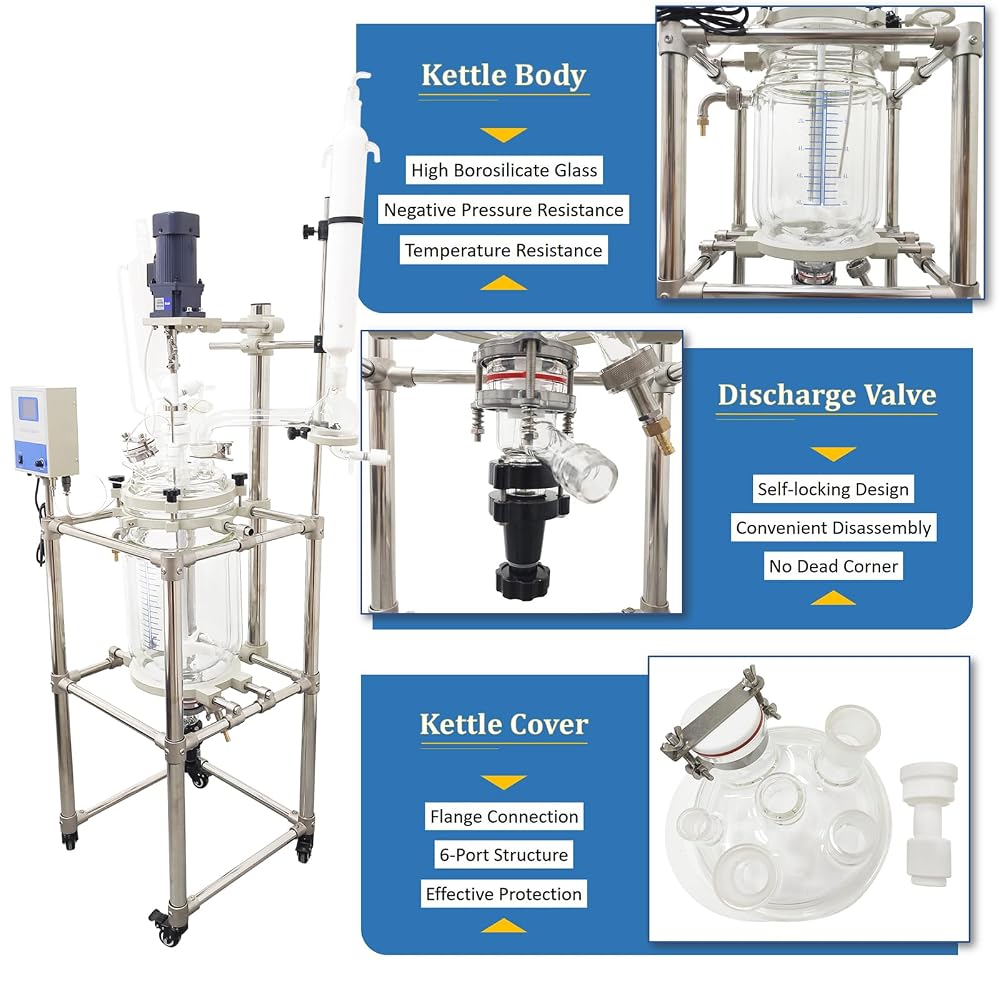

  • Premium Glass Construction: Made of GG-17 high borosilicate glass with ≥5mm thickness. Tolerates -80~200°C and -0.098MPA vacuum. The double-layer design allows clear observation of reactions and supports heating or cooling via the hollow interlayer

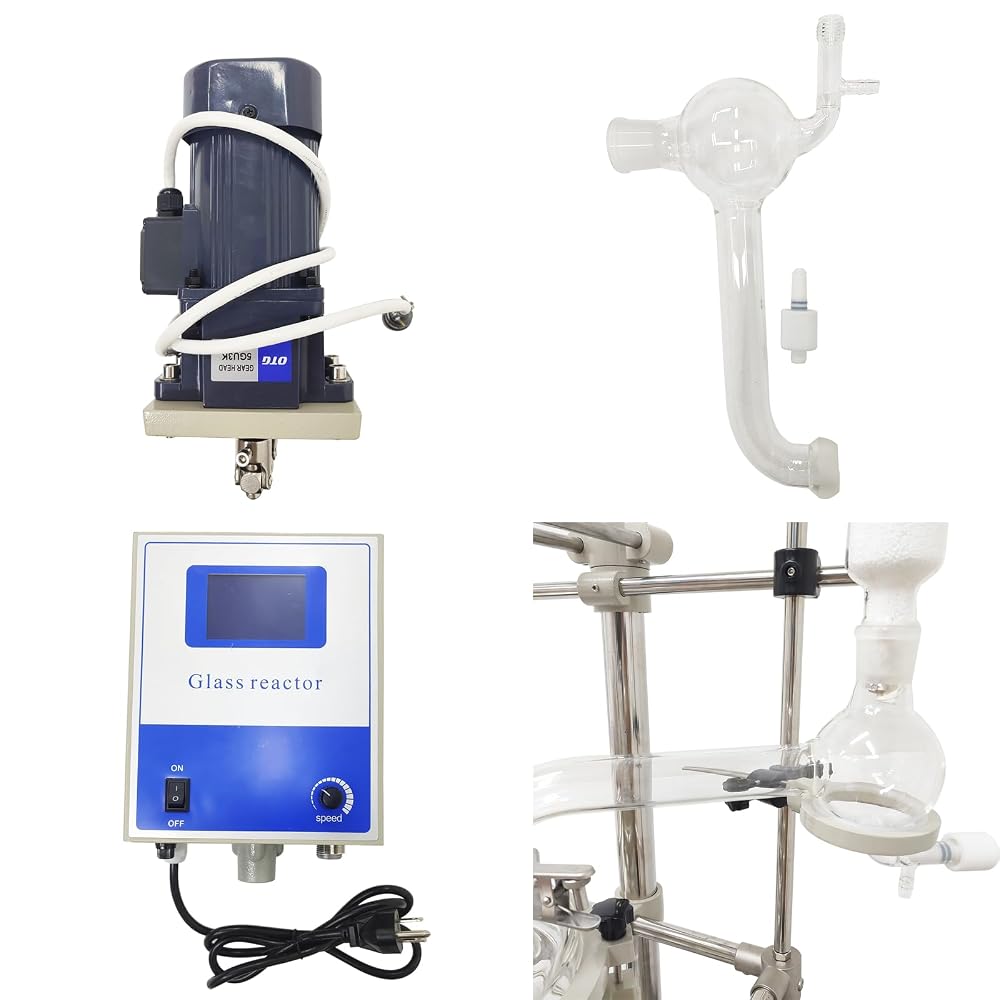

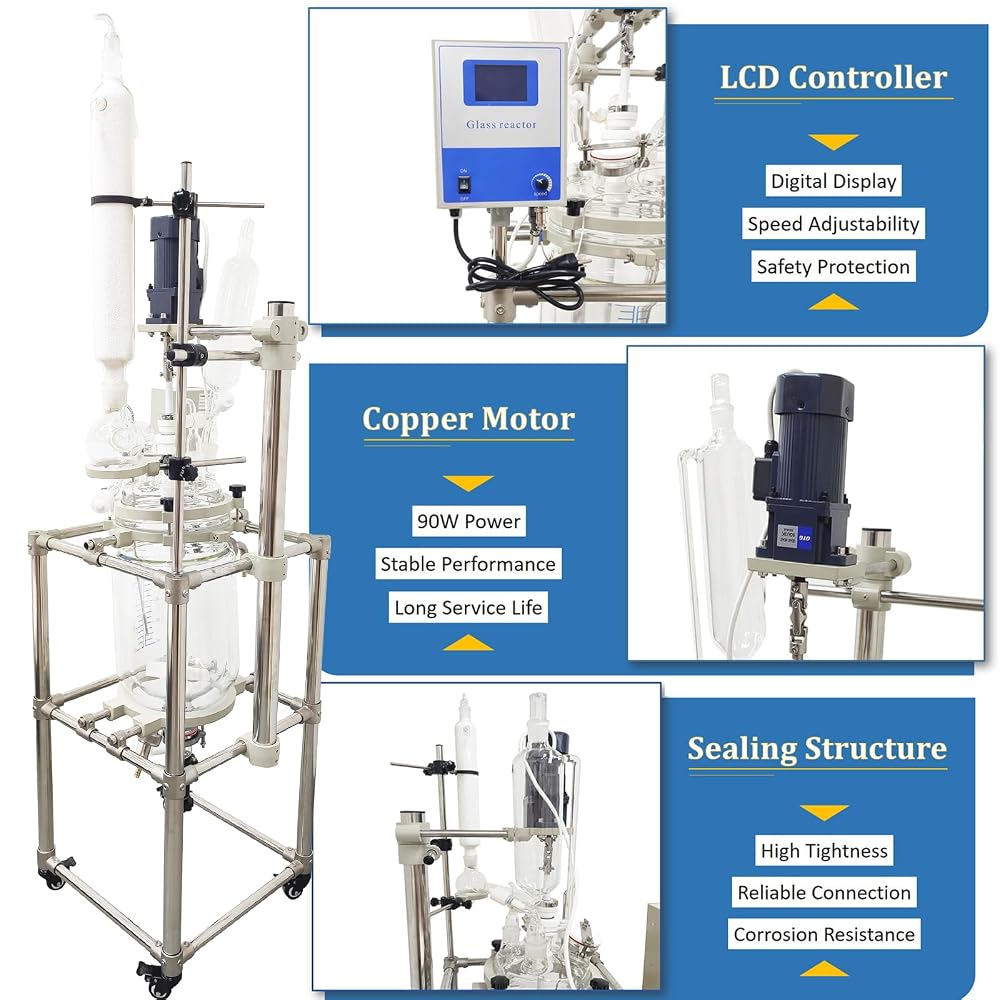

  • Advanced Sealing And Stirring: Features a patented PTFE rotary seal and ceramic bearing for high vacuum and long life. The deceleration stirrer operates smoothly with no sparks. Speed is adjustable from 0-500RPM with a digital display
  • Efficient Condensation System: Equipped with an S-shaped dual coil condenser for high efficiency. Includes a 1L constant pressure funnel for uniform droplet addition and a 500ml backflow bottle. Ideal for distillation and concentration
  • Safe and Convenient Design: Features a PTFE no-liquid-accumulation discharge valve to prevent leakage. The 201 stainless steel frame has wheels and brakes for easy mobility and secure positioning. Ensures safe and easy cleaning

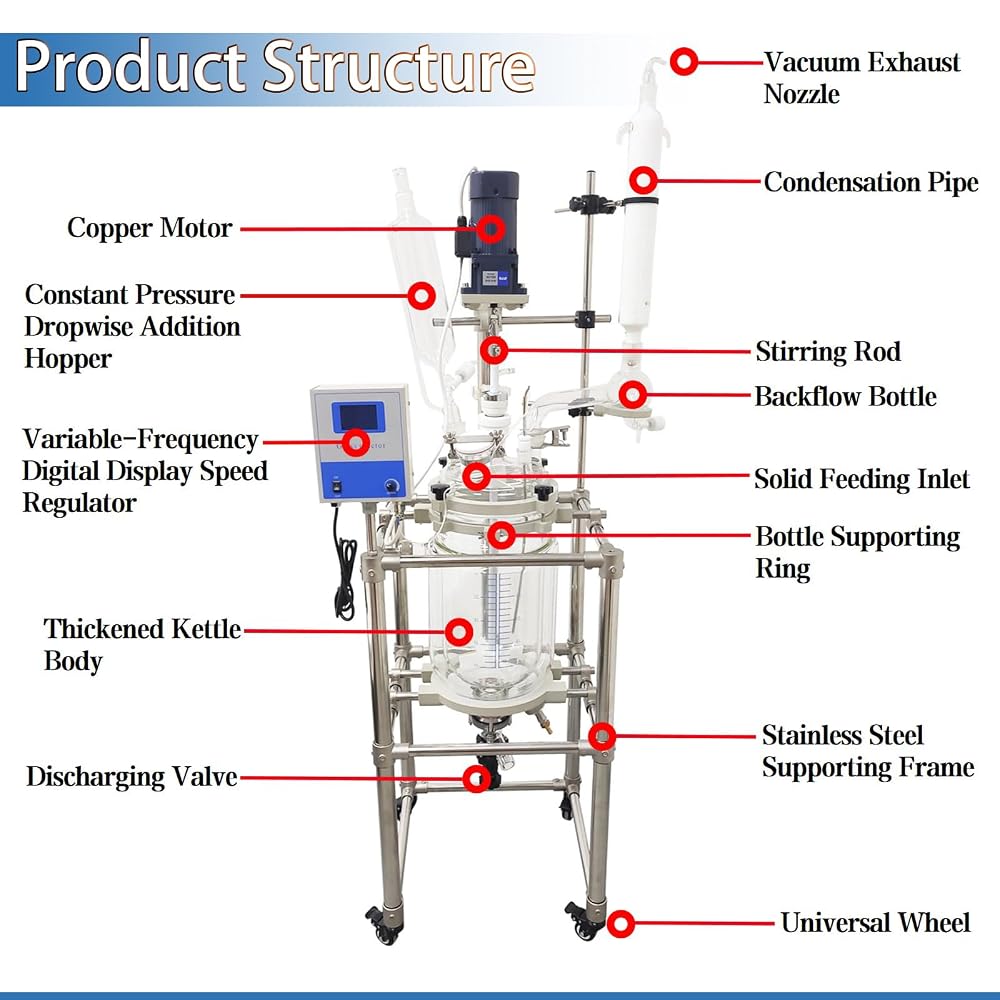

  • Versatile Chemical Reactor: Includes 10L reactor, condenser, funnel, and backflow bottle. Powered by 110V 60Hz with 90W power. Suitable for stirring, synthesis, distillation, and concentration experiments under constant temperature.

Description

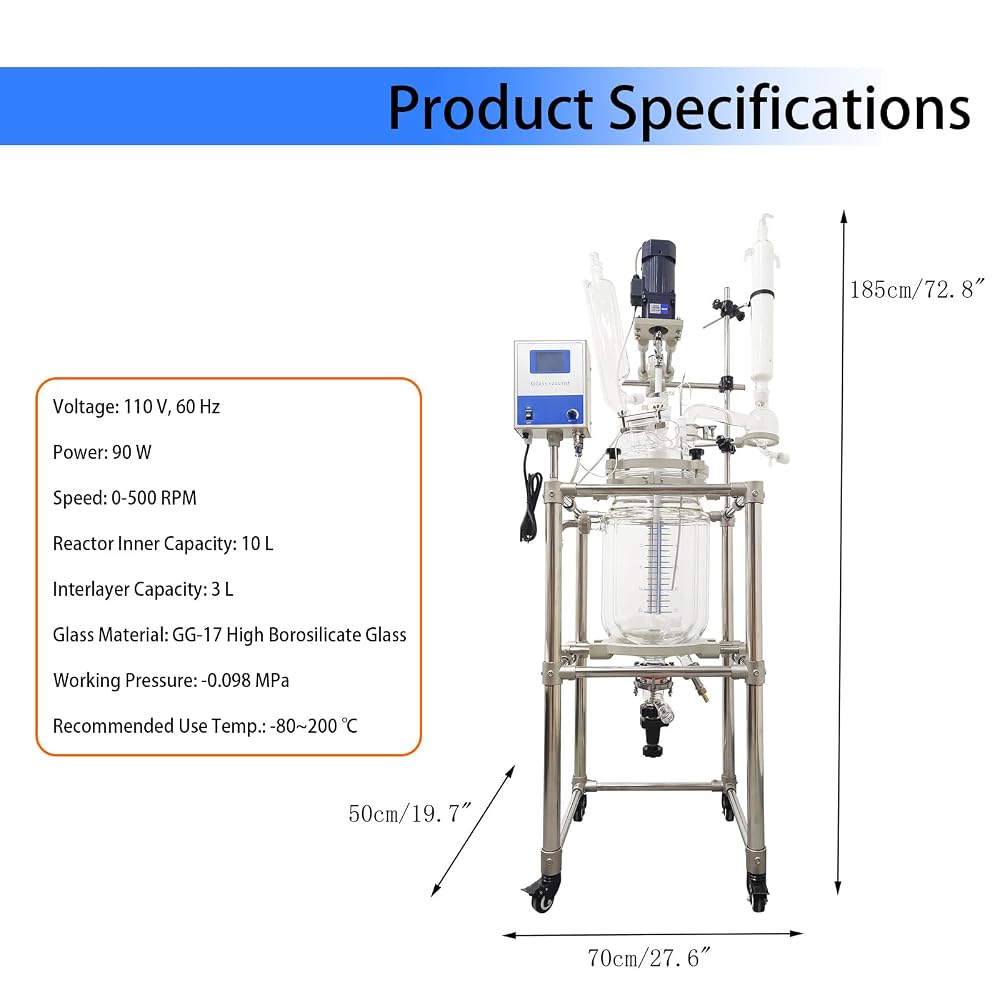

10L Jacketed Glass Reactor Core Specifications:
1. Technical Parameters
Power Supply: 110V / 60Hz
Motor Power: 90W
Rotating Speed: 0-500 RPM (Stepless speed regulation)
Display: Dual digital display for speed and temperature
Interior Capacity: 10L
Jacket Capacity: 3L
Glass Material: GG-17 High Borosilicate Glass
Kettle Body Thickness: ≥5mm
Sealing Mode: PTFE mechanical sealing with ceramic bearing
Stirring Paddle: 304 stainless steel coated with PTFE
2. Temperature & Pressure Tolerance
Glass Body Tolerance: -100℃ to 250℃ (Note: Excessive temperature difference is prohibited)
Safe Working Temperature: -80℃ to 200℃ (Note: Excessive temperature difference is prohibited)
Working Pressure: -0.098 MPa
3. Accessories
Condenser: S-shaped dual coil pipes (Ground opening: 40/29)
Constant Pressure Funnel: 1L
Backflow Bottle: 500ml
