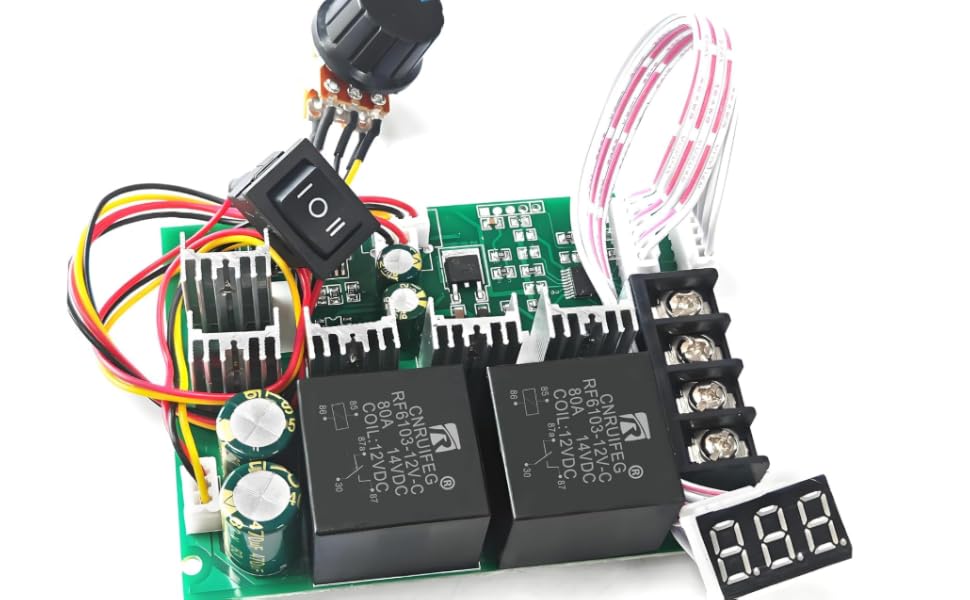

Wide Input Range: Our regulator can handle input voltages from 10V to 55V, making it versatile for a wide range of applications. High Input Current: With a maximum input current of 60A, our regulator can handle even high-powered motors with ease. LED Display: The built-in LED display makes it easy to monitor and adjust the speed of your motor.

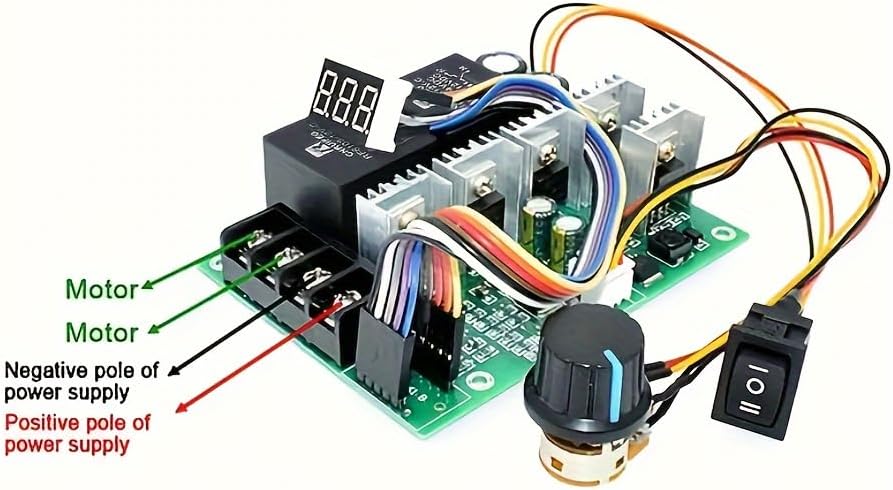

Here are the specifications: Input voltage ranges from DC10 to 55V, which corresponds to the motor's rated voltage. The output voltage remains linear when under load. The maximum current is 60A, while the continuous current is 40A; it's important to monitor heat dissipation during prolonged use or to lower the current. The speed control method involves flow adjustment, utilizing a potentiometer for linear control. It is compatible with DC brush motors and supports both forward and reverse rotation. The speed can be adjusted from 0 to 100%, with a control frequency of 15KHZ. The wiring is done via terminals, and the knob specification is 100K, which includes a switch.
