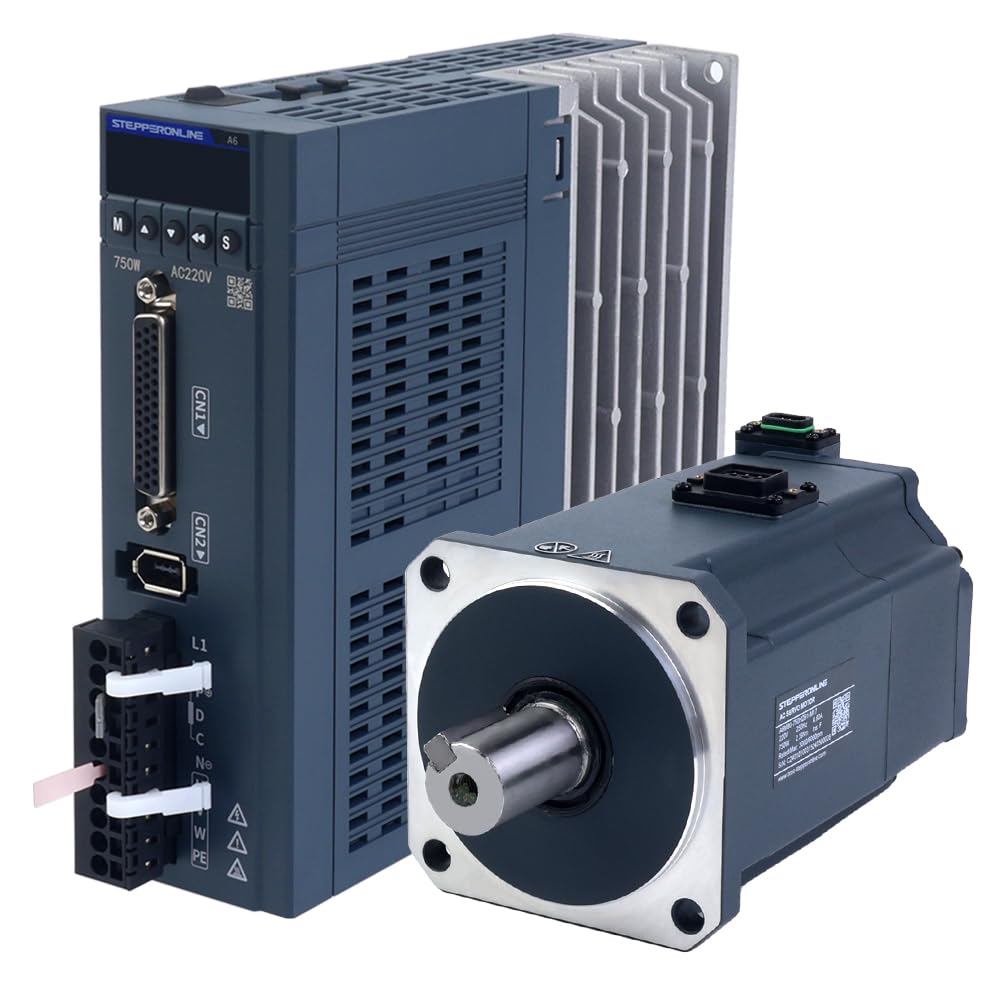

This is an A6 series AC servo motor and driver kit with the built-in 17-bit multiturn absolute encoder and a 24V 8.5W brake,consisting of a 220VAC 750W motor and a single-phase 220V 750W servo driver that supports Pulse/RS485/Analog communication. The motor provides excellent servo control performance.
This series of servo products is easy to operate, economical and efficient with optimal balance between performance and costs.
The A6-RS series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

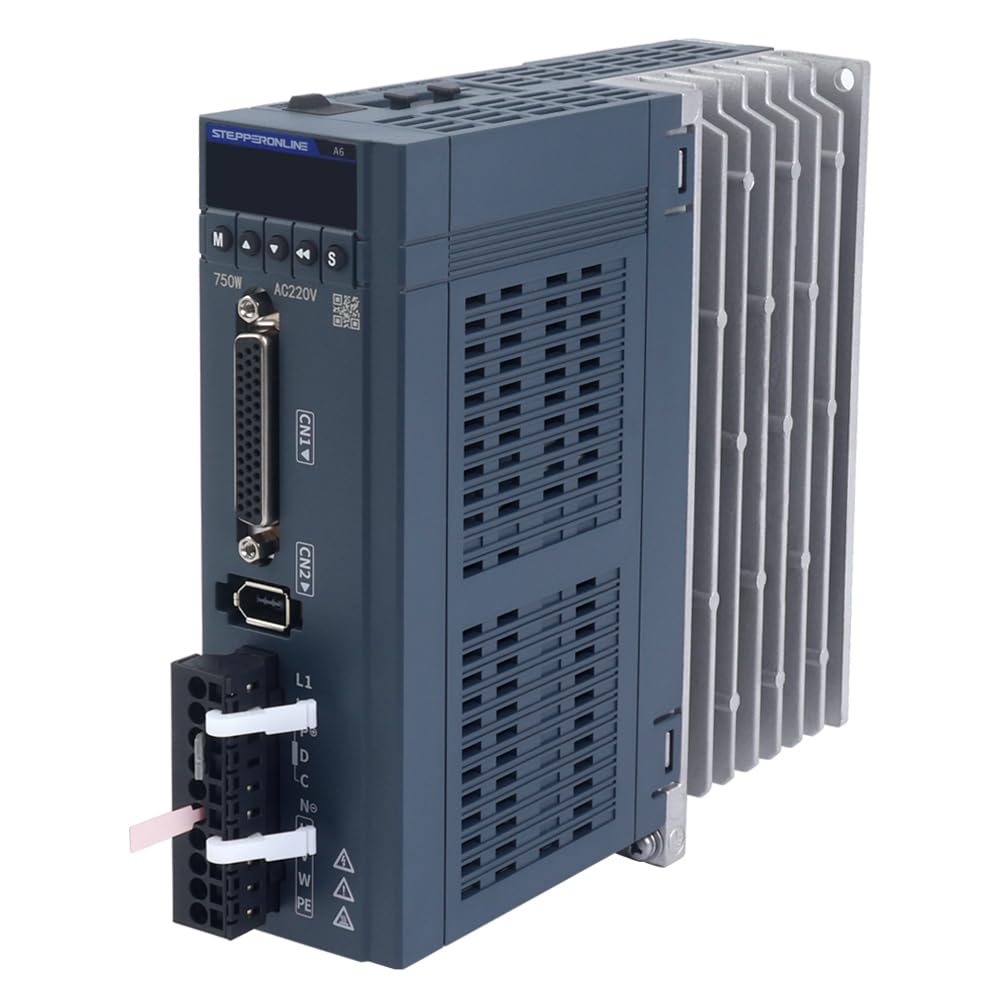

Servo Driver Specification

*Part Number: A6-750RS
*Pulse/RS485/Analog communication
*2KHz speed loop bandwith
*17-bit absolute encoder
*Rated voltage single-phase 220VAC
*Rated power 750W
*Easy to connect and use
*Dimension: 170*174*50mm
*Built-in dynamic brake function

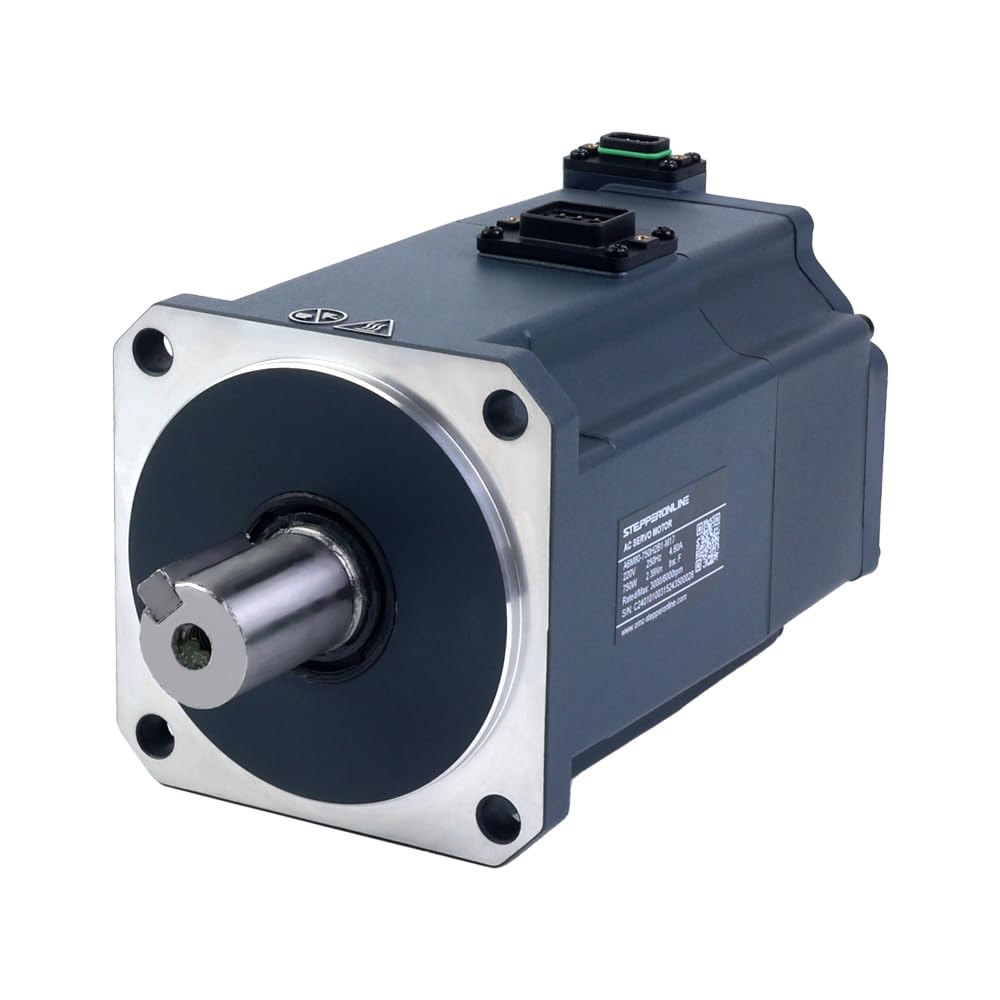

Servo Motor Specification

*Part Number: A6M80-750H2B1-M17
*Rated Voltage: 220VAC
*Rated Power: 750W
*Rated Torque: 2.39Nm
*Peak Torque: 8.36Nm
*Rated Speed: 3000rpm
*Peak Speed: 6000rpm
*Rated Current: 4.60A
*Peak Current: 16.30A
*Torque Const: 0.52N.m/A
*Back EMF Const: 34.40V/krpm
*Resistance: 0.47ohms
*Inductance: 2.80mH
*Inertia: 1.77kg*m2*10-4
*Poles: 10
*Encoder: 17-bit multi-turn absolute, magnetic encoder(It can only be used as a multi-turn absolute encoder by using the 3m encoder cable with a battery box
*IP Rating: IP67
*Shaft diameter: 19mm
*Brake Voltage: 24V DC
*Brake Power: 8.5W
*Brake Holding Torque: 3.20Nm

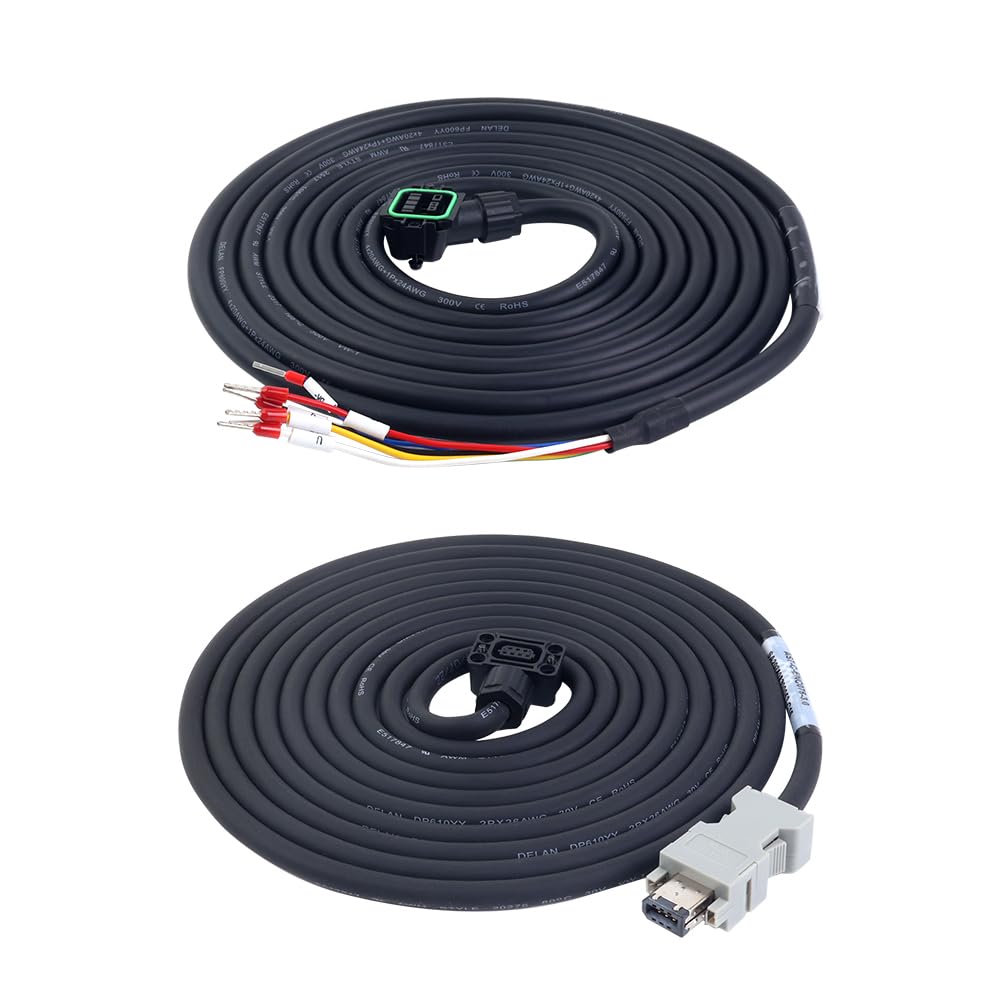

*Cable Length: 3m
