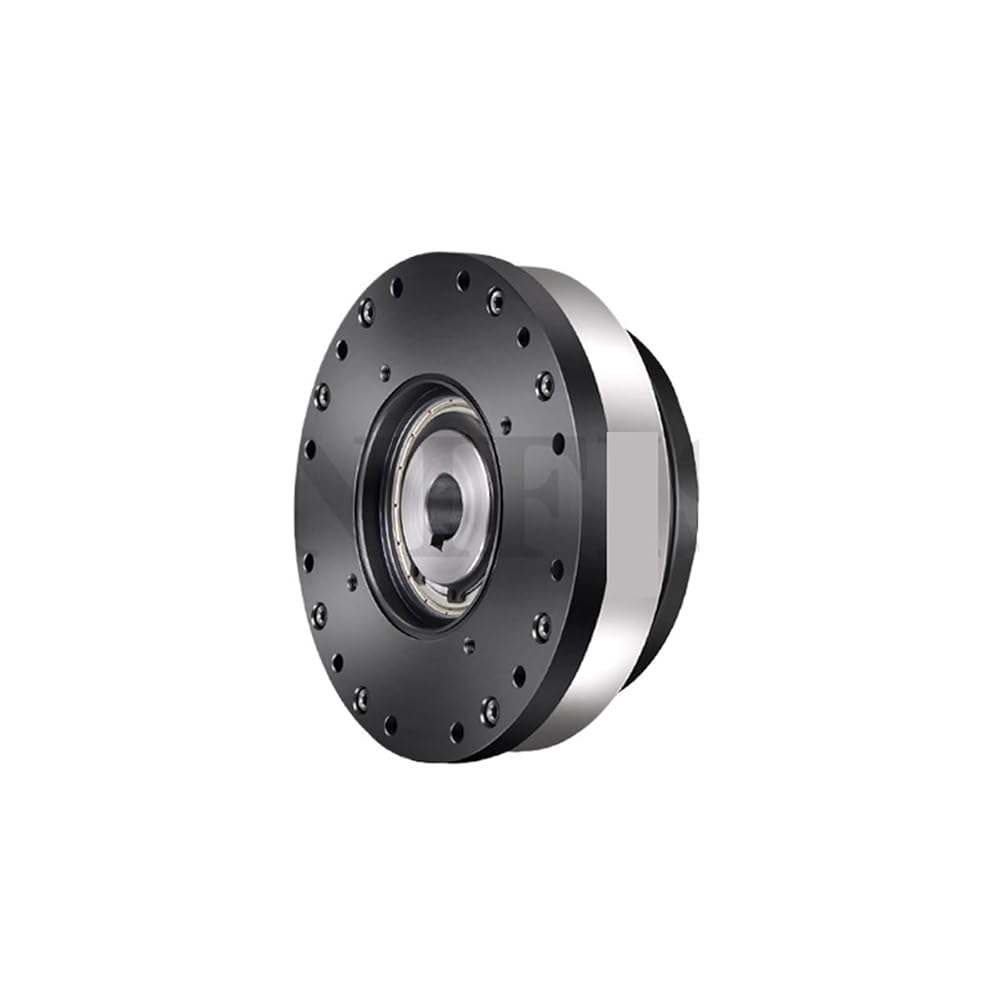

Renderings:
The motor in the picture is just for display.
The transported reducer does not include this motor.
HYT-14-50
Reduction ratio: 50
Rated Tq at input 2000r/min: 5.4Nm 0.55kgfm
Allowable peak Tq when starting and stopping: 18Nm 1.8kgfm
Allowable maximum average load Tq:6.9Nm 0.7kgfm
Instantaneous maximum allowable Tq: 35Nm 3.6kgfm
Allowable maximum input speed: 8500r/min
Allowable average input speed: 3500r/min
Backlash: 20Arcsec
HYT-14-80
Reduction ratio: 80
Rated Tq at input 2000r/min: 7.8Nm 0.8kgfm
Allowable peak Tq when starting and stopping: 23Nm 2.4kgfm
Allowable maximum average load Tq: 11Nm 1.1kgfm
Instantaneous maximum allowable Tq: 47Nm 4.8kgfm
Allowable maximum input speed: 8500r/min
Allowable average input speed: 3500r/min
Backlash: 20Arcsec
HYT-14-100
Reduction ratio: 100
Rated Tq at input 2000r/min: 7.8Nm 0.8kgfm
Allowable peak Tq when starting and stopping: 23Nm 2.4kgfm
Allowable maximum average load Tq: 11Nm 1.1kgfm
Instantaneous maximum allowable Tq: 54Nm 5.5kgfm
Allowable maximum input speed: 8500r/min
Allowable average input speed: 3500r/min
Backlash: 20Arcsec
HYT-14-120
Reduction ratio: 120
Rated Tq at input 2000r/min: 7.8Nm 0.8kgfm
Allowable peak Tq when starting and stopping: 28Nm 2.9kgfm
Allowable maximum average load Tq: 11Nm 1.1kgfm
Instantaneous maximum allowable Tq: 54Nm 5.5kgfm
Allowable maximum input speed: 8500r/min
Allowable average input speed: 3500r/min
Backlash: 20Arcsec
