Rotary Shafts

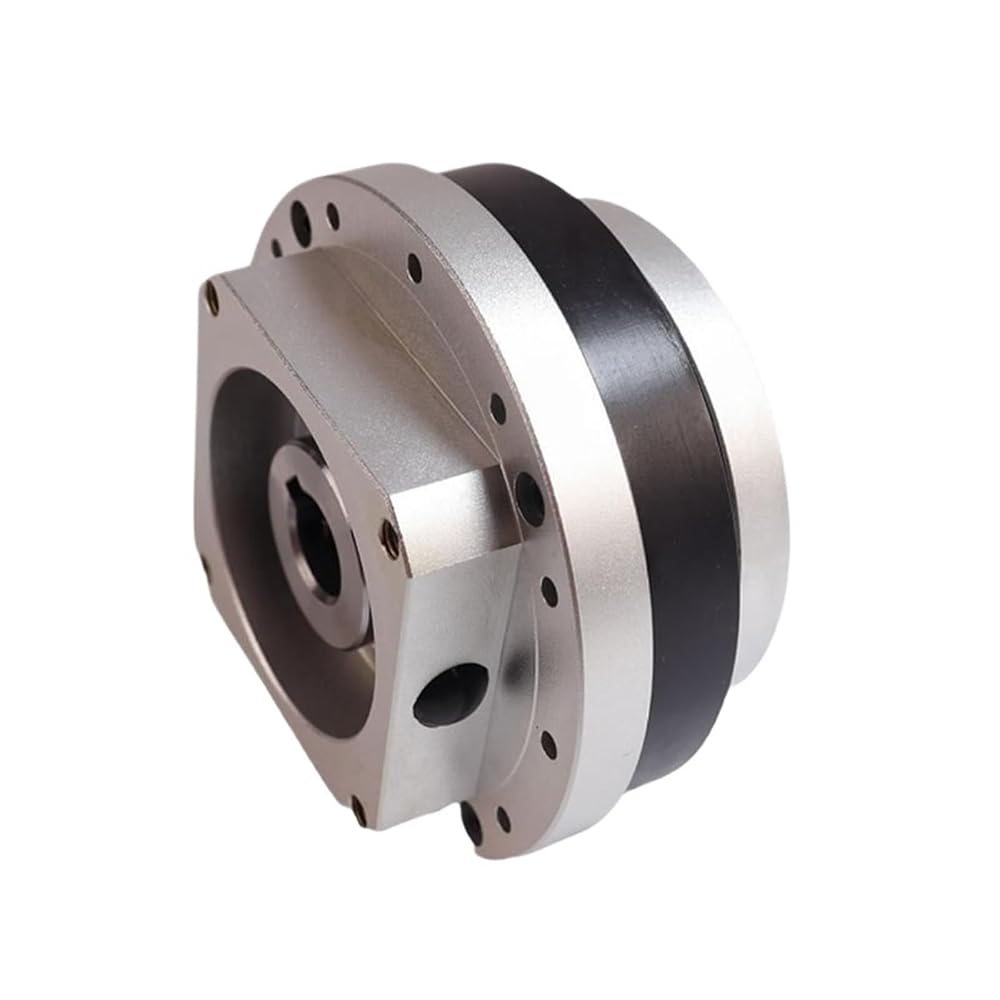

Reducers
Reduction ratio: 50
Rated Tq when inputting 2000r/min: 99 Nm (10 kgfm)
Allowable peak Tq at start and stop: 281Nm (29 kgfm)
Maximum allowable average load Tq: 140 Nm (14 kgfm)
Instantaneous allowable maximum Tq: 497 Nm (51 kgfm)
Allowable maximum output speed: 5800 r/min
Allowable average input speed: 3500 r/min
Backlash: 20 Aresec
Reduction ratio: 80
Rated Tq when inputting 2000r/min: 153 Nm (16 kgfm)
Allowable peak Tq at start and stop: 395 Nm (40 kgfm)
Maximum allowable average load Tq: 217 Nm (22 kgfm)
Instantaneous allowable maximum Tq: 738 Nm (75 kgfm)
Allowable maximum output speed: 5800 r/min
Allowable average input speed: 3500 r/min
Backlash: 20 Aresec
Reduction ratio: 100
Rated Tq when inputting 2000r/min: 178 Nm (18kgfm)
Allowable peak Tq at start and stop: 433 Nm (44kgfm)
Maximum allowable average load Tq: 281 Nm (29kgfm)
Instantaneous allowable maximum Tq: 841 Nm (86 kgfm)
Allowable maximum output speed: 5800 r/min
Allowable average input speed: 3500 r/min
Backlash: 20 Aresec
Reduction ratio: 120
Rated Tq when inputting 2000r/min: 178 Nm (18kgfm)
Allowable peak Tq at start and stop: 459 Nm (47kgfm)
Maximum allowable average load Tq: 281 Nm (29kgfm)
Instantaneous allowable maximum Tq: 892 Nm (91 kgfm)
Allowable maximum output speed: 5800 r/min
Allowable average input speed: 3500 r/min
Backlash: 20 Aresec
