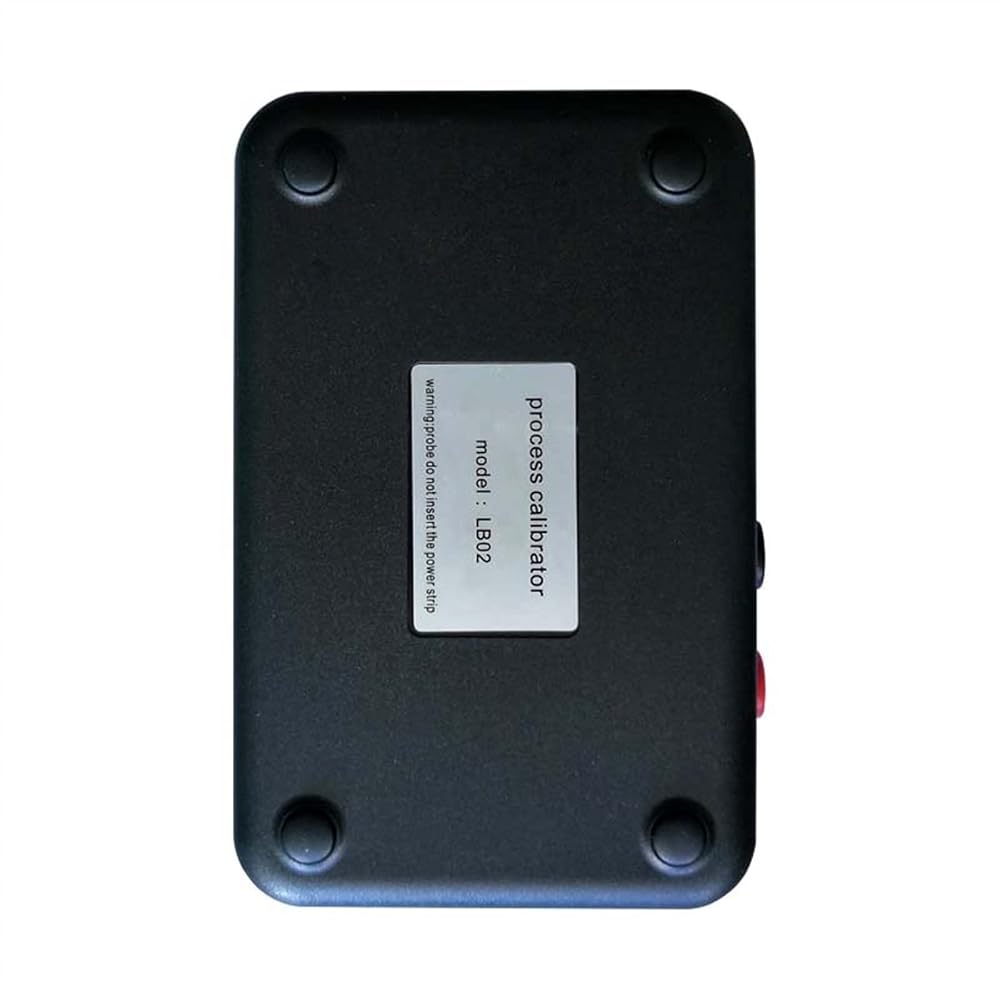

● Pocket portable size: 120x76x30mm, put it into your pocket, save energy, save cost, easy to carry.

● High accuracy 0.025%+1/2 digits, high reliability and stability.

● 2200mAH re-chargeable battery inside, very suitable and convenient to use it in applications indoors or outside industrial site.

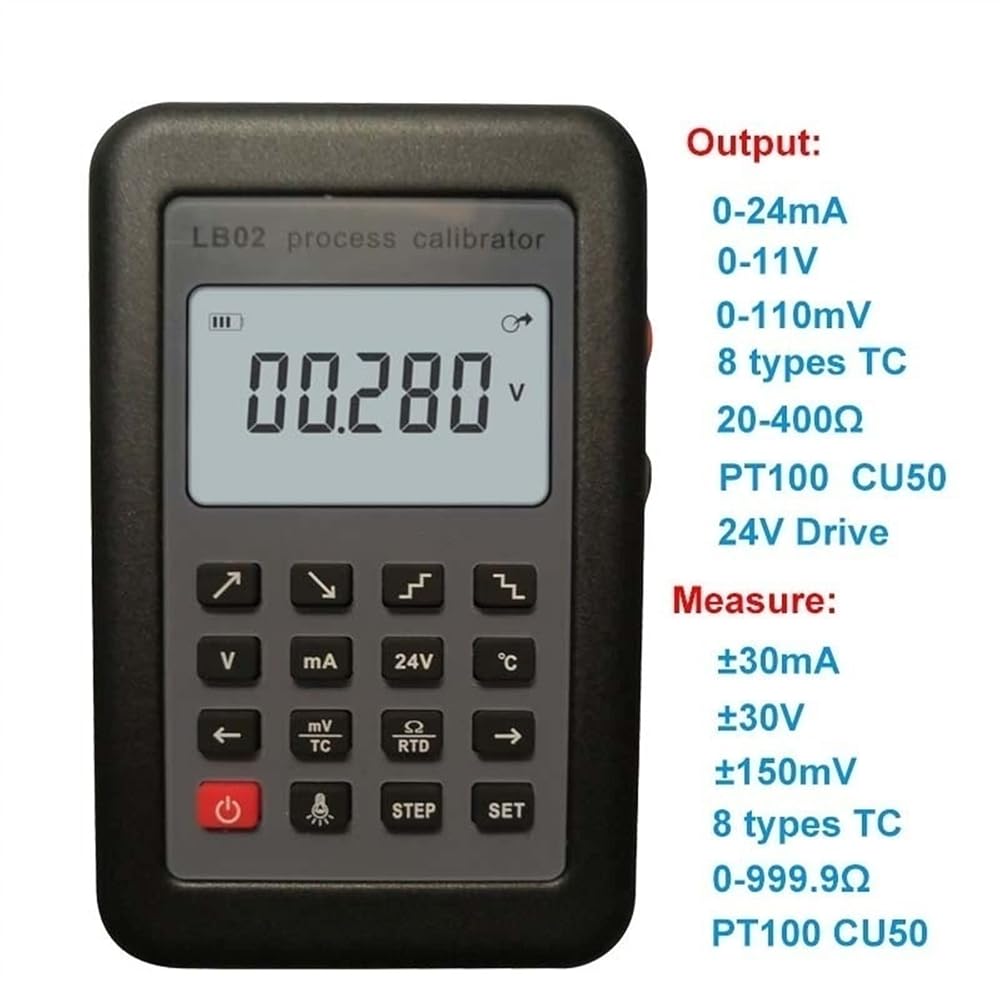

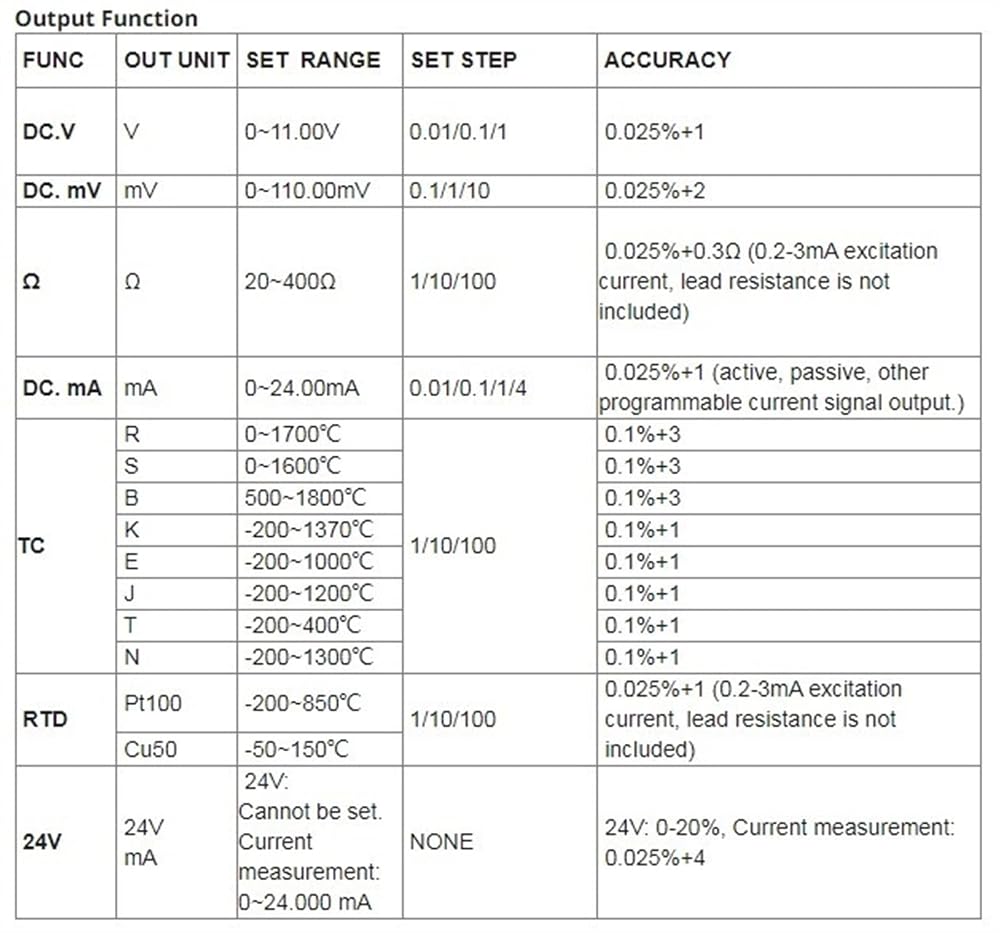

● Signal output & simulation: 4-20mA source or passive signal, 0-11V, 0-110mV, 20-400Ω, standard R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V outputs, etc.

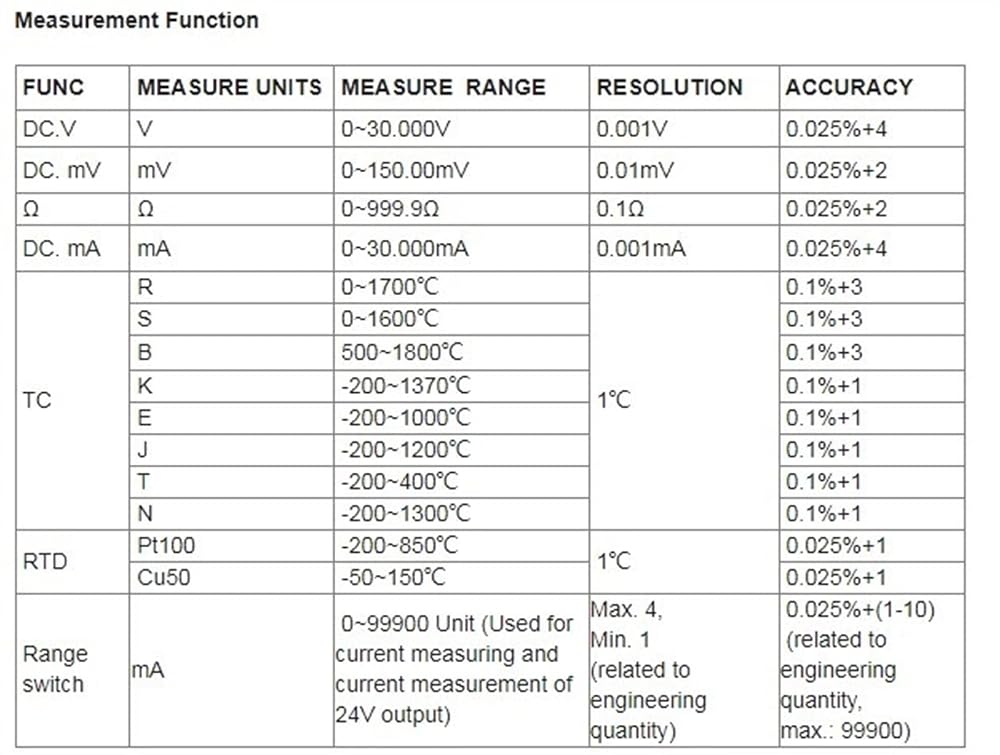

● Measurement ranges: 0-30V, 0-150mV, 0-999.9Ω, standard R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, etc.

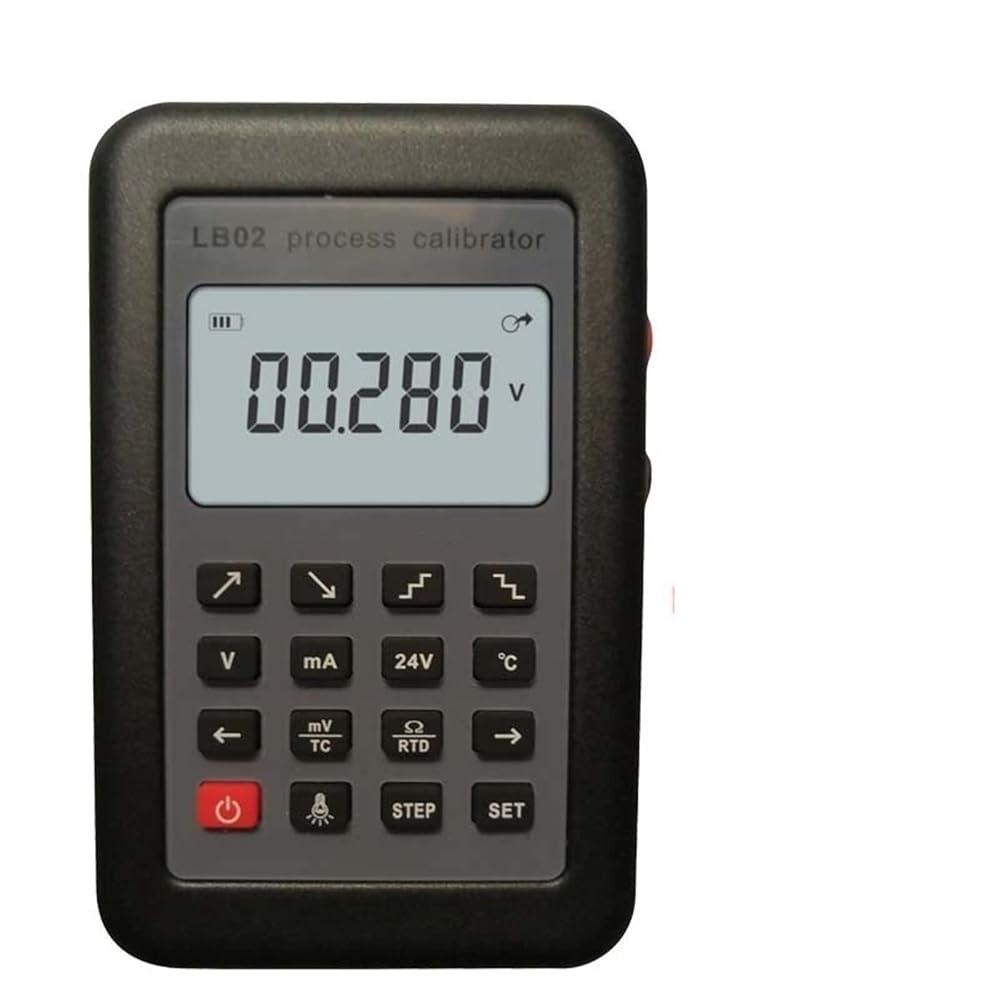

● High resolution LCD display, have back light for different lighting conditions, large screen clear display.

● Fast response, no delay in signal source simulation and signal testing or measurement.

● With charging and status indicator to check the battery status easily.

● Can be used as signal generator, multifunction process calibrator and digital multimeter.

● Have description in V, mV, mA, RTD, TC, Step, and Ω keys, it enables user to operate it easily.

● DC voltage, mV small signal, resistance signal, dc current, thermocouple, RTD thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.

● AD, DA, reference voltage, OP circuits are used to ensure all high accuracy, high performance and high stability

● Using 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage.
