مميزات خاصة

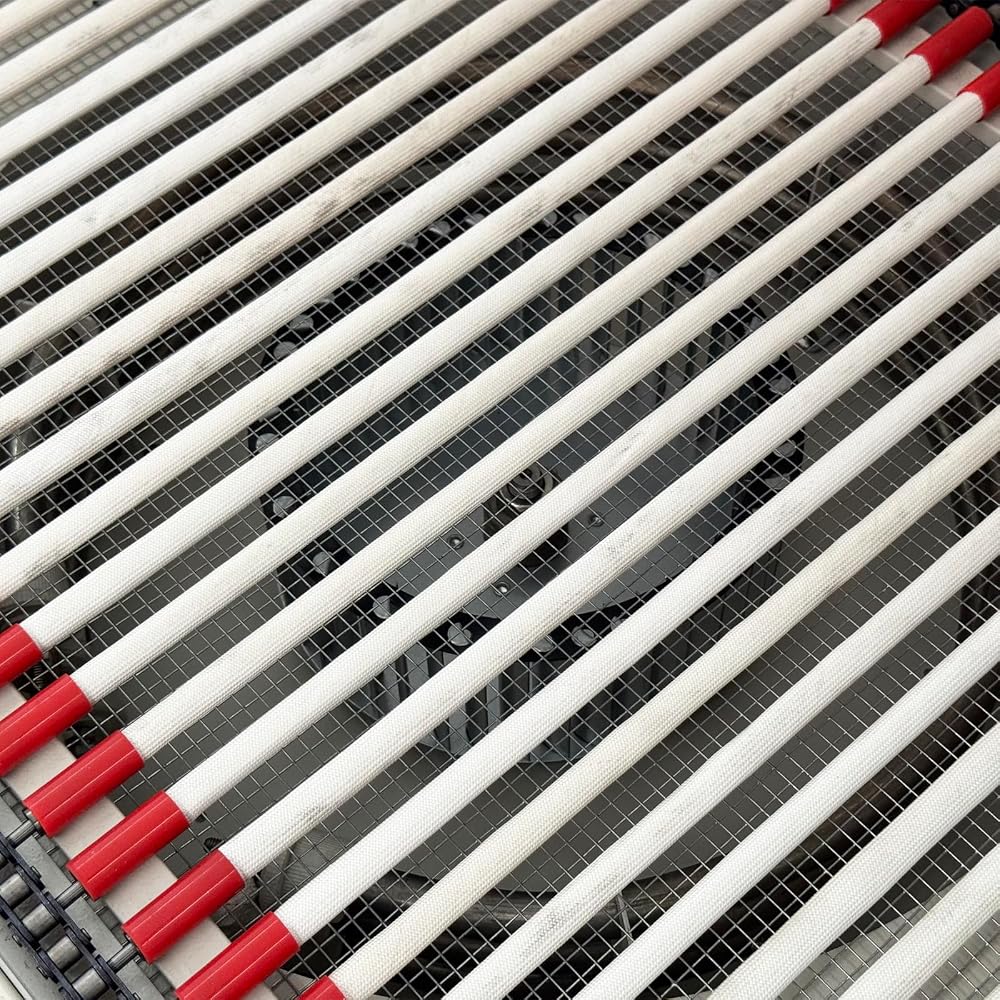

【High-Efficiency Hot Air Circulation】: Equipped with an internal hot air circulation system, it ensures that the hot air flows continuously and evenly within the furnace chamber, allowing the shrink film to be heated consistently and wrap closely to the product surface, thus avoiding local overheating or uneven shrinkage. The ventilation outlet is designed to promptly discharge excess heat steam and exhaust gas, maintaining the temperature balance inside the furnace
【Dual Adjustment of Temp & Speed】: The temperature can be freely set within the range of 0℃ to 300℃, and the conveying speed supports continuous adjustment from 0 to 15m/min. It is compatible with two mainstream shrink films, PVC and POF, and can be flexibly adapted to the heat shrink packaging operations of different specifications of products such as food, beverages, and bottled products
【Energy-Saving Heating Tube Design】: The energy-saving heating tubes made of SUS304 stainless steel can achieve energy savings of over 15% compared to conventional equipment. Long-term high-frequency operation can also effectively reduce electricity costs, meeting the continuous operation requirements of industrial production lines for long periods

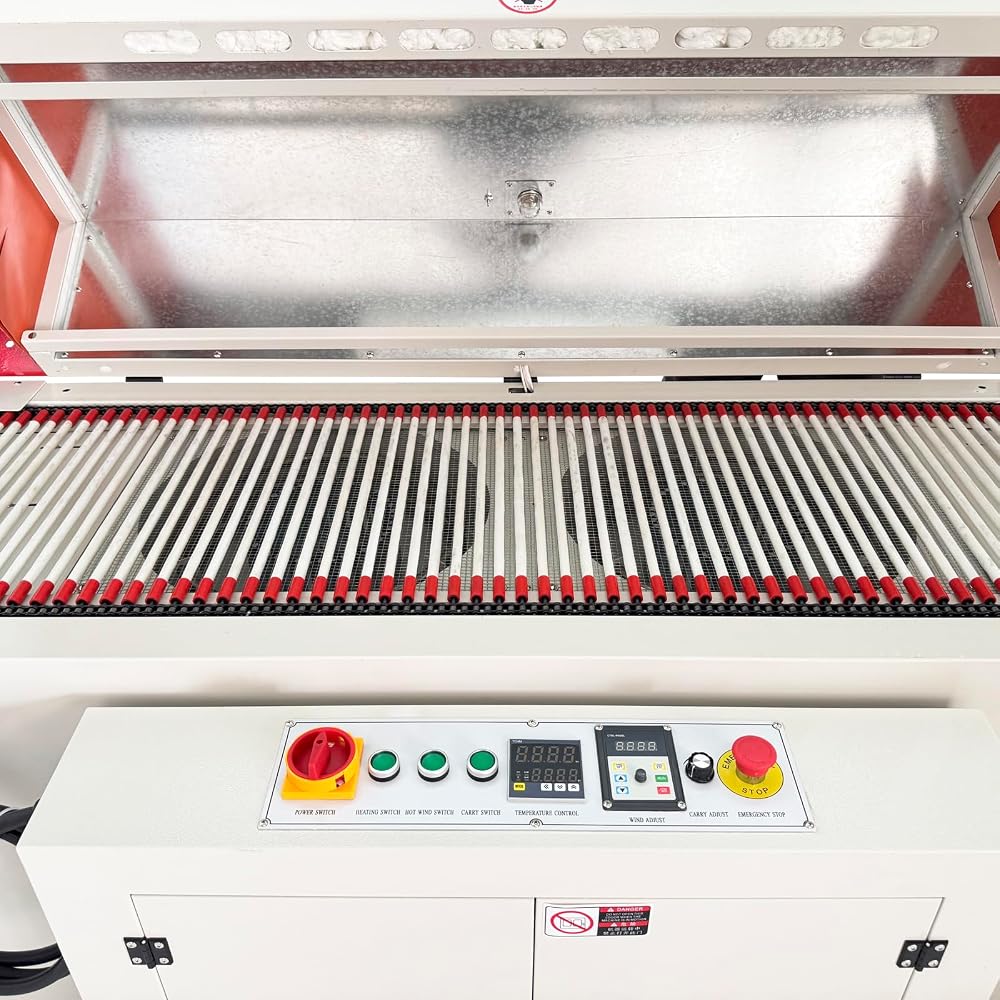

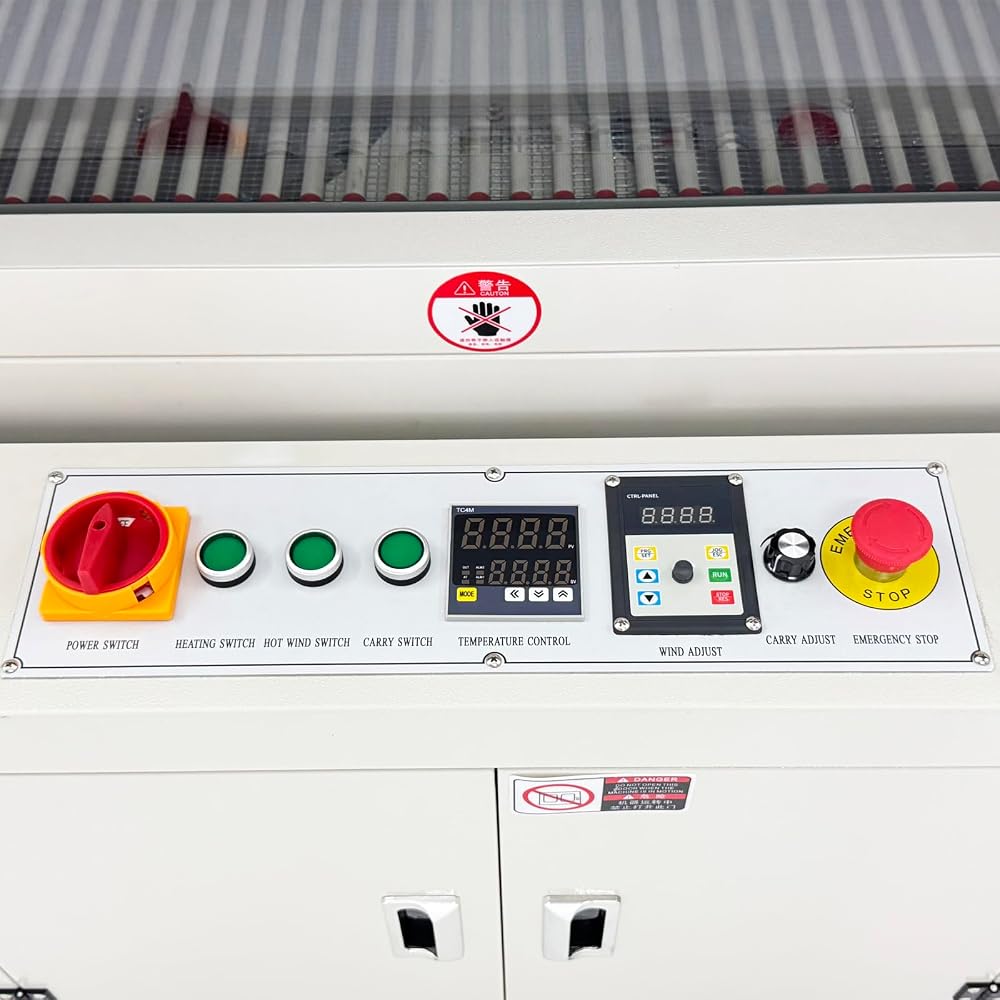

【Humanized Operation】: The control panel of the entire machine is clearly and intuitively partitioned. Independent function switches are combined with digital display adjustment panels, speed adjustment knobs and emergency stop buttons, making operation simple. The high-temperature resistant and non-stick blades made of alloy material can ensure a complete seal, and there will be no problems such as seal cracking, charring or smoking during operation

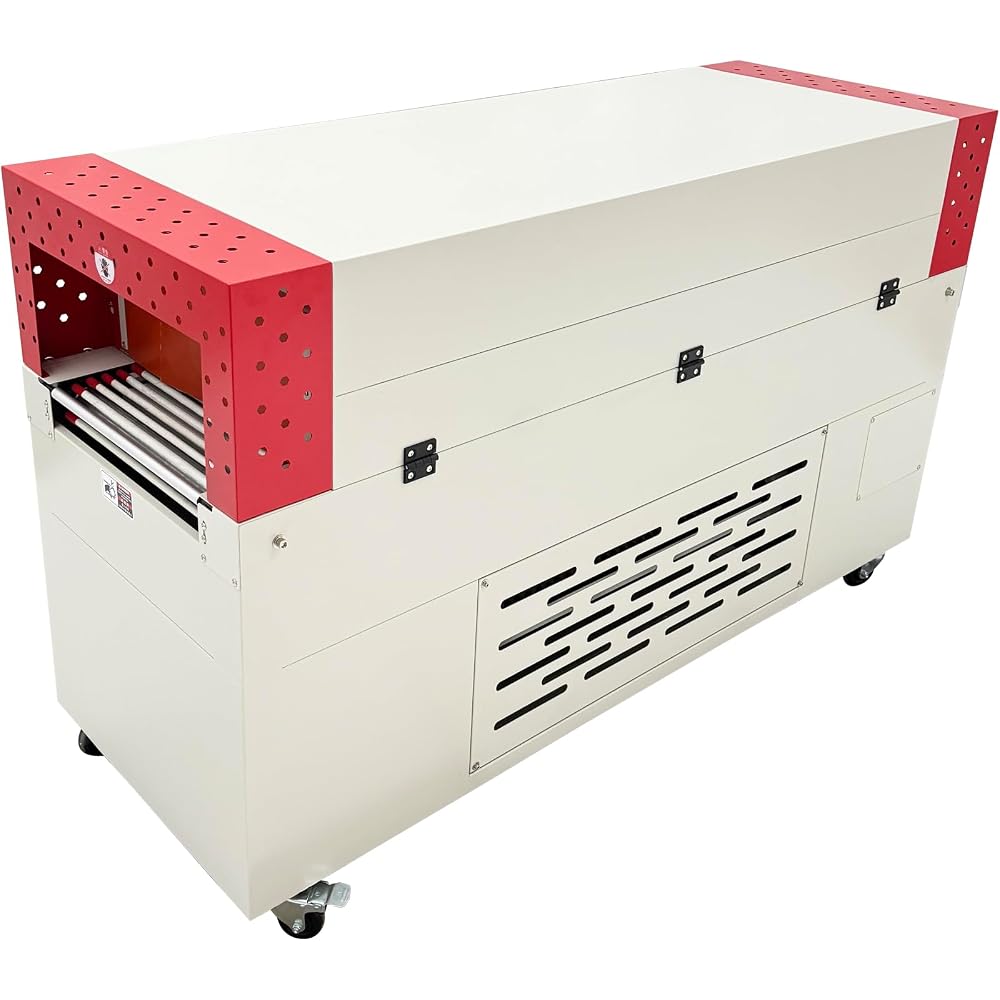

【Stable & Durable Structure】: It adopts a high-strength steel bar four-column frame structure, which can effectively reduce friction and static electricity during the film feeding process. It is equipped with 360° rotating casters with locking function, which can not only be stably fixed at the designated workstation but also flexibly move within the workshop to adapt to different production line layouts

وصف

Overview:
An advanced automated continuous packaging system that heats shrink film to tightly wrap products, enhancing display appeal while providing sealing protection. Protects goods from impact with cushioning effect (prevents shattered debris), reduces tampering risks, and bundles multiple items. It is used for the end-of-line packaging of large-scale standardized industrial products, such as food, beverages and bottled products, with a focus on pursuing efficient, stable and uniform shrinking effects.

Product Parameters
Voltage :220V
Phase number :3
Rated Power :13kw

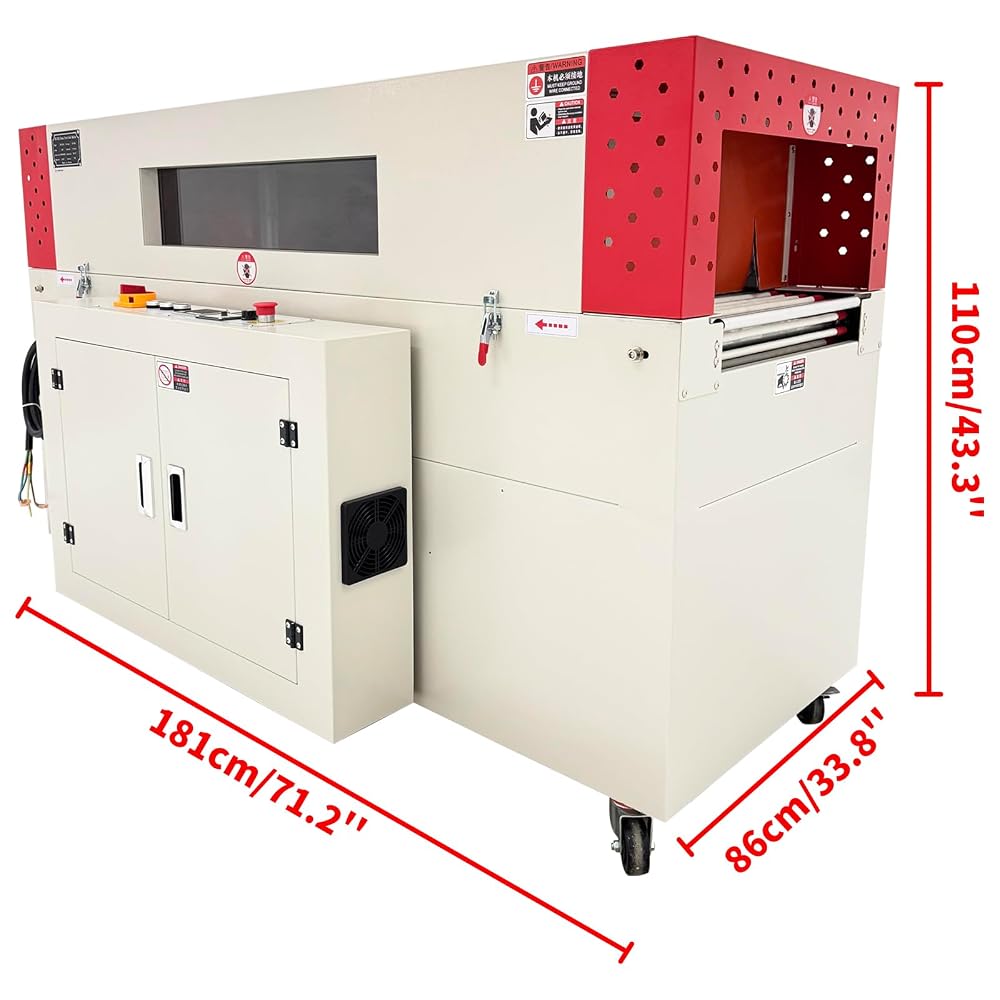

Machine Dimensions :1800x890x1030mm (70.9" x 35.0" x 40.6")

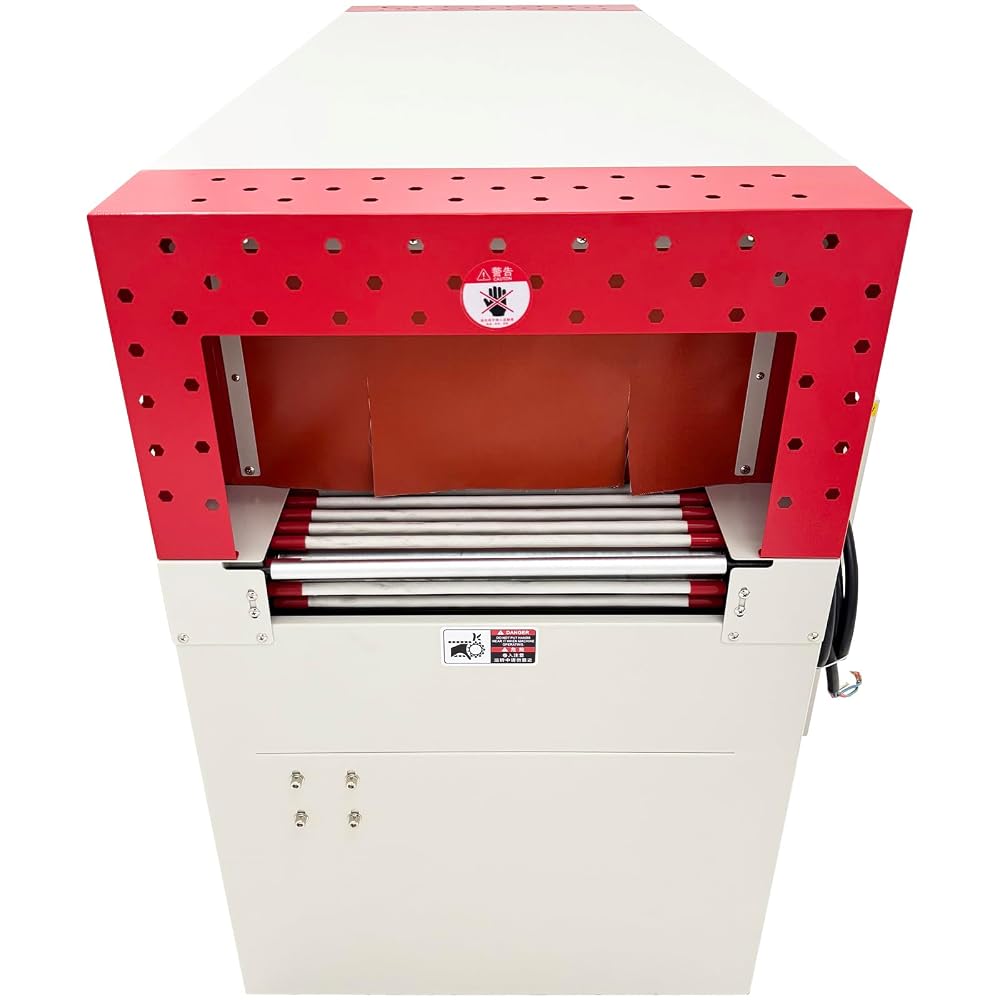

Tunnel Dimensions :1500x450x250mm (59.1" x 17.7" x 9.8")
Conveyor Speed :0-15m/min (0–49.2 ft/min)
Heating tube material :SUS304 stainless steel
Load Capacity :15kg (33 lbs)
Temperature :0℃-300℃ (32℉-572℉)
Applicable Shrink Film :PVC/ POF
Packaging Dimensions :190*95*128CM (74.8" x 37.4" x 50.4")
Net Weight :272.5KG (600.8 lbs)

Item Included:
220V 3PH Single-Frequency Heat Shrink Machine *1
