sensor
Model
WOA-B1
range
0-355°
Independent linearity
±0.1%FS
Output signal
(Power supply +DC 12-24V)0-5V 0-10V
4-20mA
(Power supply+DC 5V) 0-5V RS485
Repeatability
0.01°
Temperature drift
9ppm/
Working temperature
-40-+85
Max rotate speed
10000rpm
Protection grade
IP68
Installation Dimension
Model Selection
==========
Theory : Hall Sensor
Usage : Position Sensor

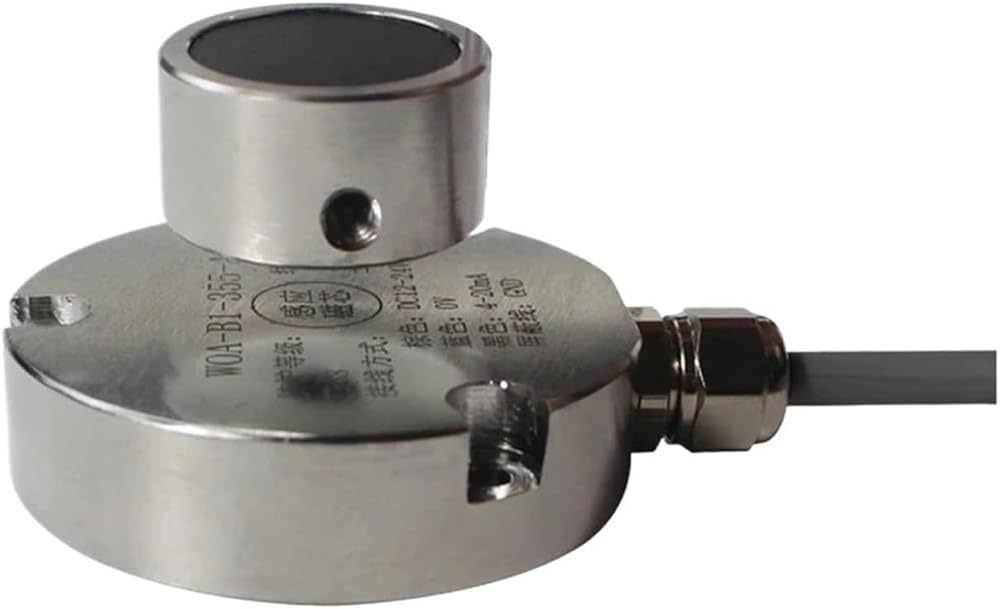

Model Number : WOA-B1
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Measuring range : 0-355
Independent linearity : ±0.1%FS
Output signal : 0-5V 0-10V 4-20mA RS485
Repeatability : 0.01 degree
Temperature coefficien : 9ppm/
Working temperature : -40-+85
Operating speed : 10 000rpm
Protection class : IP68
