مميزات خاصة

【Exquisite structural design】:Adopting a modular combination structure, such as some series of buttons equipped with single-chip snap on contact modules and light-emitting modules, not only is installation and maintenance convenient, but also ensures the reliability of the structure
【Operational performance】:Some products activate upon pressing, reset upon release, and are used to connect and disconnect small current circuits. Some products have self-locking function, which can automatically maintain the closed position when pressed and only open after power failure. Can adapt to different operational needs in different scenarios, and provide clear feedback on pressing sensation
【Reliable electrical function】:The contacts are made of standard silver or silver gold-plated materials, ensuring durability and good conductivity. The initial contact resistance is small, the insulation resistance is high, and the dielectric strength meets relevant standards. It can operate stably in various electrical environments
【Clear color identification】:red indicates operation in "stop" or "dangerous" situations, green indicates "start" or "connect", making it easy for operators to quickly identify and operate
【Widely used in various industries】:such as power, industrial automation, machinery, machine tools, textiles, ships, aviation, automobiles, medical equipment, office equipment, etc

وصف

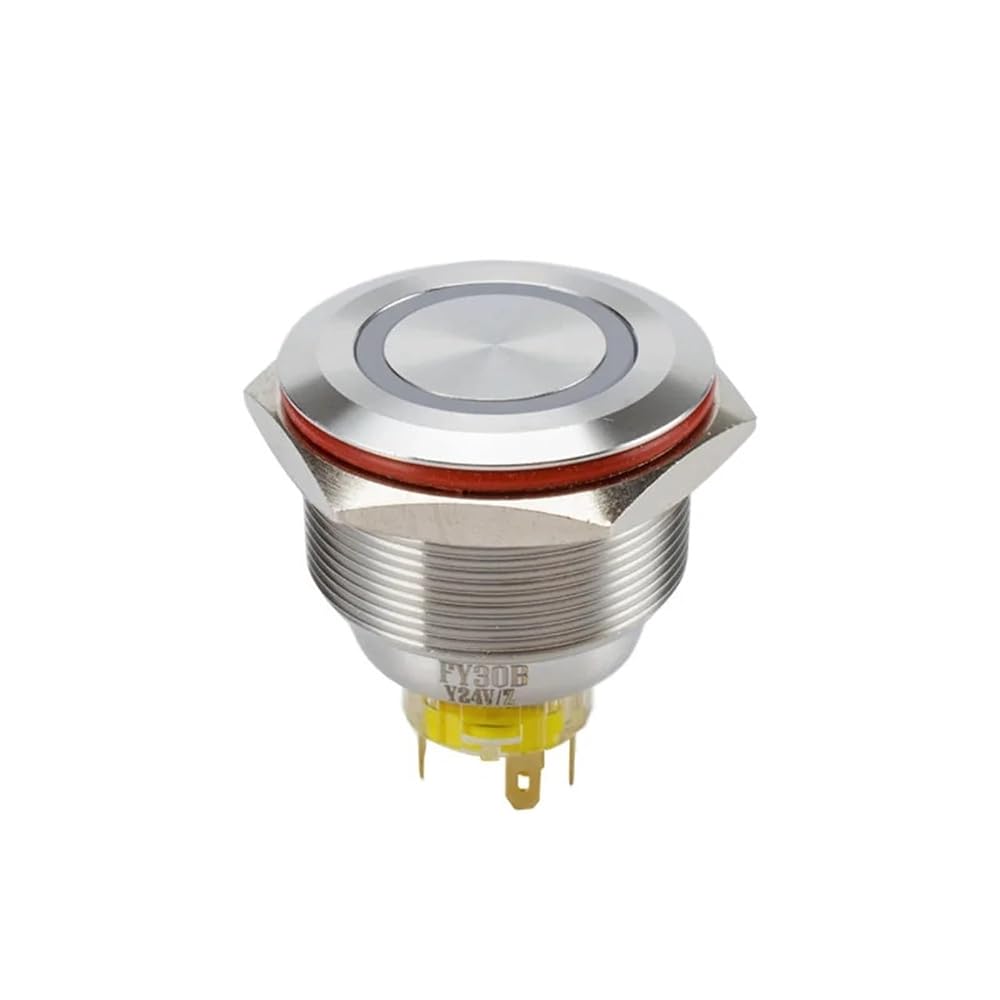

Metal Push Button With Wire Waterproof 25mm 30mm Momentary Latching for Car Computor Motor 12V 24V, 1pcs
Material :Stainless steel
Color : Red/Blue/White/ Yellow/ Green
Operation Type: Momentary / Latching
1.What does the signal "NC" and "NO" means?
"A" "+": positive pole of the led"LED" " - ": negative pole of the led" NC ": Normal Close" NO ": Normal Open" C " : Common
2.How to connect?1.Connect " NO " and " C " : The circuit is alway open unless press the button.2.Connect " NC " and " C " : The circuit is alway close unless press the button.
Difference between self-locking type and self-recovering typeLatching type ( Self-Locking) : Press the power on, and then press again power off(For example, household light switch)
Momentary type ( Self-Reset) : Press the power on, and release the power off! (For example, computer power-on key or doorbell switch)
High-concerned chemical : None
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Current : 5A
Material : Stainless steel
Switch Type : Push Button Switch
Model Number : LA155-G
Features : Metal button
Item Type : SWITCHES
