【Exquisite structural design】:Adopting a modular combination structure, such as some series of buttons equipped with single-chip snap on contact modules and light-emitting modules, not only is installation and maintenance convenient, but also ensures the reliability of the structure
【Operational performance】:Some products activate upon pressing, reset upon release, and are used to connect and disconnect small current circuits. Some products have self-locking function, which can automatically maintain the closed position when pressed and only open after power failure. Can adapt to different operational needs in different scenarios, and provide clear feedback on pressing sensation
【Reliable electrical function】:The contacts are made of standard silver or silver gold-plated materials, ensuring durability and good conductivity. The initial contact resistance is small, the insulation resistance is high, and the dielectric strength meets relevant standards. It can operate stably in various electrical environments
【Clear color identification】:red indicates operation in "stop" or "dangerous" situations, green indicates "start" or "connect", making it easy for operators to quickly identify and operate
【Widely used in various industries】:such as power, industrial automation, machinery, machine tools, textiles, ships, aviation, automobiles, medical equipment, office equipment, etc
وصف

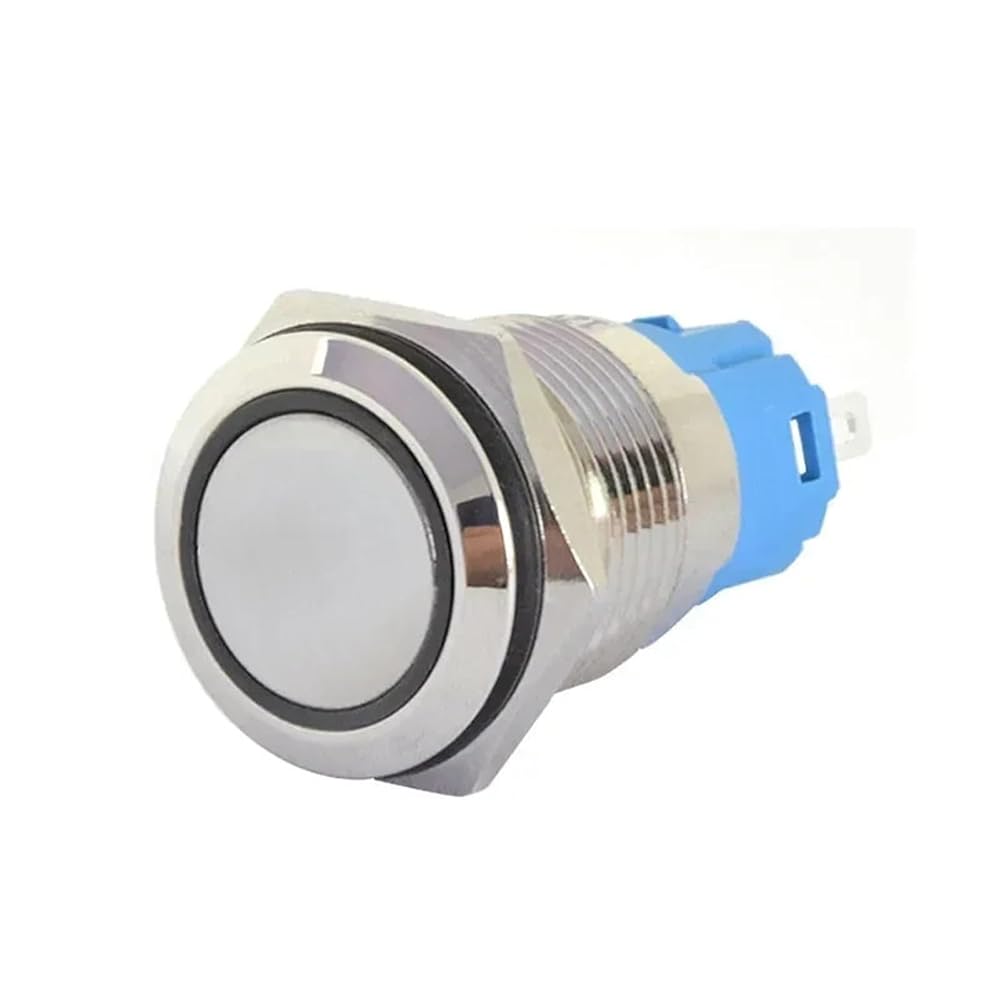

Push Button Switch 16mm LED Illuminated Flat Metal On Off Latching 1NO1NC Momentary 12V 220V Red Green, 1pcs
Customized16mm LED illuminated flat metal push button switch on off latching 1NO1NC momentary 12V 220V red green blue amber led switch
Mounting Hole Diameter: 16mm
Material: Stainless Steel/ Nickel plated brass
Rating: 3A/250V
Switch Combination: 1NO1NC
Switch Function: Latching/ Momentary
LED Color: Red/ Green/ Blue/ Yellow/ White / Bi-color/ Tri-color
LED Voltage: 12-24V/110-220V
If need bi-color or three color led, Feel free to contact us.
Function:
-- Momentary:Push Button, switch work; Release, switch off
-- Latching:Push Button, switch work; Release, switch keep work; push again, switch off
Harness Connector
Easier & Faster for Using
Cable Length 15cm
High-concerned chemical : None
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Current : 5A
Material : Copper
Switch Type : Push Button Switch
Features : 16mm
Head Type : Flat Head
