Introduction

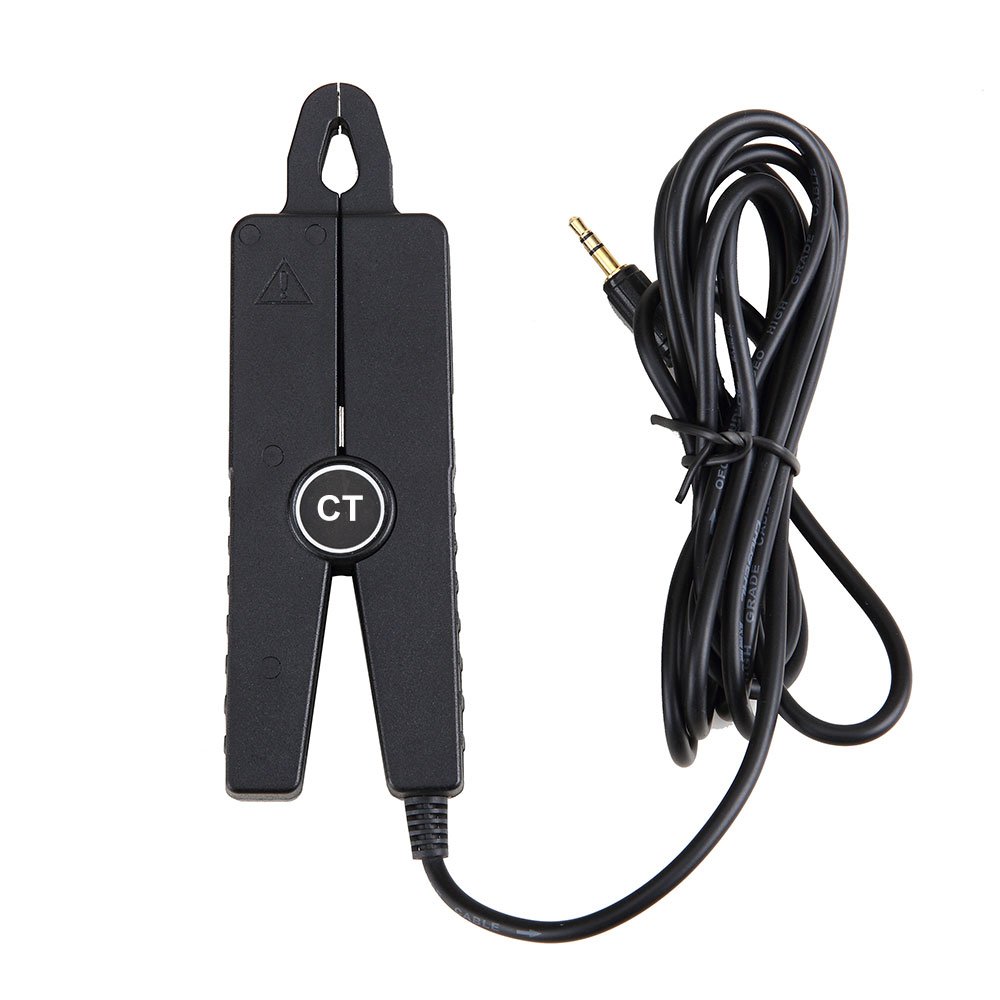

FR008 clamp current sensor is a high-precision AC current convertor.
It adopts a clamp-shaped structure, and can be quickly and easily accessed and used.
The compact size is easier to carry and use. Applicable to AC current, leakage current, high harmonic current, phase, electric energy, power, power factor and other tests.
FR008 can be used with a variety of measuring instruments, such as: Field calibrator for watt-hour meter, multi-function energy meter, oscillometer,
digital multimeter, electrical identification device, cable fault detector, dual-clamp phase volt-ampere meter, three-phase digital phase Volt-ampere meter, etc.,
can measure and compare a variety of electrical parameters under constant power.
Widely used in substations, power plants, industrial and mining enterprises
and testing stations,electrical maintenance departments for current detection and field electrical work, etc.

Specification
Model: FR008
Jaw Size: Φ7.5mm
Range: AC 0~30A
Resolution: AC 0.01mA
Accuracy: ±0.2%FS(50Hz/60Hz; 23 °C±2 °C)
Phase Error: ≤2°(50Hz/60Hz;23 °C±2°C)
Turn Ratio: 2500：1 (optional 2000:1; 1000:1)
Reference Load: RL: 0~300mA≤100Ω; 0~3A≤10Ω; 0~30A≤5Ω

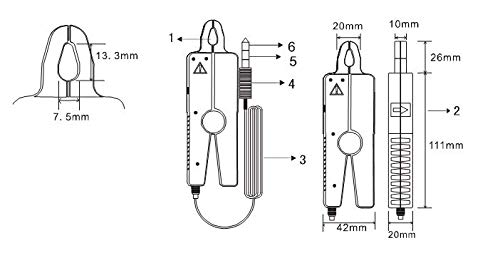

Dimensions: L/T/H 42mmX 20mmx 137mm
Output Interface: 3.5mm audio plug
Output Line Length: 2m
Weight: 180g
Output Method: Current sensing output
External Material: ABS resin, flame retardant rating 94V0
Line Voltage: 600V AC (insulated wire) 30Vac (bare wire) test
Working Temperature: -25°C~55 °C
Insulation Resistance: 100 MΩ @ 500Vdc
Medium Strength: AC3700V/rms (between iron core and shell)
Frequency Characteristics: 10Hz~100kHz
