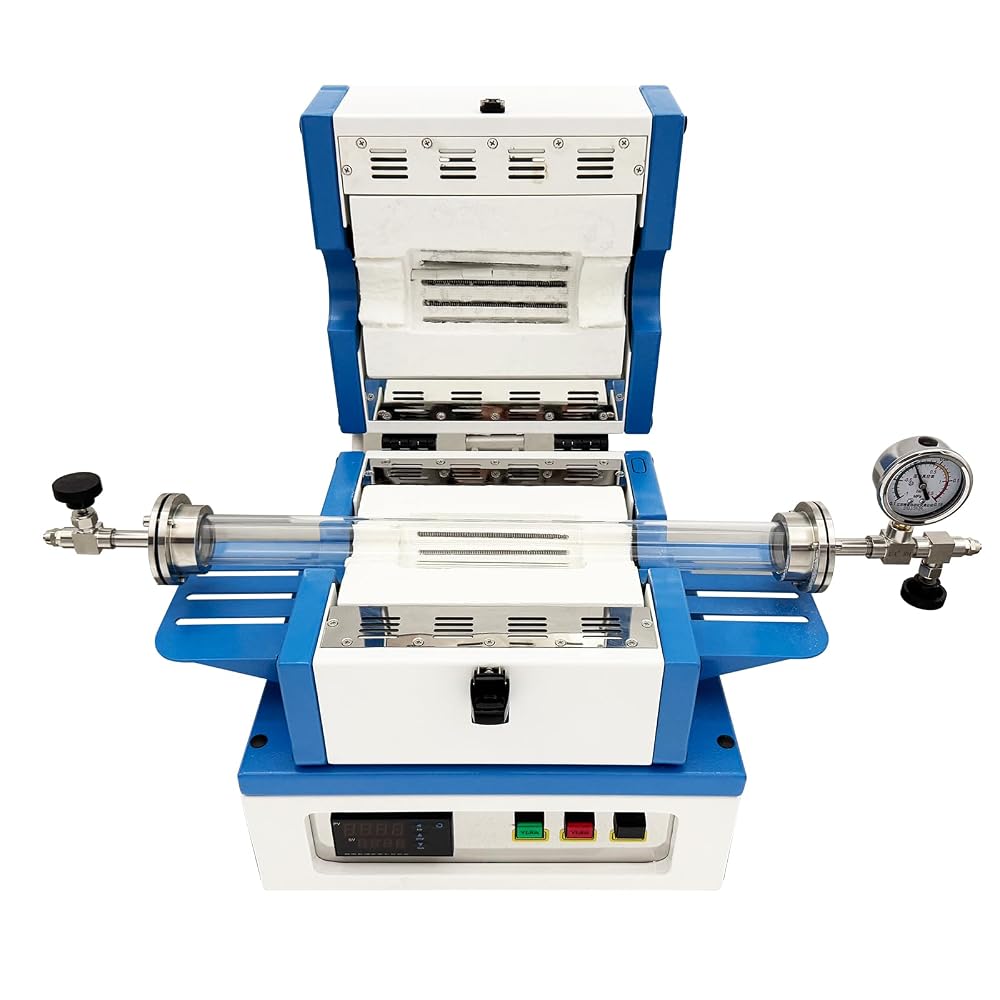

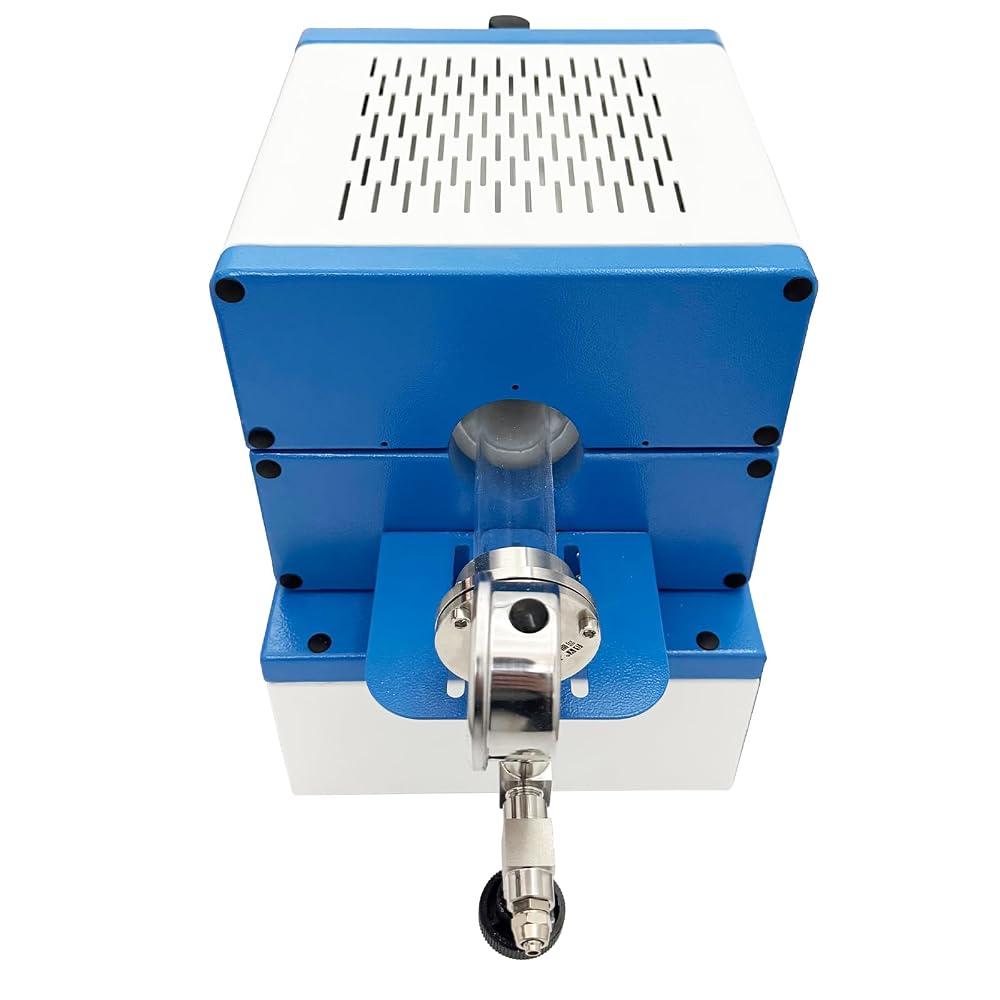

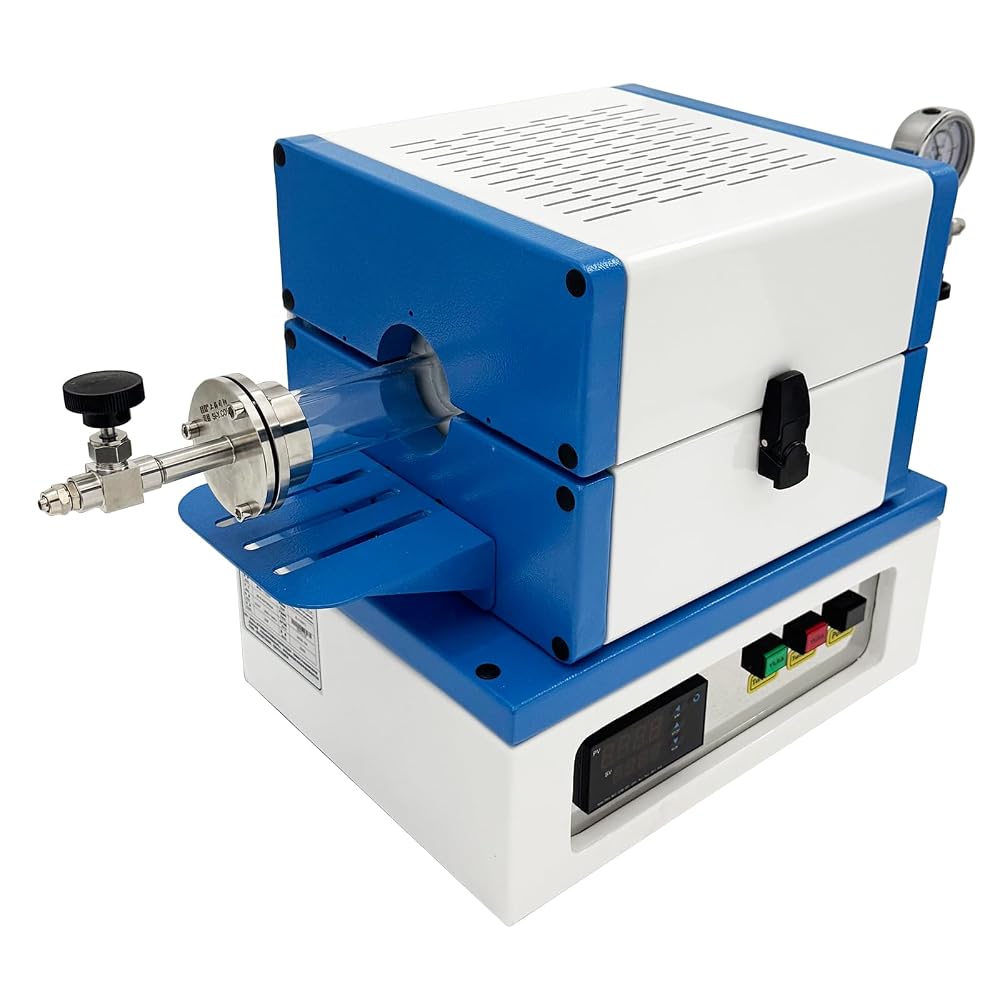

Operating at AC220V and 2kW, this furnace features a Φ1.57"*19.6" high-temperature transparent SiO₂ working tube and molybdenum-doped alloy wire heating elements. It reaches a maximum temperature of 1100℃ with an effective constant temperature length of 4.7" (120mm).
Equipped with a 30-segment AI programmable PID controller, it ensures ±1℃ accuracy and ±3℃ uniformity. The K-type thermocouple and intelligent automatic temperature controller support a heating rate of 0-15℃/min, ensuring precise and automated operation.
Designed for high-temperature atmosphere sintering, CVD experiments, and vacuum annealing, this equipment is ideal for universities and research institutes. It precisely handles inert gases like nitrogen and argon, meeting stringent experimental requirements for industrial and mining enterprises.

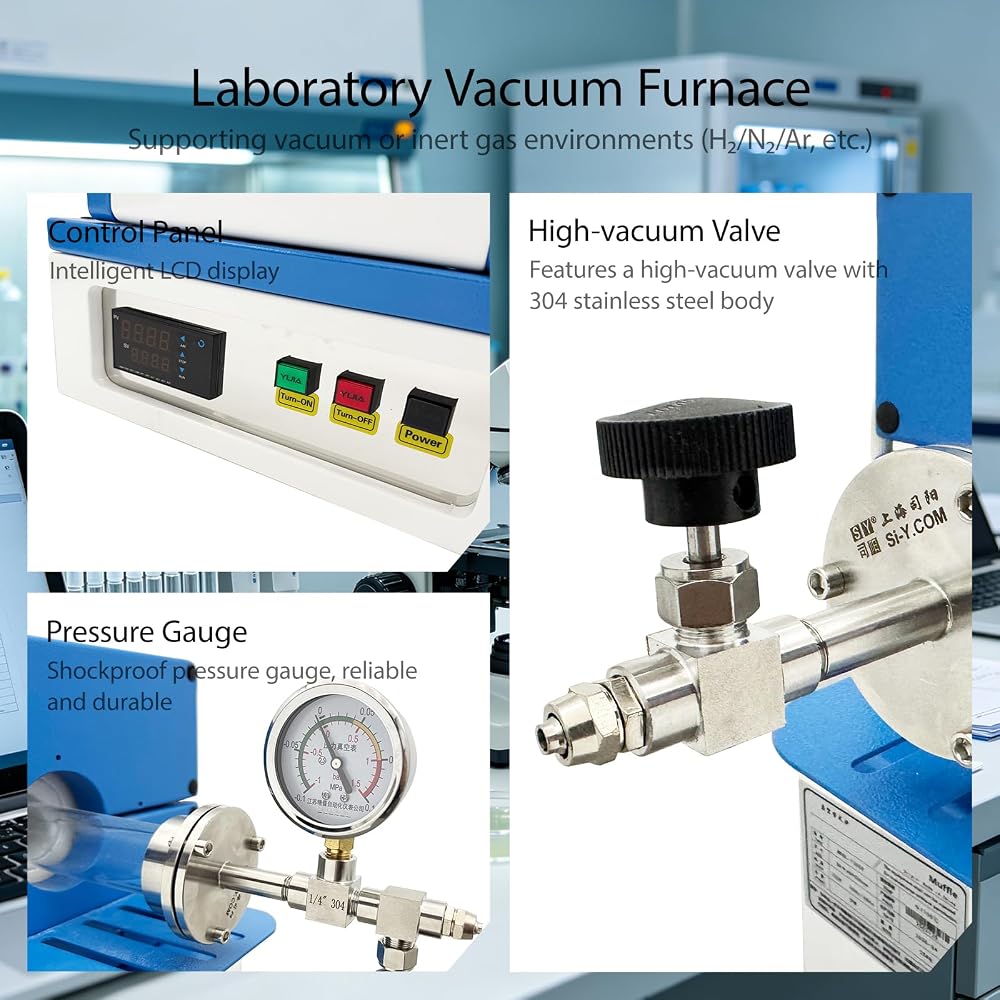

Safety is paramount with built-in leakage protection, over-temperature alarms, and upper/lower limit temperature deviation alarms. The stainless steel compression seal flange ensures secure sealing, while the maximum positive pressure remains safely below 0.02 MPa.
The furnace chamber uses alumina polycrystalline insulation material, enclosed in a durable laser-processed iron plate shell with baking paint. Please note: The machine comes with a US plug, but for security concerns, it is highly recommended to connect directly to a circuit breaker.

وصف

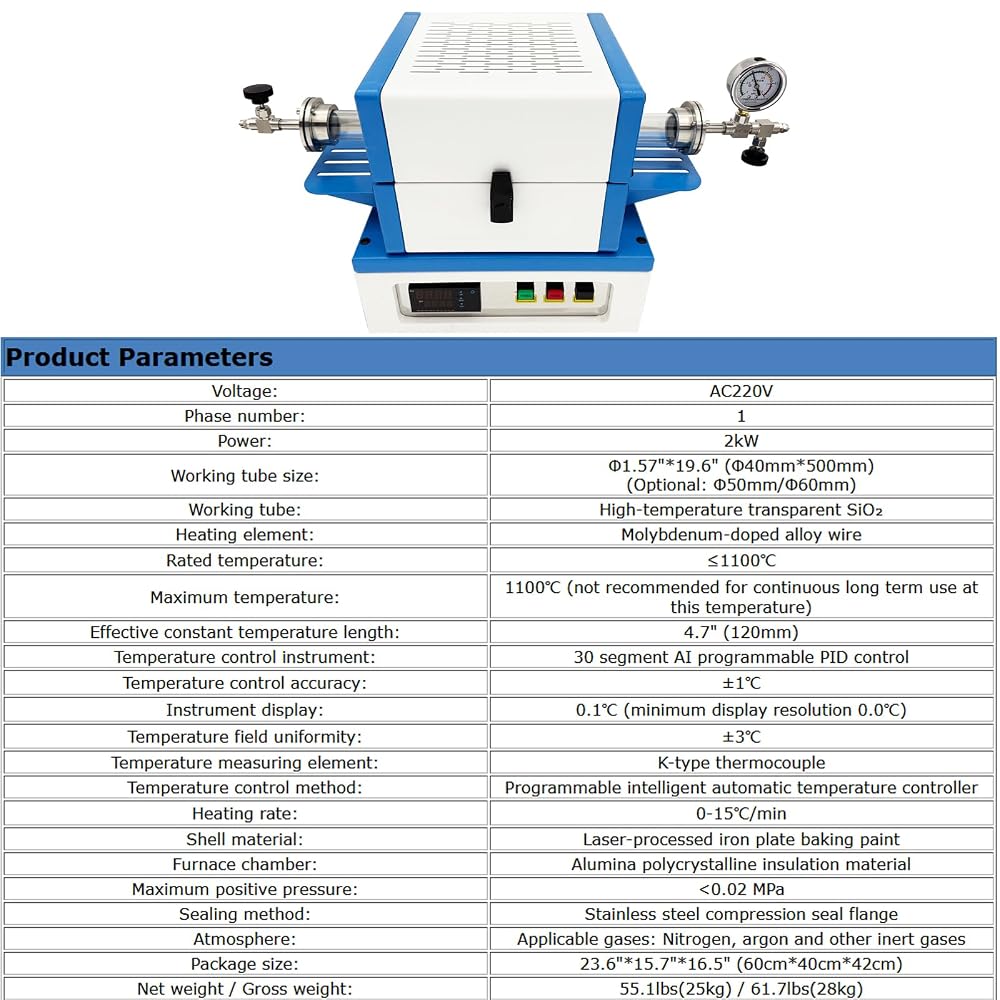

Specification
Voltage: AC220V
Phase number: 1
Power: 2kW
Working tube size: Φ1.57"*19.6" (Φ40mm*500mm) (Optional: Φ50mm/Φ60mm)
Working tube: High-temperature transparent SiO₂
Heating element: Molybdenum-doped alloy wire
Rated temperature: ≤1100℃
Maximum temperature: 1100℃ (not recommended for continuous long term use at this temperature)
Effective constant temperature length: 4.7" (120mm)
Temperature control instrument: 30 segment AI programmable PID control
Temperature control accuracy: ±1℃
Instrument display: 0.1℃ (minimum display resolution 0.0℃)
Temperature field uniformity: ±3℃
Temperature measuring element: K-type thermocouple
Temperature control method: Programmable intelligent automatic temperature controller
Heating rate: 0-15℃/min
Shell material: Laser-processed iron plate baking paint

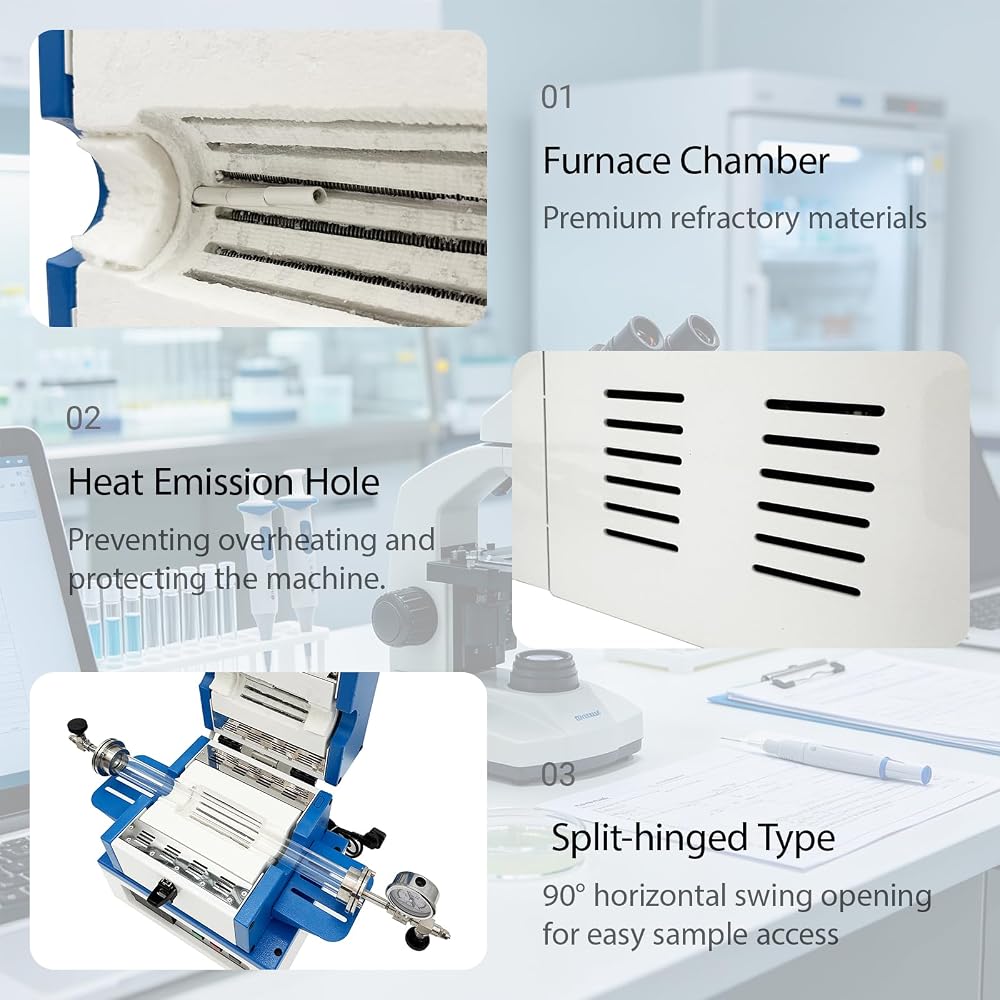

Furnace chamber: Alumina polycrystalline insulation material
Maximum positive pressure: Sealing method: Stainless steel compression seal flange
Atmosphere: Applicable gases: Nitrogen, argon and other inert gases

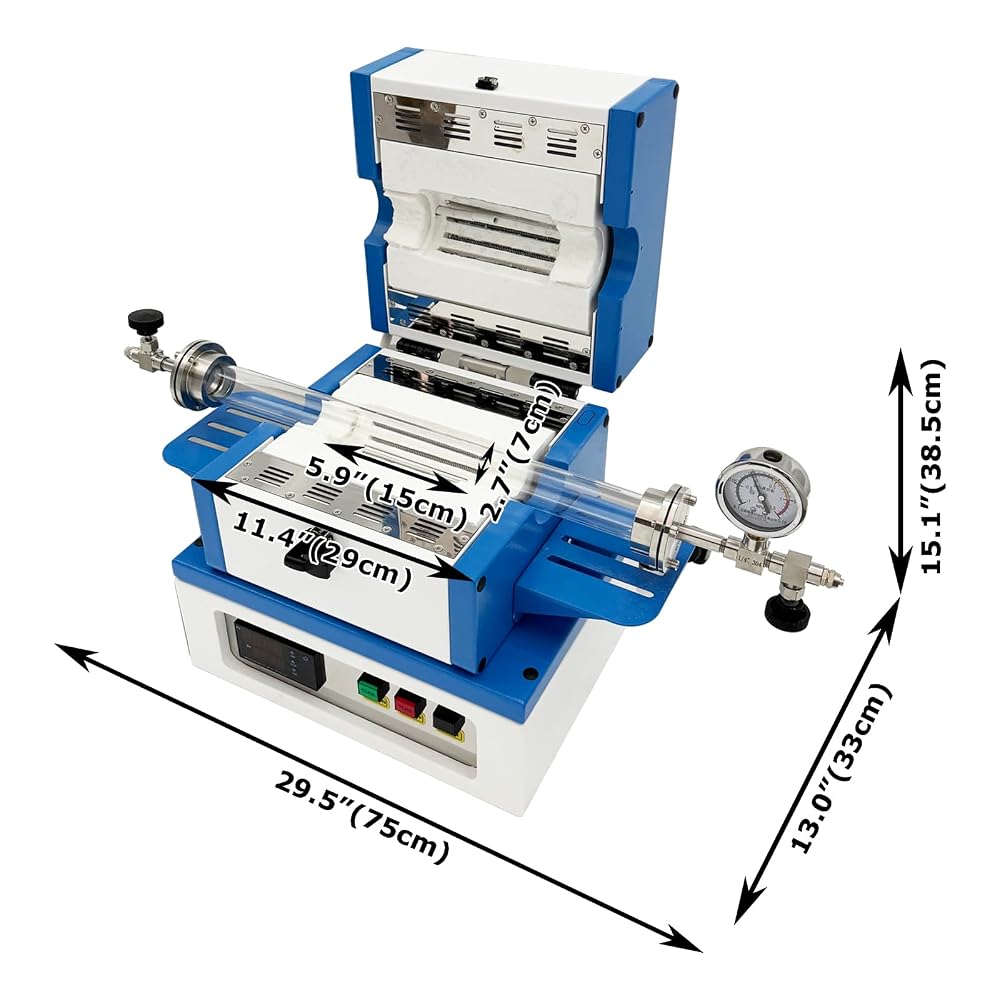

Package Dimensions
24"*16"*17"; 62pounds
