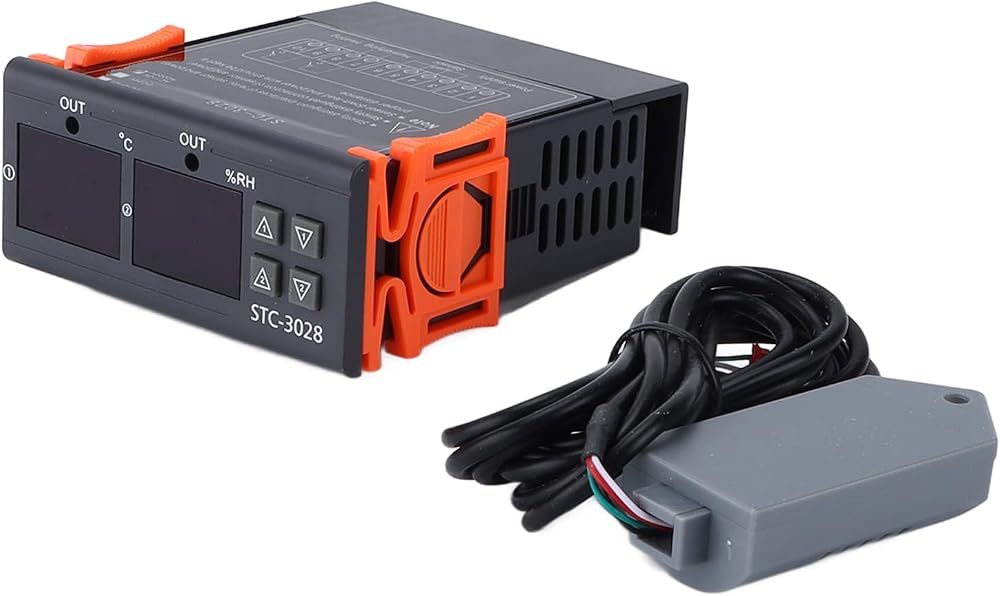

Item Type: Incubator Temperature Controller
Material: ABS
Power Supply Voltage: AC110-230V
Power Supply Frequency: 50/60Hz
Temperature Measurement Range: -40-110℃
Temperature Measurement Accuracy: 0.3℃
Humidity Measurement Range: 0%-100%RH
Humidity Measurement Accuracy: 3%
Output Control: Relay Output
Output Power: Mximum 10A

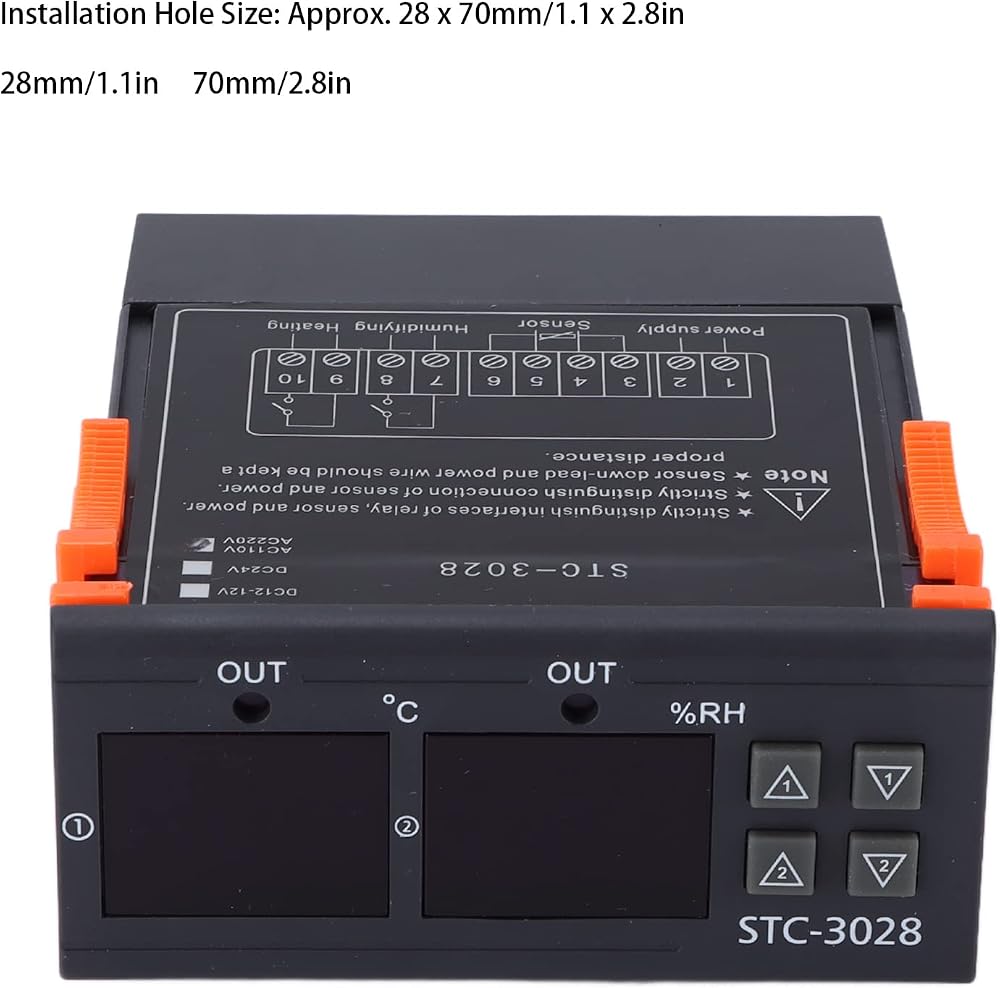

Installation Hole Size: Approx. 28 x 70mm/1.1 x 2.8in
Setup essential
Start value Start value>Stop value (The program automatically determines that the working mode is cooling/dehumidifying mode)
Heating/cooling mode setting
Setting method:

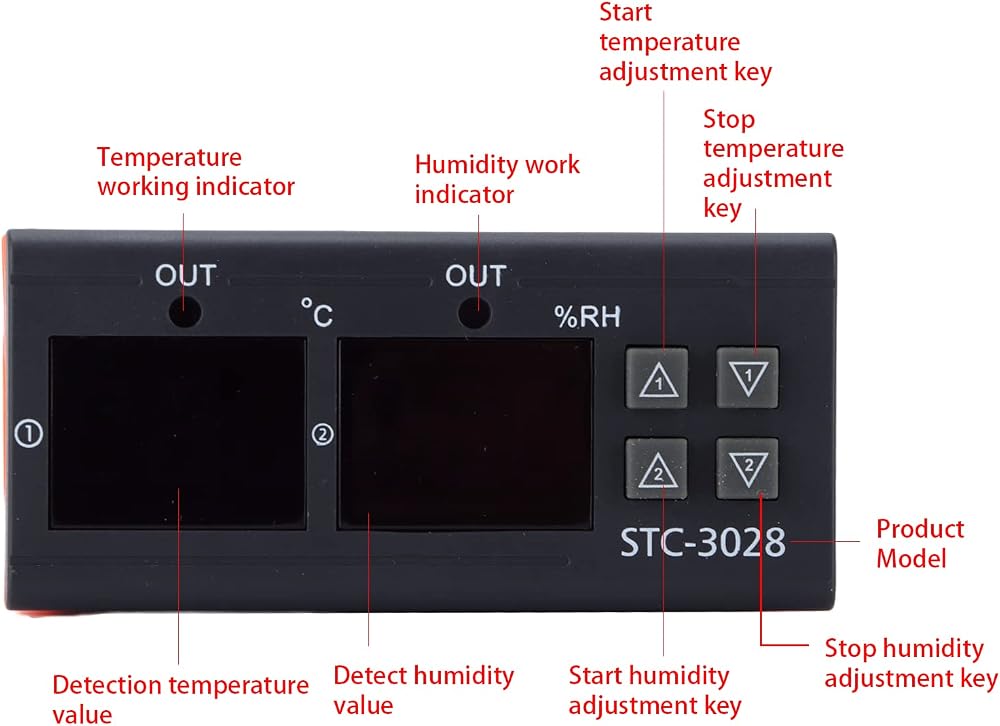

Setting (start temperature): long press the 1 button, the start temperature flashes, and set the start temperature value through the 11 key
Setting (stop temperature): long press the 1 button to stop the temperature flashing, and set the stop temperature value through the 11 button.
Heating use case:
Control the water heater, stop heating to 70°C, start heating again when the temperature drops to 45°C, and cycle
Step 1: Heating working mode, starting temperature Step 2: Long press the 1 button, the start temperature flashes, and set the start temperature to 45℃ by pressing the 11 button.
Step 3: Long press the 1 button to stop the temperature flashing, and set the stop temperature to 70℃ by pressing the 11 button, and the setting is complete! If there is no operation for 10 seconds, it will automatically return to the normal display state. You can also press 22 to exit immediately.
Refrigeration use cases:

Package List：

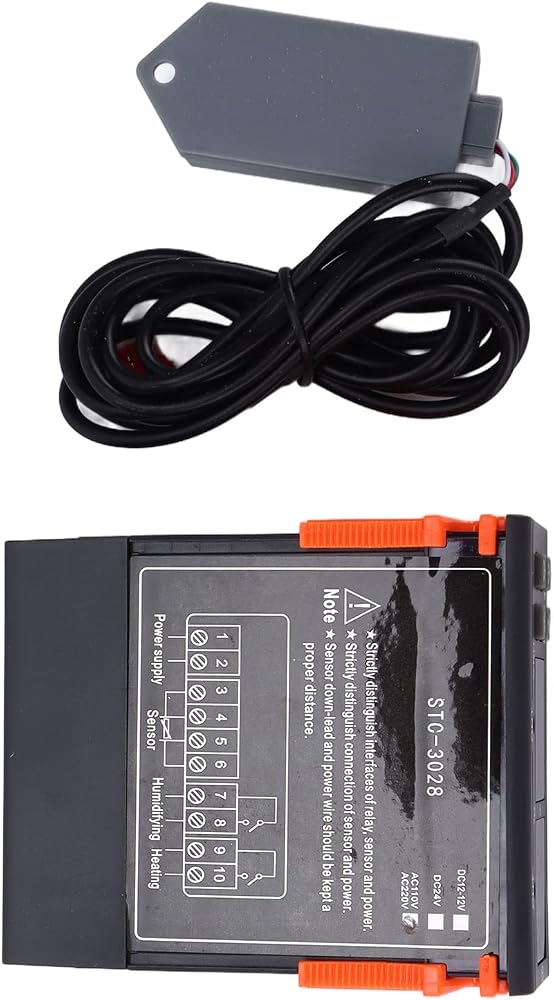

1 x Controller

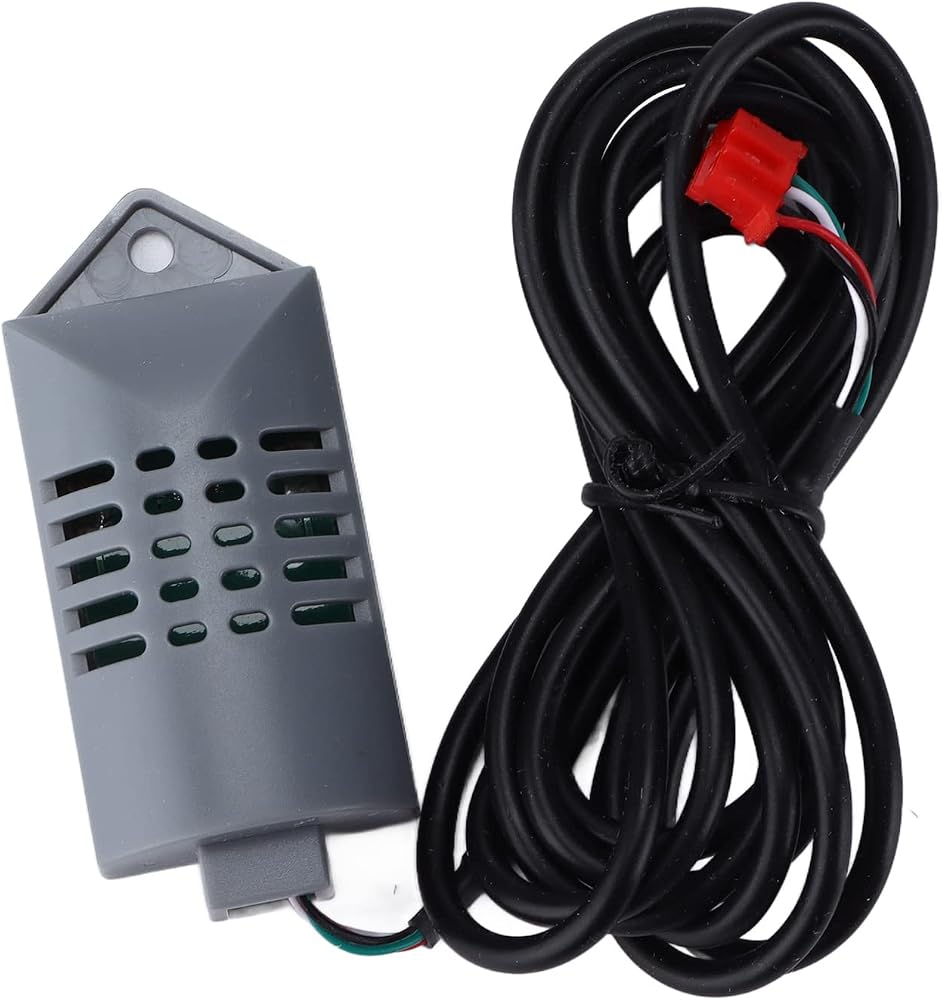

1 x Probe1 x Manual
