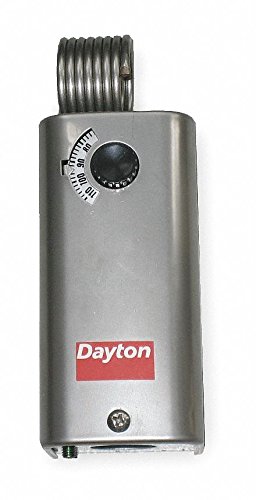

The Line Voltage Thermostat is designed for reliable use in various applications. A broad temperature range allows for a wide range of heating, ventilating, and refrigeration applications. Snap-acting contacts are in a dust protected enclosure, while the switches are enclosed and protected.

Item: Line Volt Mechanical Tstat
Thermostat Switch Type: SPDT
Thermostat Control Range: 30 Degrees to 110 Degrees F
Thermostat Voltage: 24 to 600VAC
Full Load Amps @ 120VAC: 16A
Full Load Amps @ 240VAC: 8A
Thermostat Programmable: No
Remote Sensing Capability: No
Thermostat Heating/Cooling: Heating/Cooling
Thermostat Item: Line Voltage Mechanical Thermostat
Remote Sensing Bulb Included: No
Switch Action: Open/Close on Rise
Number of Switches: 1
Differential: 3.5 Degrees F
Height: 4-1/2"
Width: 2-1/8"
Depth: 2-1/8"
Temp. Sensitivity: 3 Degrees
Sensor Type: Hydraulic Capillary
Sensing Bulb Dia.: 3/16"
Capillary Length: 60"
Color: Polished
Enclosure Type: Stainless Steel
Inductive Amps @ 120V: 16A
Inductive Amps @ 208V: 9.2A
Inductive Amps @ 240V: 8A
Locked Rotor Amps @ 120V: 96A
Locked Rotor Amps @ 240V: 48A
Contact Rating Resistive @ 120V: 22A
Resistive Amps @ 208VAC: 22A
Contact Rating Resistive @ 240V: 22A
Pilot Duty Contacts (VA): 125VA
Includes: Instruction Sheet
Standards: UL, CUL
