الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠.قد تحتاج إلى محول كهرباء
مميزات خاصة
MTX TL-45L is a 4-channel in / 5-channel out line output converter built to integrate modern factory audio systems with aftermarket amplifiers while maintaining proper factory system operation.
High-level input capability handles factory speaker signals up to 40V, allowing the TL-45L to work with a wide range of OEM base and premium audio systems while delivering clean preamp output.
Selectable input impedance helps the converter interface correctly with factory radios and amplifiers, reducing the risk of muting or shutdown issues when factory speakers are removed.

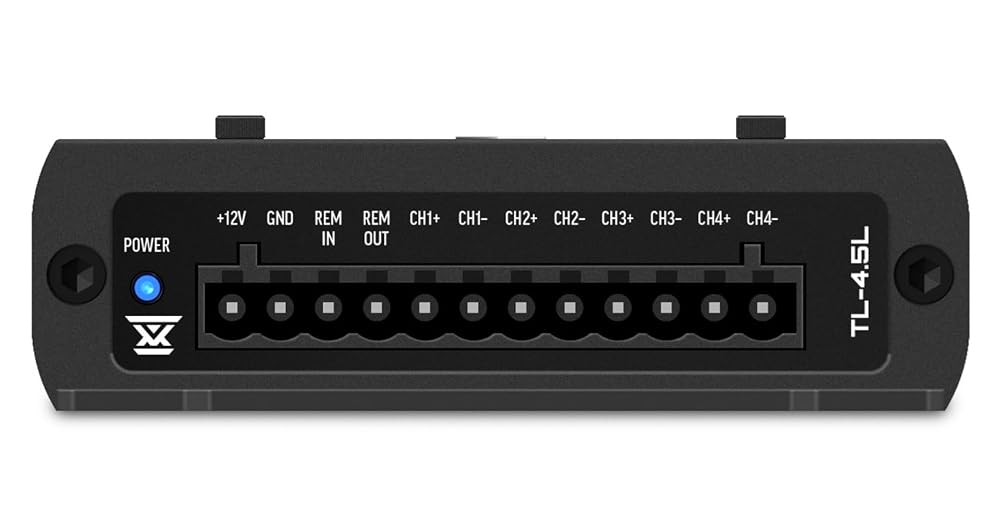

Multiple turn-on options, including DC offset sensing, audio signal detection, and +12V remote turn-on, provide flexible integration across different factory system architectures.

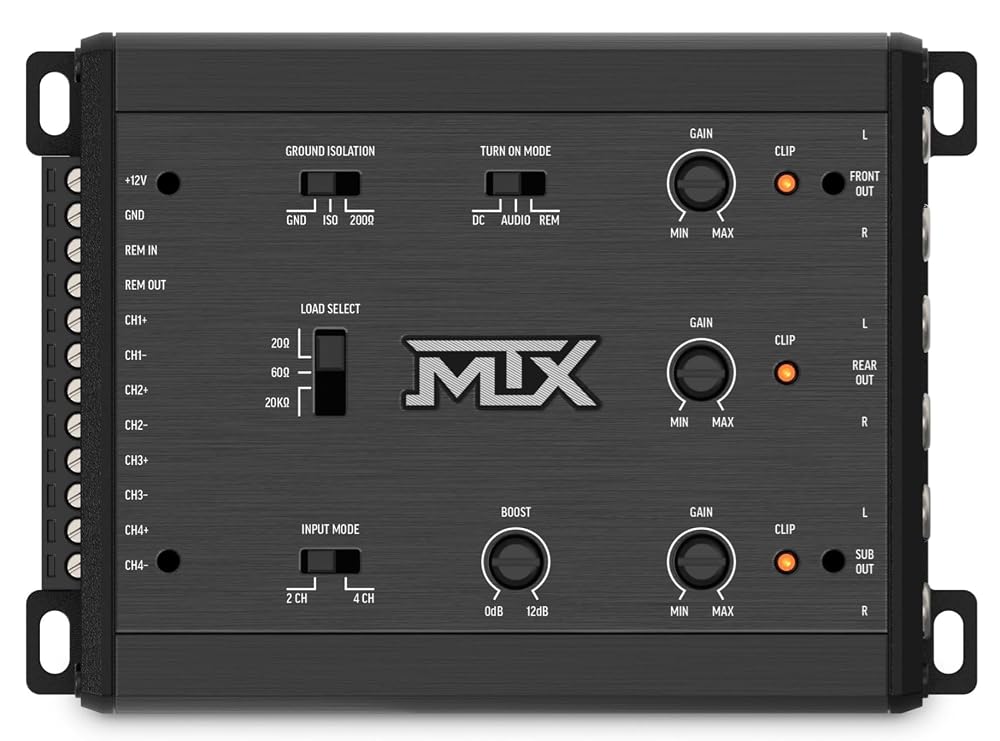

Individual gain controls, clip indicators, a dedicated bass channel output, and included remote level control allow more precise output setting and easier low-frequency adjustment in custom amplifier systems.
وصف

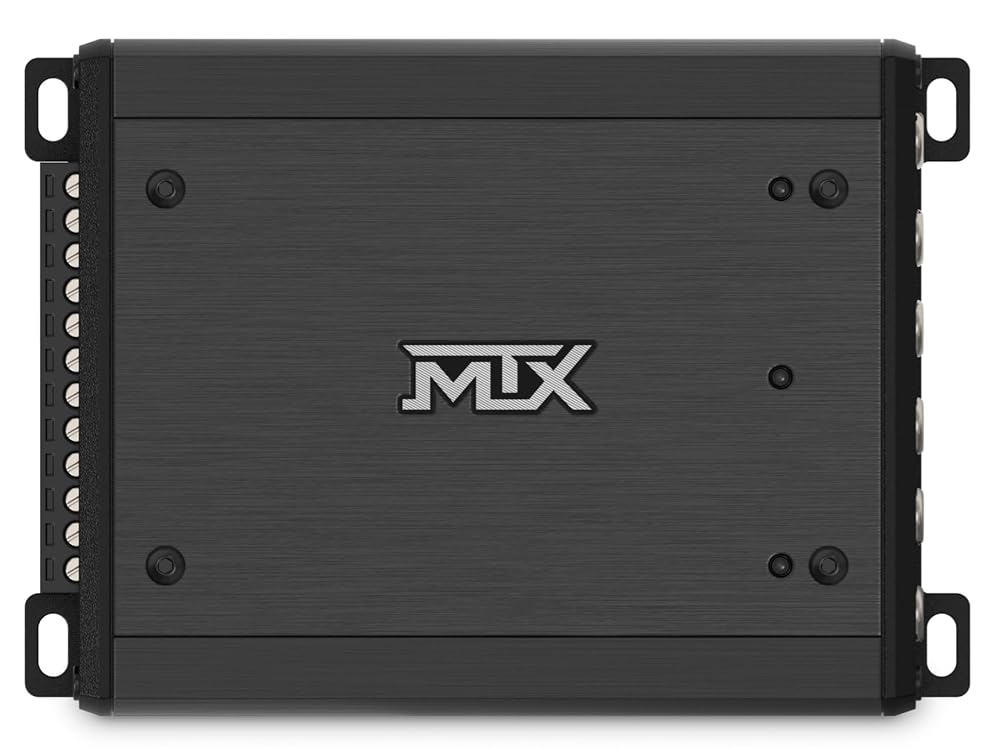

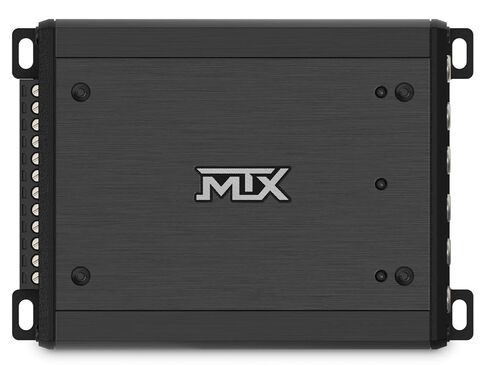

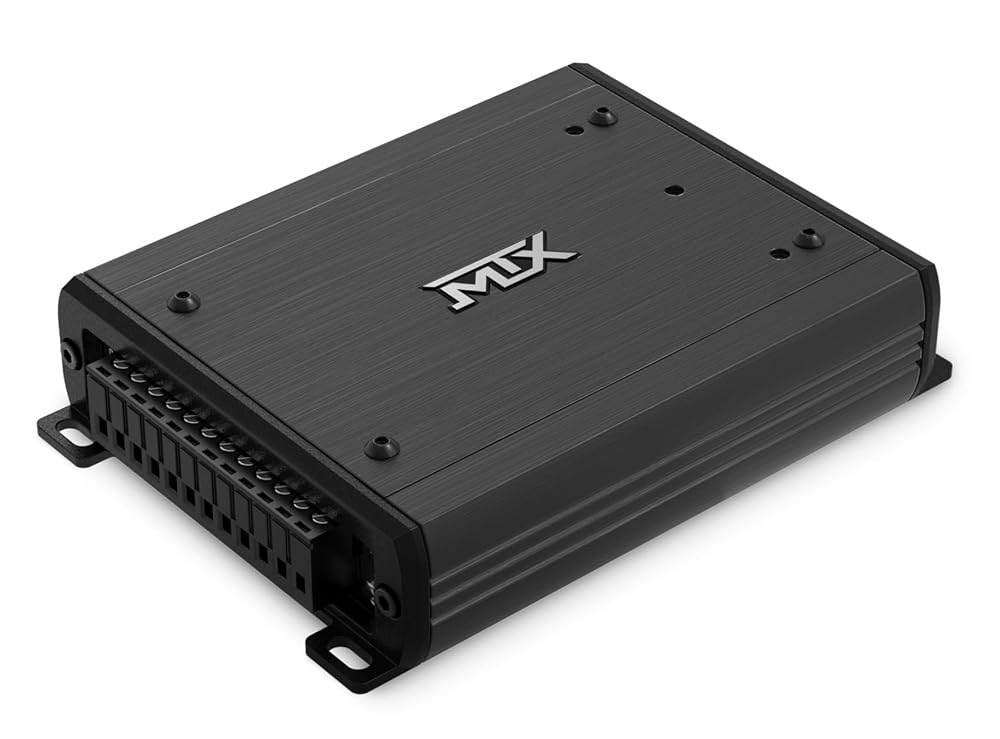

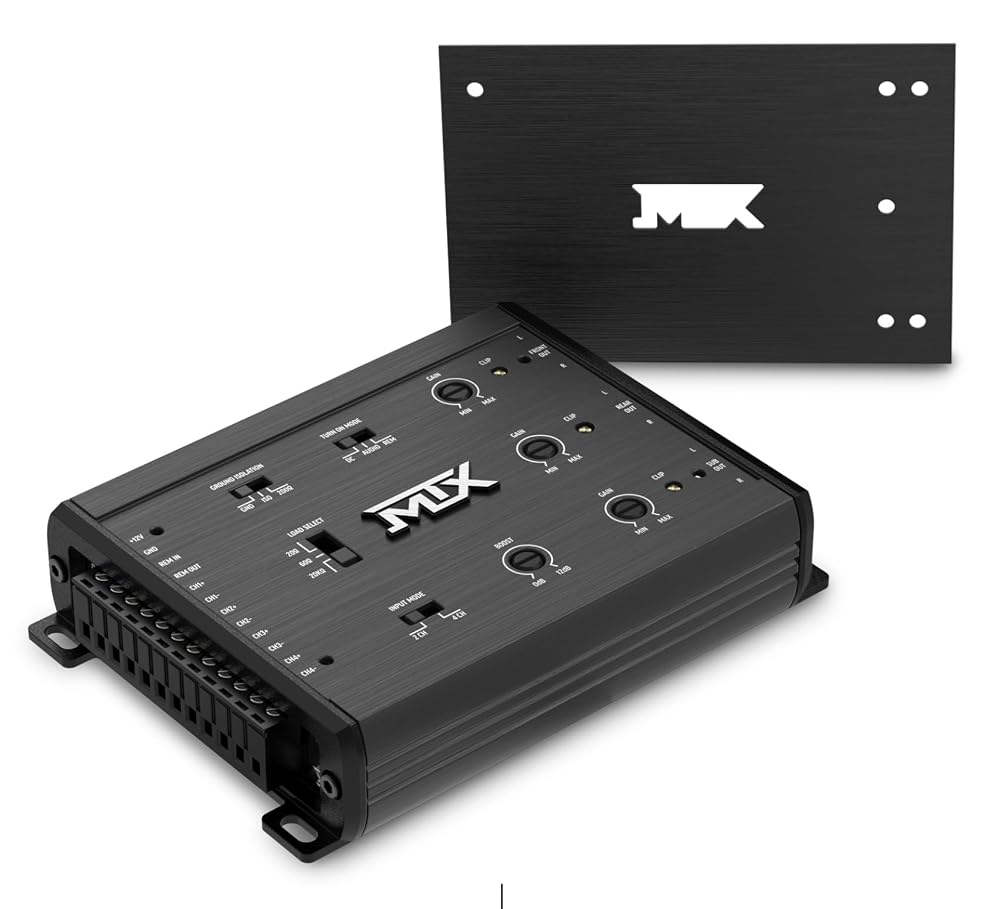

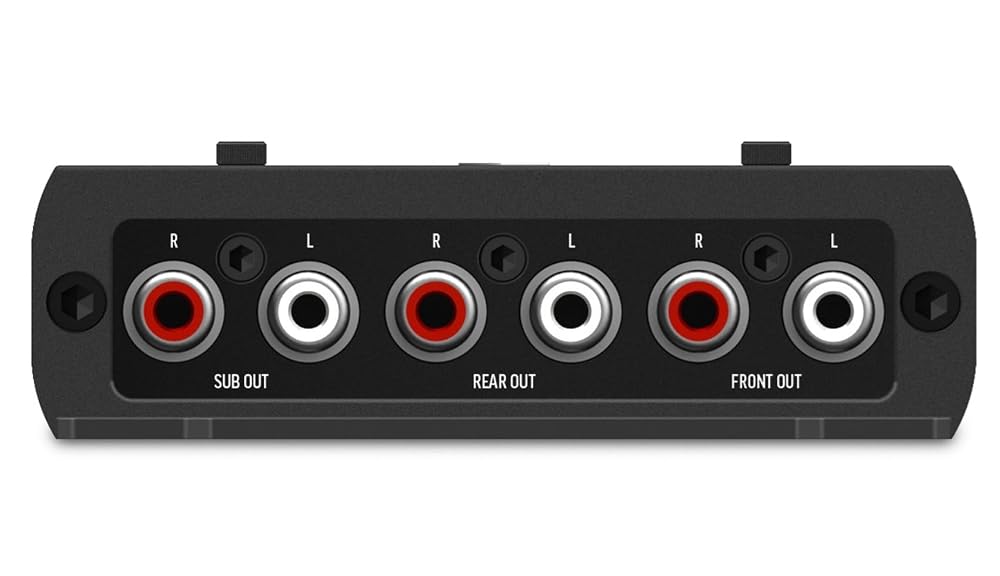

MTX TL-45L is a 4-channel in / 5-channel out line output converter designed to connect modern factory audio systems to aftermarket amplifiers. It accepts OEM speaker-level input up to 40V, uses selectable load resistance to help maintain proper factory system behavior, and provides multiple turn-on modes for reliable integration across different vehicle platforms. Its compact chassis also makes it easier to install in tight locations such as under seats, behind trim panels, or near factory amplifiers. The TL-45L provides six preamp outputs total, including four main channels and two sub channels, with up to 8.5Vrms maximum output. Selectable ground isolation helps reduce noise, while individual gain controls, clip indicators, a dedicated bass channel output, and included remote level control support cleaner setup and more precise amplifier tuning. Features / Specs - Model: MTX TL-45L Description: 4-channel in / 5-channel out line output converter High level input up to 40V Multiple turn-on options: DC / remote / audio Selectable load resistance Selectable ground isolation Remote level control Maximum input level: 40Vrms / 400W (20kΩ) Input impedance: selectable (20Ω, 60Ω, 20kΩ) Preamp outputs: 6 (4 main channels and 2 sub channels) Maximum output level: 8.5Vrms Output impedance: 60Ω THD: 100dB Frequency response: 20Hz - 20kHz Recommended fuse rating: 2A Dimensions: 5 3/8" x 3 7/8" x 1 1/8" (136 x 98 x 28 mm)
