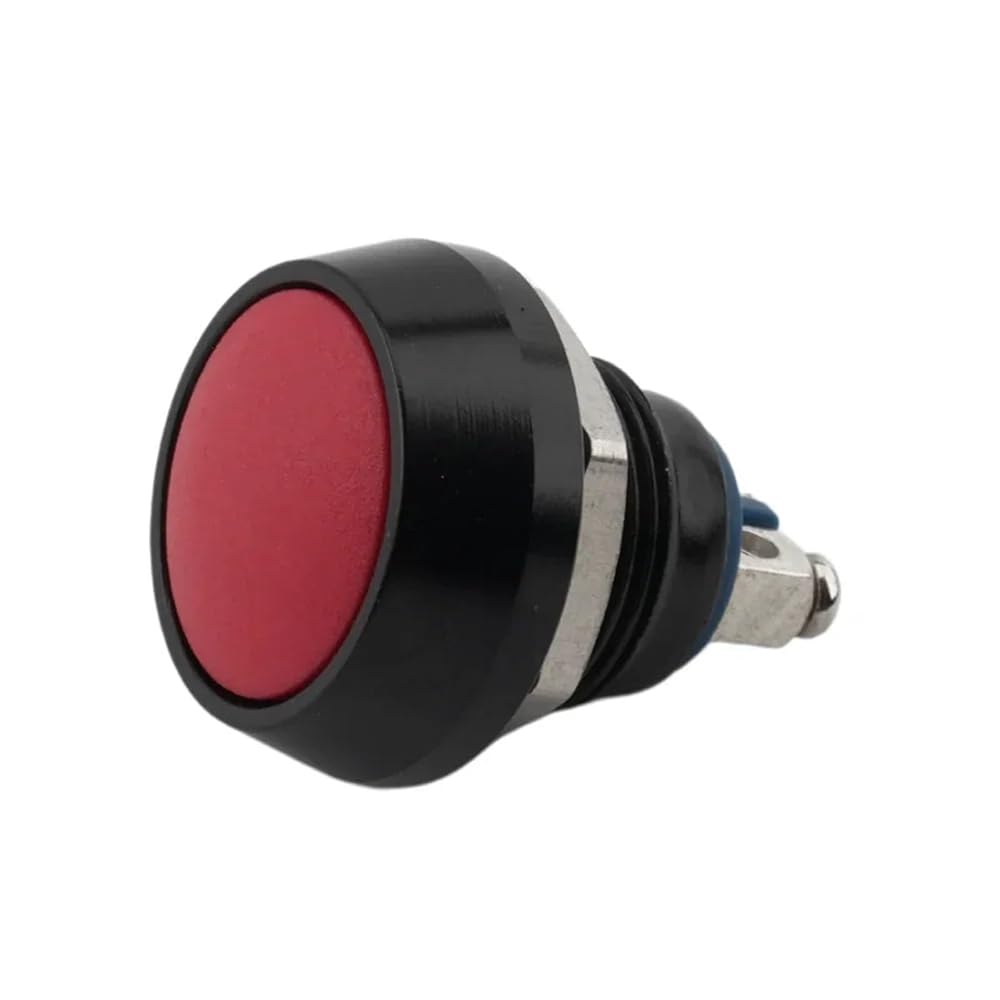

Push Button Switch 12mm Waterproof Metal Momentary Reset On Off Screw Solder Pin 12V 220V 24V, 1pcs(Aluminum Alloy Green,Screw Pin) in Kuwait

Nickel Plated Brass Screw Pin

KWD 6
ColorNickel Plated Brass
SizeScrew Pin
– 1 +

Special Features

  • 【Exquisite structural design】:Adopting a modular combination structure, such as some series of buttons equipped with single-chip snap on contact modules and light-emitting modules, not only is installation and maintenance convenient, but also ensures the reliability of the structure
  • 【Operational performance】:Some products activate upon pressing, reset upon release, and are used to connect and disconnect small current circuits. Some products have self-locking function, which can automatically maintain the closed position when pressed and only open after power failure. Can adapt to different operational needs in different scenarios, and provide clear feedback on pressing sensation
  • 【Reliable electrical function】:The contacts are made of standard silver or silver gold-plated materials, ensuring durability and good conductivity. The initial contact resistance is small, the insulation resistance is high, and the dielectric strength meets relevant standards. It can operate stably in various electrical environments
  • 【Clear color identification】:red indicates operation in "stop" or "dangerous" situations, green indicates "start" or "connect", making it easy for operators to quickly identify and operate
  • 【Widely used in various industries】:such as power, industrial automation, machinery, machine tools, textiles, ships, aviation, automobiles, medical equipment, office equipment, etc

Description

Push Button Switch 12mm Waterproof Metal Momentary Reset On Off Screw Solder Pin 12V 220V 24V, 1pcs
Parameter:
Mounting Hole Diameter: 12mm
Actuator Color:Red/Yellow/Green/Blue/White/Black/Silver
Material ofBlack Shell Switch: ActuatorMaterial: Plastic
Shell Material: Zinc aluminum alloy
Material ofSilver Shell Switch:ActuatorMaterial:Nickel plated brass
Shell Material: Nickel plated brass
Switch Function: Momentary
Switch Combination: 1NO
Rating: 3A 250V, 6A 125VAC
Pin Type: Screw pin / Solder pin
IP Rating: IP65
Color : Red/Orange/Yellow/Green/Blue/White/Black
Material : Plastic, Metal
Mounting Hole : 12mm
Rated Current and Voltage : 3A 250VAC, 6A 125VAC
