مميزات خاصة

【Exquisite structural design】:Adopting a modular combination structure, such as some series of buttons equipped with single-chip snap on contact modules and light-emitting modules, not only is installation and maintenance convenient, but also ensures the reliability of the structure
【Operational performance】:Some products activate upon pressing, reset upon release, and are used to connect and disconnect small current circuits. Some products have self-locking function, which can automatically maintain the closed position when pressed and only open after power failure. Can adapt to different operational needs in different scenarios, and provide clear feedback on pressing sensation
【Reliable electrical function】:The contacts are made of standard silver or silver gold-plated materials, ensuring durability and good conductivity. The initial contact resistance is small, the insulation resistance is high, and the dielectric strength meets relevant standards. It can operate stably in various electrical environments
【Clear color identification】:red indicates operation in "stop" or "dangerous" situations, green indicates "start" or "connect", making it easy for operators to quickly identify and operate
【Widely used in various industries】:such as power, industrial automation, machinery, machine tools, textiles, ships, aviation, automobiles, medical equipment, office equipment, etc

وصف

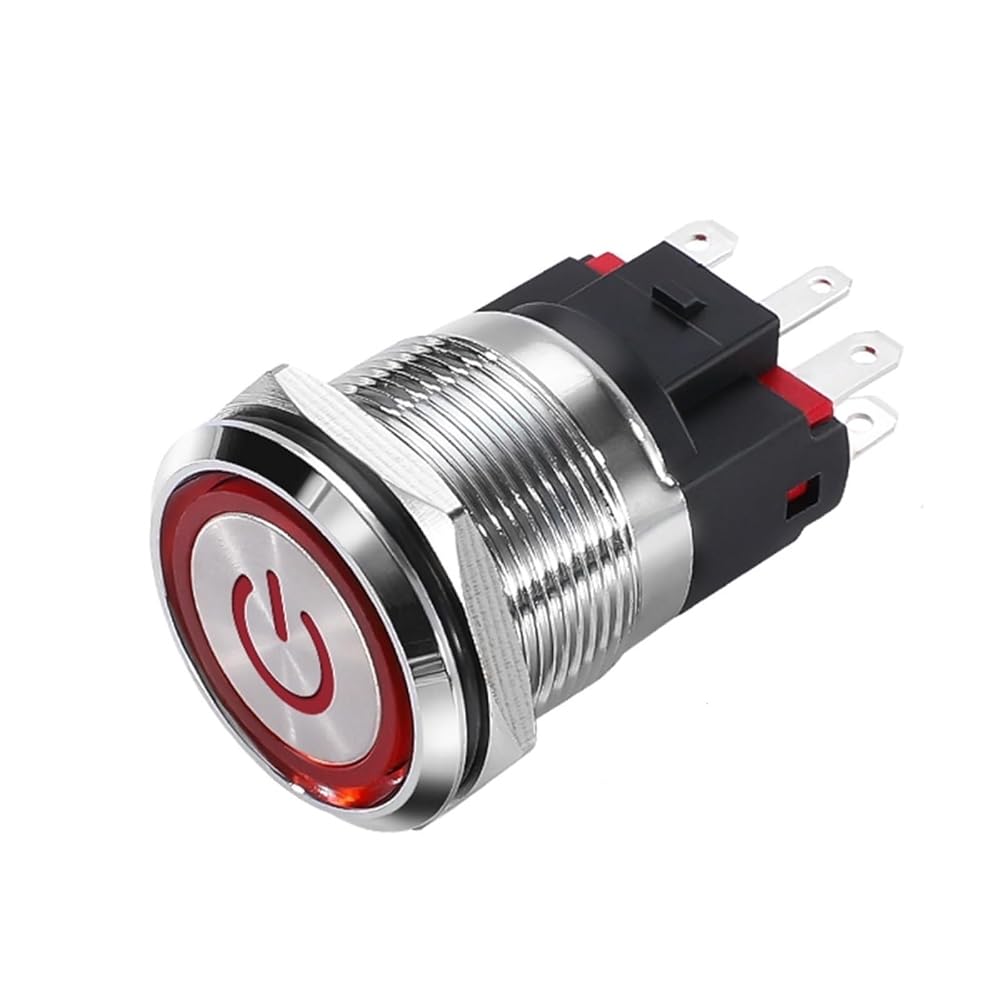

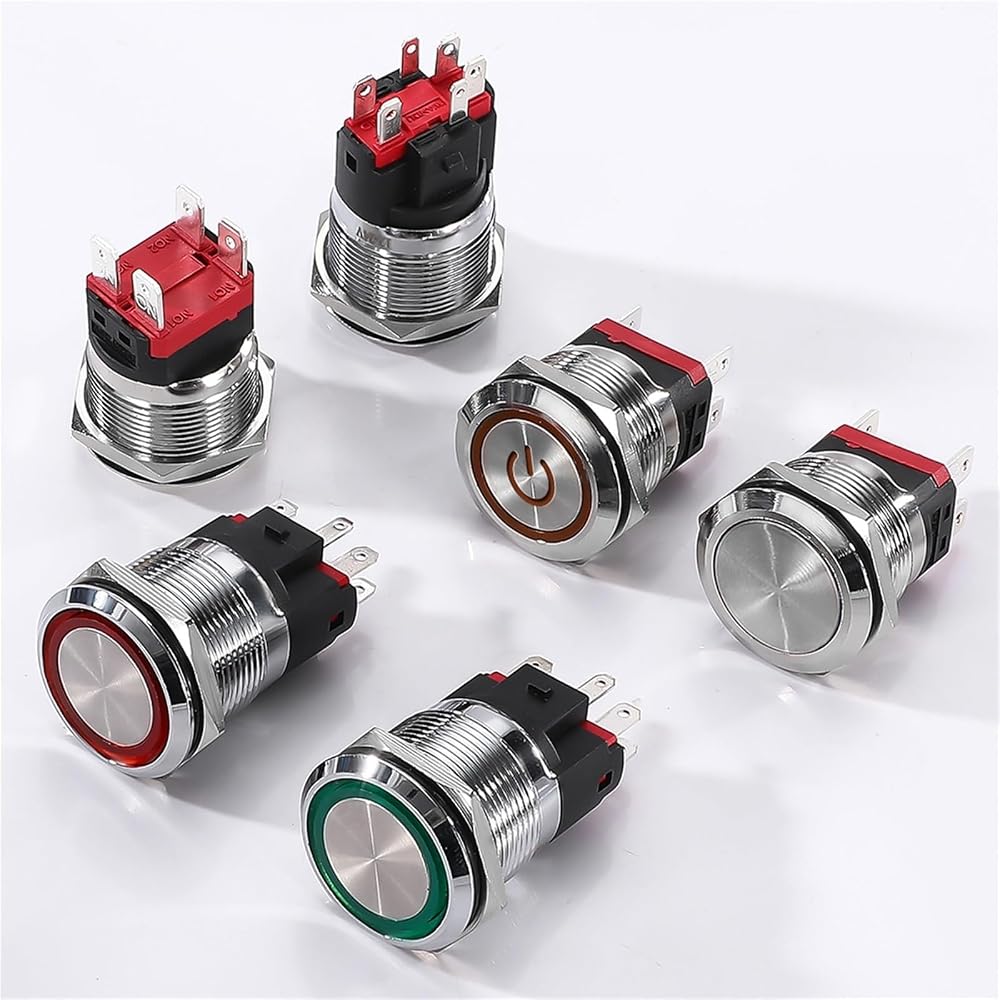

Metal Push Button Switch 22/25mm 10A Waterproof LED Light Momentary Latching Car Engine Power Switch 24V, 1pcs

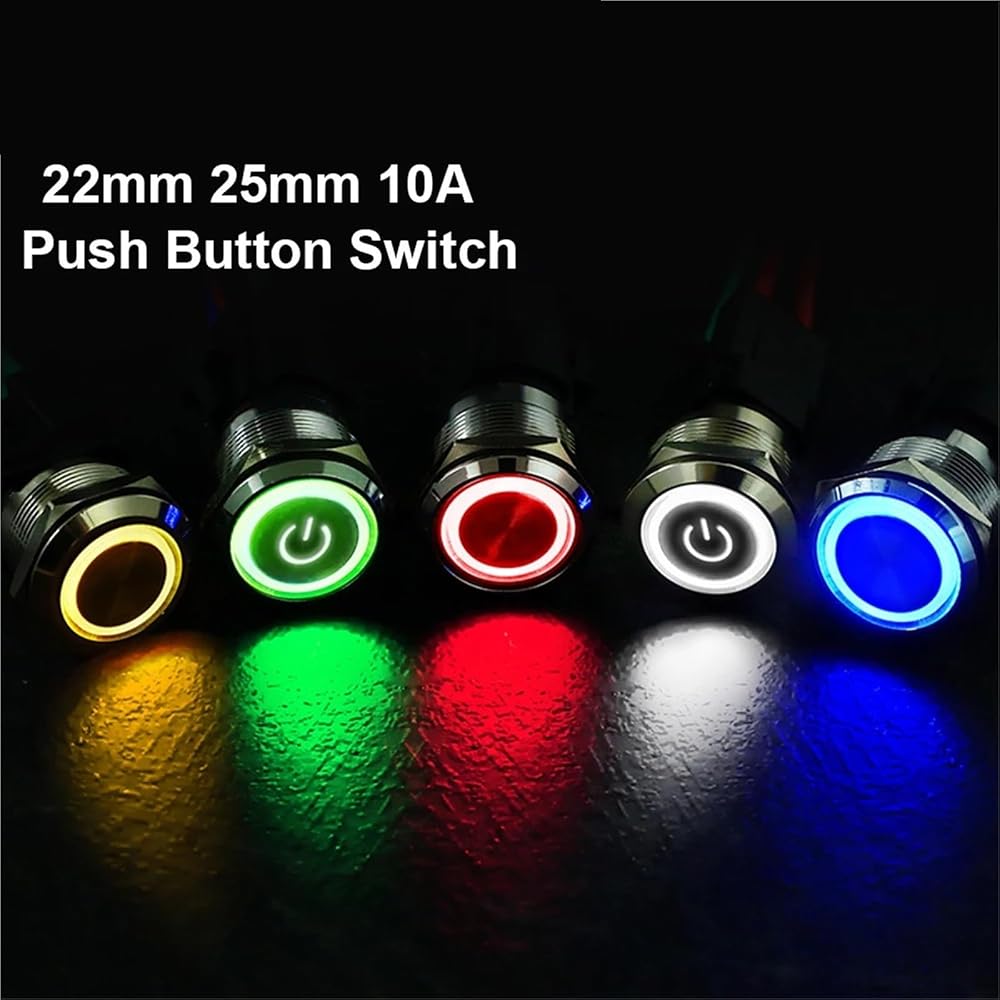

LED Colors: Red Yellow Blue White Green
Emitting Type: Ring LED/Power Symbol LED

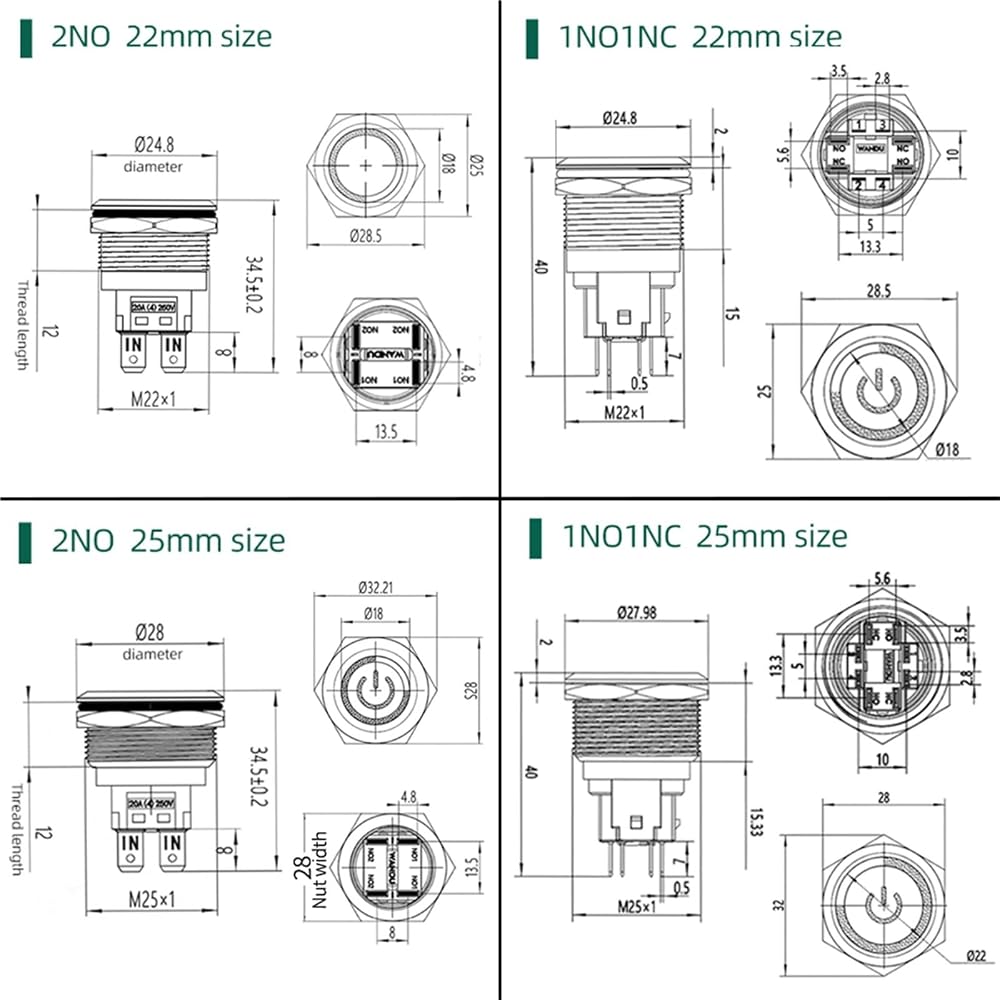

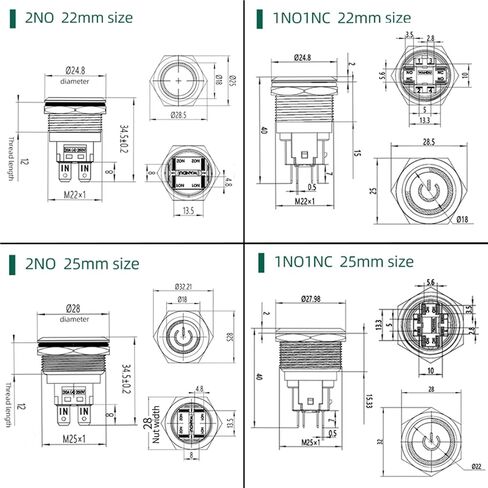

Opening diameter: 22mm/25mm
Switch material: Metal material
Switching voltage: 1.5V-250VAC/DC
Switching current: 3mA~10A
LED voltage: 3V~220VAC/DC
LED current: 3mA~20mA
Waterproofing class: IP65
Contact resistance: 50m
Insulation resistance: 1000m
Compressive strength: 1900VAC/min
Protection class: IK10
Package Content
1pc Metal Push Button Switch
1.What does the signal "NC" and "NO" means?
"A" "+": positive pole of the led
"LED" " - ": negative pole of the led
" NO ": Normal Open
" NC ": Normal Close
" C " : Common
High-concerned chemical : None
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Current : 10A
Material : Alloy
Switch Type : Push Button Switch
Model Number : 22/25mm 10A Metal Push Button Switch

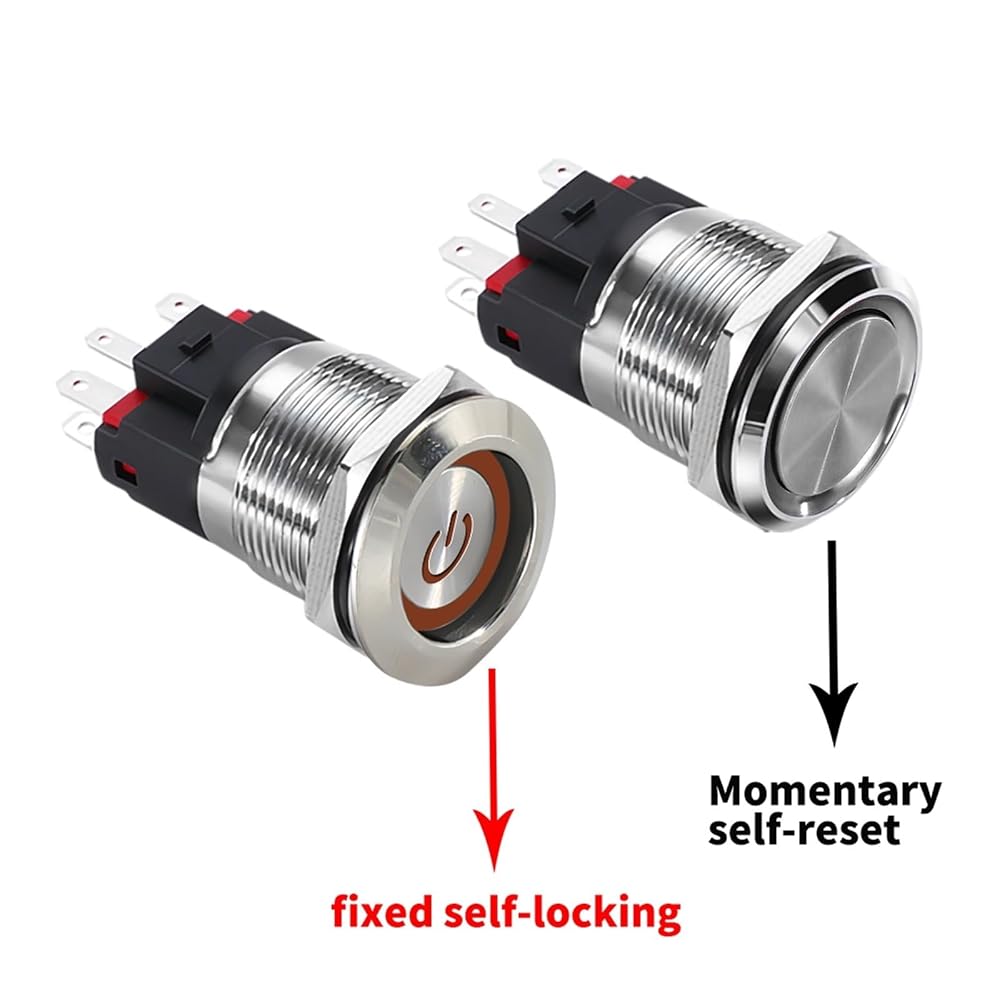

Features : self-recovery and self-lock type
Operation type : Momentary or Latching

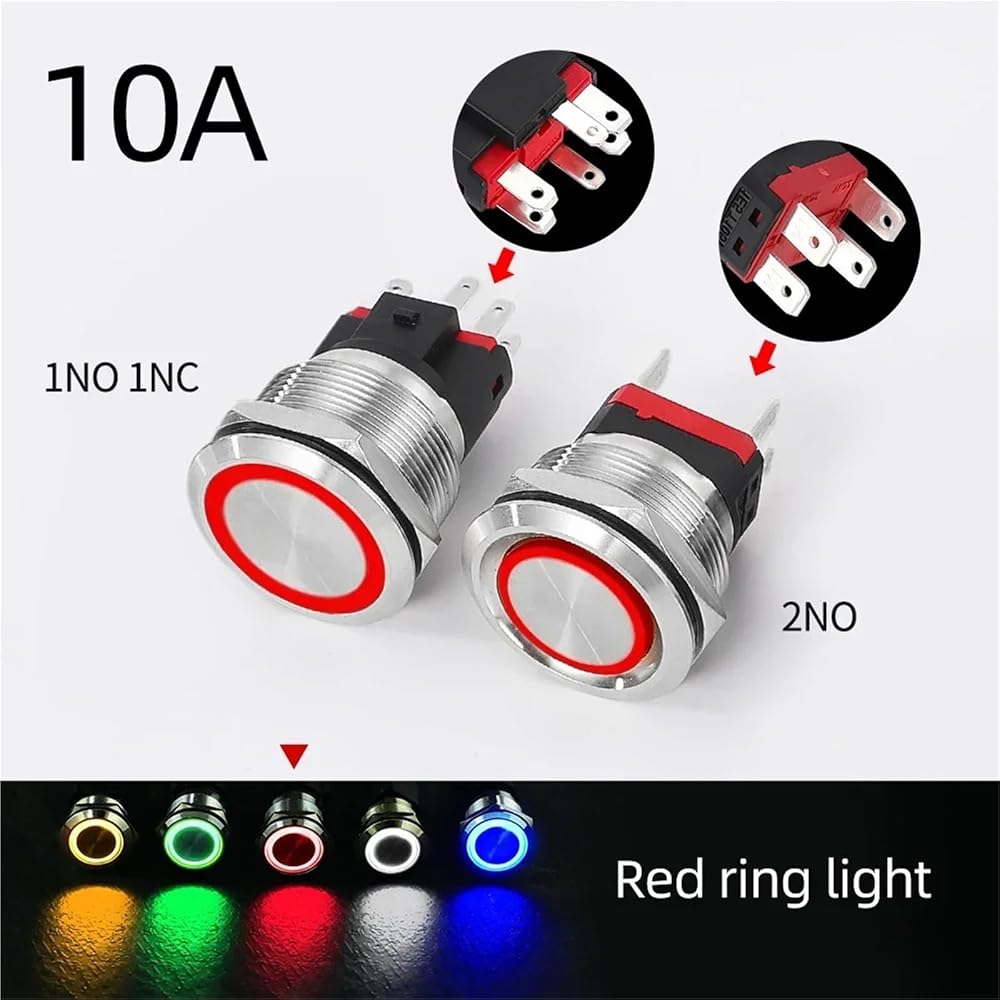

Switch type : 2NO (2 Normally Open);1NO 1NC (1 Normally Open and 1Normally Closed )
LED Colors : Red Yellow Blue White Green
Emitting Type : Ring LED/Power Symbol LED
Switching voltage : 1.5V-250VAC/DC
Switching current : 3mA~10A
LED Voltage : 3V-220VAC/DC
LED Current : 3mA-20mA
levels of protection : IP65/IK10
Opening diameter : 22mm/25mm
