Description:

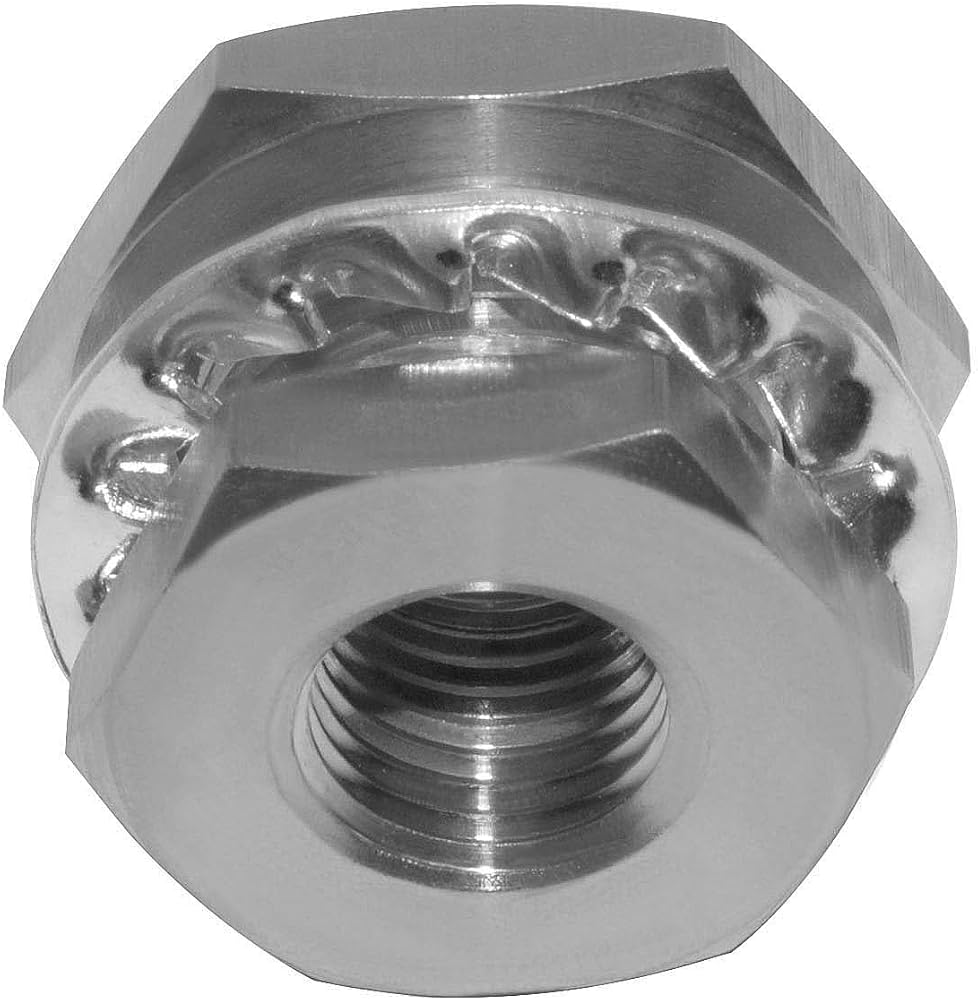

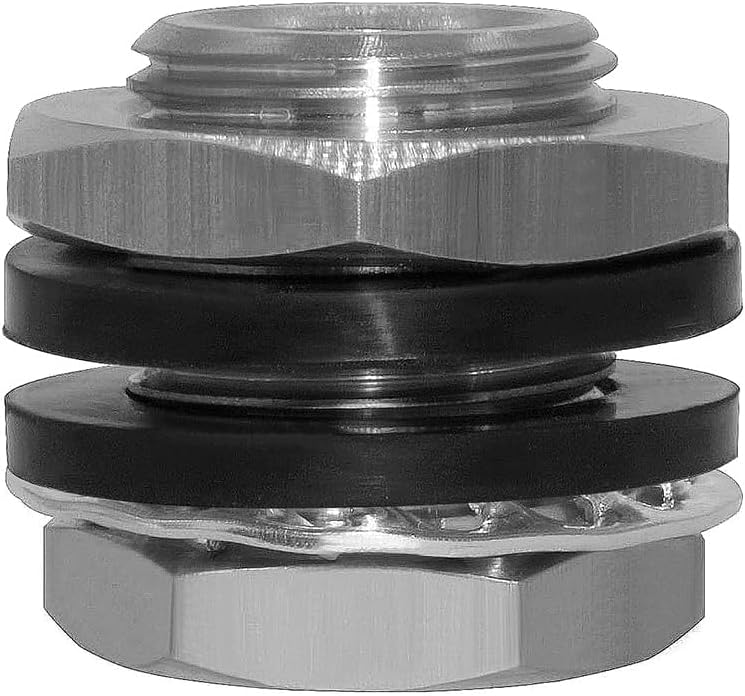

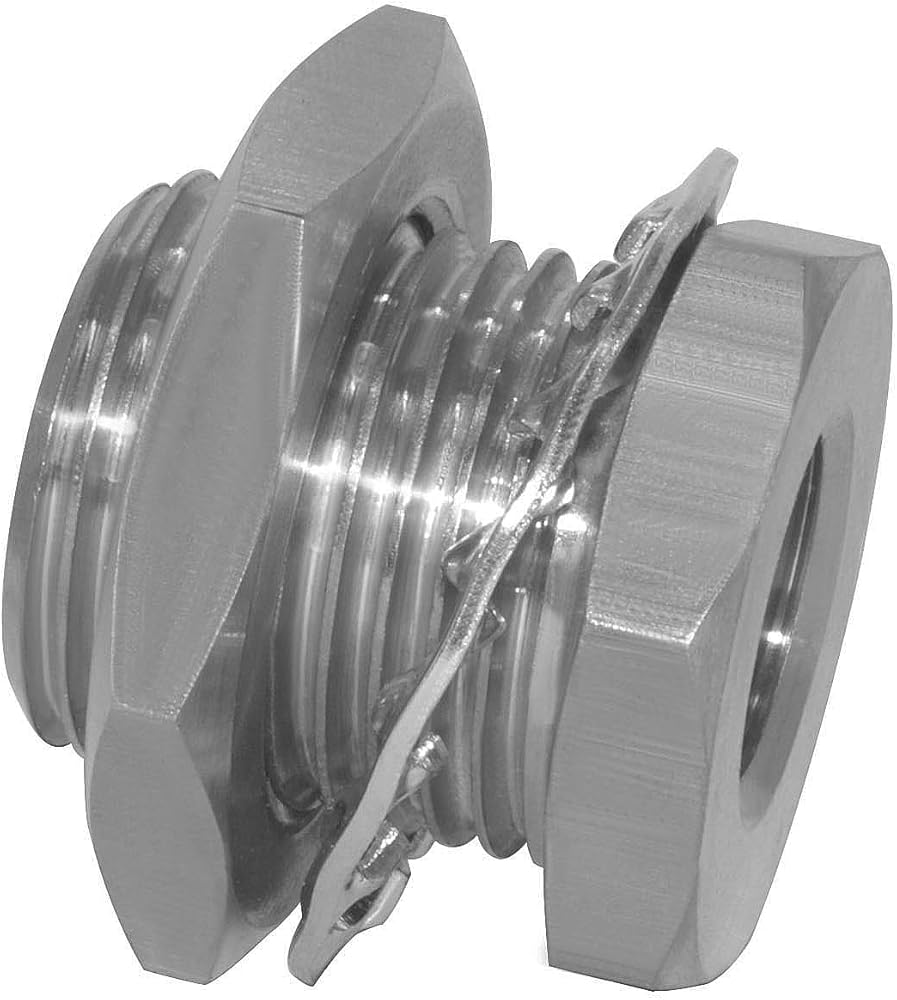

This bulkhead fitting is suitable for connecting stainless, brass, plastic, or iron hydraulic lines through a bulkhead.The bulkhead fitting has 1/8 National Pipe Taper Fuel (NPTF) female ends. A washer and nut create an air-tight seal with the bulkhead.

The fitting is made of SUS304 for corrosion resistance, ductility at high temperatures, and low magnetic permeability. It has a working pressure of up to 1500 pounds per square inch (psi).

Specification:
Inner Thread:1/8" NPT Female to 1/8" NPT Fmeale thread.
Outside Thread: 3/8" BSP Male thread.

Overall length: 1 inch(25mm).
Thread length: 3/4 inch(19mm).
Thread outside dimension: 0.656 inch(16.66mm) - Can through 17mm Hole.

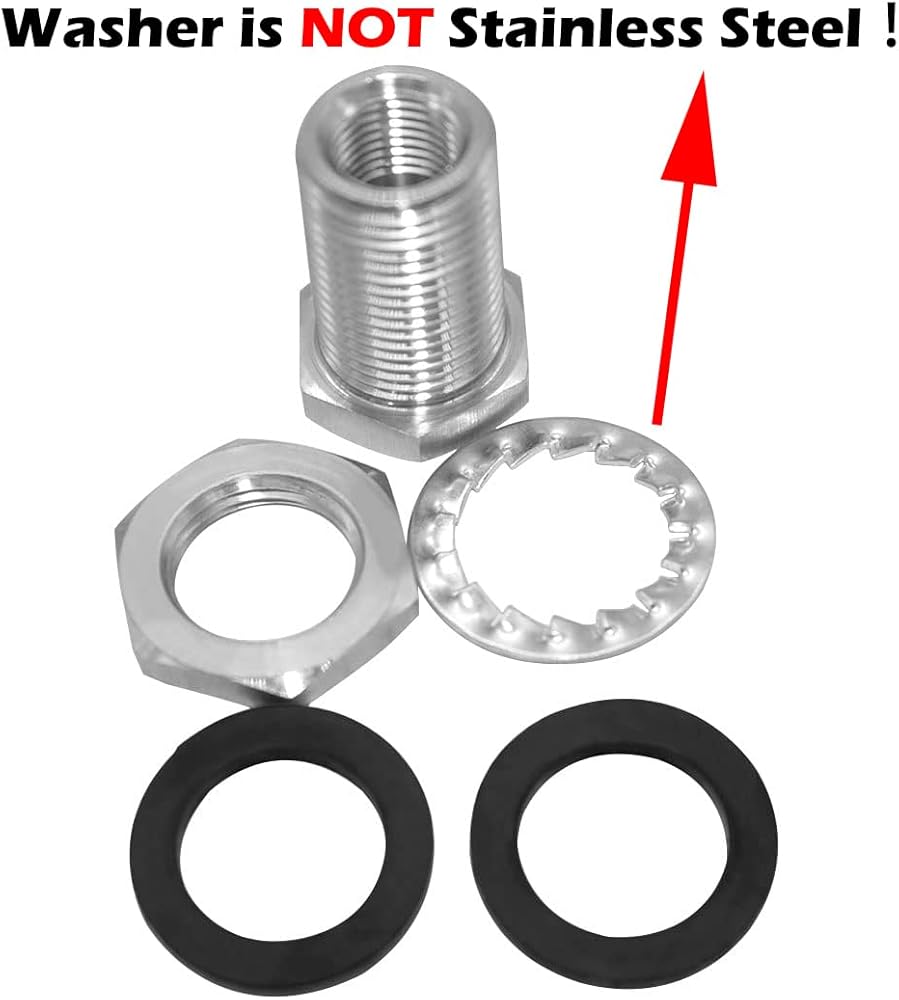

Pack including:
1pcs Body
1pcs Hex Nut
2pcs Rubber Gasket
