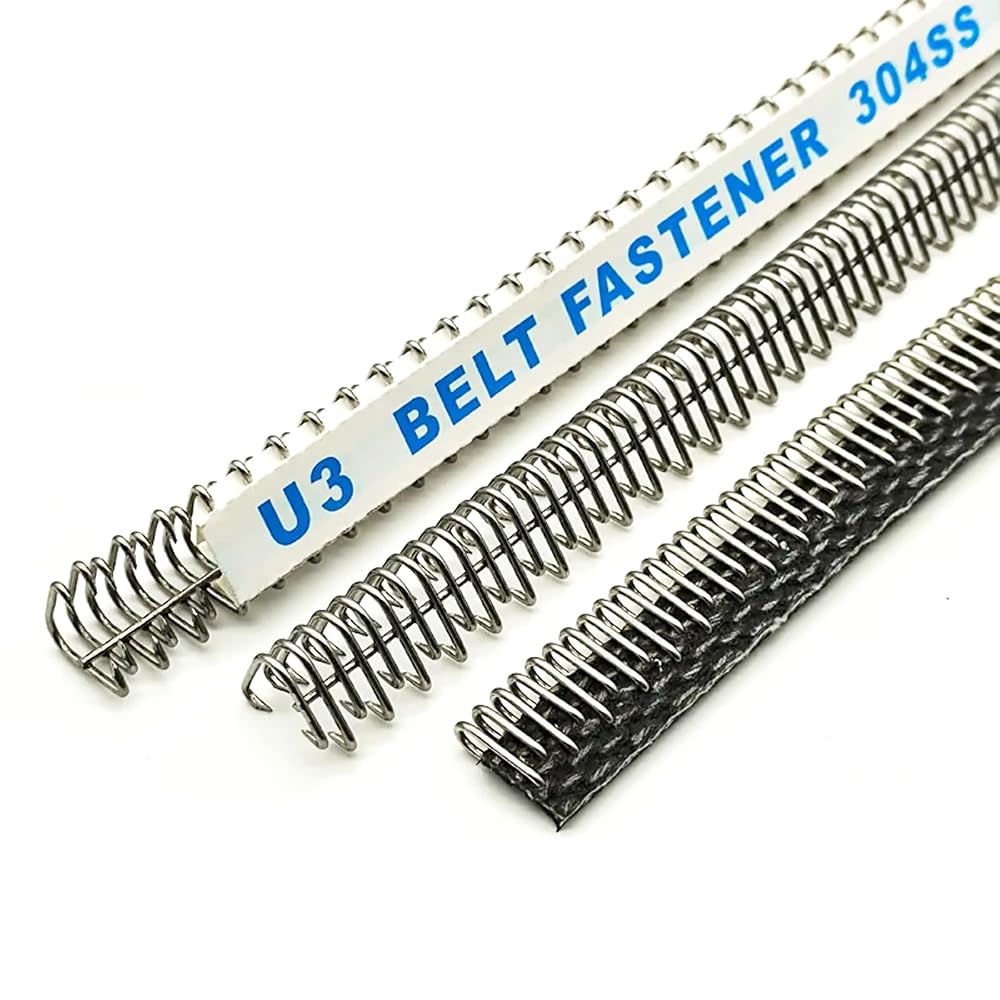

Wire Hook Fastener – U3
1. Fastener Length: 12″ (300mm)
2. For the belt Thickness: 4.0-4.8mm (0.157″-0.189″)
3. 12 Strips / Box （6 Sets Fastener not including Connecting Pins）
4. Fastener Material: SUS304

Wire Hook Fastener(or called Wire Hook Conveyor Belt Lacing) provides a strong grip across the width of the belt and won't weaken the belt's internal support layer.

The lacing's low profile minimizes noise as it moves over the conveyor rollers, reduces the risk of the lacing interfering with the belt or conveyor components, helps prevent excess wear and tear on the lacing, and provides a smooth surface that will not interfere with equipment used to clean the belt.

The lacing is made up of small wire hooks arranged in a double-staggered pattern. It is applied with a machine for a precise and uniform joint. Clipper wire-hook lacing is typically used to install a new conveyor belt or repair an existing belt on powered conveyors in packaging, manufacturing, and commercial laundry applications.

These mechanical fasteners join the ends of the belt and allow the belt to be installed on the conveyor without having to disassemble the conveyor system, minimizing downtime for the conveyor.

Applications:
Manufacturing Assembly Lines
Food, Package, Parts Handling
Checkout Counters
Agricultural Equipment

Features:
Interlaced fastener strips that create an exceptionally smooth joint.
Available in continuous lengths to fit any belt width.
Ideal for transmission belts and other less demanding, low volume applications.

Installation:
Roller Machine-easy to install the Wire Hook Fastener, which can help to improve work efficiency.
Self-service installation- use a hammer.

Notes:
The dash size after the Lacing Size is the width of the lacing.

Steel is the standard fastener material. It is suitable for most applications and is plated for rust and corrosion resistance.

300 Series stainless steel is non-rusting and displays extra resistance to abrasion, acids, chemicals, and magnetic attraction. It is excellent in applications with high sanitation requirements.
