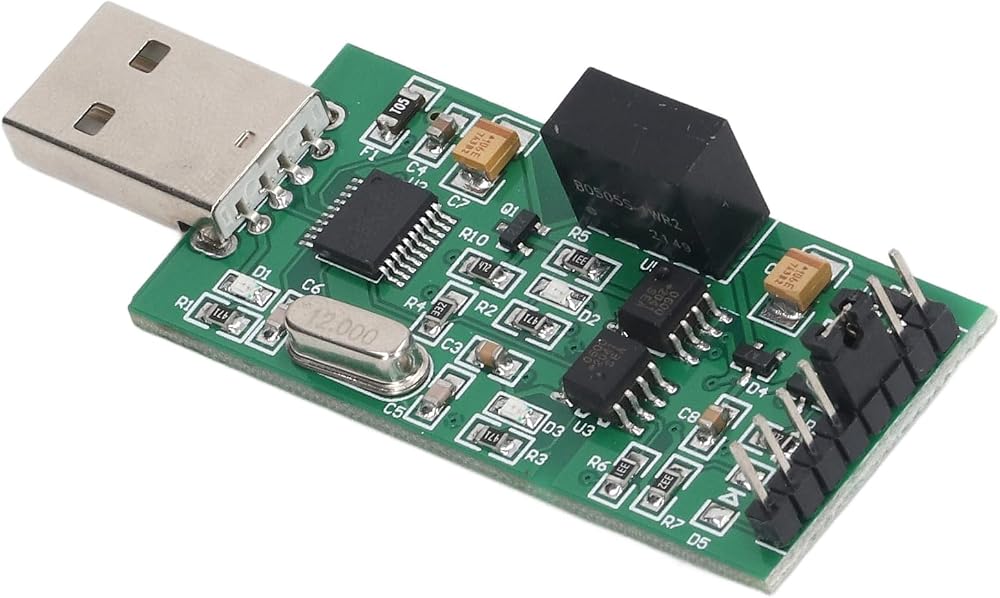

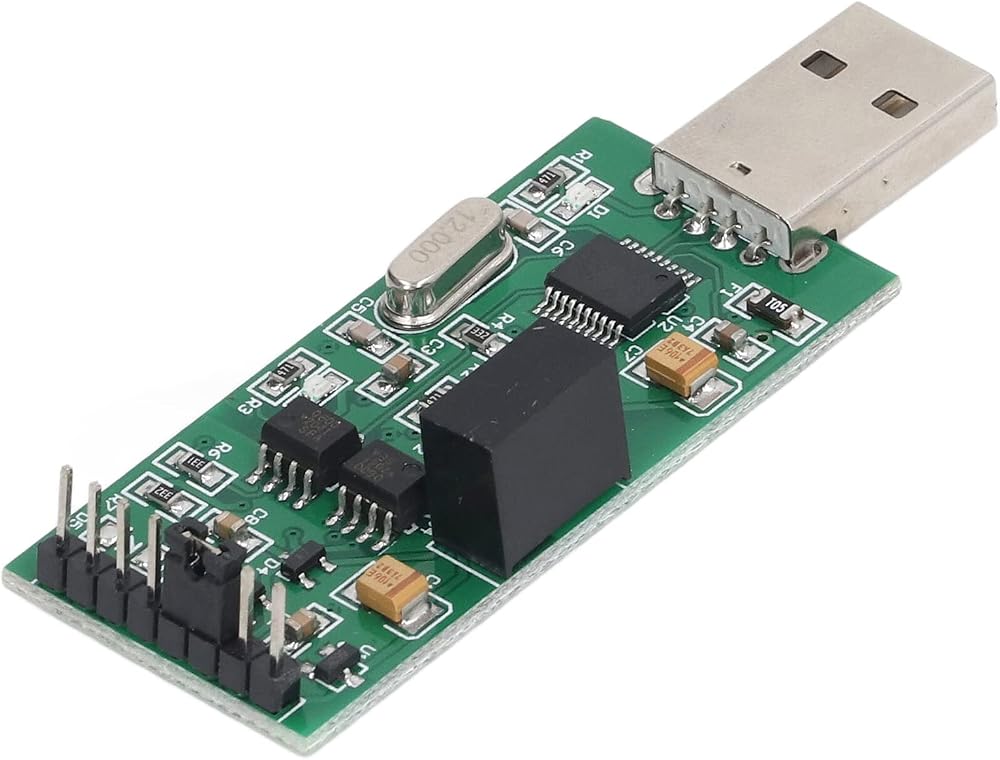

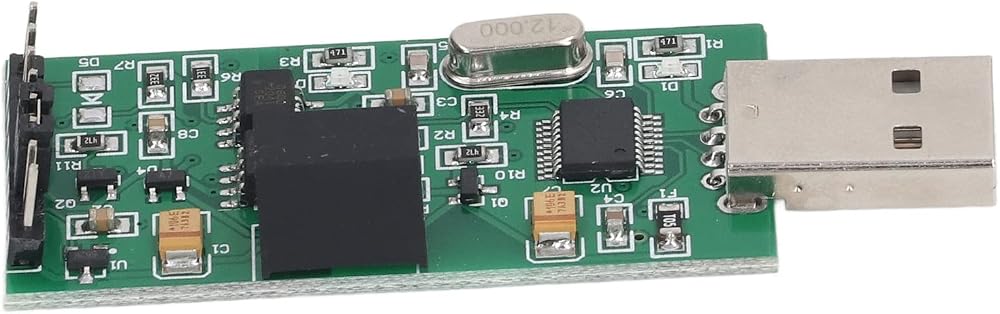

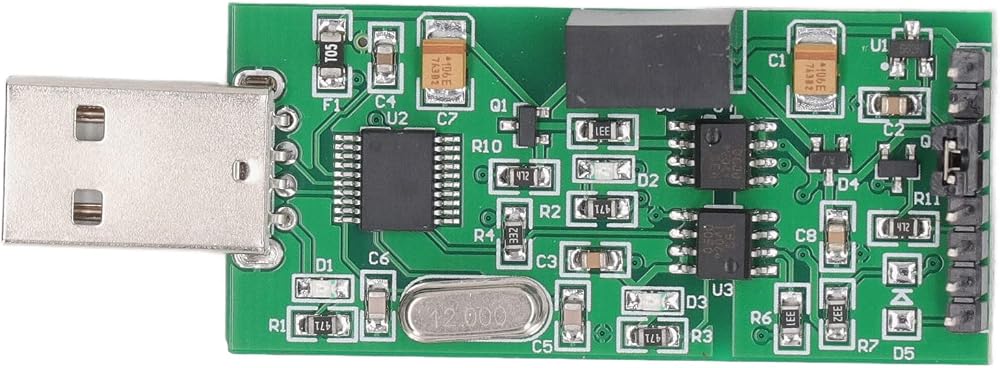

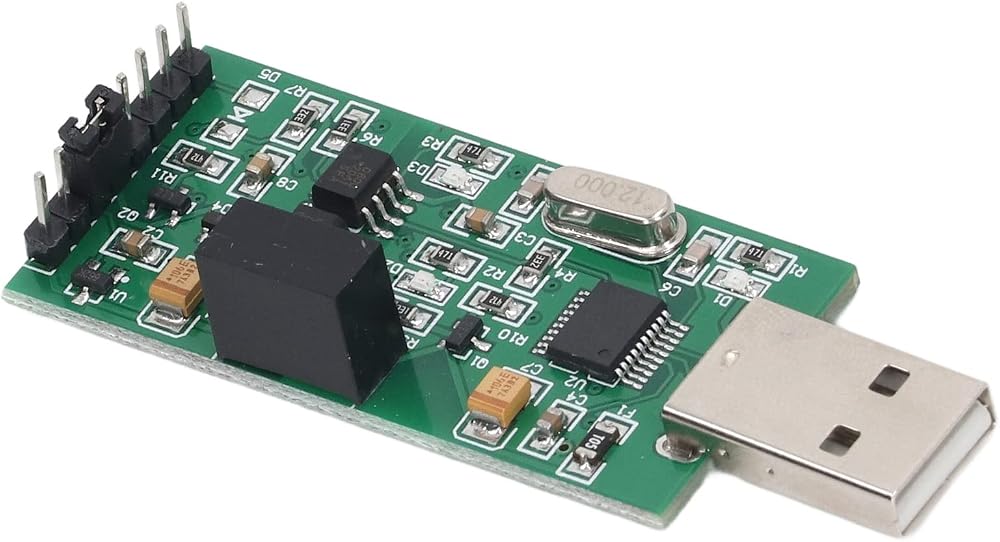

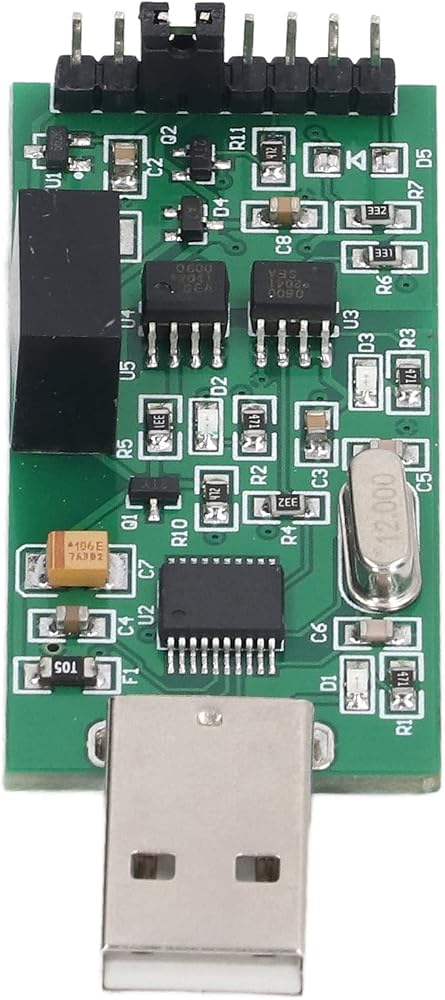

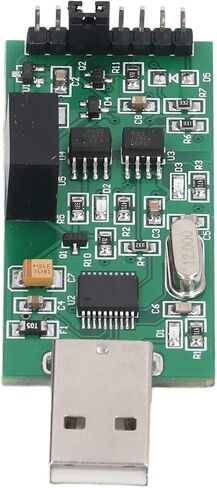

【Fast Isolated Transfer】TTL output module with CH340T USB to serial design and optocoupler isolation supports up to 256000bps, helping reduce interference during data transmission for sensitive equipment.
【3.3V And 5V Output】USB to serial TTL output module provides selectable 3.3V or 5V output level. TX RX side includes protection diode function to improve shock resistance in connected circuits.
【Complete Electrical Isolation】PC USB side and serial output side achieve electrical isolation. On board 5V isolated power supply module and 500mA self recovery design help protect the computer during use.
【Practical Module Design】Made of electronic components with maximum 150mA serial output current. On board stable CH340T chip supports consistent connection for debugging control and transmission tasks.
【For Device Connection】Designed to isolate TX RX GND and VCC pins between serial module and user device. Suitable for sensitive equipment transmission setups requiring isolated serial communication.

Item Type: TTL Output Module
Material: Electronic components

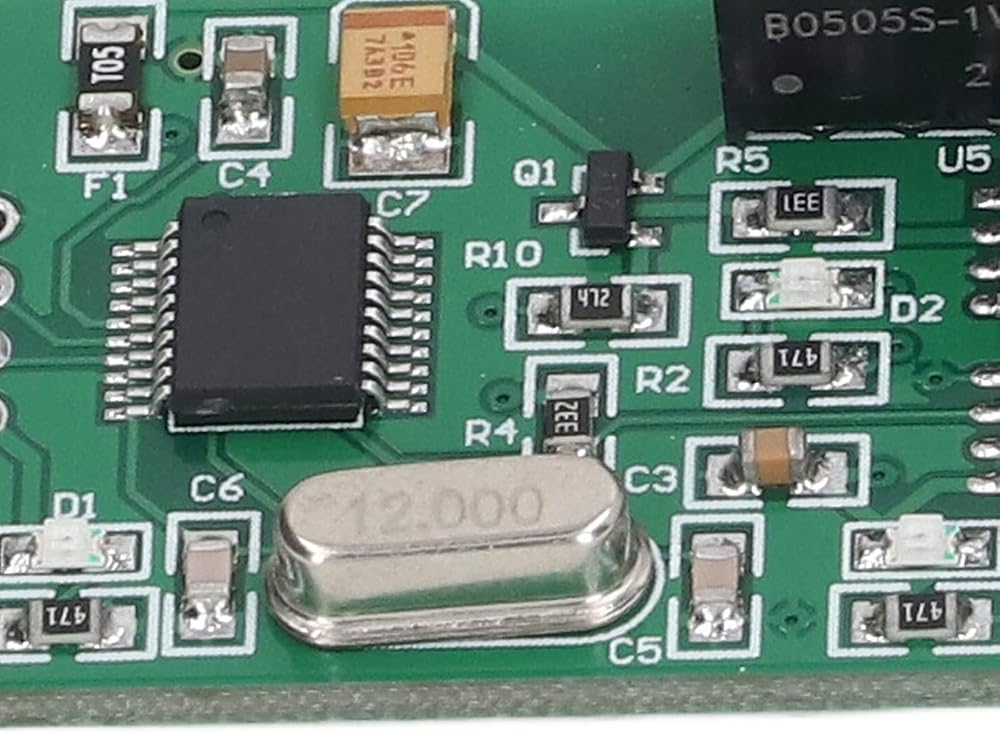

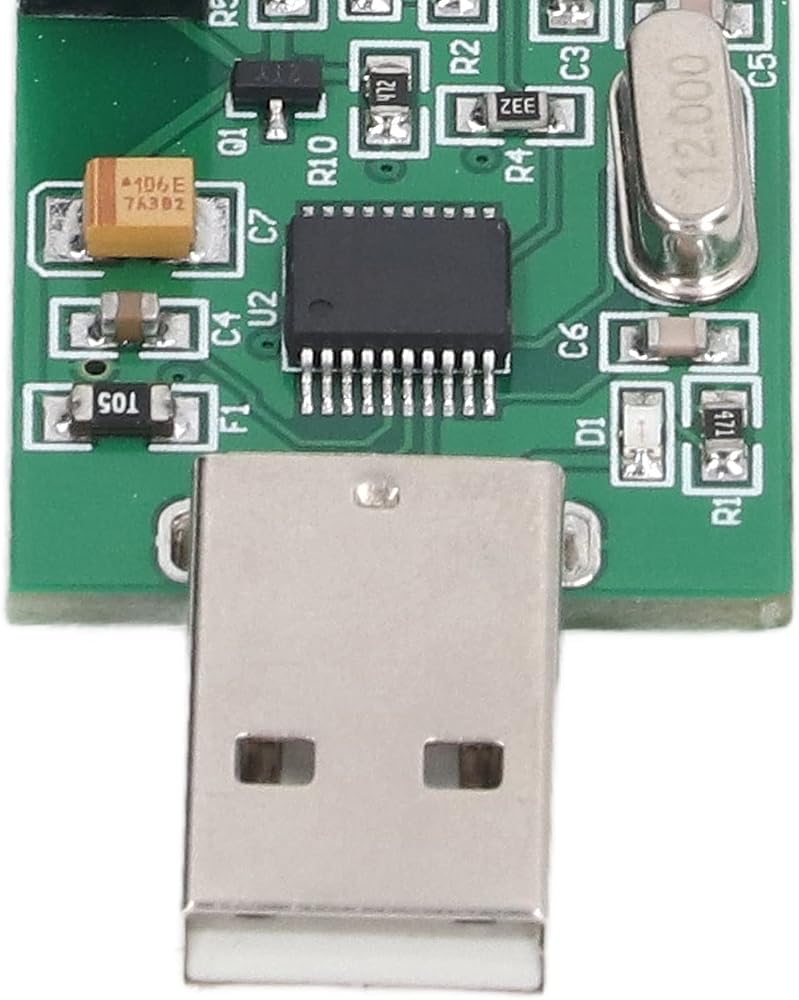

On Board Chip: On board stable CH340T USB to serial chip
On Board Module: On board 500mA self recovery and 5V isolated power supply module protecting the computer from damage
Optocoupler Isolation: Serial port TTL level optocoupler isolation, fast speed (up to 256000bps), high reliability
Protection Diode: Output TX RX side with protection diode function, can improve the shock resistance
Electrical Isolation: PC USB side and serial port output side to achieve complete electrical isolation
Output Level: Output TTL level can be set to 3.3V 5V
Output Current: Maximum output current 150mA for serial output
1 x TTL Output ModuleAs there is a certain error in the 5V to 5V isolated power supply on the isolated serial module, the output power supply voltage will be around 5.4V when VCC is connected to the 5V pin through the jumper cover at no load, but don't worry, the
