Frequency Inverter
Description:

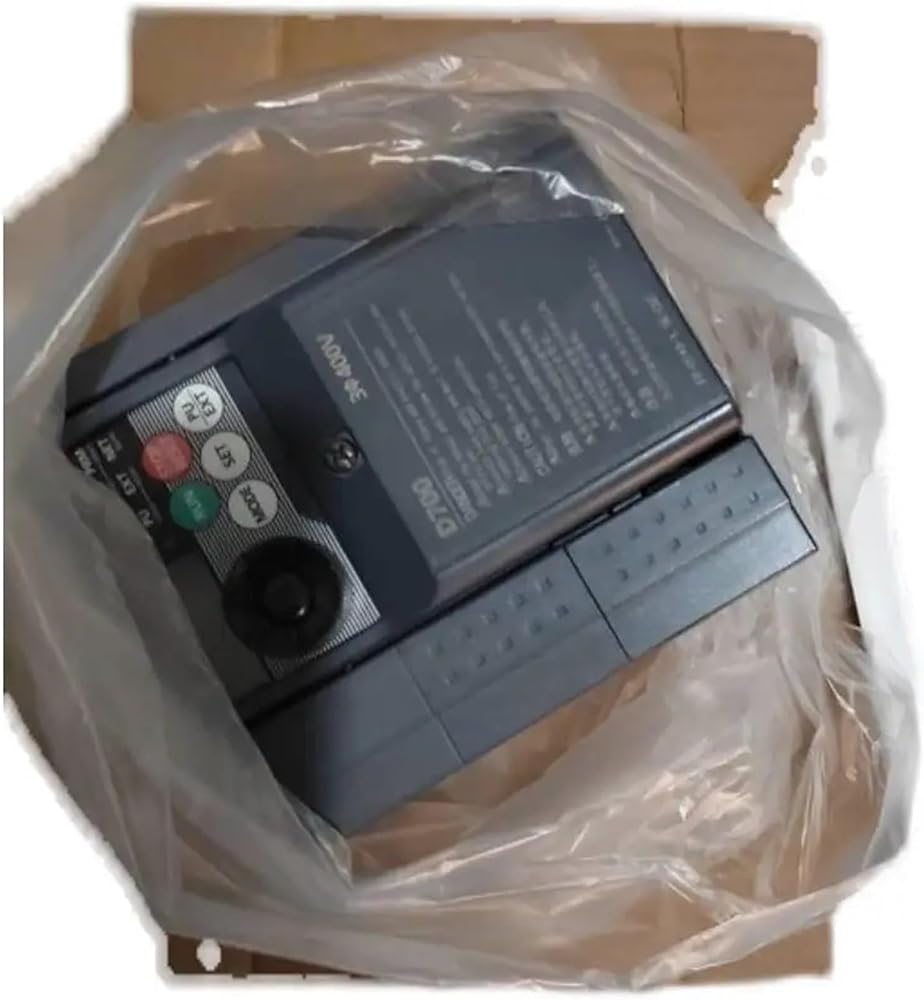

FR-E720-15K VFD Variable Frequency Drive input 3 ph 220V output
Specification
Model FR-E720-K(-C)*8
0.1
0.2
0.4
0.75
1.5
2.2
3.7
5.5
7.5
11
15
Applicable motor capacity(kW) *1
0.1
0.2
0.4
0.75
1.5
2.2
3.7
5.5
7.5
11
15
Output
Rated capacity(kVA) *2
0.3
0.6
1.2
2.0
3.2
4.4
7.0
9.5
13.1
18.7
23.9
Rated current(A) *6
0.8(0.8)
1.5(1.4)
3(2.5)
5(4.1)
8(7)
11(10)
17.5(16.5)
24(23)
33(31)
47(44)
60(57)
Overload current ranting*3
150% 60s 200% 3s (inverse-time characteristics)
Voltage*4
Three-phase 200 to 240V
Power supply
Rated input AC (DC)voltage/frequency
Three-phase 200 to 240V 50Hz/60Hz (283 to 339VDC*7)
Pemnissible AC (DC)voltage fluctuation
170 to 264V 50Hz/60Hz (240 to 373VDC*7)
Pemnissible frequency fluctuation
±5%
Power supply capacity (kVA) *5
0.4
0.8
1.5
2.5
4.5
5.5
9
12
17
20
28
Protective structure(JEM1030)
Enclosed type (IP20). IP40 for totally enclosed structure series.
Cooling system
Self-cooling
Forced air cooling
Approximate mass (kg)
0.5
0.5
0.7
1.0
1.4
1.4
1.7
4.3
4.3
9.0
9.0
==========
Model Number : FR-E720-15K
