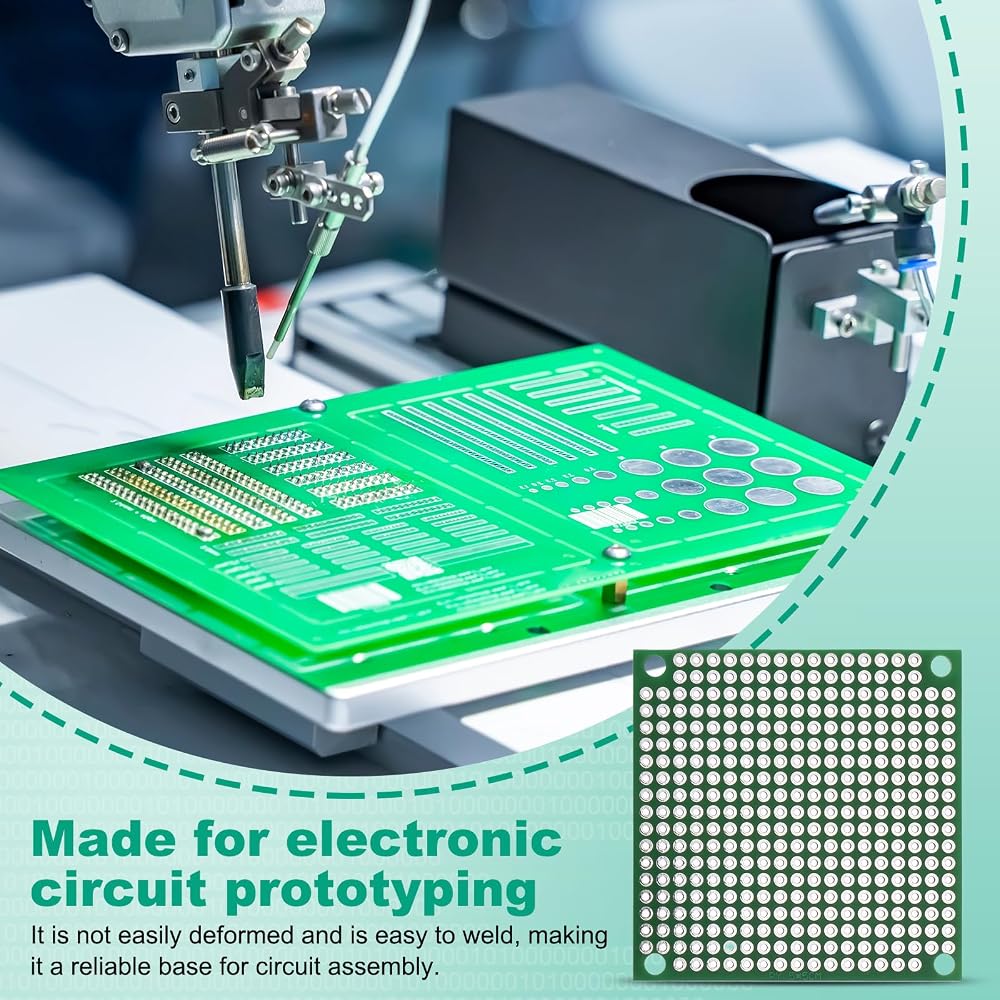

This is a single-sided prototype board, also known as a perfboard, made for electronic circuit prototyping and testing. PCB prototyping board is an important tool for hobbyists, and engineers to build DIY projects, educational experiments, and initial product prototypes.

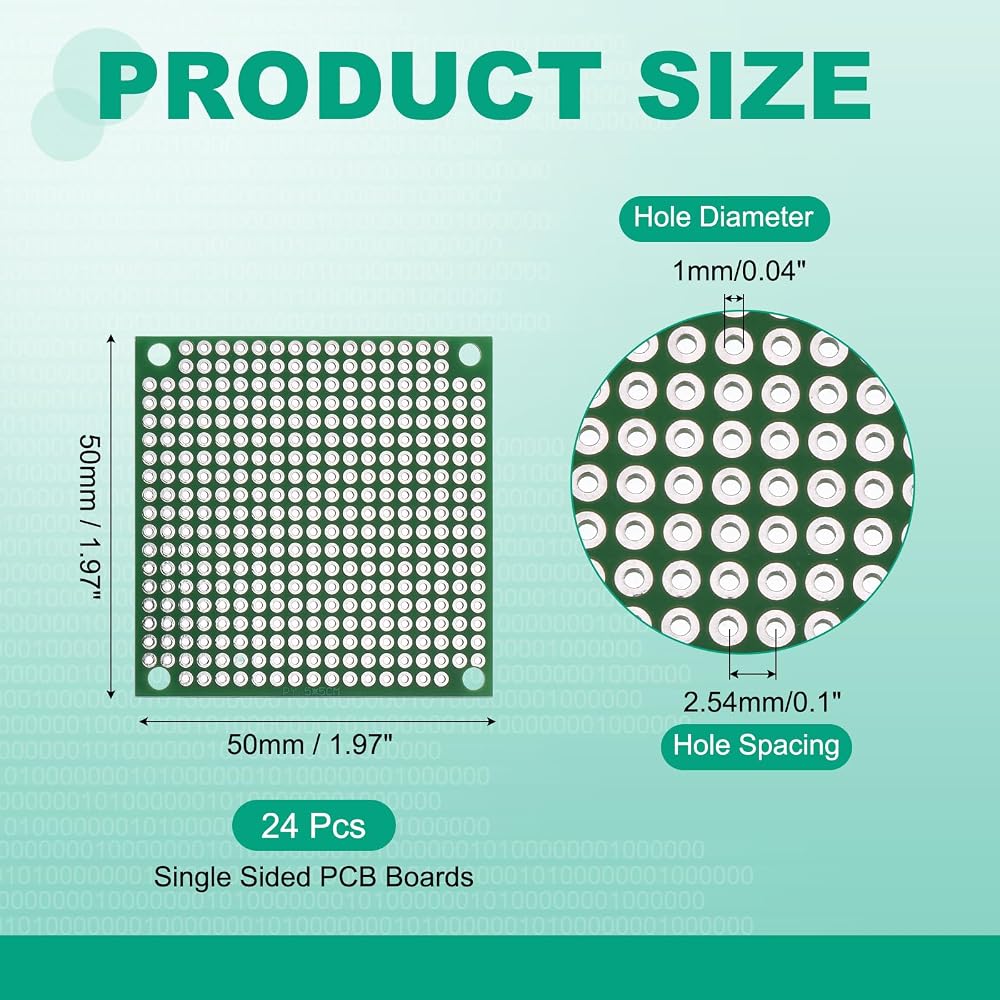

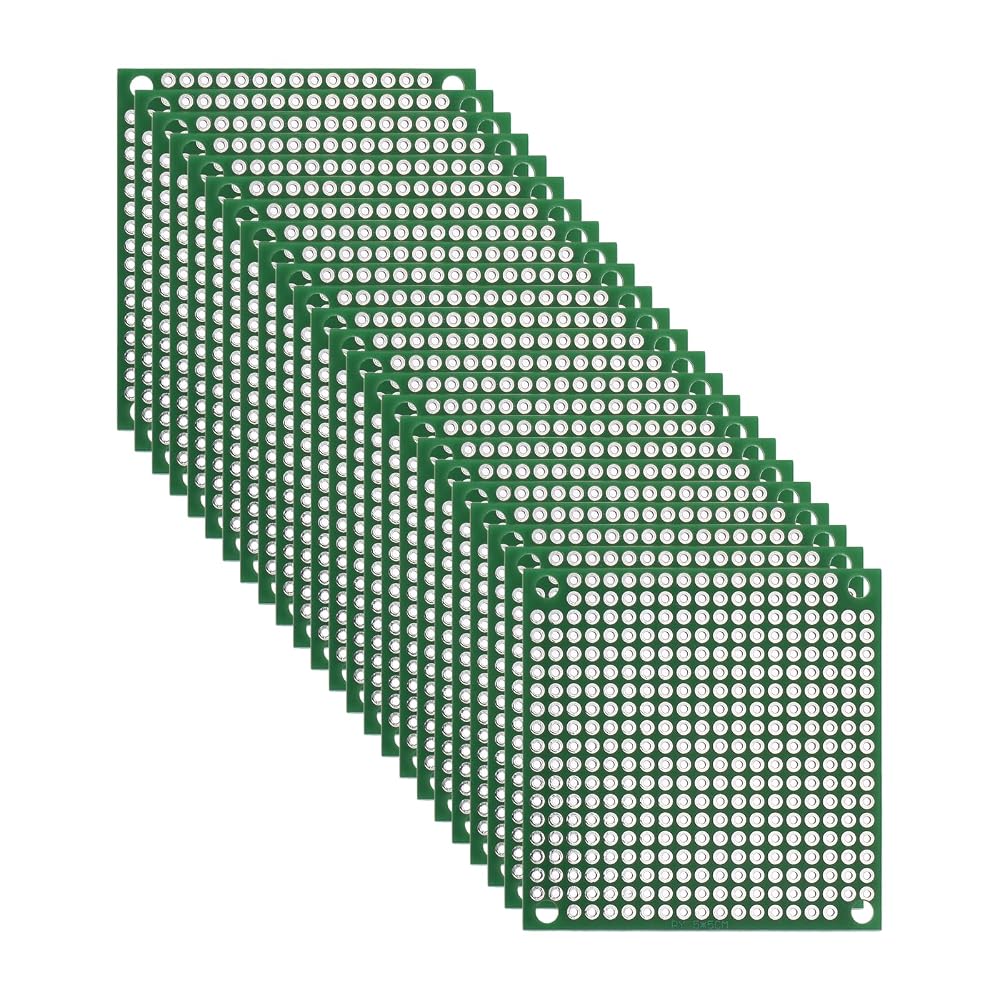

Material: FR-4 Fiberglass, Tin-Plated; Hole Diameter: 1mm/0.04"; Hole Spacing: 2.54mm/0.1"; Plate Thickness: 1.6mm/0.06"; Size: 50 x 50mm/1.97" x 1.97"(L x W); In the package of: 24Pack x Single Sided PCB Boards

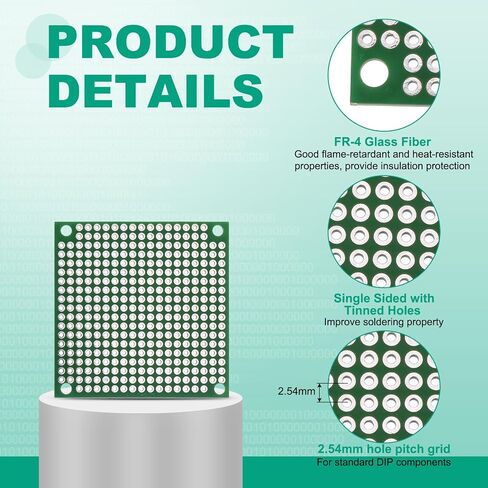

They are made of FR-4 glass fiber, single sided with tinned holes.This material has good flame-retardant and heat-resistant properties and can also provide insulation protection. It is not easily deformed and is easy to weld, making it a reliable base for circuit assembly. This universal board features a 2.54mm hole pitch grid, used for standard DIP components, and many modules. Tin-plated pads improve soldering property. The 1.6mm thickness enhances the board's rigidity for handling.
Components and wires are placed through the pre-drilled holes and soldered onto the tin-plated copper pads on the single side to create circuit connections.
Please confirm the circuit board's dimensions and hole spacing meet your project requirements. Ensure the correct soldering method is used to form a strong connection.
