Description:

- It provide 5 kinds of functions for users to choose, to meet more application needs.
- You can set the upper and lower limits.
- Measuring range 0-100V DC, measuring accuracy ±0.1V.
- You can set the automatic power saving function.
- parameters can be automatically saved, the setting contents won't when blackout occurs.

Specification:

- Working : DC 5V, 12V, 24V (nominal should not exceed ±10%).
- Size(L×W×H): Approx. 67×44×20mm/ 2.64×1.73×0.79 inch
- Module inputs: a 4-wire interface, all the terminals are the
- DC+: DC power positive
- DC-: DC power supply negative
- V+: measuring positive
- V-: measure negative
- 5 types of function:
- 1. measurement: select this function, the relay will not move, the digital display of the current measurement ;
- 2. Charging : When the measured is lower than the lower limit , the relay pulls above the upper limit , the relay is disconnected;
- 3. Discharge : When the measured is higher than the upper limit , the relay pulls, below the lower limit , the relay is disconnected;
- 4. Interval within the pull: When the measured between the upper and lower limits, the relay pull, the other case the relay is off;
- 5. Interval outside the pull: When the measured is lower than the lower limit , or the measured is higher than the upper limit , the relay pull; other circumstances the relay is disconnected.

Package Includes:

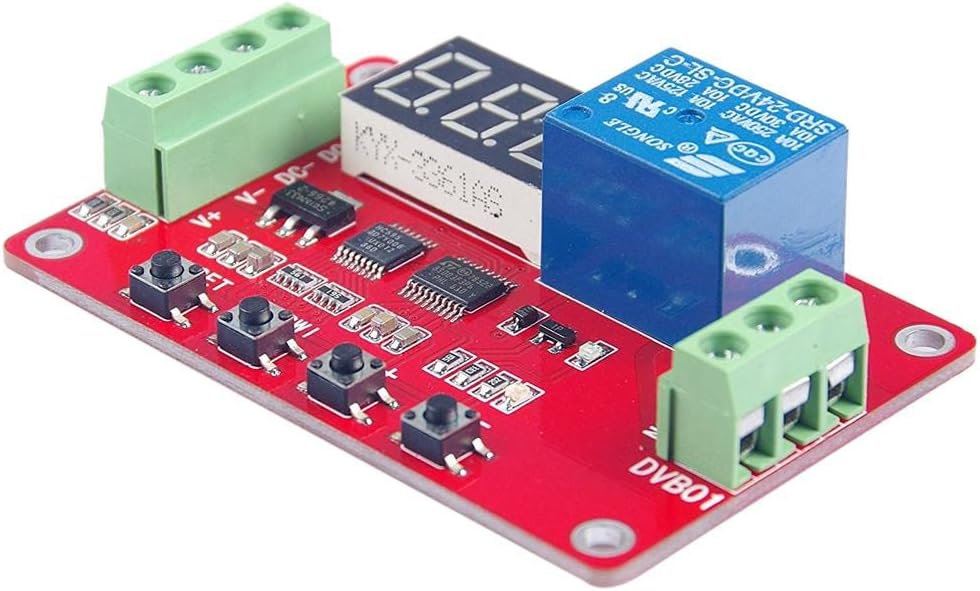

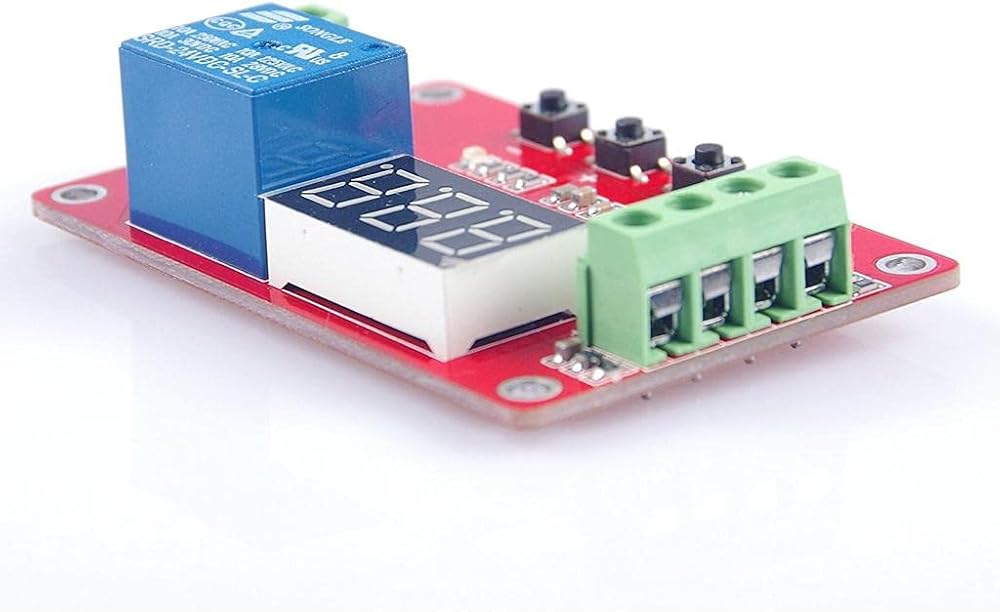

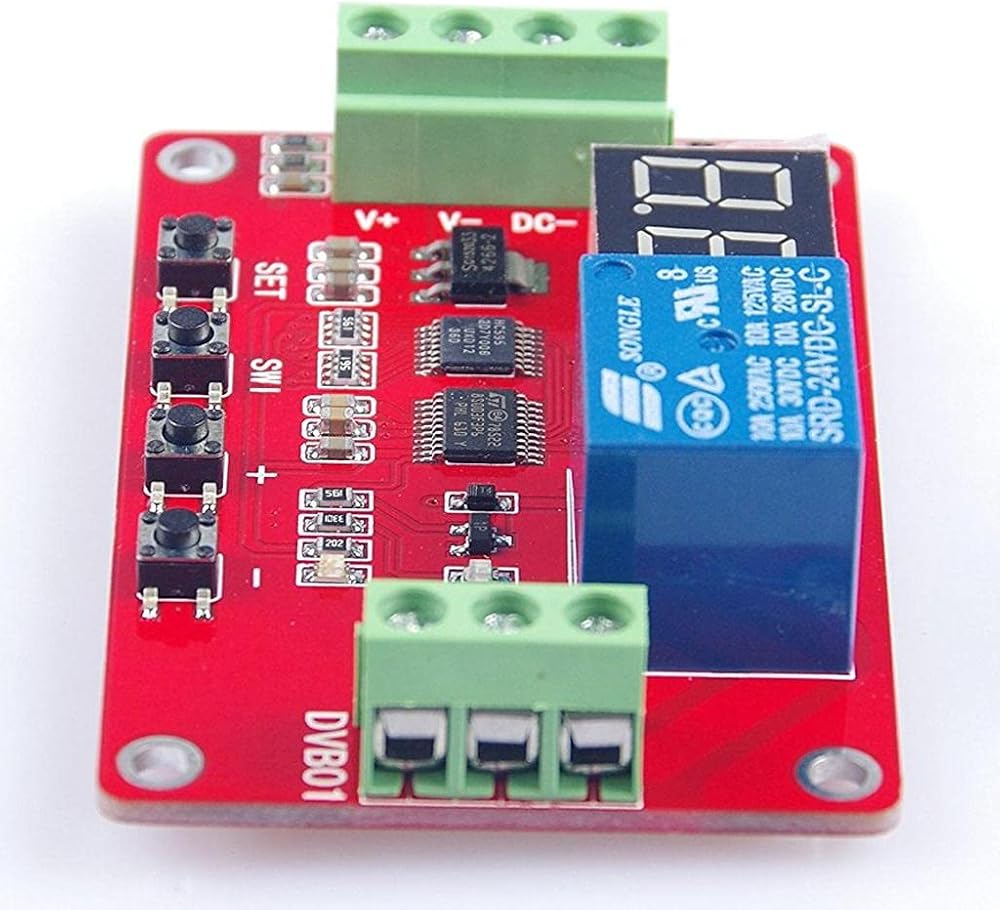

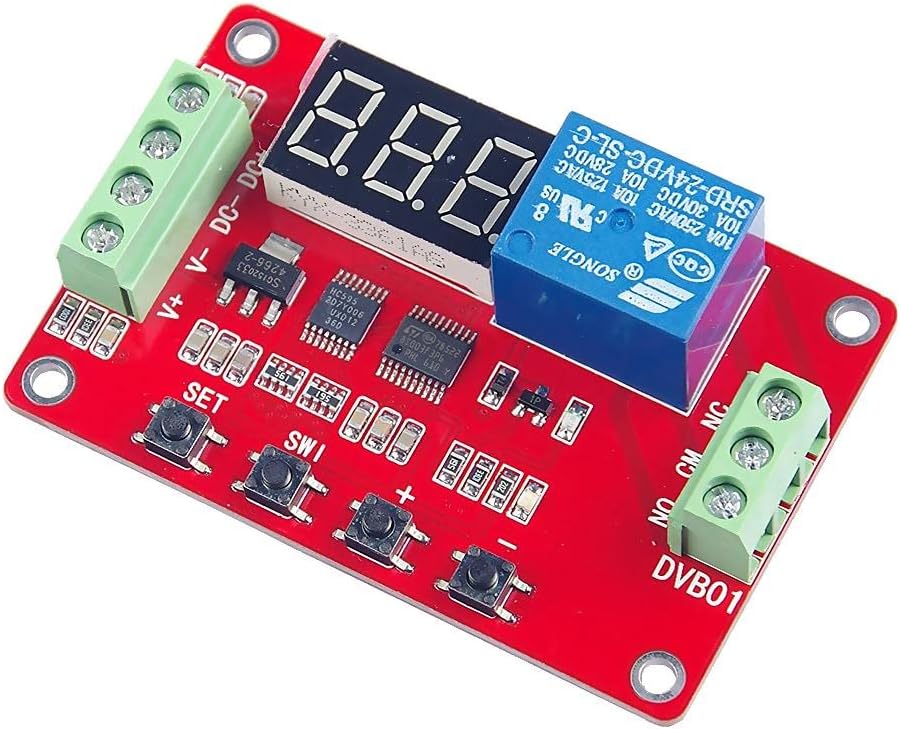

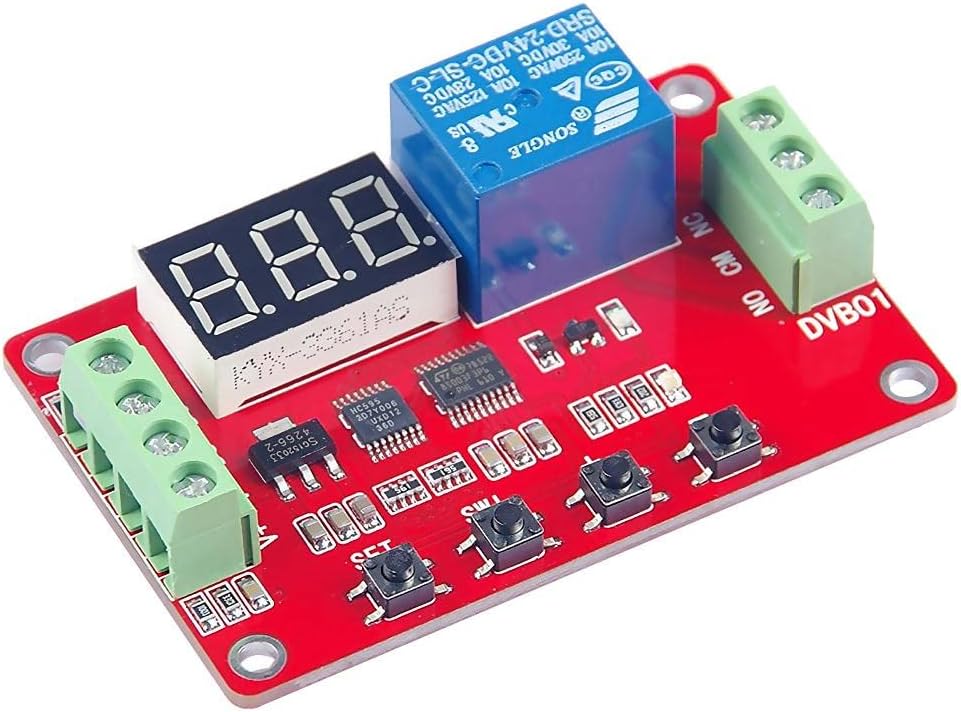

1 Piece of DVB01 Digital Display Measuring Module
