bearing
Bearing
Details

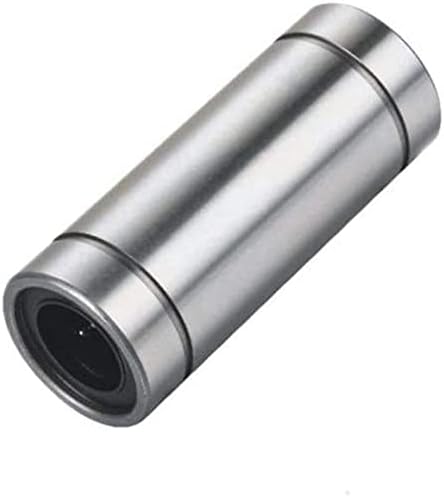

Model: LM25LUU
Ball circuit: 6
Inscribed circle Diameter: 25 mm
Out Diameter: 40 mm
Length: 112 mm
Dynamic Cr: 159 kgf
Static Cor: 320 kgf
Weight: 400 g
Grade: ABEC-5
Quantity: 1 Lot = 1 PC
Model: LM30LUU
Ball circuit: 6
Inscribed circle Diameter: 30 mm
Out Diameter: 45 mm
Length: 123 mm
Dynamic Cr: 254 kgf
Static Cor: 560 kgf
Weight: 472 g
Grade: ABEC-5
Quantity: 1 Lot =1 PC
Model: LM35LUU
Ball circuit: 6
Inscribed circle Diameter: 35 mm
Out Diameter: 52 mm
Length: 135 mm
Dynamic Cr: 270 kgf
Static Cor: 640 kgf
Weight: 708 g
Grade: ABEC-5
Quantity: 1 Lot = 1 PC
Model: LM40LUU
Ball circuit: 6
Inscribed circle Diameter: 40 mm
Out Diameter: 60 mm
Length: 151 mm
Dynamic Cr: 350 kgf
Static Cor: 820 kgf
Weight: 1090 g
Grade: ABEC-5
Quantity: 1 Lot = 1 PC
Model: LM50LUU
Ball circuit: 6
Inscribed circle Diameter: 50 mm
Out Diameter: 80 mm
Length:192 mm
Dynamic Cr: 620 kgf
Static Cor: 1622 kgf
Weight: 2800 g
Grade: ABEC-5
Quantity: 1 Lot = 1 PC
Model: LM60LUU
Ball circuit: 6
Inscribed circle Diameter: 60 mm
Out Diameter: 90 mm
Length: 209 mm
Dynamic Cr: 770 kgf
Static Cor: 2040 kgf
Weight: 3800 g
Grade: ABEC-5
Quantity: 1 Lot = 1 PC
Application
The nut uses high-carbon chromium bearing steel and its outer and inner surfaces are ground after being heat-treated.
The Linear Bushing is used in a broad array of applications, such as slide units of precision equip-ment including OA equipment and peripherals, measuring instruments, automatic recorders and dig-ital 3D measuring instruments, industrial machines including multi-spindle drilling machine, punching press, tool grinder, automatic gas cutting apparatus, printing machine, card selector and food pack-ing machine.
